SKU:

TM171OD14R

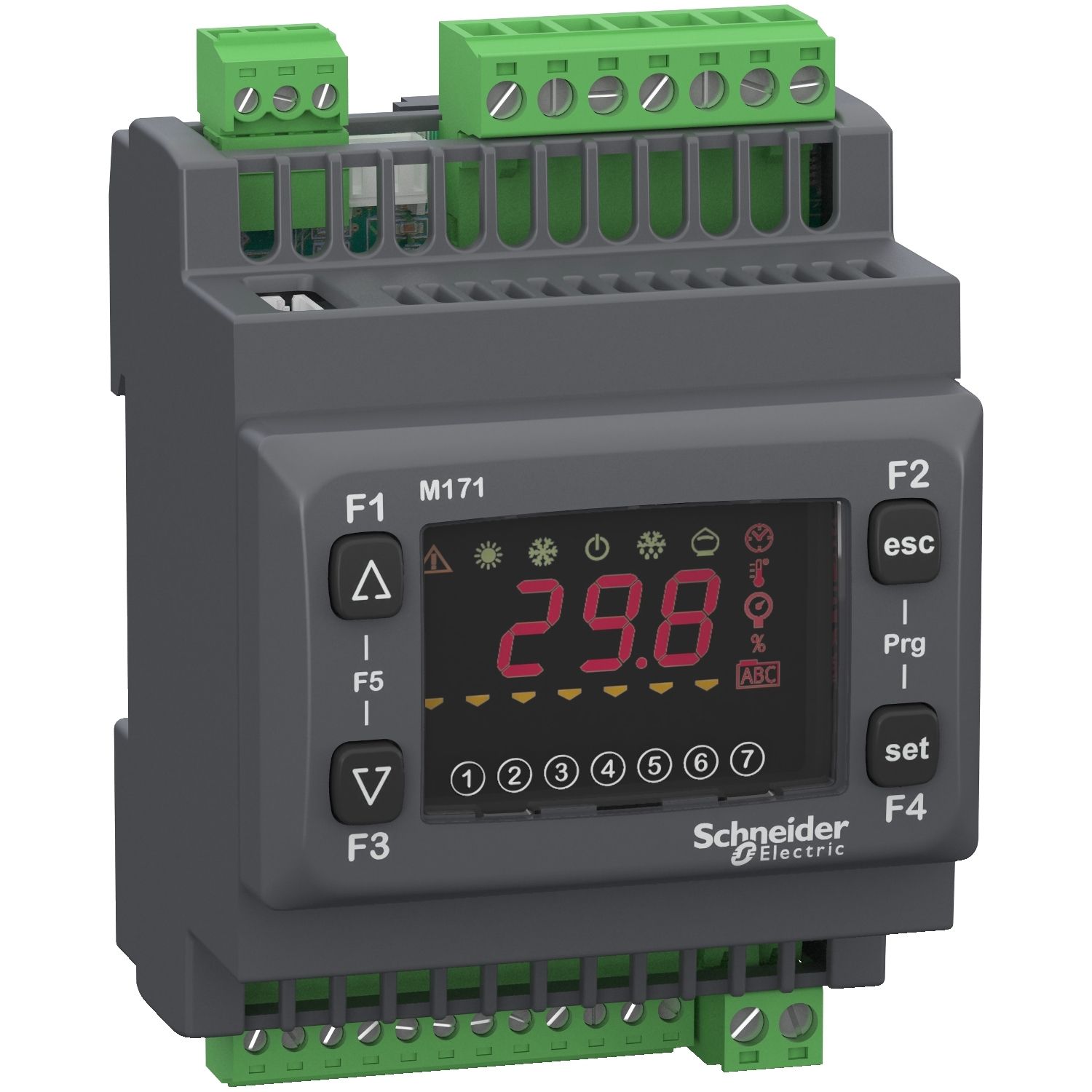

Modicon M171 Optimized Display 14 I/Os, 100-240Vac

$412.00 INC GST

Qty:

Available for Shipping : 09-Feb-2026

Modicon M171 Optimized Display 14 I/Os, 100-240Vac

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 09-Feb-2026

Brochure

Environmental Disclosure

Catalog

Circularity Profile

Instruction sheet

User guide

Product Page Link

Product Data Sheet

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 2 digital inputs, 5 configurable analog inputs, 4 digital outputs, 5 analog outputs, and a display. This programmable controller embeds 1 communication port for LAN expansion bus. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. DIs are open collectors, AIs are NTC, PT1000, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V. DOs are SPST or SPDT (2 A, 230Vac) with the same common, AOs are open collectors for 12V PWM/PPM, or 0-10V, 4-20mA. It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.190kg. This controller is designed for HVAC and pumping applications. It is certified by CE, CURus, CSA and EAC. It is compatible with screw terminal blocks, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	2 A for relay
Number of inputs/outputs	14
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	2
Analogue input number	3 analog input NTC, 2 configurable
Product or component type	controller
Variant	programmable
Discrete output number	1 for relay outputs SPDT with same common, 3 for relay outputs SPST with same common
Analogue output number	1 current, range: 0...20 mA/4...20 mA, 2 PWM/PPM, range: 20 kHz, 12 V, 35 mA, 2 voltage, range: 0...10 V
Complementary
Input/output number	5 analog input(s), 4 digital output(s), 5 analog output(s)
[Us] rated supply voltage	100...240 V
Height	87 mm
Discrete input logic	sink or source (positive/negative)
Depth	61.6 mm
Analogue input type	voltage 0...1 V, current 0...20 mA/4...20 mA, Pt 1000 temperature probe - 50...400 °C - resolution: 0.1 °C, NTC temperature probe - 50...100 °C - resolution: 0.1 °C, voltage 0...10 V, voltage 0...5 V (ratiometric)
Width	70.2 mm
Sensor power supply	12-12 V DC at 85 mA
Number of port	1 LAN expansion bus
Net weight	0.19 kg
Contacts usage	volt-free contacts
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.000 cm
Package 1 Width	9.000 cm
Package 1 Length	18.500 cm
Package 1 Weight	288.000 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.020 kg
