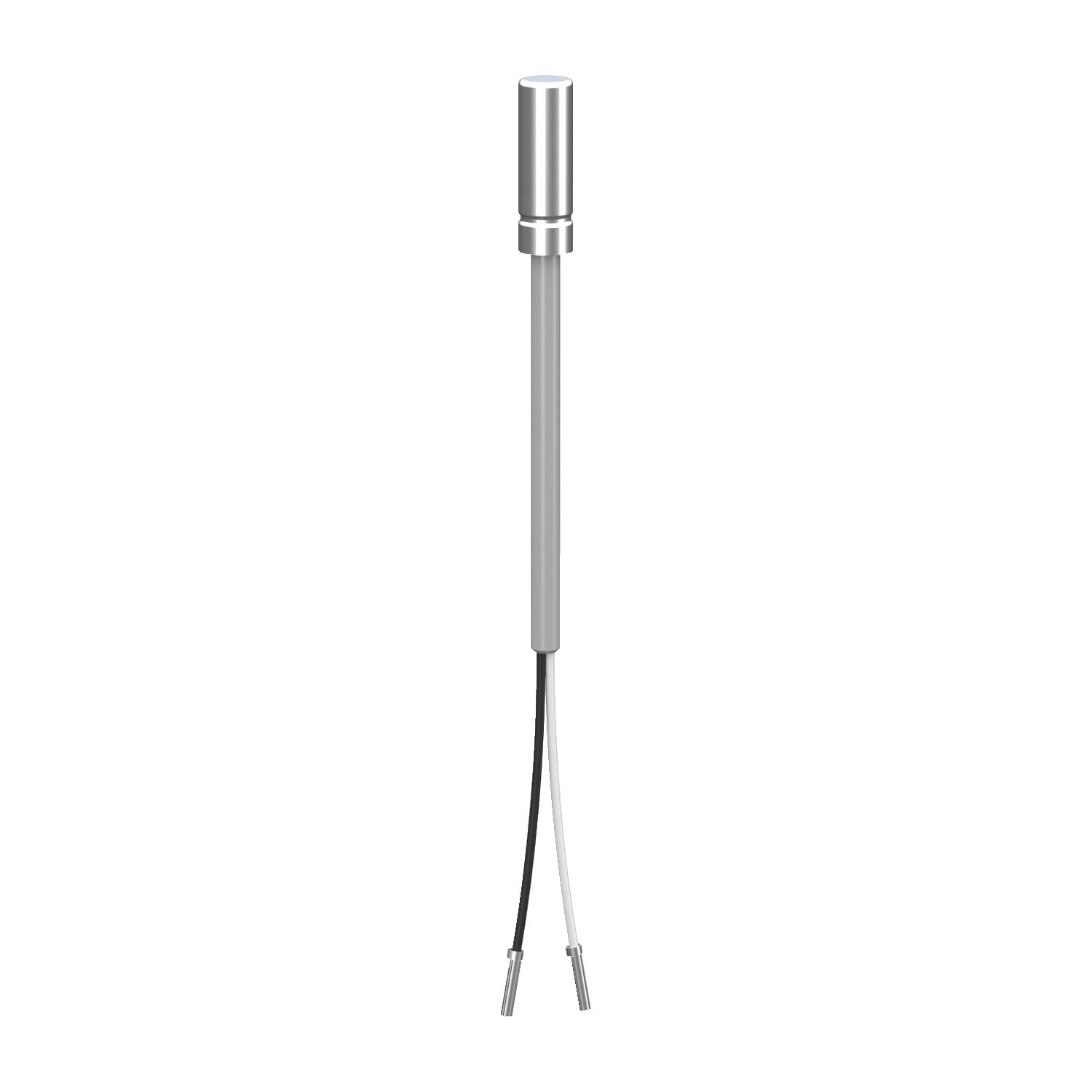

Picture of temperature sensor, Modicon M171 M172, NTC, 1.5m, IP68, 6 x 20, minus 50 to 110 degrees Celsius, grey
SKU:

TM1STNTCSN62015

temperature sensor, Modicon M171 M172, NTC, 1.5m, IP68, 6 x 20, minus 50 to 110 degrees Celsius, grey

$14.28 INC GST
Available for Shipping : 06-Jan-2026
temperature sensor, Modicon M171 M172, NTC, 1.5m, IP68, 6 x 20, minus 50 to 110 degrees Celsius, grey
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Brochure
User guide
Catalog
Product Page Link
Product Data Sheet
This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 50 to 110 degrees Celsius. This temperature probe has an IP 68 rate and is equipped with a 1.5-meter two-conductor cable. It is an NTC probe. It is furnished with 2-conductor cable for controller side for electrical connection. The cable measures 1.5m. It measures 20mm long, 6mm wide, and weighs 0.144/kg. It is made to control temperature in HVAC or Pumping Applications. It is sold in a 8-piece package. It has a clip-on fixing mode. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part category thermal management accessory
Range of product Modicon M171
Accessory / separate part type probe
Product specific application temperature control
Complementary
Height 6 mm
Temperature probe type NTC
Depth 1500 mm
Width 20 mm
Connections - terminals cable with wire end ferrule
Net weight 0.02 kg
Electrical connection 2 conductors cable for controller side
Fixing mode clip-on
Mounting support cables
Cable length 1.5 m (+/- 3 %)
Environment
IP degree of protection IP68
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 3.200 cm
Package 1 Length 10.000 cm
Package 1 Weight 18.000 g
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 3.500 cm
Package 2 Width 10.500 cm
Package 2 Length 14.000 cm
Package 2 Weight 151.000 g
Unit Type of Package 3 3
Number of Units in Package 3 112
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.272 kg
