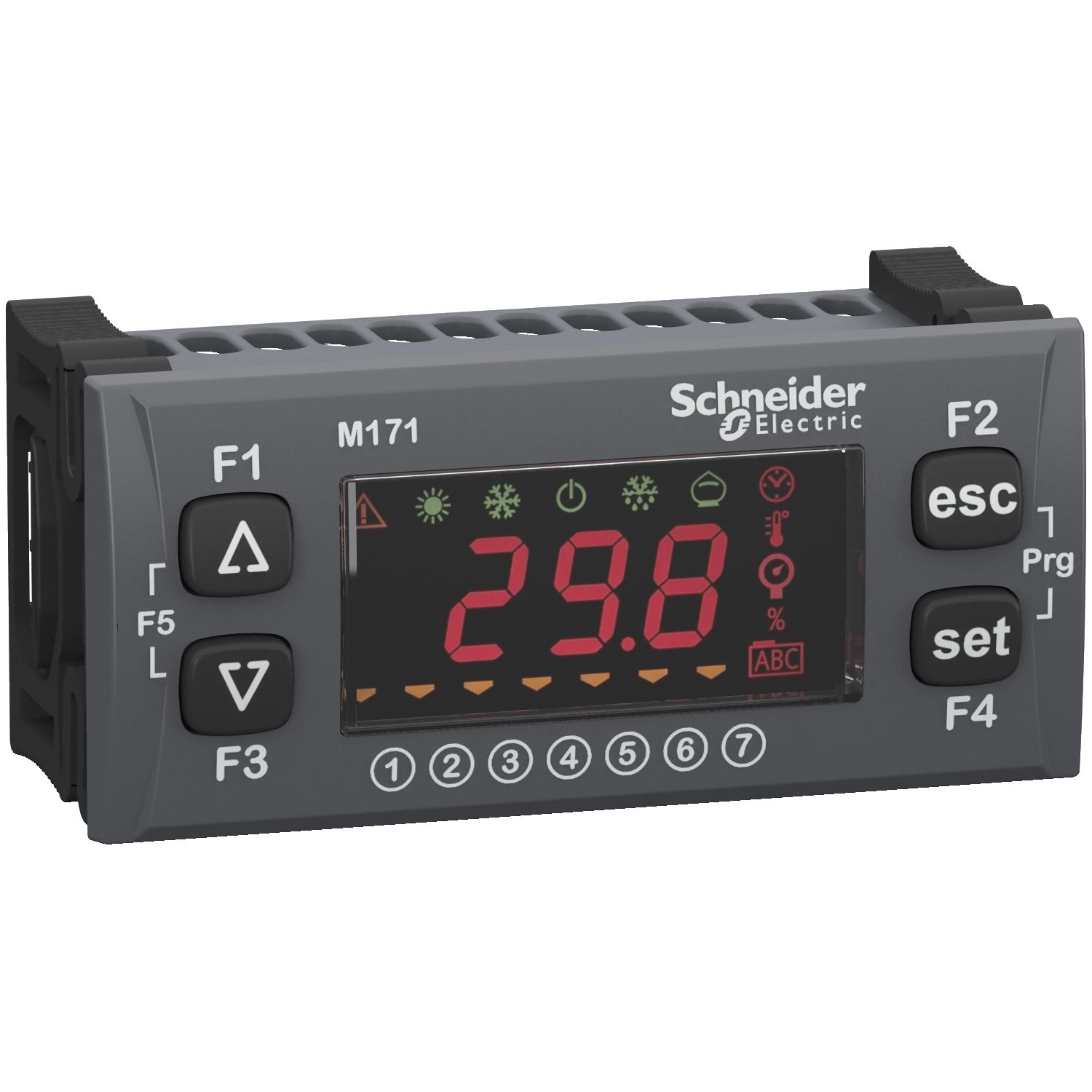

Picture of Modicon M171 Optimized Display LED
SKU:

TM171DLED

Modicon M171 Optimized Display LED

$148.83 INC GST
Available for Shipping : 22-Jan-2026
Modicon M171 Optimized Display LED
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Jan-2026
Brochure
Instruction sheet
User guide
Catalog
Product Page Link
Product Data Sheet
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This LCD display is an accessory to the M171 optimized controllers. It is a flush mounting displays with realtime clock. It is connected to the LAN expansion bus which provides its power supply. It figures a 7-button keyboard, and one Communication port for LAN expansion bus. Its rated supply voltage is 12VDC. It measures 74mm high, 32mm wide, and 30mm deep, and weighs 0.042kg. It allows remote control of the HVAC controller. It is certified by cURus. It is compatible with M171 optimized logic controllers. It is sold in a 1-piece package, including a LAN expansion bus connector. It is wall mounted, with 6 holes of 4.2 mm or 6x 2.7mm in diameter. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Display colour monochrome
Range of product Modicon M171
Product or component type display module
Supply external source
Complementary
Product compatibility logic controller M171 optimized
Display type 7 segments LED + decimal point
Number of key 8
Colour grey
[Us] rated supply voltage 12 V DC
Marking CE
Power consumption in W 0 W, 5 W
Height 74 mm
Depth 30 mm
Width 32 mm
Local signalling LED
Net weight 0.042 kg
Environment
IP degree of protection IP20
Product certifications cURus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 9.000 cm
Package 1 Length 12.700 cm
Package 1 Weight 129.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 835.000 g
