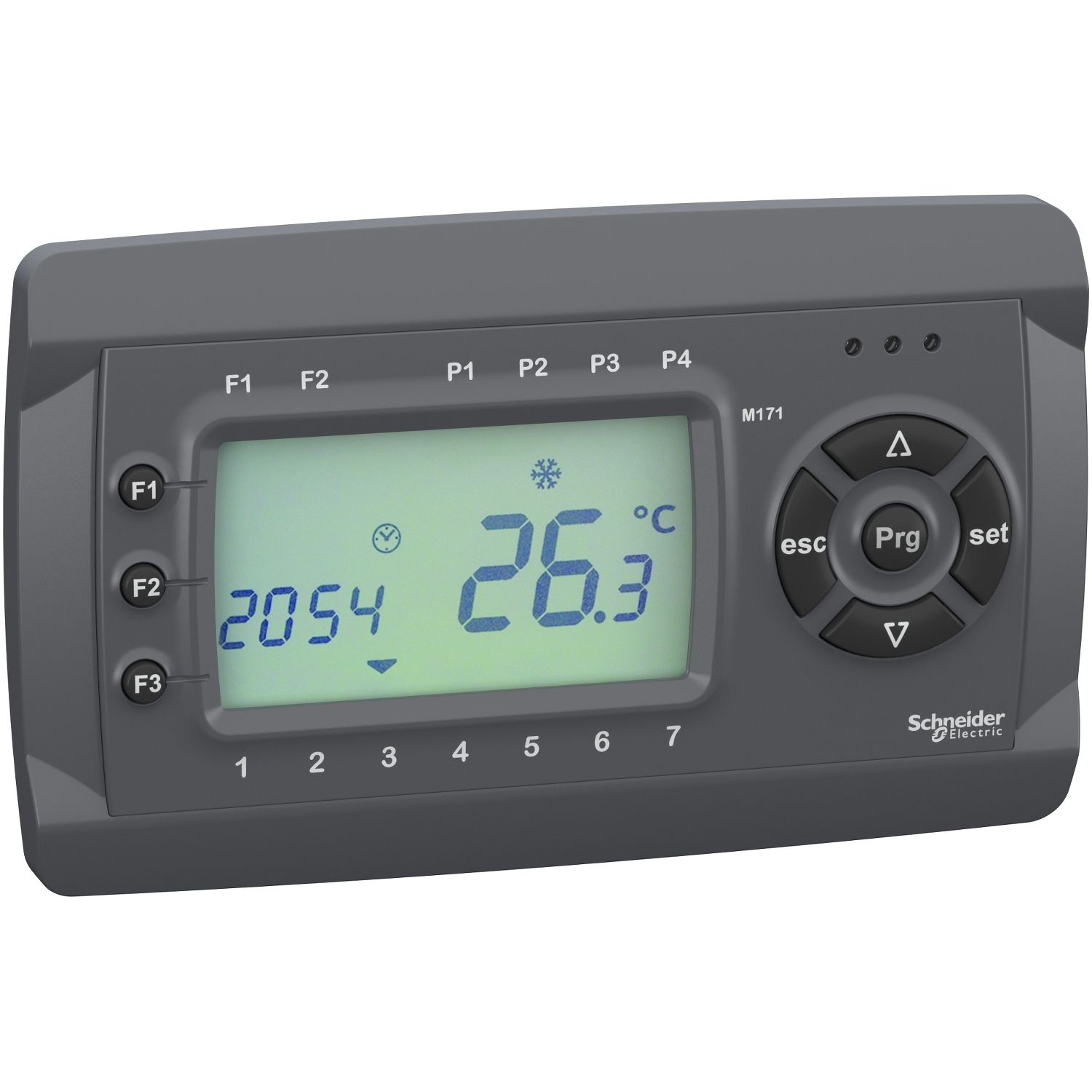

Picture of Modicon M171 Optimized Display LCD
SKU:

TM171DLCD2U

Modicon M171 Optimized Display LCD

$255.92 INC GST
Available for Shipping : 27-Jan-2026
Modicon M171 Optimized Display LCD
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 27-Jan-2026
Brochure
User guide
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This LED display is an accessory to the M171 optimized controllers. It is a flush mounting displays with realtime clock. It is connected to the LAN expansion bus which provides its power supply. It figures a 4-button keyboard, and one Communication port for LAN expansion bus. Its rated supply voltage is 12VDC. It measures 160mm high, 96mm wide, and 10mm deep, and weighs 0.170kg. It allows remote control of the HVAC controller. It is certified by CSA, EAC, RCM, CE, and cURus. It is compatible with M171 optimized logic controllers. It is sold in a 1-piece package, including a LAN expansion bus connector. It is wall mounted, with 6 holes of 4.2 mm or 6x 2.7mm in diameter. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Display colour monochrome
Range of product Modicon M171
Product or component type display module
Supply external source
Complementary
Product compatibility logic controller M171 optimized
Display type LCD screen
Number of key 8
Colour grey
[Us] rated supply voltage 12 V DC
Marking CE
Power consumption in W 0 W, 5 W
Height 160 mm
Depth 10 mm
Realtime clock with clock
Width 96 mm
Local signalling LCD display
Net weight 0.017 kg
Environment
IP degree of protection IP40 front face:
Standards UL94 (material V0), IEC 60730-2-9, CSA E60730-2-9, IEC 61000-4-6, IEC 61000-4-11, CAN/CSA-E60730-1, IEC 61000-4-4, UL 60730-2-9, UL 60730-1, IEC 60068-2-6 Fc, IEC 60730-1, IEC 60068-2-27, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-5
Product certifications cURus, CE, RCM, EAC, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.000 cm
Package 1 Width 9.100 cm
Package 1 Length 18.500 cm
Package 1 Weight 267.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.879 kg
