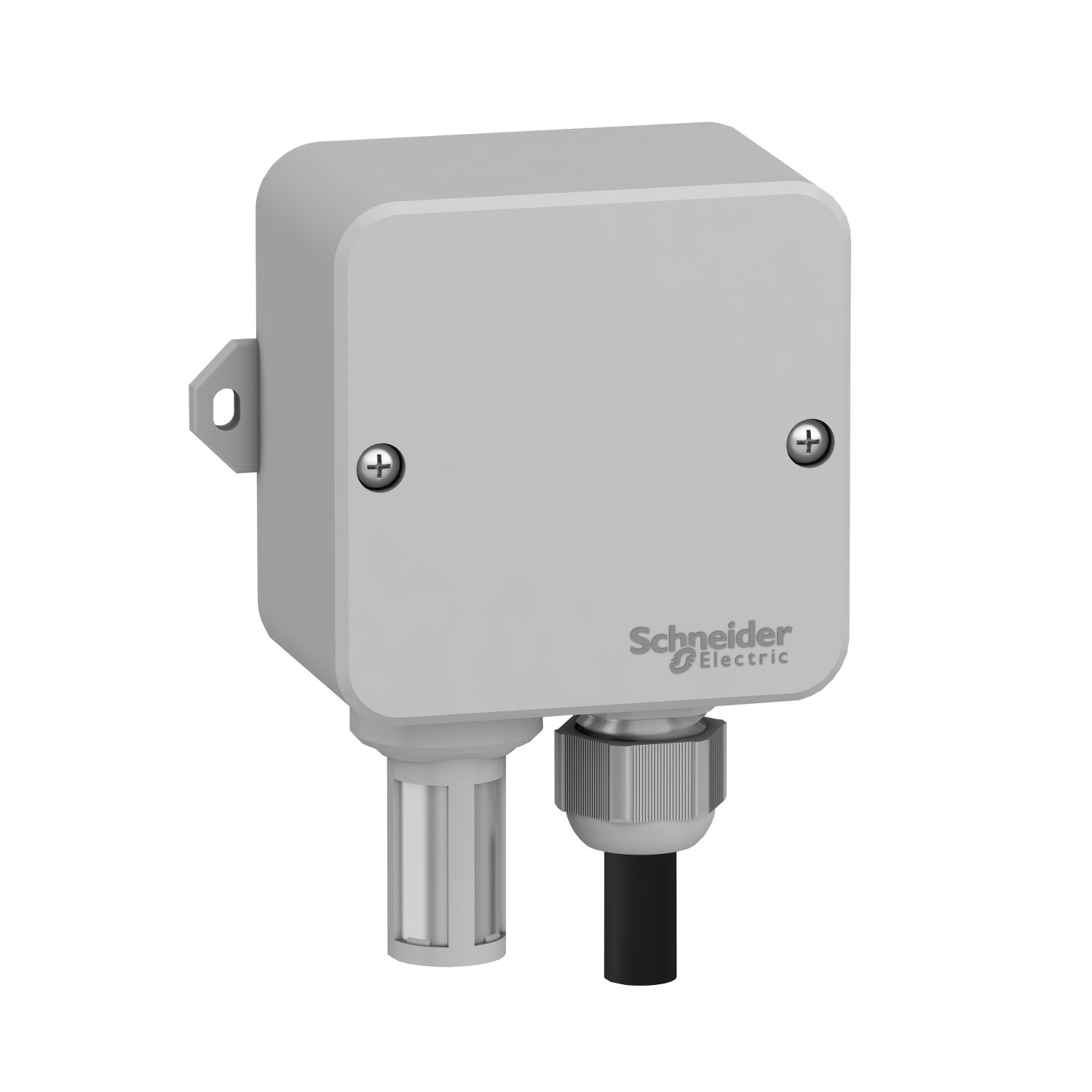

Picture of Humidity and Temperature sensor, 4-20 mA
SKU:

TM1SHTCC4

Humidity and Temperature sensor, 4-20 mA

$824.01 INC GST
Available for Shipping : 11-Mar-2026
Humidity and Temperature sensor, 4-20 mA
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 11-Mar-2026
Brochure
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
This measurement accessory is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This probe controls the temperature level from minus 40 to 60 degrees Celsius and humidity level from 0 to 100 percent. This temperature and humidity probe has an IP 65 rate. It is an outdoor wall-mounting probe. It has one 4-20mA output (humidity) and one 4-20mA output (temperature). Its rated supply voltage is 9 to 28VAC or 9 to 40VDC. Its maximum power consumption is 50mA. It measures 100mm high, 122mm wide, and 50.5mm deep, and weighs 0.140kg. It is made to control both temperature and humidity in HVAC or Pumping Applications. It is sold in a 1- or 24-piece package. It is suitable for panel mounting with 2x diameter4.2mm hole and 89.6mm center distance. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part category measurement accessory
Range of product Modicon M171/M172
Accessory / separate part type probe
Complementary
[Us] rated supply voltage 9...40 V DC, 9...28 V AC
Output type current 4...20 mA -40-60 °C +/- 1 °C, current 4...20 mA +/- 3 % RH
Height 122 mm
Depth 50.5 mm
Width 100 mm
Product specific application humidity control
Average consumption in mA 50 mA
Net weight 0.14 kg
Electrical connection screw-clamp terminals
Fixing mode 2 fixing points
Mounting support mounting box
Device mounting wall mounted
Environment
IP degree of protection IP65
Ambient air temperature for storage -40-70 °C
Relative humidity 0-100 %
Pollution degree 2
Ambient air temperature for operation -40-60 °C
Overvoltage category I
Product certifications UKCA, EAC, cULus, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.5 cm
Package 1 Width 11.5 cm
Package 1 Length 14.5 cm
Package 1 Weight 250.0 g
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.346 kg
