SKU:

ATV630U40Y6

variable speed drive, Altivar Process ATV600, ATV630, 4kW, 5hp, 500 to 690V, IP00

Old price: $3,856.60 INC GST

Price: $2,950.30 INC GST

Qty:

Available for Shipping : 03-Mar-2026

Product Selector

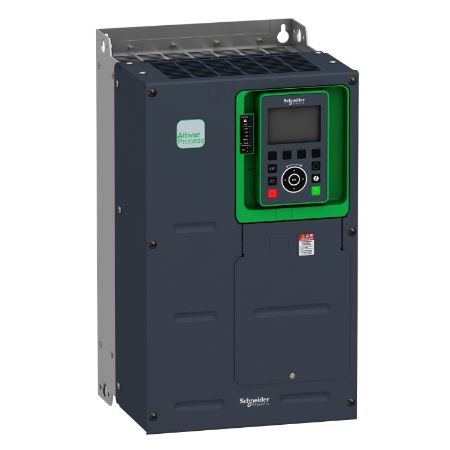

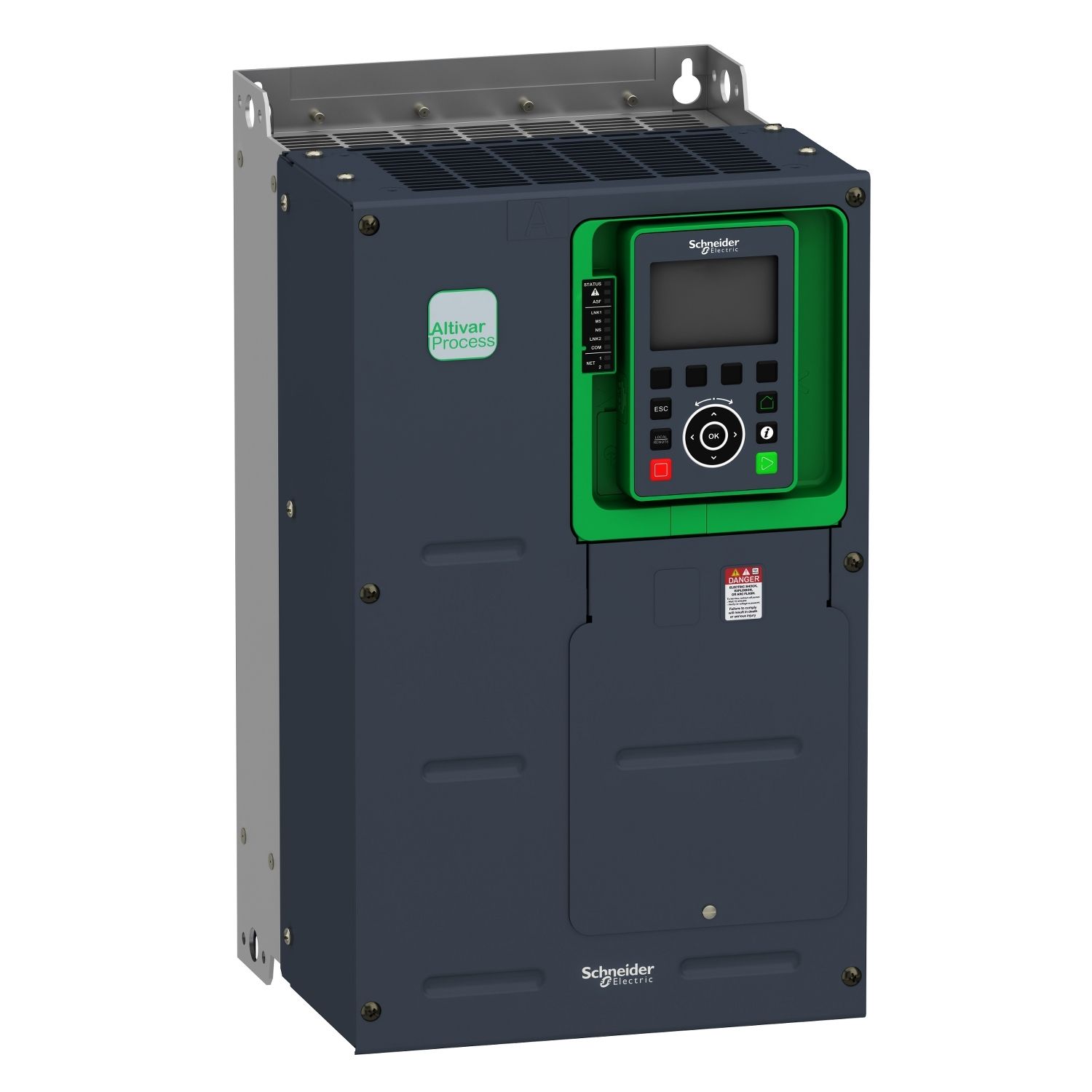

variable speed drive, Altivar Process ATV600, ATV630, 4kW, 5hp, 500 to 690V, IP00

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 03-Mar-2026

Environmental Disclosure

User guide

Declaration of conformity

Circularity Profile

Instruction sheet

Catalog

Product Page Link

Product Data Sheet

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 4kW/5HP (500V supply voltage) for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 3kW (500V supply voltage) for applications requiring significant overload (up to 150%). Its dimensions are 246mm (width) x 242mm (depth) x 420mm (height). It weighs 22kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Products specifications

Attribute name	Attribute value
Main
Synchronous motor control profile	synchronous reluctance motor, permanent magnet motor
Continuous output current	5.4 A at 4 kHz for normal duty, 4.2 A at 4 kHz for heavy duty
Type of cooling	forced convection
[Us] rated supply voltage	500...690 V - 15...10 %, 500...690 V
Safety function	STO (safe torque off) SIL 3
Product specific application	process and utilities
Communication port protocol	Ethernet, Modbus serial, Modbus TCP
Switching frequency	4...8 kHz with derating factor, 2...8 kHz adjustable
Apparent power	5.7 kVA at 690 V (heavy duty), 7.3 kVA at 690 V (normal duty)
Variant	standard version
Asynchronous motor control profile	optimized torque mode, constant torque standard, variable torque standard
Line current	4.8 A at 690 V (heavy duty), 4.7 A at 500 V (heavy duty), 6.1 A at 690 V (normal duty), 6.2 A at 500 V (normal duty)
Prospective line Isc	70 kA
Device short name	ATV630
Nominal switching frequency	4 kHz
Discrete input logic	16 preset speeds
Motor power kW	3 kW at 690 V (heavy duty), 4 kW at 690 V (normal duty), 2.2 kW at 500 V (heavy duty), 3 kW at 500 V (normal duty)
IP degree of protection	IP20 (with kit VW3A9705) conforming to IEC 60529, IP20 (with kit VW3A9705) conforming to IEC 61800-5-1, IP00 conforming to IEC 60529, IP00 conforming to IEC 61800-5-1
Speed drive output frequency	0.1-500 Hz
Range of product	Altivar Process ATV600
Option card	communication module, Ethernet Powerlink, communication module, BACnet MS/TP, slot A: communication module, Ethernet IP/Modbus TCP/MD-Link, slot A/slot B: output relay extension module, slot A/slot B: digital and analog I/O extension module, slot A: communication module, CANopen screw terminals, slot A: communication module, CANopen SUB-D 9, slot A: communication module, CANopen daisy chain RJ45, slot A: communication module, Modbus TCP/EtherNet/IP, slot A: communication module, DeviceNet, slot A: communication module, PROFINET, slot A: communication module, Profibus DP V1
Supply frequency	50...60 Hz - 5...5 %
Motor power hp	5 hp at 690 V normal duty, 3 hp at 500 V normal duty
Product or component type	variable speed drive
EMC filter	integrated with 25 m conforming to IEC 61800-3 category C3
Product destination	synchronous motors, asynchronous motors
Complementary
Maximum deflection under vibratory load (during storage)	1.5 mm at 2...13 Hz
Braking to standstill	by DC injection
Capacity of DC link	800.0 µF
Supporting protocol for SUCONET	False
Quantity per set	1
Output voltage	<= power supply voltage
Brake chopper integrated	False
Isolation	between power and control terminals
Enclosure mounting	wall mounted
Supporting protocol for DeviceNet	False
Minimum switching current	relay output R1, R2, R3: 5 mA at 24 V DC
Physical interface	2-wire RS 485, Ethernet
Operating element present	True
Supporting protocol for PROFINET IO	True
Supporting protocol for Data-Highway	False
Number of HW interfaces serial RS232	0
Maximum acceleration under vibratory load (during storage)	10 m/s² at 13...200 Hz
Accuracy	+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output, +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
Number of HW interfaces serial RS485	1
Supporting protocol for PROFIBUS	True
Data format	8 bits, configurable odd, even or no parity
With safety function Safe torque off (STO)	True
Relay output number	3
With safety function Safe Speed Monitor (SSM)	False
Supporting protocol for SafetyBUS P	False
Supporting protocol for AS-Interface Safety at Work	False
Maximum acceleration under shock impact (during operation)	150 m/s² at 11 ms
Acceleration and deceleration ramps	S, U or customized, linear adjustable separately from 0.01...9999 s
Height	420 mm
Maximum acceleration under shock load (during transport)	150 m/s² at 11 ms
Maximum acceleration under vibratory load (during transport)	10 m/s² at 13...200 Hz
Number of HW interfaces serial RS422	0
Optical interface present	False
Supporting protocol for TCP/IP	True
Supporting protocol for Foundation Fieldbus	False
Sampling duration	10 ms +/- 1 ms (AO1) - analog output, 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms (DI5, DI6) - discrete input, 2 ms +/- 0.5 ms (DI1...DI4) - discrete input
Environmental class (during storage)	class 1S2 according to EN 60721-3-1, class 1C3 according to EN 60721-3-1
Supporting protocol for PROFIsafe	False
Number of output phases	3
Analogue input type	AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits, AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits
Design of frequency changer	U converter
With safety function Safe Stop 1 (SS1)	False
With sft fct Safe Stop 2 (SS2)	False
Housing material	sheet steel
Supporting protocol for LON	False
Supporting protocol for BACnet	False
Nominal output current	5.4 A
Discrete input number	8
Permitted relative humidity (during operation)	class 3K5 according to EN 60721-3
With safety function Safe Operating Stop (SOS)	False
Method of access	slave Modbus TCP
With safety function Safely Limited Position (SLP)	False
With safety function Safe Position (SP)	False
Supporting protocol for DeviceNet Safety	False
Discrete output number	0
Supporting protocol for MODBUS	True
Analogue input number	3
Permitted relative humidity (during storage)	class 1K5 according to EN 60721-3
Frequency resolution	analog input: 0.012/50 Hz, display unit: 0.1 Hz
With safety function Safe Direction (SDI)	False
Net weight	22 kg
EMC limit value (complied)	True
IP degree of protection	IP21
Relative symmetric network frequency tolerance	5 %
Maximum deflection under vibratory load (during transport)	1.5 mm at 2...13 Hz
Supporting protocol for INTERBUS	False
Discrete output type	relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA, relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA
Maximum deflection under vibratory load (during operation)	1.5 mm at 2...13 Hz
Analogue output type	software-configurable current DQ-, DQ+: 100 mA, software-configurable current DQ-, DQ+: 30 V DC, software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits, software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Discrete input logic	negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1), positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1)
Ambient air transport temperature	-40-70 °C
With safety function Safely Limited Speed (SLS)	False
Number of HW interfaces other	0
Supply	internal supply for digital inputs and STO: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection, internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection, external supply for digital inputs: 24 V DC (19-30 V), <1.25 mA, protection type: overload and short-circuit protection
Number of HW interfaces serial TTY	0
Protection type	break on the control circuit: drive, overspeed: drive, line supply phase loss: drive, line supply undervoltage: drive, line supply overvoltage: drive, overvoltages on the DC bus: drive, motor phase break: drive, short-circuit protection: drive, overload of output voltage: drive, overcurrent between output phases and earth: drive, overheating: drive, safe torque off: drive, thermal protection: drive, motor phase break: motor, safe torque off: motor, thermal protection: motor
Discrete input type	DI7, DI8 programmable as pulse input: 0-30 kHz, 24 V DC (<= 30 V)
Maximum acceleration under shock load (during storage)	150 m/s² at 11 ms
Power loss static current independent	41.0 W
With safety function Safe programmable logic	False
Number of inputs, bidirectional, not potential-free	0
Number of inputs, potential-free	0
Supporting protocol for EtherNet/IP	True
Refresh time	relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Analogue output number	2
Permitted relative humidity (during transport)	class 2K5 according to EN 60721-3
Mounting mode	wall mount
Permissible temporary current boost	1.5 x In during 60 s (heavy duty), 1.1 x In during 60 s (normal duty)
Input compatibility	STOA, STOB: discrete input level 1 PLC conforming to IEC 61131-2, DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68, DI1...DI6: discrete input level 1 PLC conforming to IEC 61131-2
Connector type	RJ45 (on the remote graphic terminal) for Modbus serial, RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP
Maximum acceleration under vibrational stress (during operation)	10 m/s² at 13...200 Hz
Supporting protocol for PROFINET CBA	True
Base load current at low overload	5.4 A
Supporting protocol for ASI	False
Number of HW interfaces USB	0
Environmental class (during transport)	class 2S1 according to EN 60721-3-2, class 2C3 according to EN 60721-3-2
Supporting protocol for SERCOS	False
Transmission frame	RTU
Base load current at high overload	4.2 A
Maximum output voltage	690.0 V
With safety function Safe brake management (SBC/SBT)	False
Maximum output frequency	500 kHz
Electrical connection	line side: screw terminal 4...10 mm²/AWG 12...AWG 8, motor: screw terminal 4...10 mm²/AWG 12...AWG 8, control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16
Supporting protocol for other bus systems	False
Environmental class (during operation)	class 3S3 according to IEC 60721-3-3, class 3C3 according to IEC 60721-3-3
Computer port	True
Application in industrial area permitted	True
Depth	242 mm
Supporting protocol for KNX	False
Transmission rate	4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 10, 100 Mbits
Width	246 mm
Number of input phases	3
Number of addresses	1-247 for Modbus serial
Linearity error	AO1, AO2: +/- 0.2 % for analog output, AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
Number of HW interfaces parallel	0
Local signalling	1 LED (red) for presence of voltage, 4 LEDs (dual colour) for communication module status, 3 LEDs (dual colour) for embedded communication status, 3 LEDs for local diagnostic
Power loss per device current dependent	146.0 W
Motor slip compensation	not available in permanent magnet motor law, adjustable, can be suppressed, automatic whatever the load
Application in domestic and commercial area permitted	False
Supporting protocol for CAN	True
Maximum transient current	5.9 A during 60 s (normal duty), 6.3 A during 60 s (heavy duty)
1 phase low current possible	False
Relay output type	configurable relay logic R3: sequence relay NO electrical durability 100000 cycles, configurable relay logic R2: sequence relay NO electrical durability 100000 cycles, configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Type of polarization	no impedance
Network number of phases	3 phases
Maximum associated fuse rating	10.0 A
Nominal output power	4.0 kW
Relative symmetric mains voltage tolerance	10 %
Supporting protocol for INTERBUS-Safety	False
Exchange mode	half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
4 quadrant operation possible	False
Maximum switching current	relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC, relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 30 V DC, relay output R1, R2, R3 on resistive load, cos phi = 1 : 3 A at 250 V AC
Number of HW interfaces industrial Ethernet	1
Number of HW interfaces PROFINET	0
Network frequency	50...60 Hz
Environment
Maximum THDI	<48 % with external line choke conforming to IEC 61000-3-12
Operating position	vertical +/- 10 degree
Relative humidity	5-95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for storage	-40-70 °C
NEMA degree of protection	NEMA 1
Volume of cooling air	330 m3/h
Standards	IEC 13849-1, IEC 61508, IEC 60721-3, IEC 61000-3-12, IEC 61800-5-1, environment 2 category C3 IEC 61800-3, IEC 61800-3, UL 508C, EN/IEC 61800-3 environment 2 category C3
Overvoltage category	III
Operating altitude	1000...4800 m with current derating 1 % per 100 m, <= 1000 m without derating
Product certifications	TÜV, UL, CSA
Pollution degree	2 conforming to IEC 61800-5-1, 2
Noise level	58 dB, 52 dB conforming to 86/188/EEC
Marking	CE
Ambient air temperature for operation	50-60 °C (with derating factor), -15-50 °C (without derating), -15-60 °C
Electromagnetic compatibility	conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Regulation loop	adjustable PID regulator
Vibration resistance	1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to IEC 60068-2-27
Insulation resistance	> 1 MOhm 500 V DC for 1 minute to earth
Power dissipation in W	forced convection: 75 W at 500 V, switching frequency 4 kHz, natural convection: 78 W at 500 V, switching frequency 4 kHz

Maximum input current	6.2 A
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	48.000 cm
Package 1 Width	40.000 cm
Package 1 Length	80.000 cm
Package 1 Weight	31.000 kg
