SKU:

VW3A3627

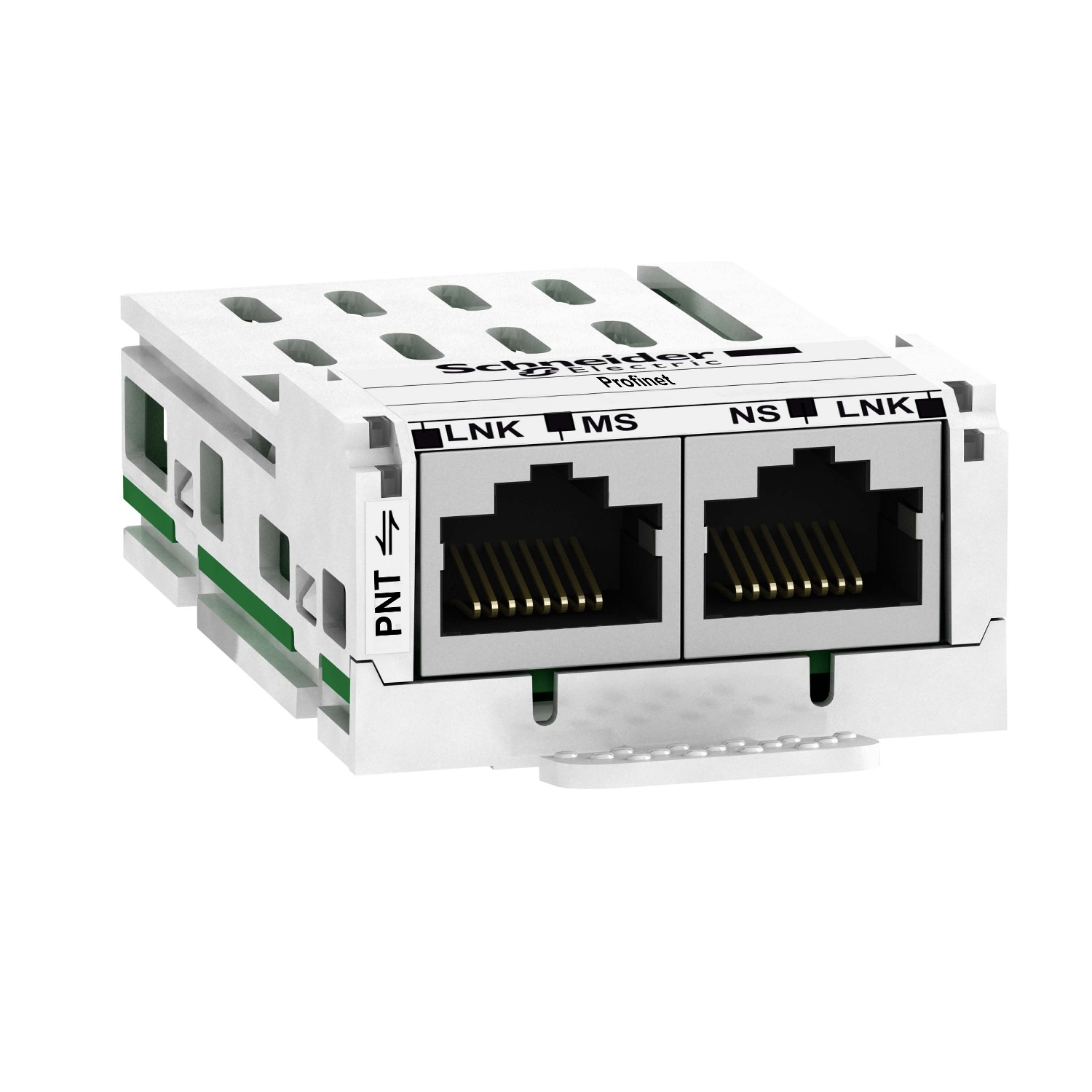

communication module Profinet, Altivar, 100Mbits, 2 x RJ45 connectors

$466.19
Available for Shipping : 10-Oct-2024
communication module Profinet, Altivar, 100Mbits, 2 x RJ45 connectors
Manufacturer: Schneider Electric
This Altivar Profinet communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Process ATV600 (ATV630, ATV650), Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV320, Altivar 32 and Altivar Machine ATV340. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.

Products specifications

Attribute name Attribute value
Main
Range of product Altivar
Product or component type communication module
Complementary
Range compatibility Altivar Process ATV900, Altivar Process Modular, Altivar 32, Altivar Machine ATV320, Altivar Machine ATV340 except Sercos drives, Altivar Process ATV600
Display type 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status)
Transmission rate 100 Mbits
Communication port protocol PROFINET, Link Layer Discovery Protocol
Net weight 0.3 kg
Electrical connection 2 connectors RJ45, Ethernet
Bus profile PROFIdrive
Environment
Standards IEC 61800-7-201 (CiA 402)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.600 cm
Package 1 Width 6.500 cm
Package 1 Length 8.900 cm
Package 1 Weight 63.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.700 kg
