SKU:

VW3A3609

Altivar 32, Devicenet communication module

$446.03
Available for Shipping : 10-Oct-2024

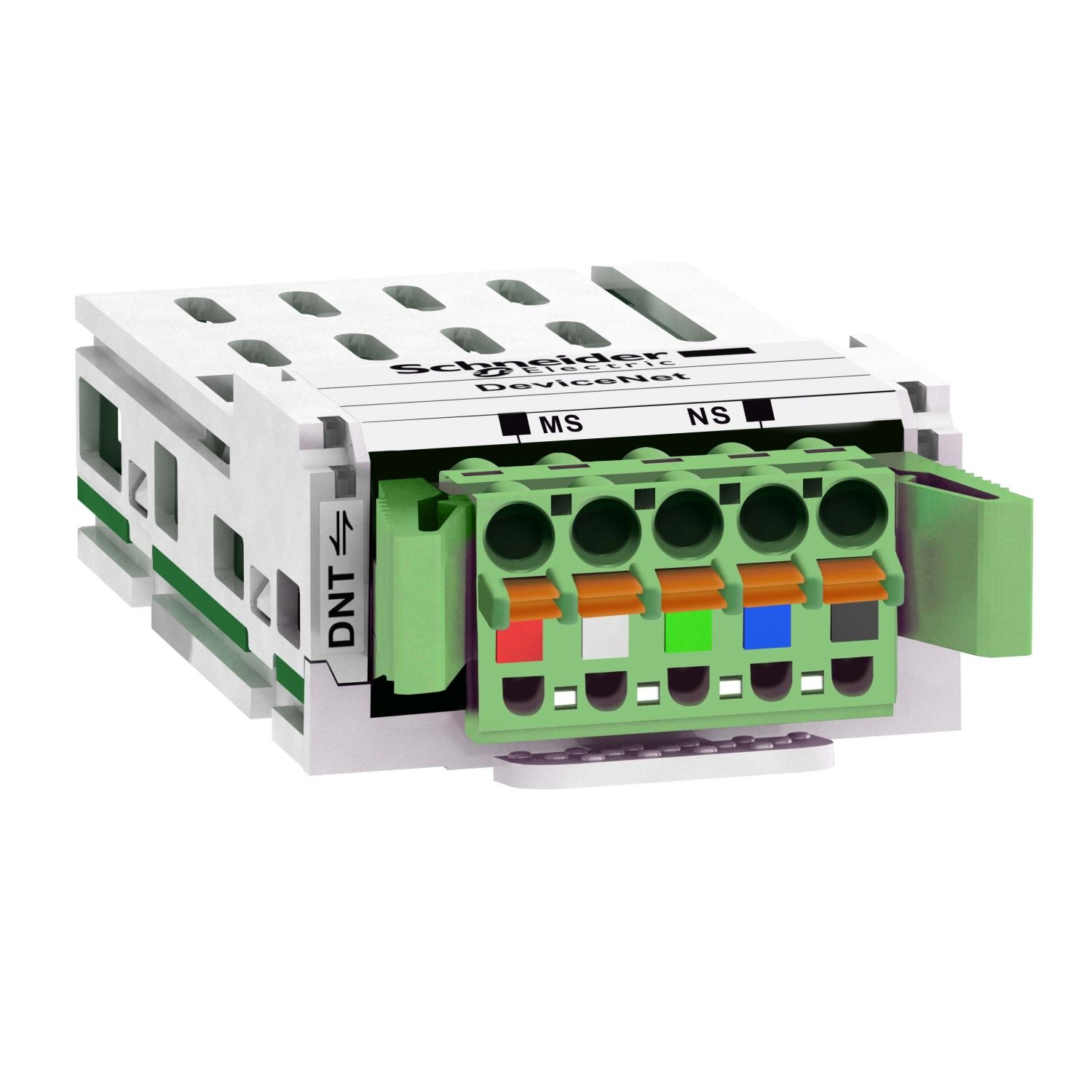

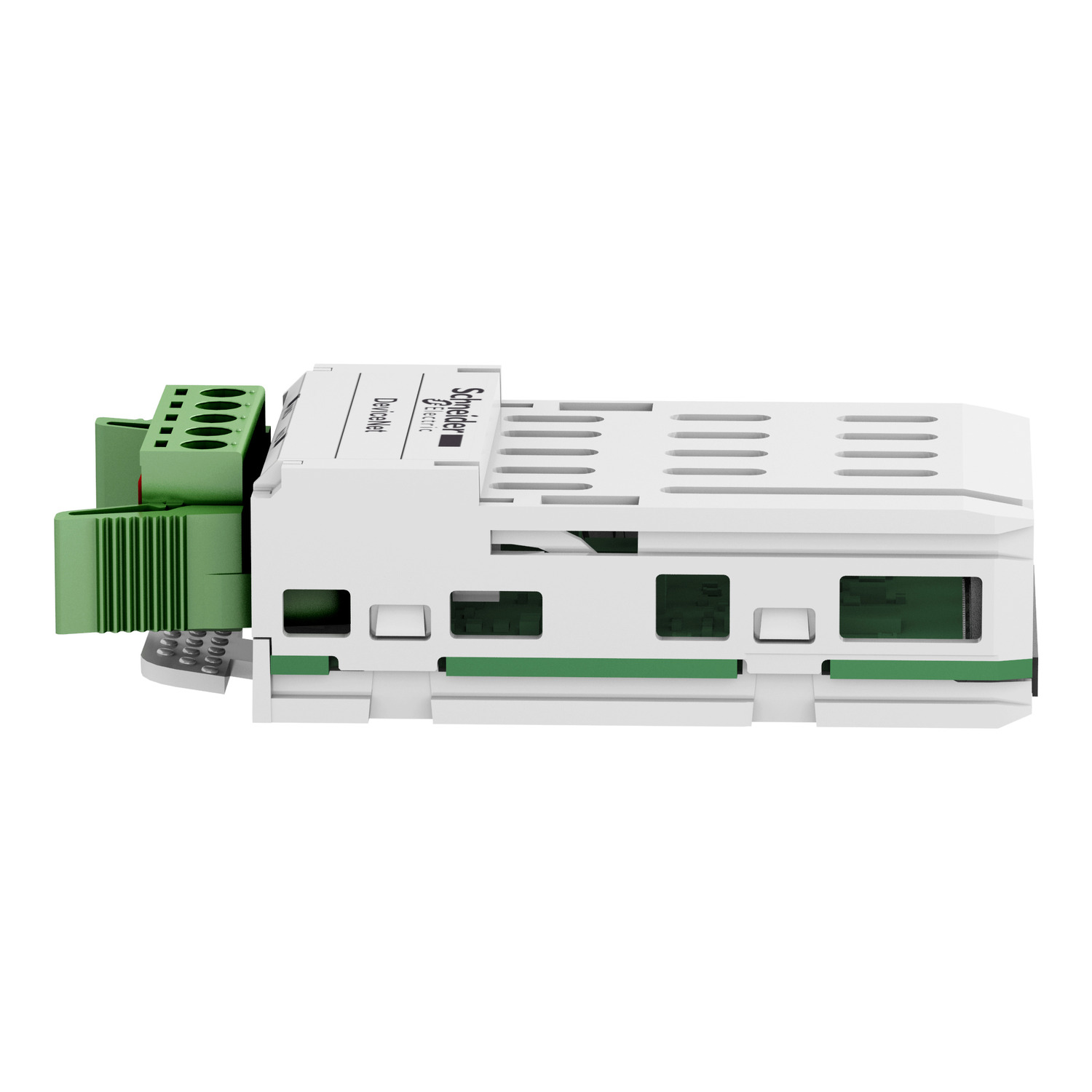

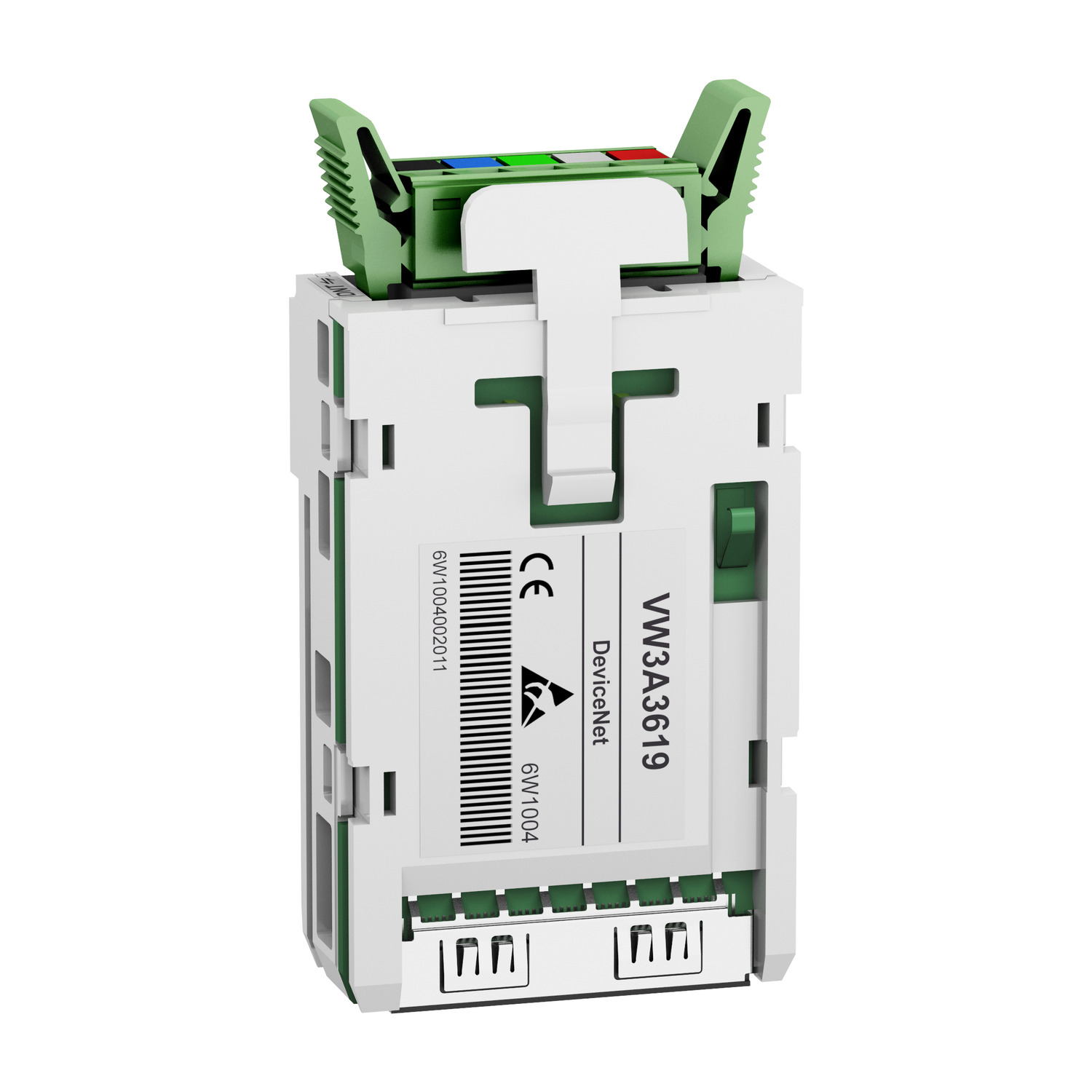

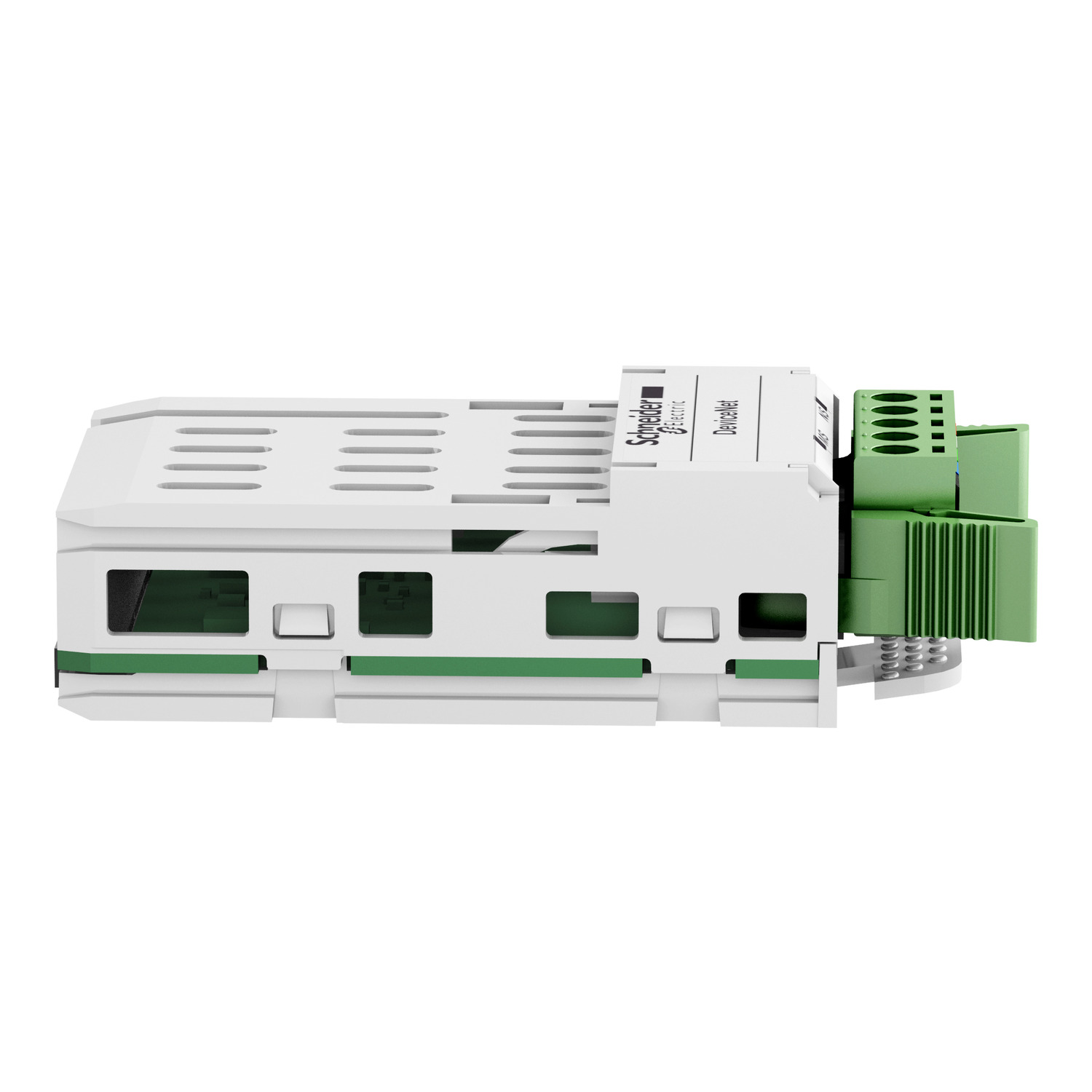

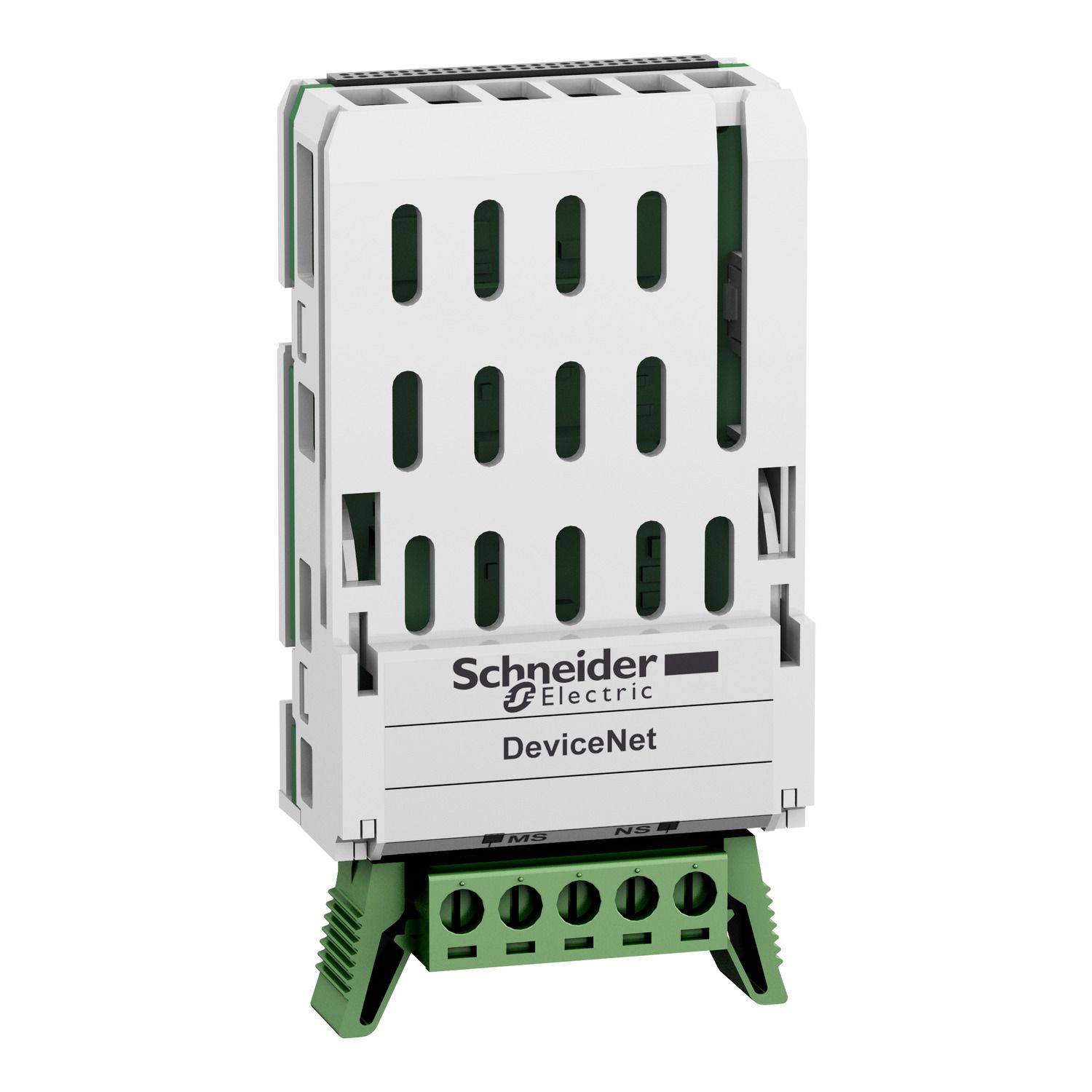

Altivar 32, Devicenet communication module
Manufacturer: Schneider Electric
This DeviceNet communication module is an option for variable speed drives of Altivar range. It is equipped with a 5-way removable screw connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 300g.

Products specifications

Attribute name Attribute value
Main
Product or component type communication module
Range of product Altivar
Complementary
Transmission rate 125 kbps, 250 kbps and 500 kbps configurable

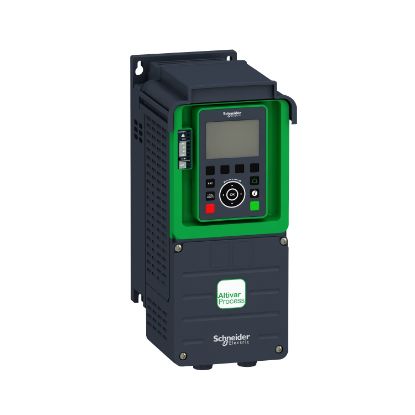

Range compatibility Altivar Machine ATV320, Altivar Process ATV900, Altivar Machine ATV340 except Sercos drives, Altivar Process ATV600, Altivar 32, Altivar Process Modular
Display type 1 LED for NS (Network Status), 1 LED for MS (Module Status)
Communication port protocol DeviceNet
Communication service communication monitoring time out adjustable by DeviceNet configurator, auto device replacement, ODVA AC drive and CiA 402 profile, outputs : polled, inputs : polled, change of state, cyclic
Net weight 0.3 kg

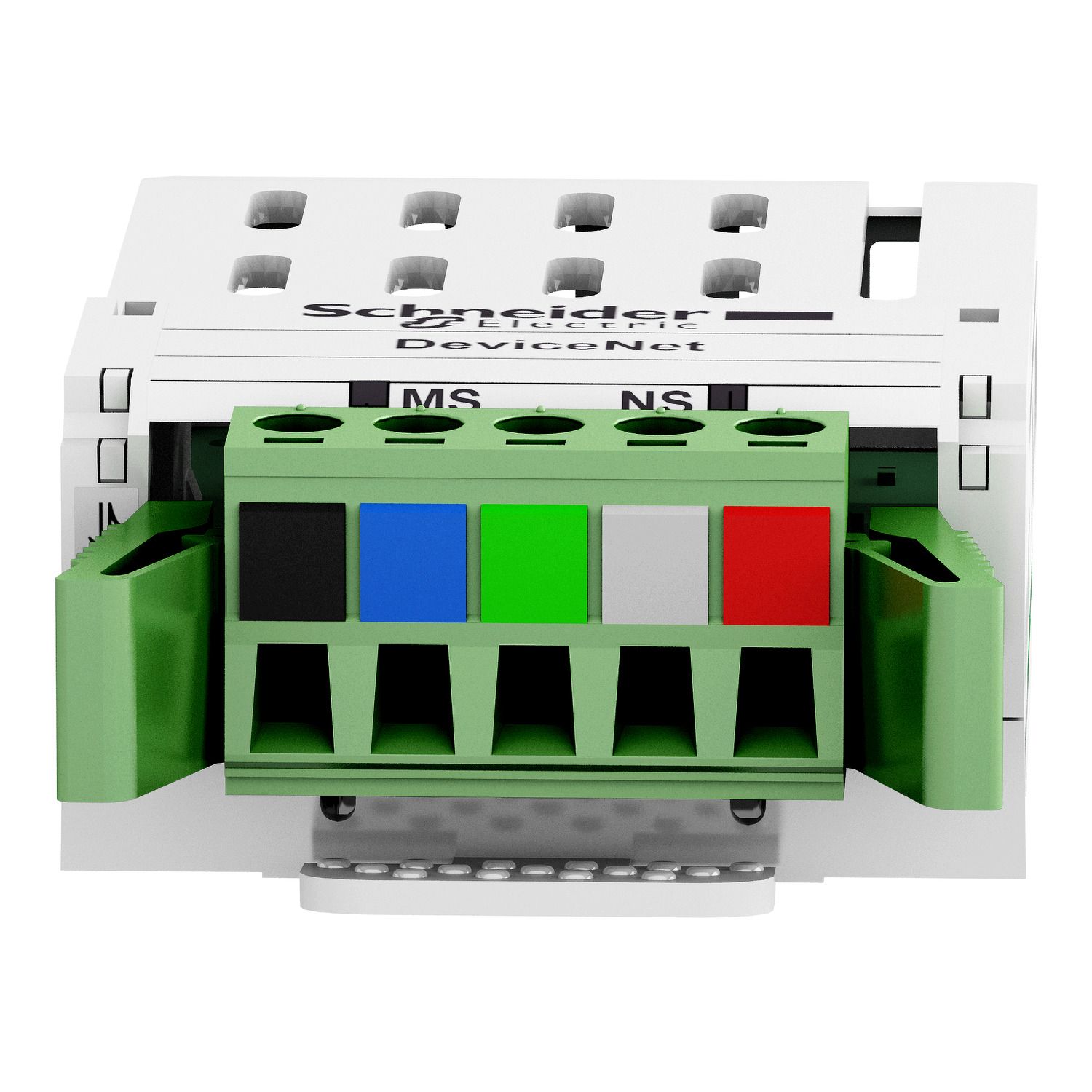

Electrical connection 1 connector 1 removable 5-way screw connector
Alarm function received instruction by graphic terminal, control mode received by graphic terminal
Bus profile CiA 402, CIP AC Drive
Maximum cable distance between devices 500 m for 125 kbps, 100 m for 500 kbps
Addressing 1...63 configurable by graphic terminal/SoMove software
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.700 cm
Package 1 Width 6.200 cm
Package 1 Length 8.900 cm
Package 1 Weight 67.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.098 kg
