SKU:

VW3A3619

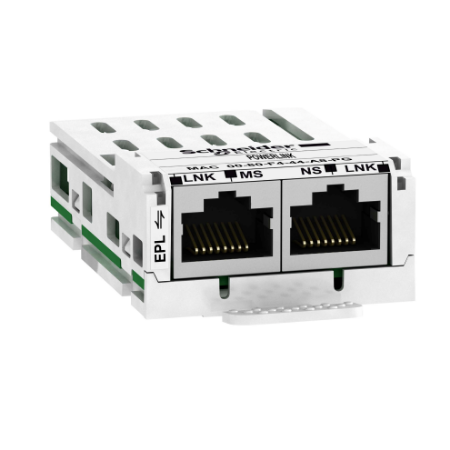

communication module Ethernet Powerlink, Altivar, 10/100Mbps, 2 x RJ45 connectors

$452.75
Available for Shipping : 29-Oct-2024
communication module Ethernet Powerlink, Altivar, 10/100Mbps, 2 x RJ45 connectors
Manufacturer: Schneider Electric
This Powerlink communication module enables integration of your drive in your Ethernet Powerlink process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar Process ATV900 . It is also compatible with Altivar 32, Altivar Machine ATV320 and Altivar Machine ATV340. It has two RJ45 connectors.

Products specifications

Attribute name Attribute value
Main
Product or component type communication module
Range of product Altivar
Complementary
Product compatibility variable speed drive
Transmission rate 10/100 Mbps
Range compatibility Altivar Machine ATV340, Altivar Process ATV900, Altivar Process ATV600, Altivar 32, Altivar Machine ATV320
Display type 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status)
Communication port protocol Ethernet Powerlink
Net weight 0.3 kg
Electrical connection 2 connectors RJ45, Ethernet
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.700 cm
Package 1 Width 6.200 cm
Package 1 Length 9.000 cm
Package 1 Weight 61.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.660 kg
