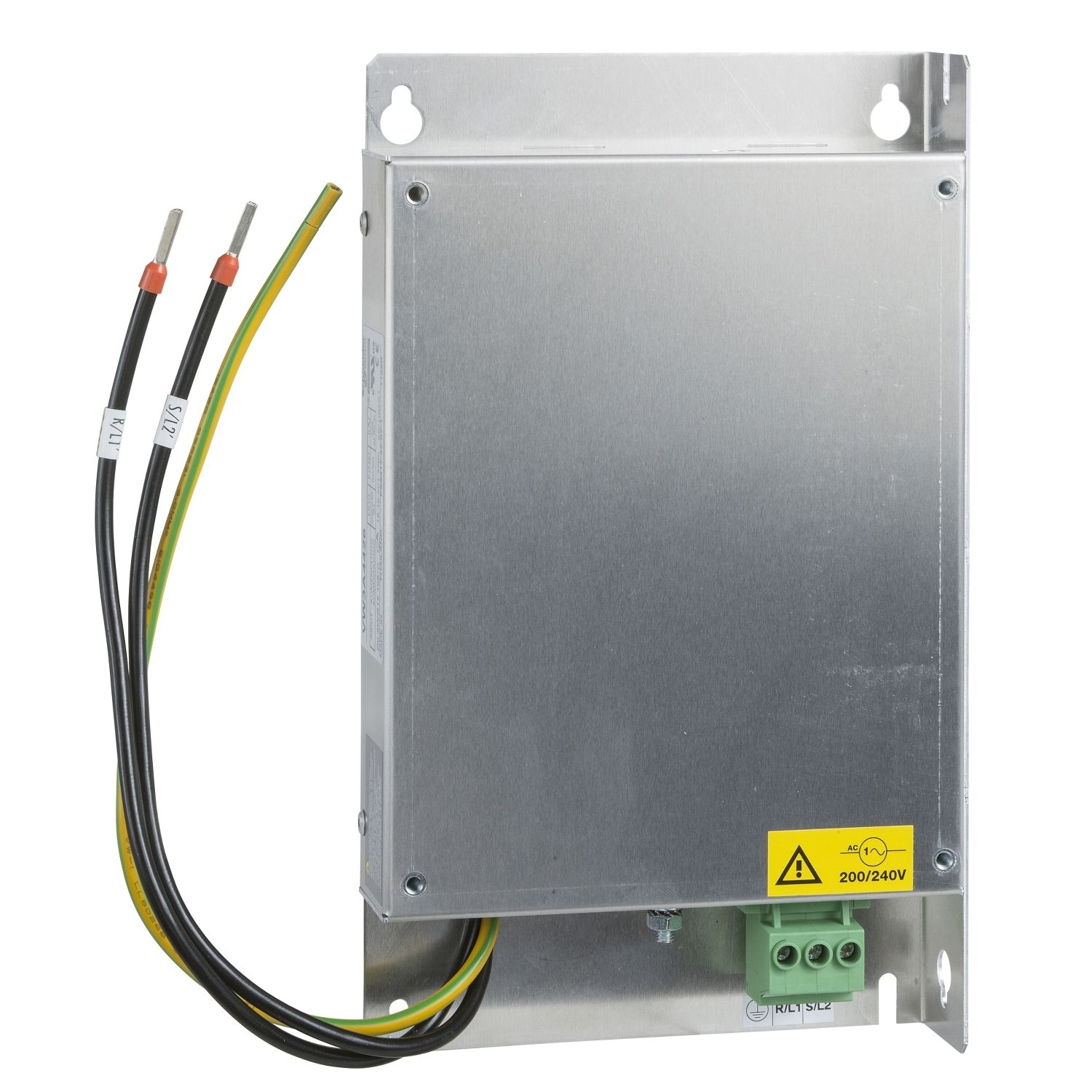

Picture of EMC input filter, Altivar, Lexium, 17.6A, 1 phase, 200...240V
SKU:

VW3A4421

EMC input filter, Altivar, Lexium, 17.6A, 1 phase, 200...240V

$328.85
Available for Shipping : 29-Oct-2024
Product Selector
EMC input filter, Altivar, Lexium, 17.6A, 1 phase, 200...240V
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar 32, Lexium 28, Altivar Machine ATV320, Lexium 32
Product specific application radio interference input filter
Mounting location at variable speed drive side
Network number of phases single phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...B at 1.5 kW, 200...240 V, single phase, variable speed drive ATV320...B at 1.1 kW, 200...240 V, single phase, LXM32, single-phase, line current 8.4...12.9 A, ATV32, 200...240 V, 1.1...1.5 kW, LXM28A
Range of product Lexium, Altivar
Complementary
Thermal losses 6.9 W
[In] rated current 17.6 A
Emc filter compatibility type 021
Network rated voltage 200-240 V
Net weight 0.775 kg
Tolerance - 15...10 %
Maximum cable distance between devices 50 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.000 cm
Package 1 Width 18.000 cm
Package 1 Length 23.300 cm
Package 1 Weight 634.000 g
Unit Type of Package 2 2
Number of Units in Package 2 84
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 66.256 kg
