SKU:

LXM32AD18M2

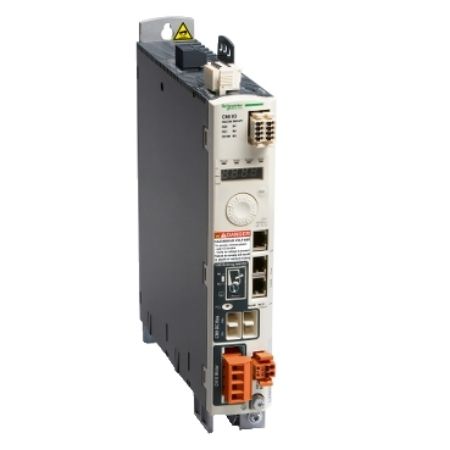

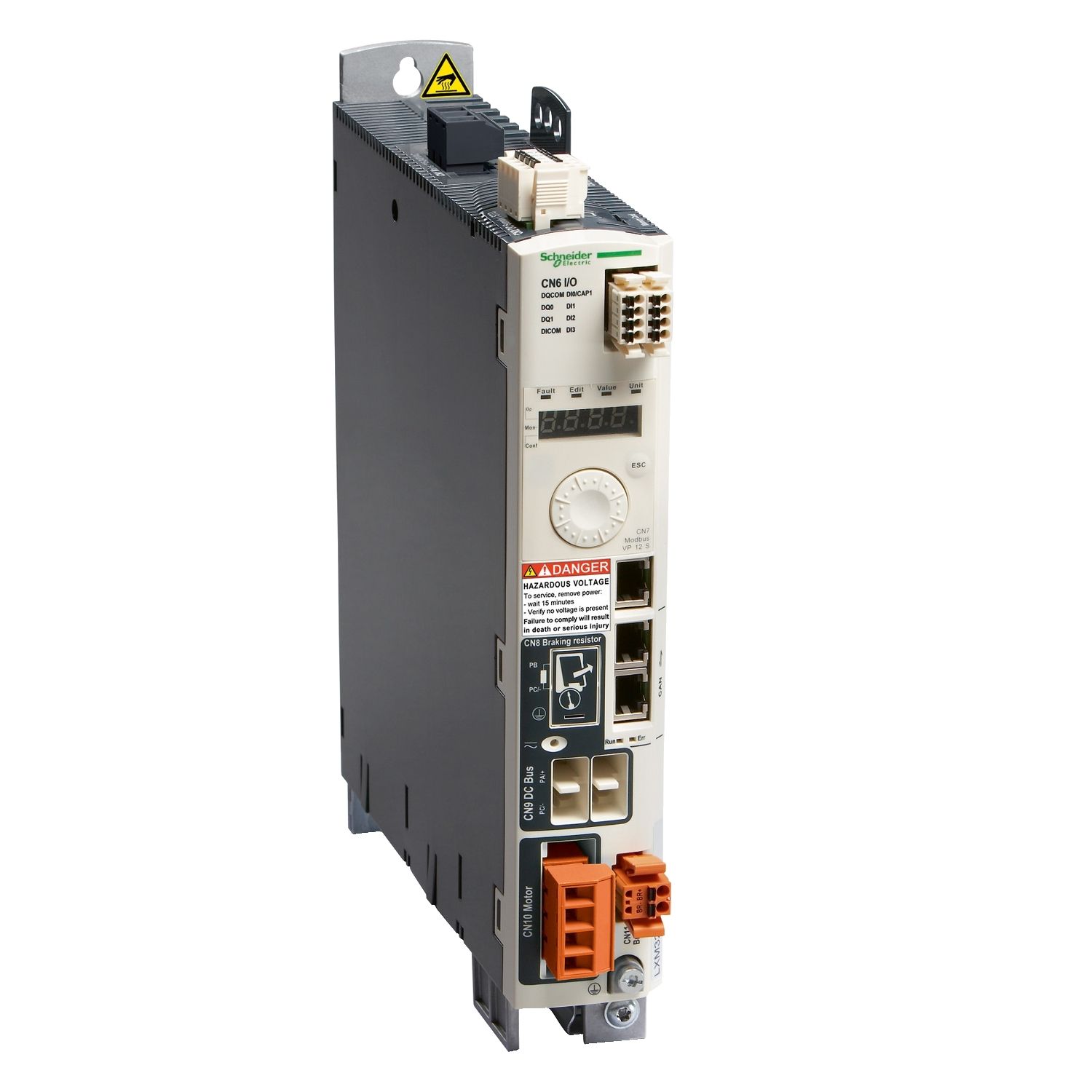

motion servo drive, Lexium 32, 18A, single phase, supply voltage 115 to 230V, 0.5 to 1kW, IP20

$2,805.60

Qty:

Available for Shipping : 19-Nov-2024

Product Selector

motion servo drive, Lexium 32, 18A, single phase, supply voltage 115 to 230V, 0.5 to 1kW, IP20

Be the first to review this product

Manufacturer: Schneider Electric

Product environmental

Catalogue

End of life manual

Brochure

User guide

Product Page Link

Product Data Sheet

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 100V to 120V, 200V to 240V (single phase), a continuous output current of 6A at 8kHz and a continuous power of 1600W at 230V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 48mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.8kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

Products specifications

Attribute name	Attribute value
Main
Device short name	LXM32A
Continuous power	1600 W at 230 V, 800 W at 115 V
Continuous output current	6 A at 8 kHz
EMC filter	integrated
Supply voltage limits	170-264 V, 85-132 V
Line current	8.4 A 148 % at 230 V, without line choke, 8.5 A 147 % at 115 V, without line choke, 10.6 A 93 % at 230 V, with external line choke of 2 mH, 9.9 A 74 % at 115 V, with external line choke of 2 mH
Range of product	Lexium 32
[Us] rated supply voltage	200...240 V - 15...10 %, 100...120 V - 15...10 %
Supply frequency	50/60 Hz - 5...5 %
Nominal power	1 kW at 230 V 8 kHz, 0.5 kW at 115 V 8 kHz
Network number of phases	single phase
Product or component type	motion servo drive
Format of the drive	book
Output current 3s peak	18 A at 230 V for 5 s, 10 A at 115 V for 5 s
Network frequency	47.5...63 Hz
Complementary
Response time on output	250 µs (DO) for discrete output(s)
Drive voltage drop coefficient	0.9
Discrete input number	4 logic discrete input(s), 2 safety discrete input(s), 1 capture discrete input(s)
Protection type	against short-circuits: outputs signal, against reverse polarity: inputs signal
Switching frequency 3	8 kHz
Switching frequency 2	8 kHz
Tightening torque	CN10: 0.7-0.7 N.m, CN1: 0.7-0.7 N.m, CN8: 0.5-0.5 N.m
Operating position	vertical +/- 10 degree
Output voltage	<= power supply voltage
Compatibility code	LXM32A
Control signal type	servo motor encoder feedback
Method of access	slave
Discrete input type	safety (compliment of STO_A, compliment of STO_B terminals), logic (DI terminals), capture (CAP terminals)
Supply voltage description	single phase 115 V, single phase 230 V
Electrical connection	terminal, clamping capacity: 5 mm², AWG 10 (CN10), terminal, clamping capacity: 5 mm², AWG 10 (CN1), terminal, clamping capacity: 3 mm², AWG 12 (CN8)
Communication interface	Modbus, integrated, CANopen, integrated, CANmotion, integrated
Connector type	RJ45 (labelled CN7) for Modbus, RJ45 (labelled CN4 or CN5) for CANopen, RJ45 (labelled CN4 or CN5) for CANmotion
Output current 3s peak 3	18 A at 230 V, 10 A at 115 V
Contact bounce time	0.25 µs...1.5 ms for DI, 2 µs for CAP, <= 1 ms for compliment of STO_A, compliment of STO_B
Number of inputs/outputs	4 DI + 1 CI + 2 DO
Output current 3s peak 2	18 A at 230 V, 10 A at 115 V
Marking	CE
Transmission rate	9600, 19200, 38400 bps for bus length of 40-40 m for Modbus, 500 kbps for bus length of 100-100 m for CANopen, CANmotion, 50 kbps for bus length of 1000-1000 m for CANopen, CANmotion, 250 kbps for bus length of 250-250 m for CANopen, CANmotion, 125 kbps for bus length of 500-500 m for CANopen, CANmotion, 1 Mbps for bus length of 4-4 m for CANopen, CANmotion
Discrete input voltage	24 V DC for safety, 24 V DC for logic, 24 V DC for capture
Status LED	1 LED RUN, 1 LED error, 1 LED (red) servo drive voltage
Height	270 mm
Product compatibility	servo motor BSH (100 mm, 1 motor stacks), servo motor BSH (70 mm, 3 motor stacks), servo motor BSH (55 mm, 3 motor stacks), servo motor BMH (70 mm, 3 motor stacks), servo motor BSH (70 mm, 2 motor stacks), servo motor BSH (70 mm, 1 motor stacks), servo motor BMH (100 mm, 1 motor stacks), servo motor BMH (70 mm, 2 motor stacks), servo motor BMH (70 mm, 1 motor stacks)
Sampling duration	DI: 0.25 ms discrete
Safety level	PL = e conforming to ISO 13849-1, SIL 3 conforming to EN/IEC 61508
Discrete output type	logic output(s) (DO)24 V DC
Network number of phases	1
Depth	237 mm
Overvoltage category	III
Width	48 mm
Maximum leakage current	30 mA
Number of addresses	1-247 for Modbus, 1-127 for CANopen, CANmotion
Safety function	STO (safe torque off), integrated
Field weakening	False
Emc filter compatibility	type 021
Communication iinterface	CANopen, CANmotion
Discrete output logic	positive or negative (DO) conforming to EN/IEC 61131-2
Discrete output number	2
Discrete output voltage	<= 30 V DC
Switching frequency	8 kHz
Braking current	50 mA
Communication service	sync for CANmotion, position control, speed profile, torque profile and homing mode for CANopen, position control mode for CANmotion, node guarding, heartbeat for CANopen, event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) for CANopen, emergency for CANopen, CANmotion, display of faults on integrated display terminal for Modbus, CANopen device profile drives and motion control for CANopen, CANmotion, 4 configurable mapping PDOs for CANopen, 2 SDOs send for CANopen, 2 SDOs receive for CANopen, 2 PDOs conforming to DSP 402 for CANmotion, 1 transmit SDO for CANmotion, 1 receive SDO for CANmotion
Net weight	1.8 kg
Signalling function	display of faults 7 segments
Response time	<= 5 ms compliment of STO_A, compliment of STO_B
Physical interface	2-wire RS485 multidrop for Modbus
Electrical isolation	between power and control
Continuous output current 3	6 A
Continuous output current 2	6 A
Discrete input logic	positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1, positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to EN/IEC 61131-2 type 1, positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Type of cable	single-strand IEC cable (temperature: 50-50 °C) copper 90 °C XLPE/EPR
Environment
Relative humidity	Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
IP degree of protection	IP20 conforming to EN/IEC 61800-5-1, IP20 conforming to EN/IEC 60529
Type of cooling	integrated fan
Ambient air temperature for storage	-25-70 °C
Pollution degree	2 conforming to EN/IEC 61800-5-1
Electromagnetic compatibility	radiated EMC, category C3 conforming to EN/IEC 61800-3, radiated EMC, class A group 2 conforming to EN 55011, electrical fast transient/burst immunity test, level 4 conforming to EN/IEC 61000-4-4, 1.2/50 µs shock waves immunity test, level 3 conforming to EN/IEC 61000-4-5, susceptibility to electromagnetic fields, level 3 conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3 conforming to EN/IEC 61000-4-2, conducted EMC, environments 1 and 2 conforming to EN/IEC 61800-3, conducted EMC, category C2 conforming to EN/IEC 61800-3, conducted EMC, environment 2 category C3 conforming to EN/IEC 61800-3, conducted EMC, class A group 2 conforming to EN 55011, conducted EMC, class A group 1 conforming to EN 55011
Ambient air temperature for operation	0-50 °C conforming to UL
Operating altitude	> 1000...3000 m with conditions, <= 1000 m without derating
Vibration resistance	1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic	classes 3C1 conforming to IEC 60721-3-3
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60028-2-27
Standards	EN/IEC 61800-3, EN/IEC 61800-5-1
Product certifications	CSA, TÜV, UL
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	8.5 cm
Package 1 Width	27.5 cm
Package 1 Length	33.0 cm
Package 1 Weight	2.249 kg
Unit Type of Package 2	2
Number of Units in Package 2	24
Package 2 Height	77.0 cm
Package 2 Width	60.0 cm
Package 2 Length	80.0 cm
Package 2 Weight	66.916 kg
