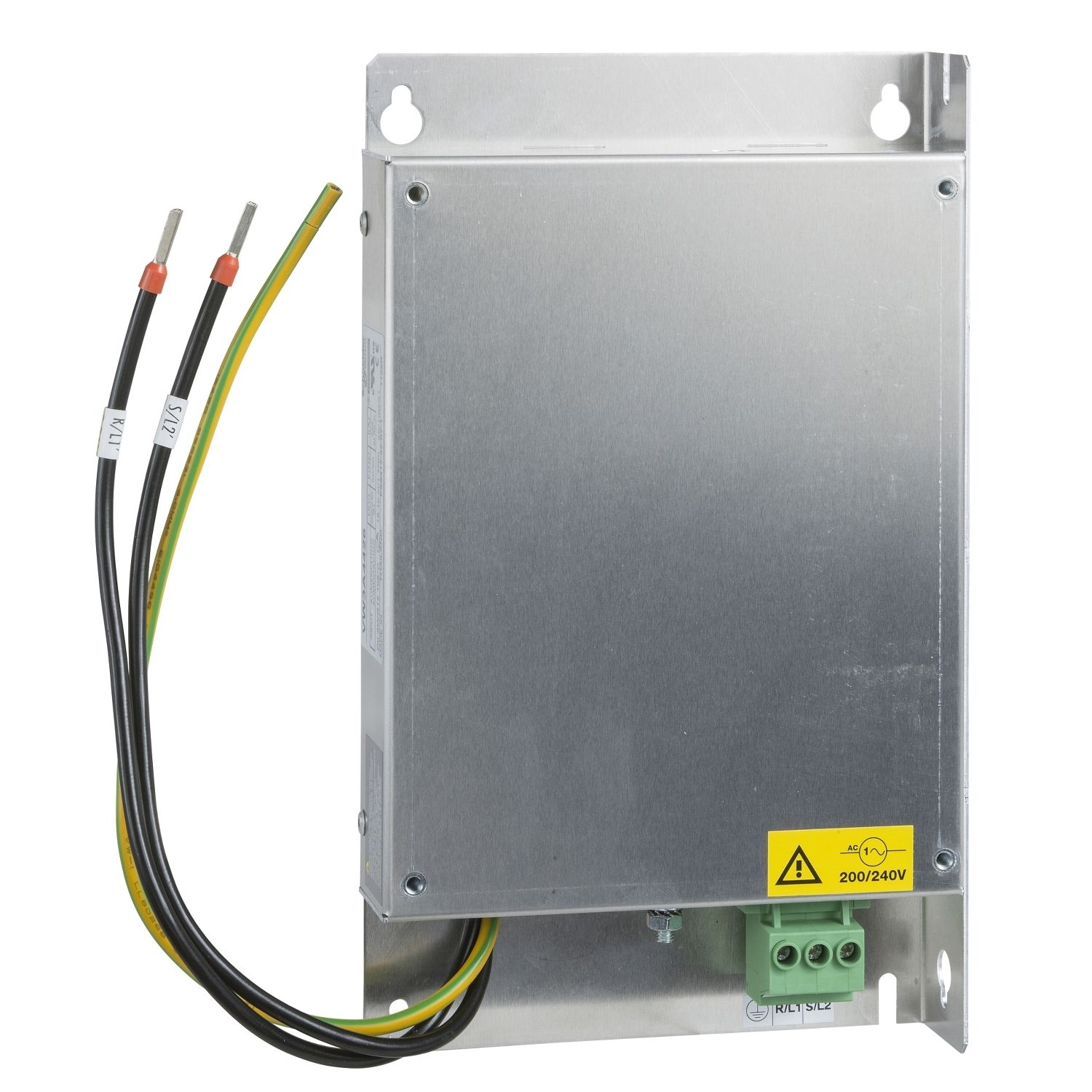

Picture of EMC input filter, Altivar, Lexium, 25A, 3 phases, 380…480V
SKU:

VW3A4423

EMC input filter, Altivar, Lexium, 25A, 3 phases, 380…480V

$452.75
Available for Shipping : 30-Oct-2024
Product Selector
EMC input filter, Altivar, Lexium, 25A, 3 phases, 380…480V
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C2, C3. It weighs 0.775kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Machine ATV340, Lexium 28, Lexium 52, Lexium 32
Product specific application radio interference input filter
Mounting location at variable speed drive side
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV340 at 7.5 kW, 380...480 V, variable speed drive ATV340 at 5.5 kW, 380...480 V, variable speed drive ATV340 at 4 kW, 380...480 V, variable speed drive ATV340 at 3 kW, 380...480 V, variable speed drive ATV340 at 2.2 kW, 380...480 V, LXM32, three-phase, line current 14.6...18.1 A, LXM28A
Range of product Lexium, Altivar
Complementary
Thermal losses 15.8 W
[In] rated current 25 A
Emc filter compatibility type 023
Network rated voltage 380-500 V
Net weight 1.35 kg
Tolerance - 15...10 %
Maximum cable distance between devices 100 m conforming to IEC 61800-3 category C3, 50 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.200 cm
Package 1 Width 22.400 cm
Package 1 Length 29.600 cm
Package 1 Weight 1.532 kg
Unit Type of Package 2 2
Number of Units in Package 2 44
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 65.736 kg

Related products

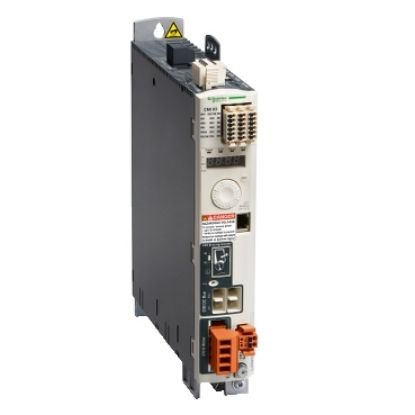

Picture of motion servo drive, Lexium 32, 72A, three phase, supply voltage 208 to 480V, 7kW, modbus
