Picture of EMC input filter, Altivar, Lexium, 15A, 3 phases, 380 to 500V
SKU:

VW3A4422

EMC input filter, Altivar, Lexium, 15A, 3 phases, 380 to 500V

$335.15
Available for Shipping : 05-Nov-2024
Product Selector
EMC input filter, Altivar, Lexium, 15A, 3 phases, 380 to 500V
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet

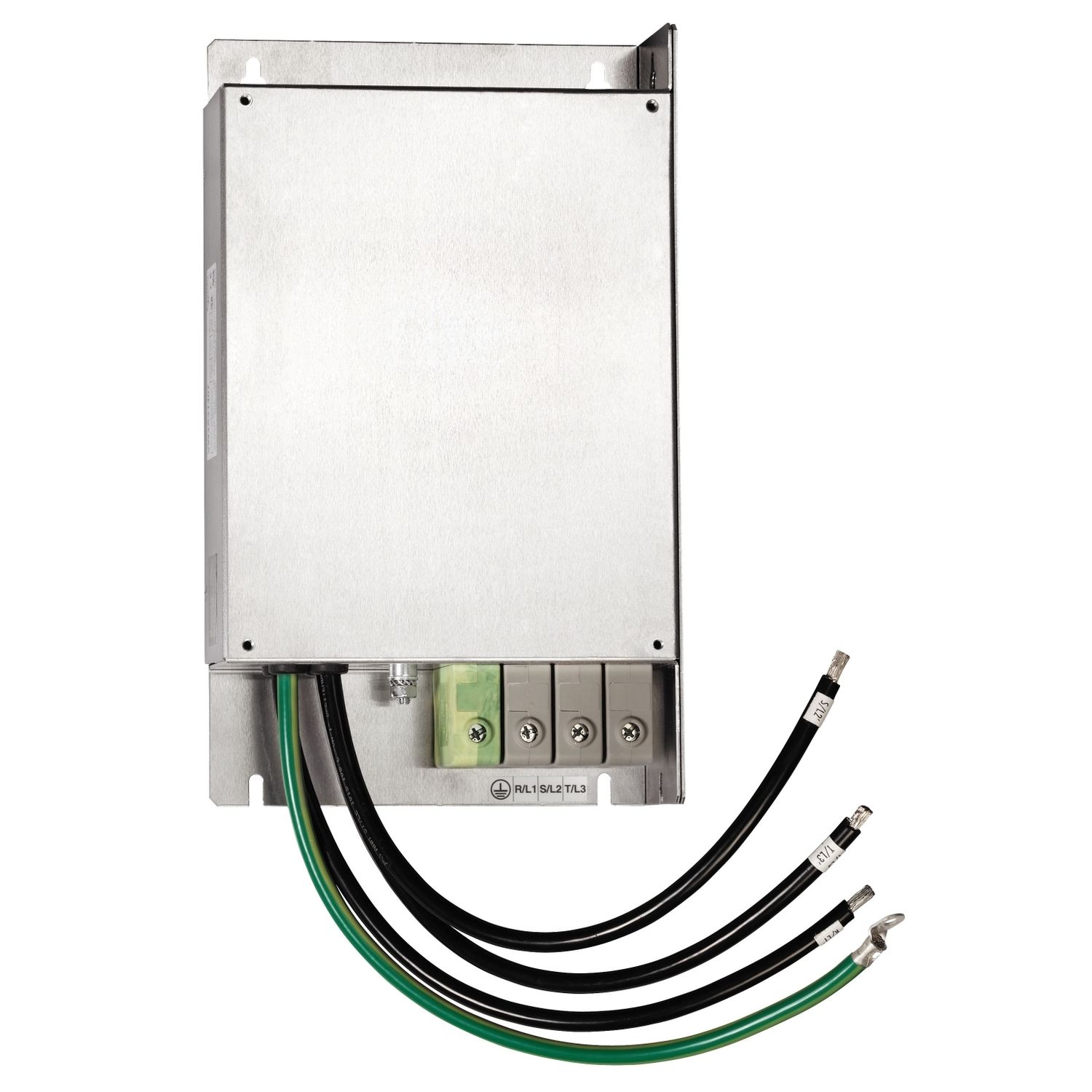

This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and ATV340, Lexium 28 and Lexium 52. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

Products specifications

Attribute name Attribute value
Main
Range compatibility Lexium 52, Lexium 28, Altivar Machine ATV320, Lexium 32, Altivar Machine ATV340, Altivar 32
Product specific application radio interference input filter
Mounting location at variable speed drive side
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV340 at 1.5 kW, 380...480 V, variable speed drive ATV340 at 0.75 kW, 380...480 V, variable speed drive ATV320...B at 4 kW, 380...500 V, three phase, variable speed drive ATV320...B at 3 kW, 380...500 V, three phase, variable speed drive ATV320...B at 2.2 kW, 380...500 V, three phase, variable speed drive ATV320...B at 1.5 kW, 380...500 V, three phase, variable speed drive ATV320...B at 1.1 kW, 380...500 V, three phase, variable speed drive ATV320...B at 0.75 kW, 380...500 V, three phase, variable speed drive ATV320...B at 0.55 kW, 380...500 V, three phase, variable speed drive ATV320...B at 0.37 kW, 380...500 V, three phase, LXM32, three-phase, line current 1.2...8.7 A, ATV32, 380...500 V, 0.37...1.5 kW, LXM28A
Range of product Lexium, Altivar
Complementary
Thermal losses 9.9 W
[In] rated current 15 A
Emc filter compatibility type 022
Network rated voltage 380-500 V
Net weight 0.9 kg
Tolerance - 15...10 %
Maximum cable distance between devices 100 m conforming to IEC 61800-3 category C3, 50 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.200 cm
Package 1 Width 15.800 cm
Package 1 Length 23.200 cm
Package 1 Weight 936.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 87.400 kg

Related products

Picture of motion servo drive, Lexium 32, 6A, three phase, supply voltage 208 to 480V, 7kW, IP20

motion servo drive, Lexium 32, 6A, three phase, supply voltage 208 to 480V, 7kW, IP20

LXM32AU60N4
$2,736.00
View Detail
