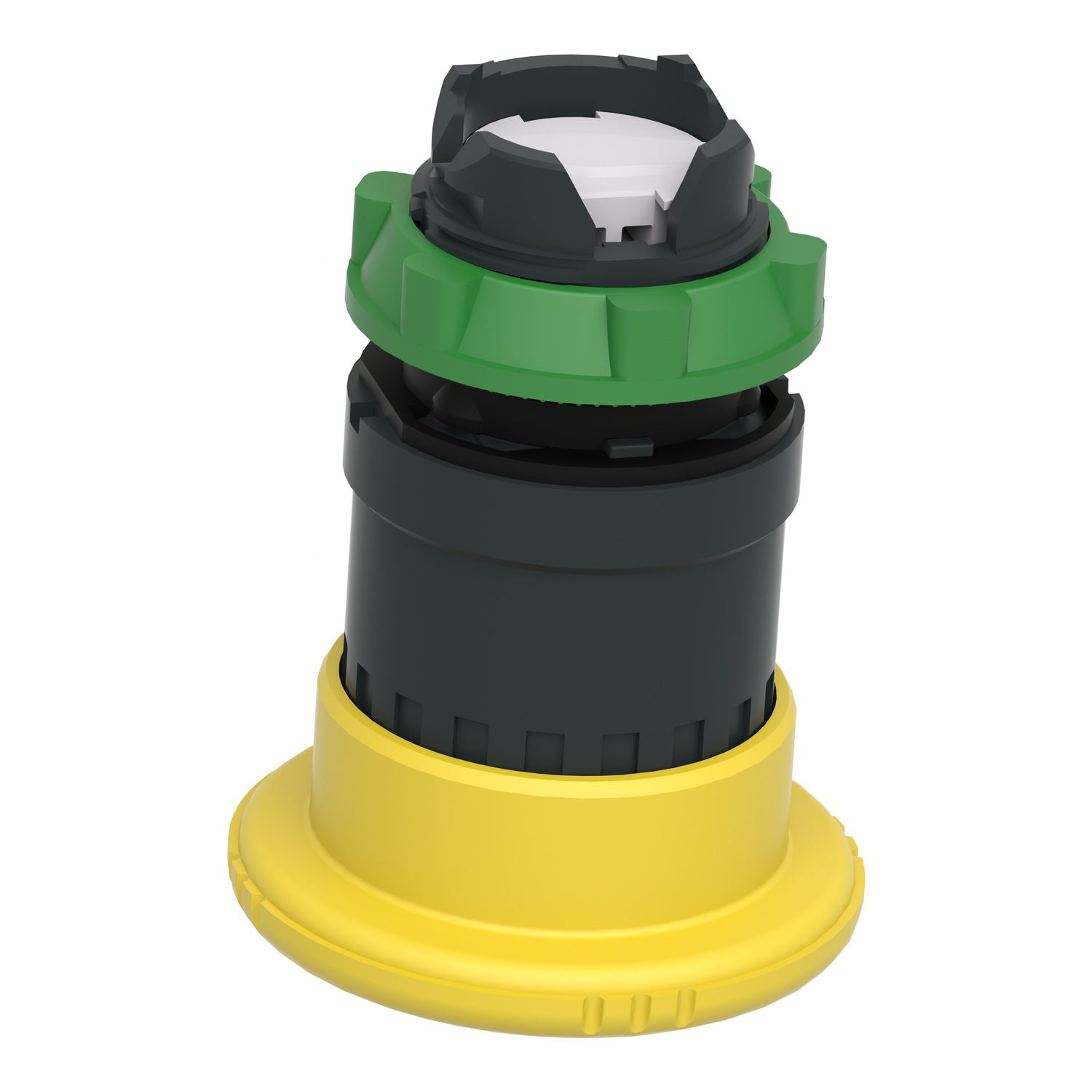

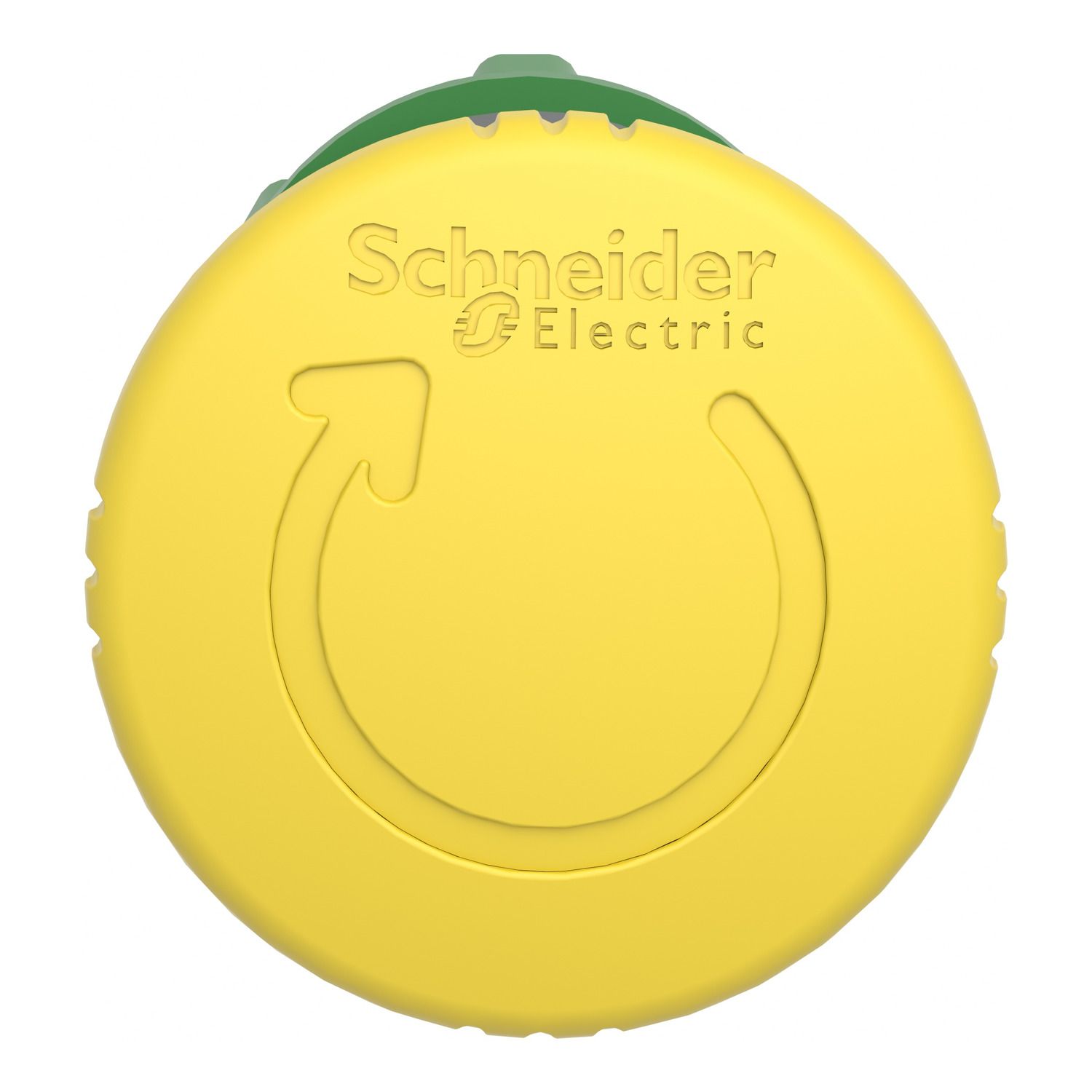

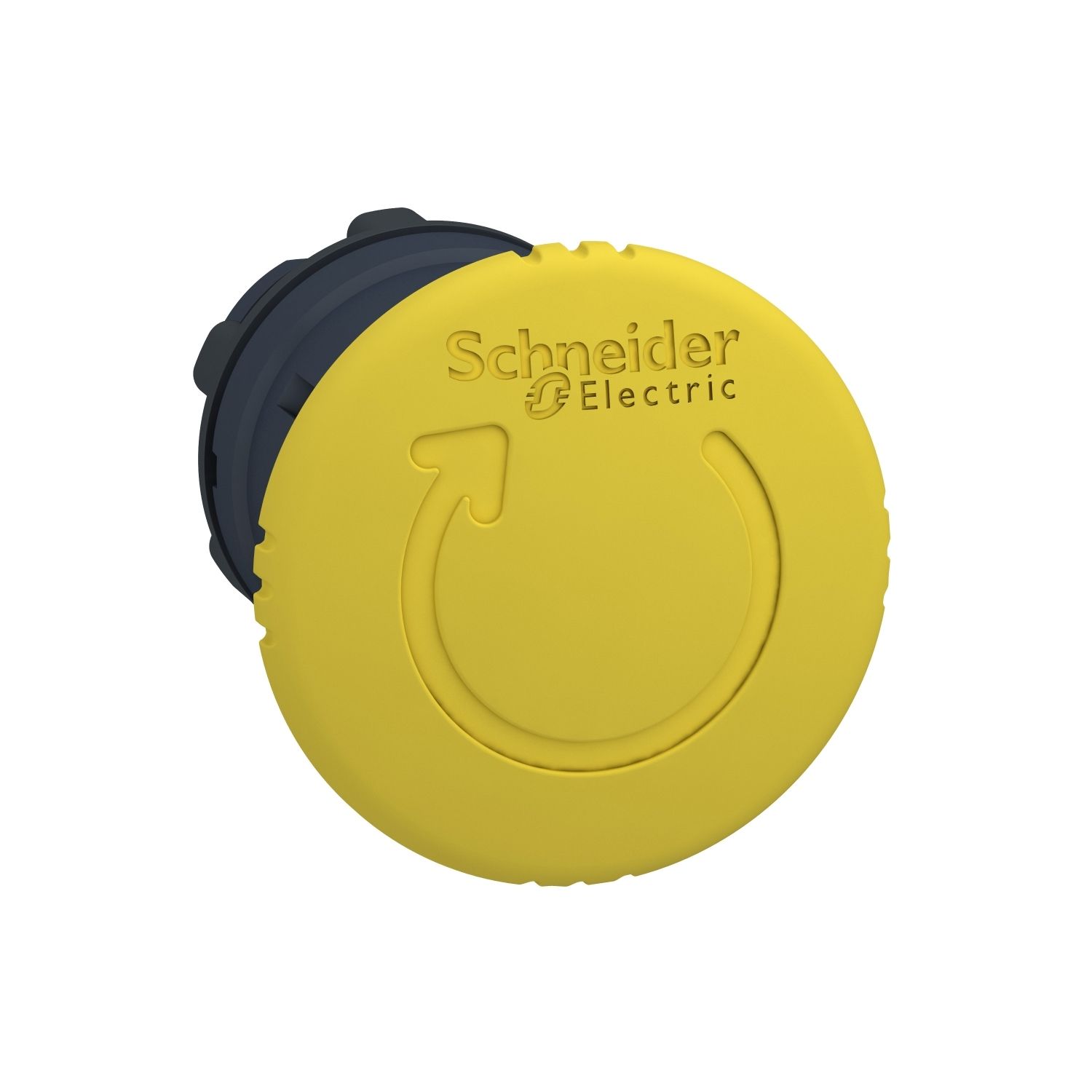

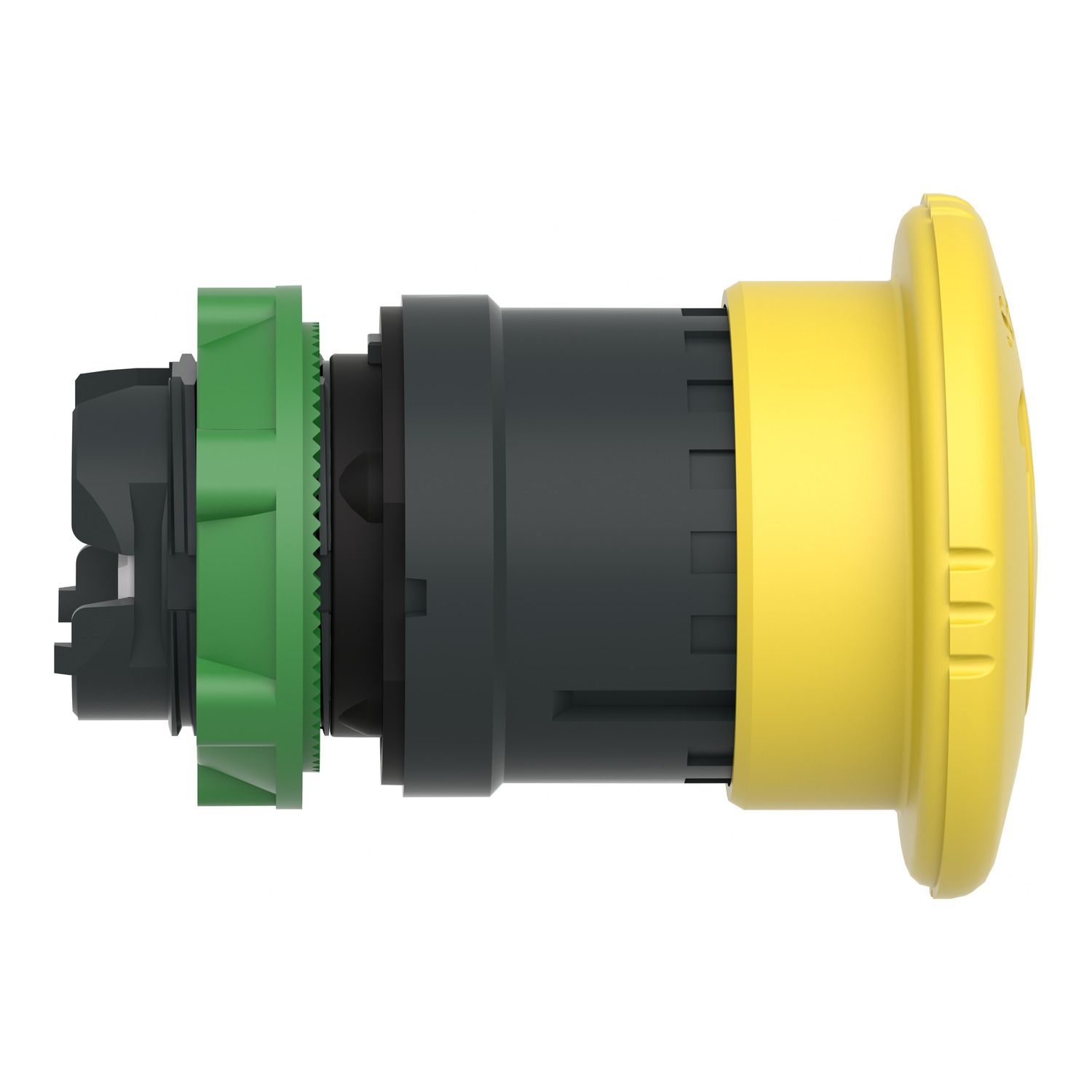

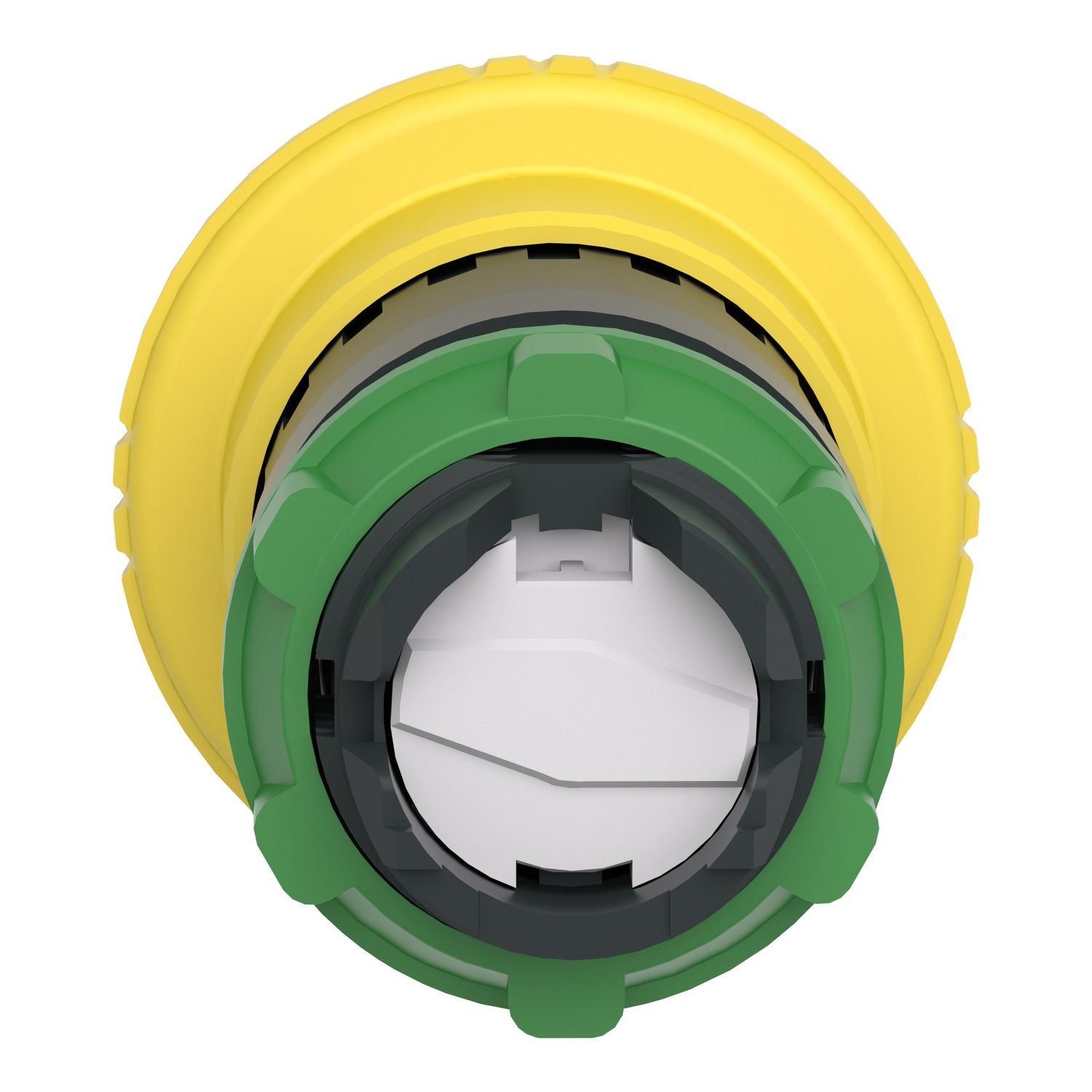

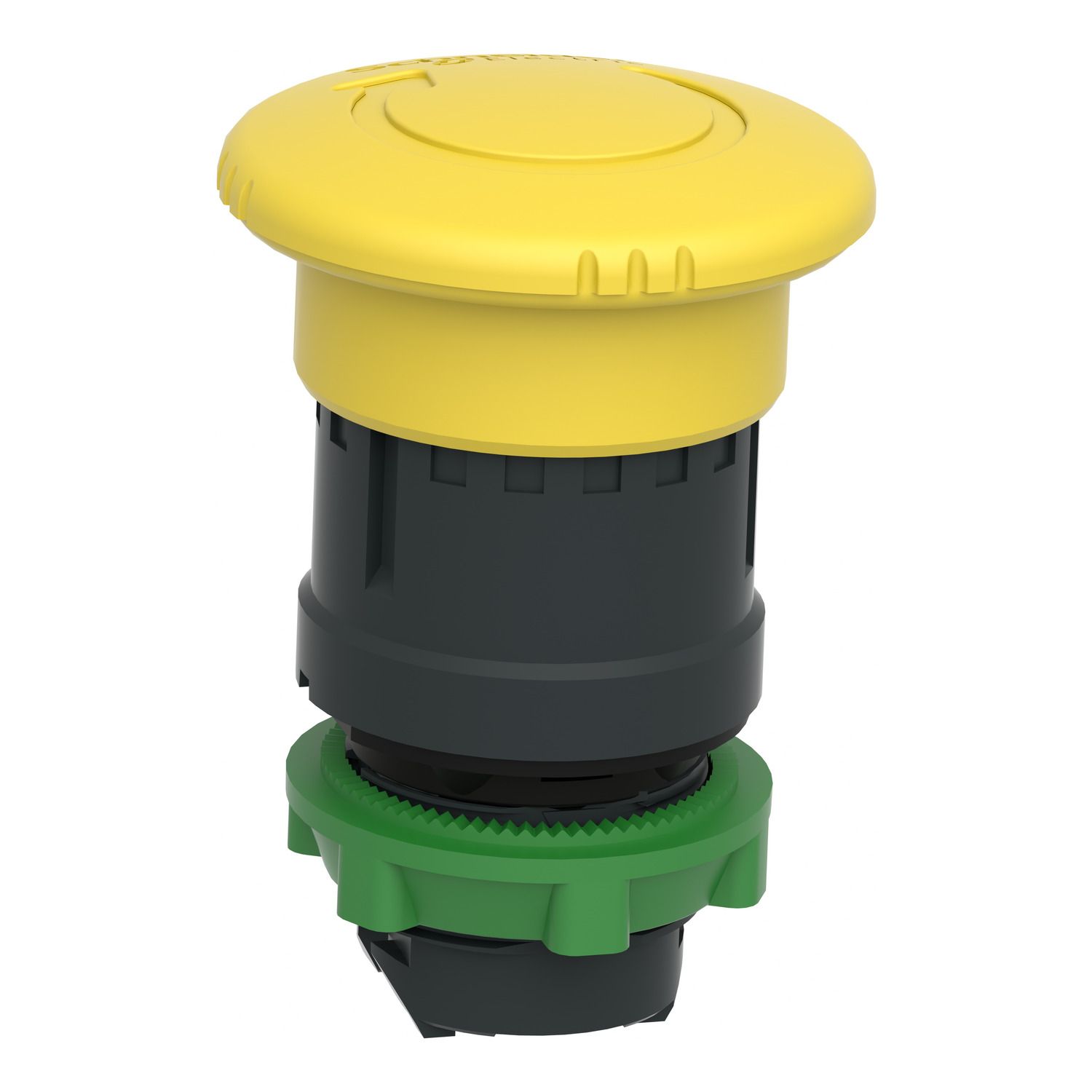

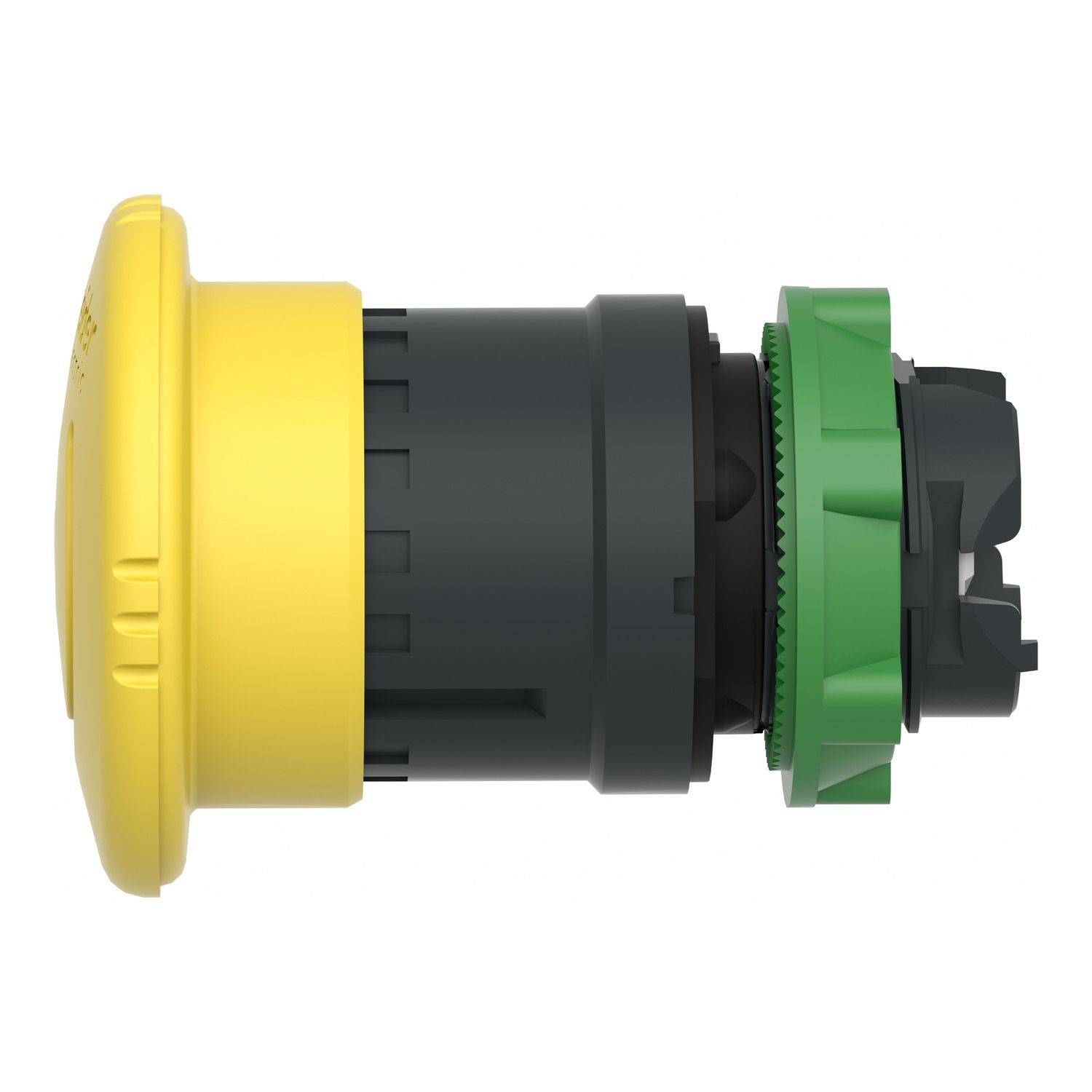

Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Picture of Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
SKU:

ZB5AS55

Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease

Old price: $73.04 INC GST
$56.97 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Mushroom push button head 40mm, Harmony XB5, plastic, yellow, 22mm, latching turn realease
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Image of product in real life situation
CAD
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This yellow 40mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Sale per indivisible quantity 1
Device presentation basic element
Head type standard
Type of operator latching
Range of product Harmony XB5
Reset turn to release
Operator profile yellow mushroom Ø 40 mm, unmarked
Bezel material dark grey plastic
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Mounting diameter 22 mm
Complementary
Group of product mushroom turn to release
Station name XALK 1 cut-out, XALD 1 cut-out
Compatibility code ZB5
Mechanical durability 500000 cycles
CAD overall height 40 mm
Customizable 0, no
Electrical composition code C10 for <4 contacts using single and double blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting
Main group mushroom head
CAD overall depth 57 mm
CAD overall width 40 mm
Marking unmarked
Cap/operator or lens colour yellow
Net weight 0.044 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Standards JIS C8201-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Product certifications BV, UL listed, CSA, GL, LROS (Lloyds register of shipping), DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.800 cm
Package 1 Width 5.300 cm
Package 1 Length 4.500 cm
Package 1 Weight 42.000 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.650 kg
