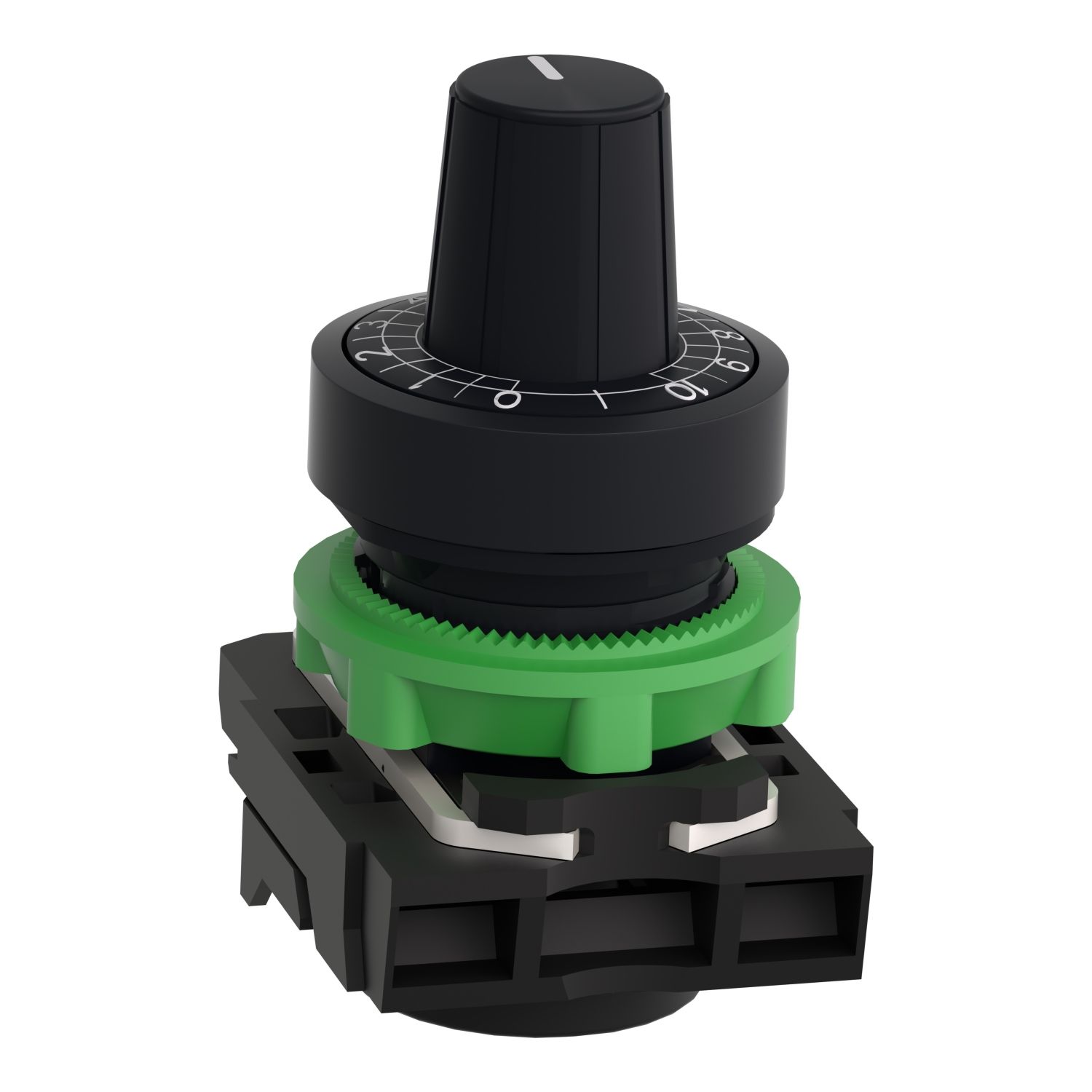

Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft

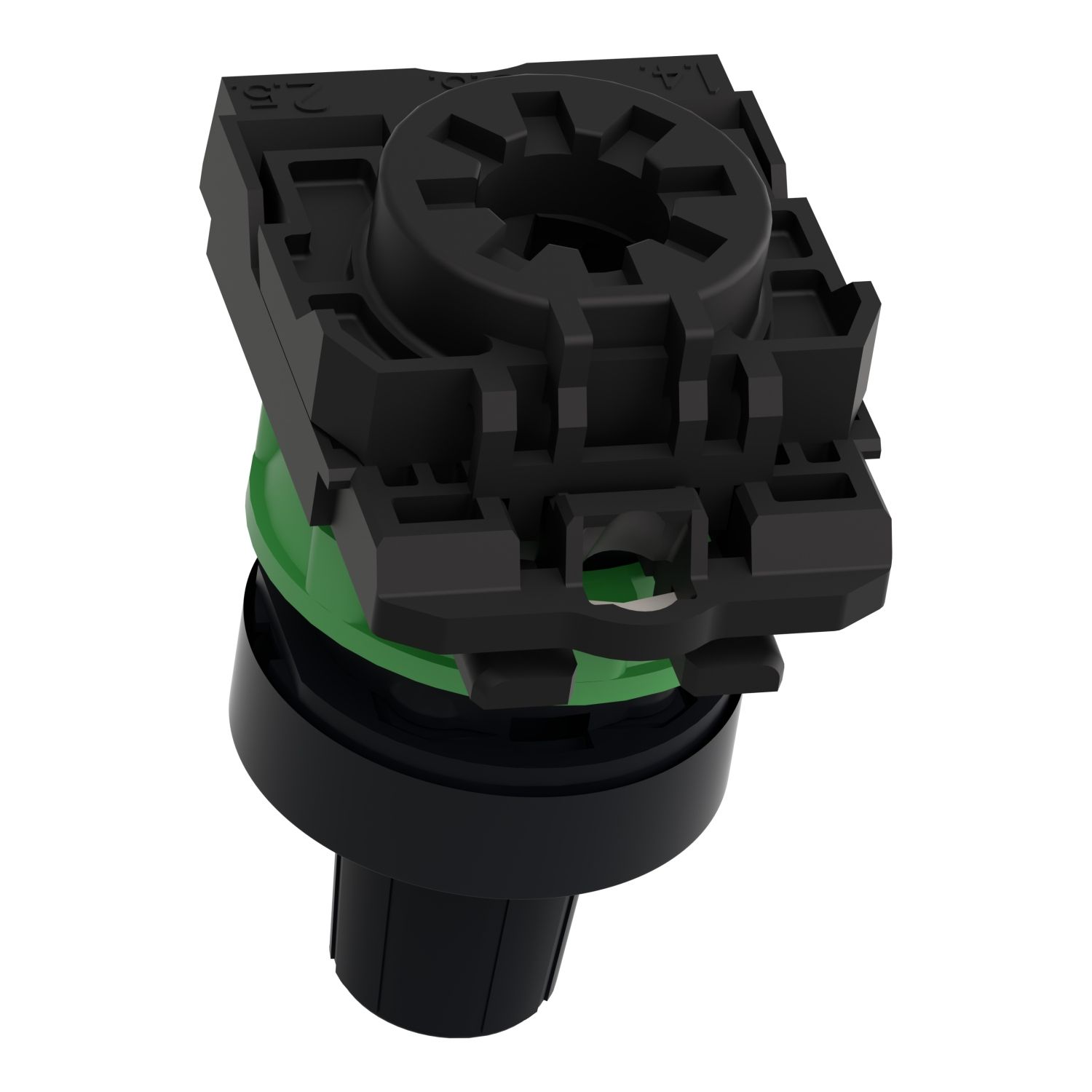

Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft

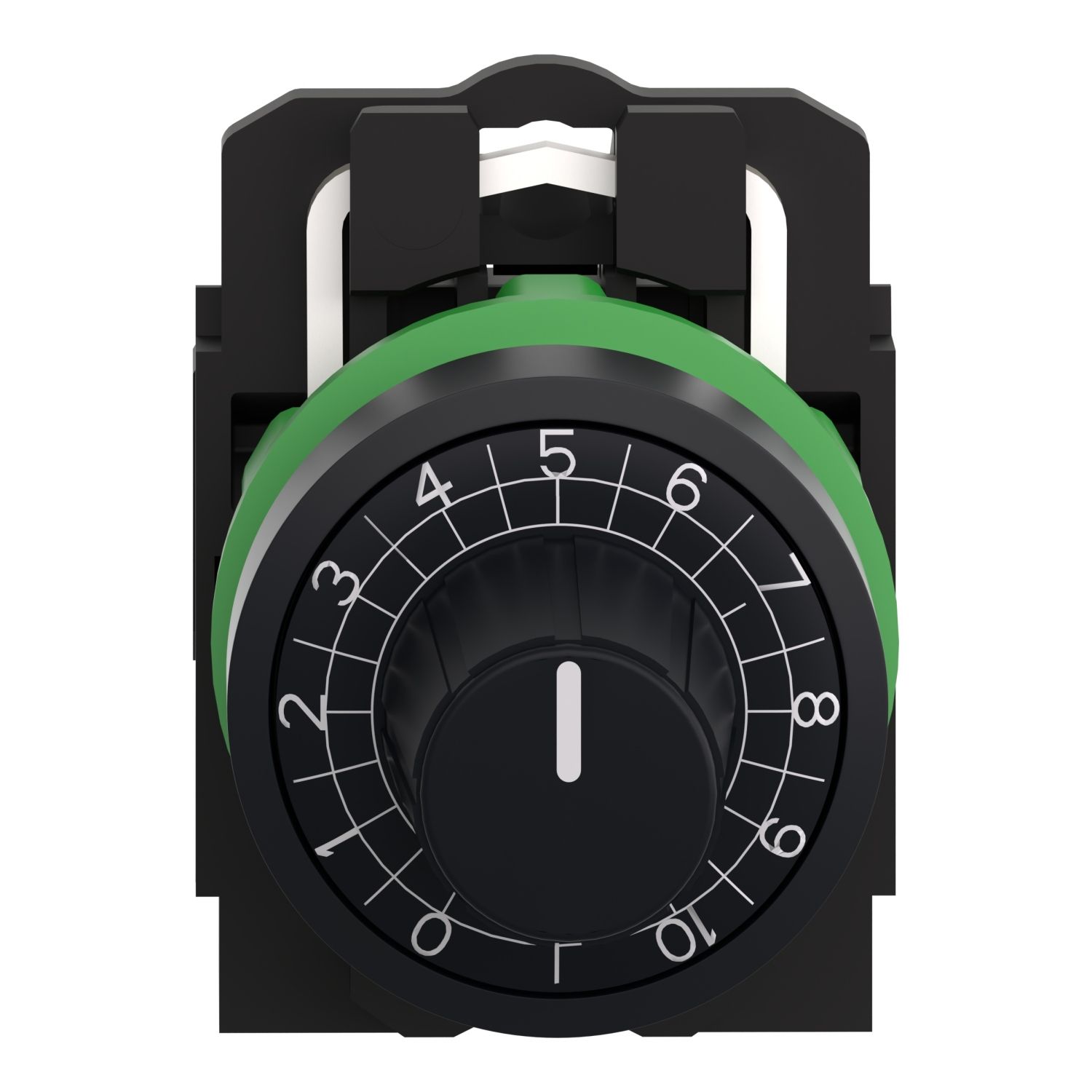

Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft

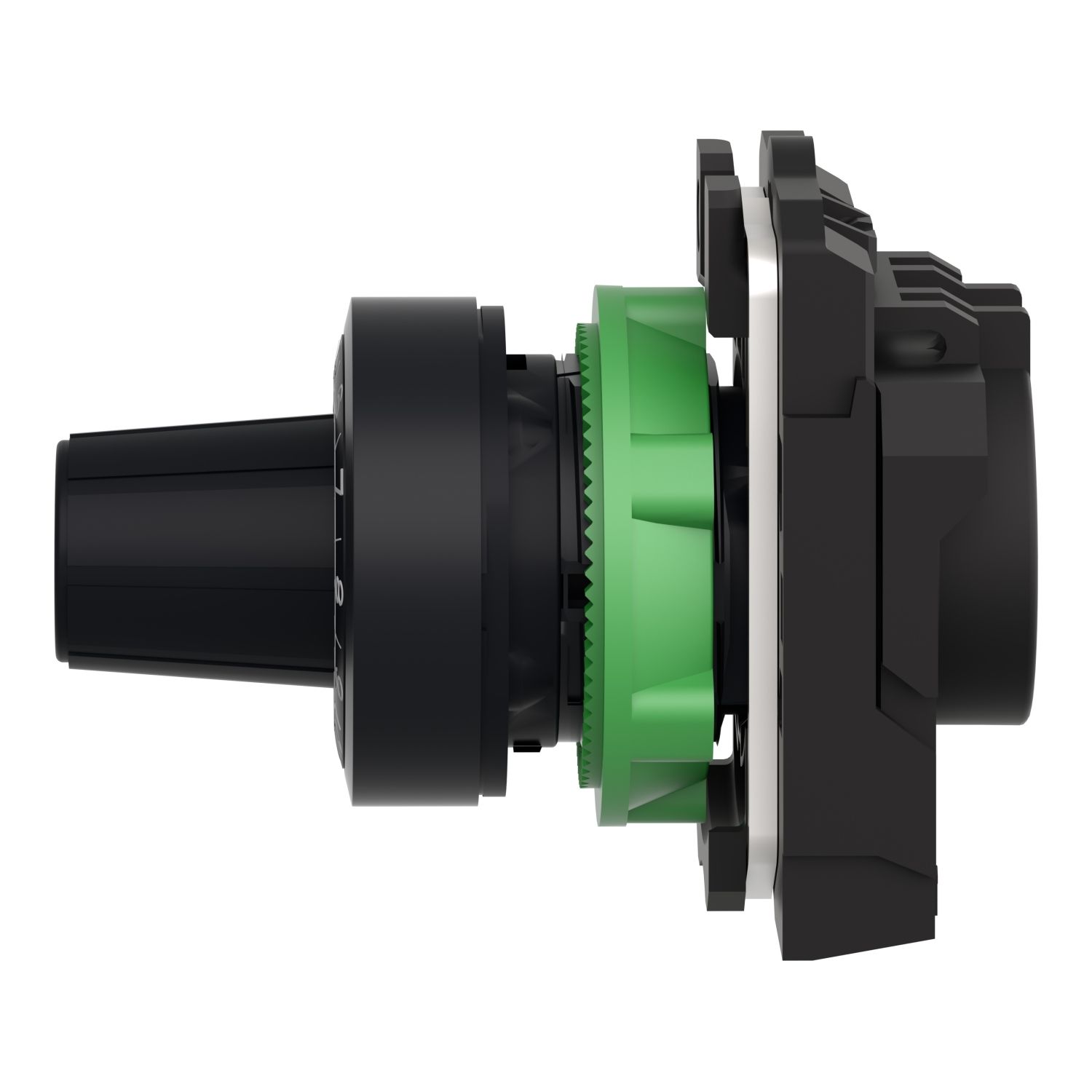

Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft

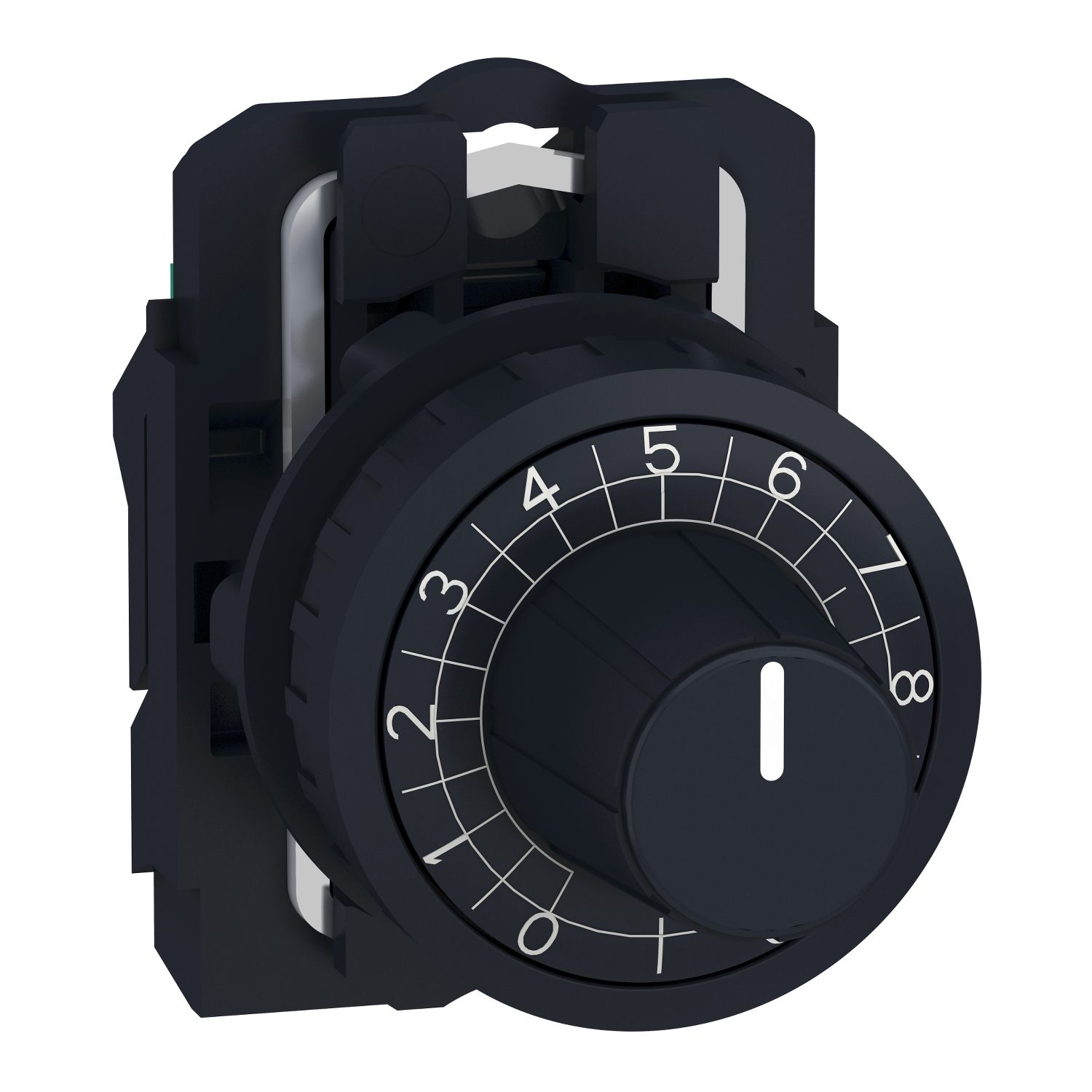

Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft

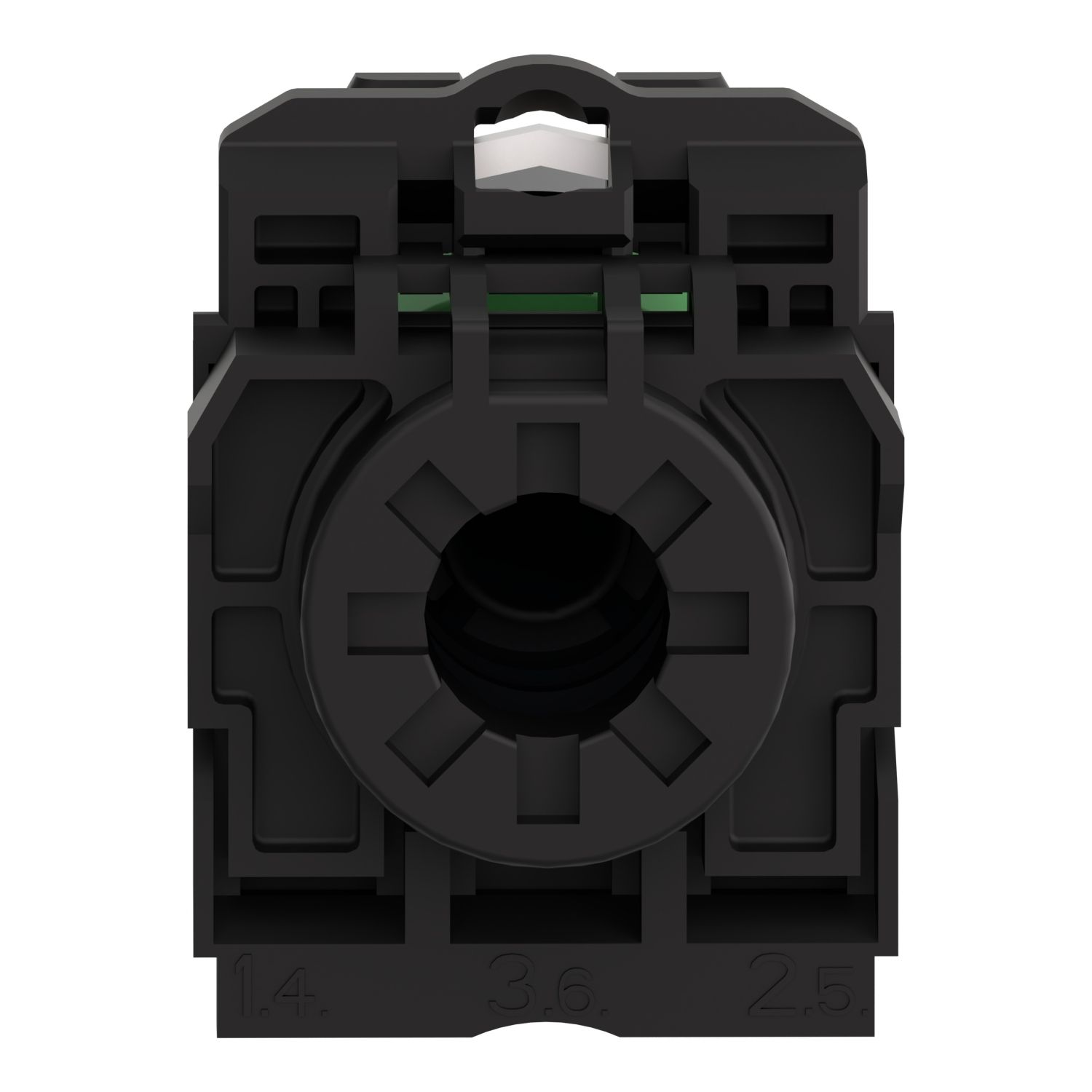

Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft

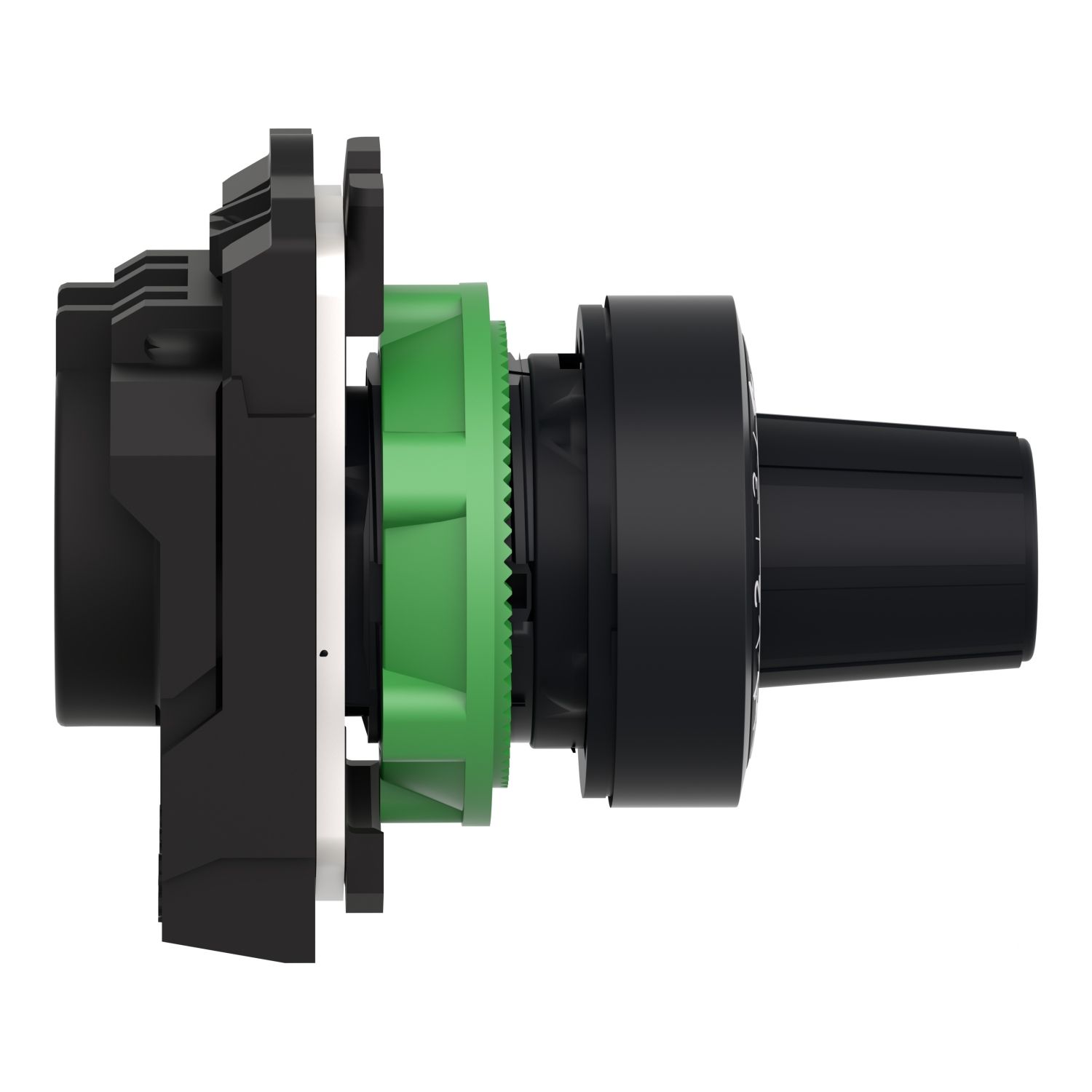

Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft
Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft
Picture of Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft
SKU:

ZB5AD922

Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft

Old price: $179.30 INC GST
$139.85 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Potentiometer head, Harmony XB5, plastic,black, 22mm, for use with 6.35mm shaft
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025

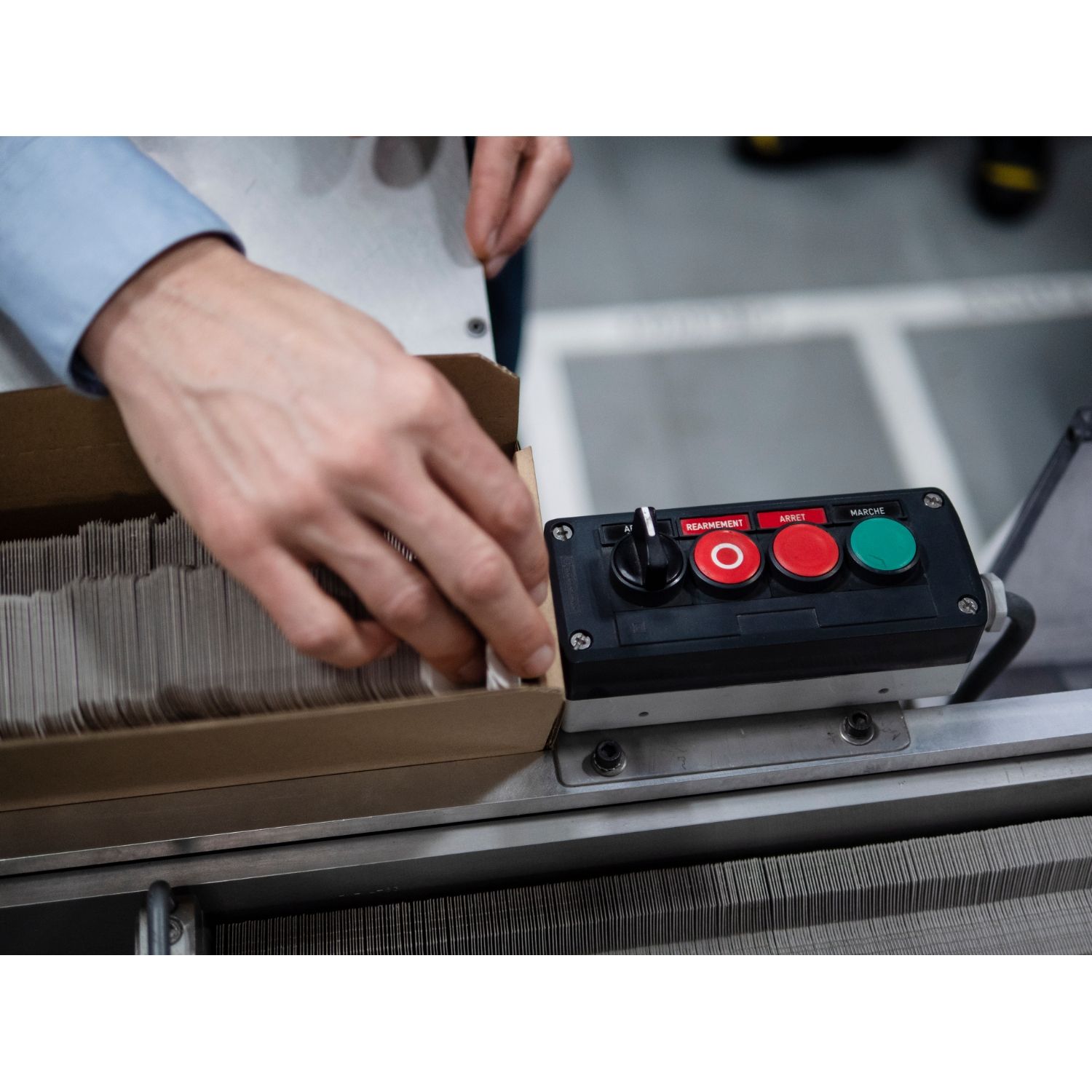

Image of product in real life situation
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5,head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility for use with Ø 6.35 mm shaft
Operator profile knurled knob, with (white)
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head + mounting base for potentiometer
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Group of product potentiometer knurled knob
Customizable no, 0
Compatibility code ZB5
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation basic element
Net weight 0.032 kg
Colour of marking white
Main group potentiometer
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, JIS C8201-5-1, UL 508, IEC 60947-5-5, IEC 60947-5-4
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications GL, LROS (Lloyds register of shipping), DNV, BV, UL listed, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.700 cm
Package 1 Width 5.400 cm
Package 1 Length 6.300 cm
Package 1 Weight 33.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.995 kg
