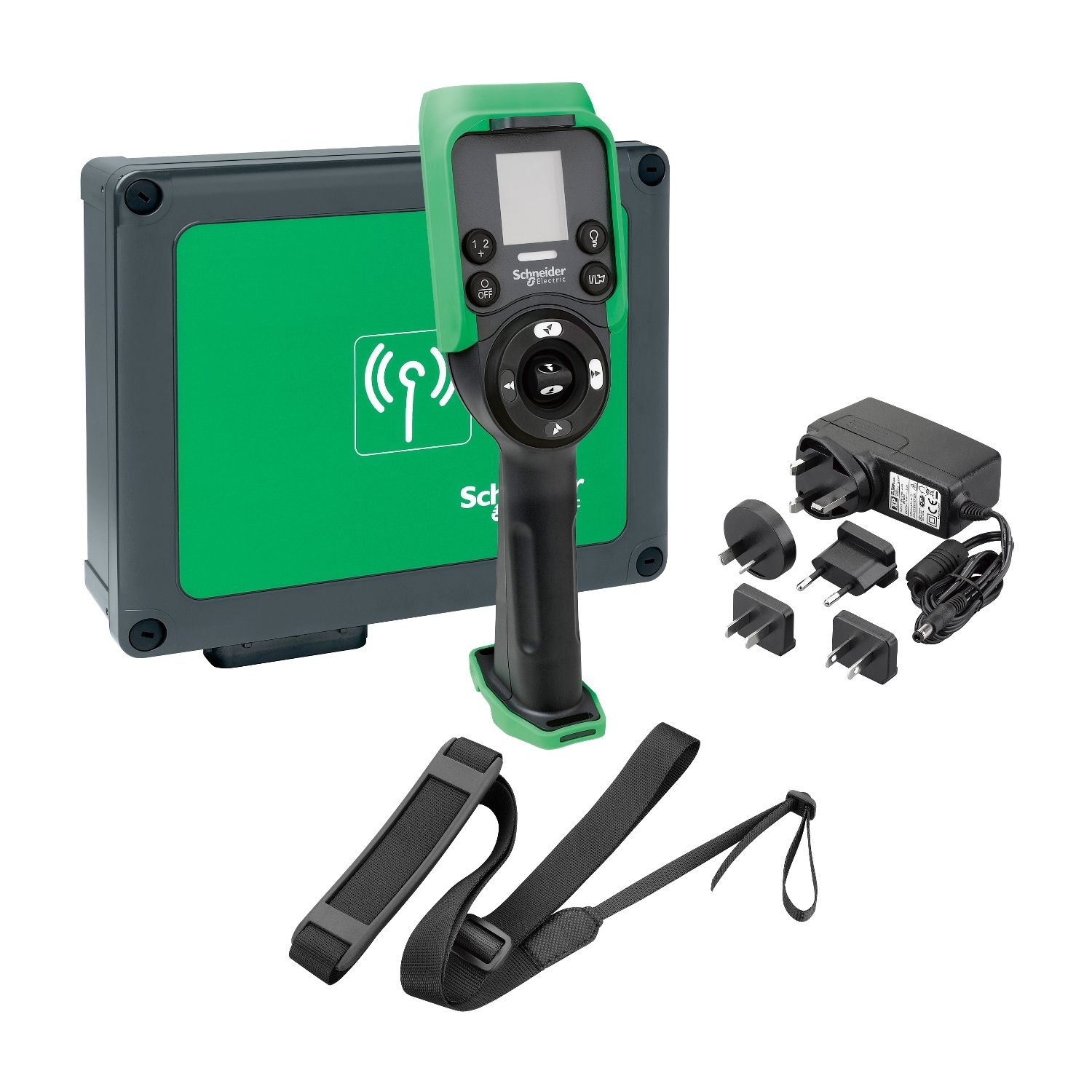

Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software, for control station
SKU:

XARSK8D18H

Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software, for control station

Old price: $4,556.20 INC GST
$3,553.84 INC GST
Availability: Please contact our sales team on 1300 724 622.
Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software, for control station
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
User guide
Declaration of conformity
Quick start guide
Product Page Link
Product Data Sheet
This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system (ZART8D + ZARB18H), accessories (ZARC01 + ZARC02), USB/RJ45 (TCSMCNAM3M002P) cable and configuration software. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. It weighs 2.8kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.

Products specifications

Attribute name Attribute value
Main
Device short name XARS
Control station application limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to EN/IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to EN/ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to EN/IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to EN/ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to EN/IEC 62061
Product specific application hoisting applications, material handling
Number of channels 50
Control station type wireless
Product or component type control station
Range of product Harmony eXLhoist
Complementary
Kit composition remote control, configuration software, shoulder belt, cable, base station
Cable entry cable gland
Operating distance 100 m in free air
Connector type industrial socket
Communication network type wireless: bluetooth low energy
Transmission frequency 2.4 GHz
Environment
Relative humidity 0-95 % at -20-45 °C storage
Standards EN 15011 hoisting applications, EN 12077-2 hoisting applications, EN 13557 hoisting applications, EN/IEC 60204-32 hoisting applications, EN/ISO 13850 safety, EN/IEC 61508 safety, EN/IEC 62061 safety, ARIB STD-T81 radio, EN/ISO 13849-1 safety, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, EN 14492 hoisting applications, EN 14439 hoisting applications, EN/IEC 60204-1 safety
Radio agreement ICASA, SRRC, ANATEL, FCC, RSS, ARIB
Electromagnetic compatibility resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
Product certifications EAC, KC, JIS, C-Tick, CSA, UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.0 cm
Package 1 Width 28.5 cm
Package 1 Length 30.5 cm
Package 1 Weight 3.089 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 7.131 kg
