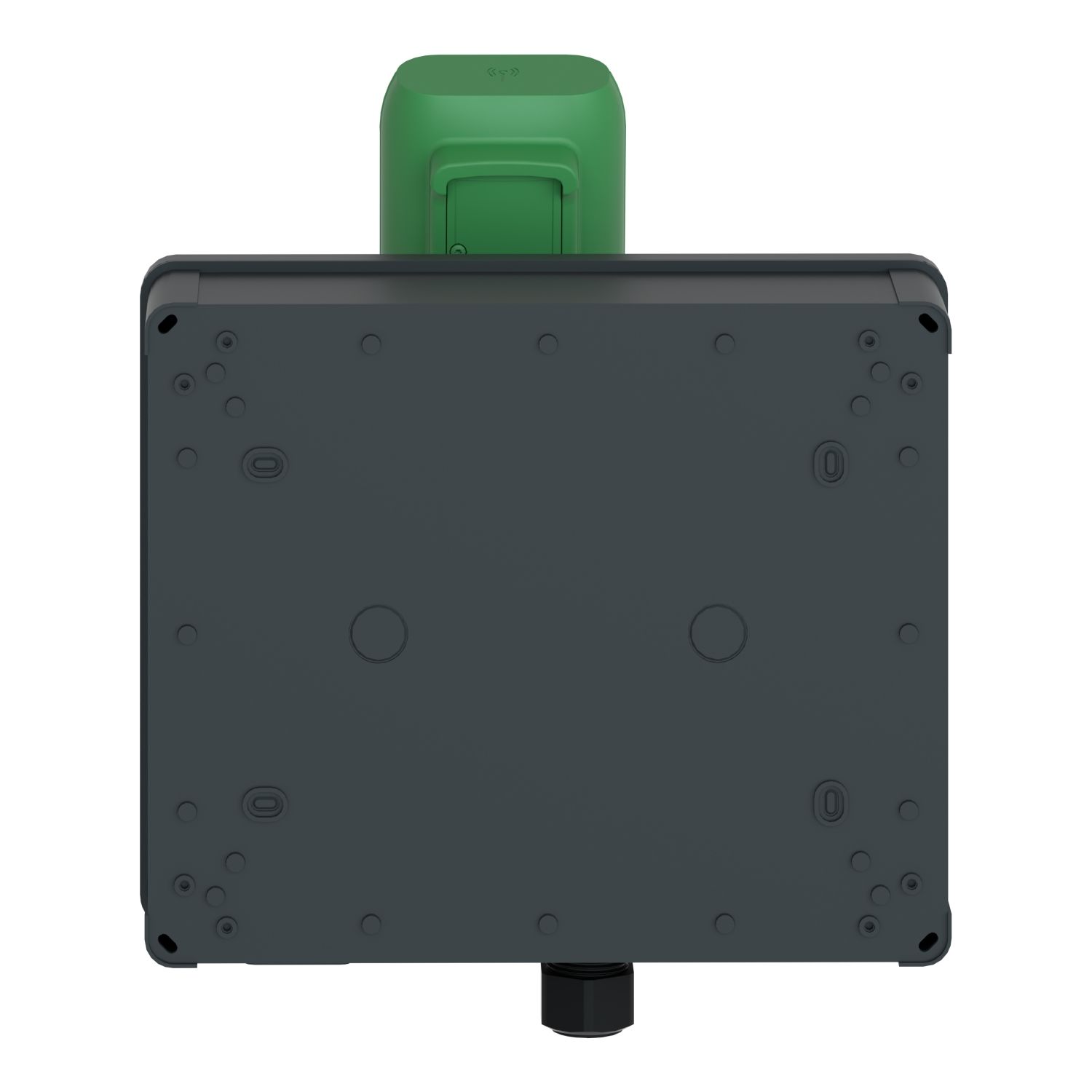

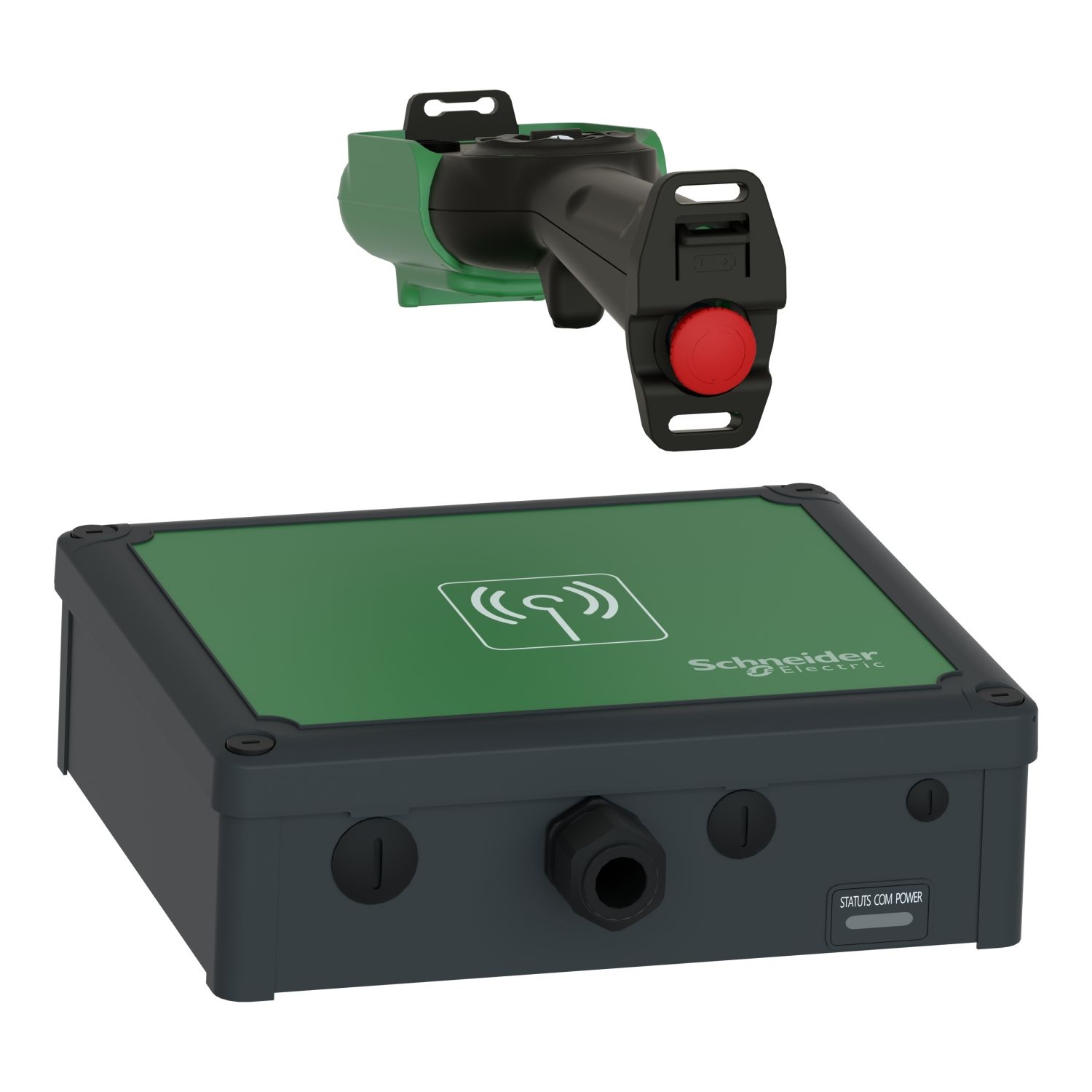

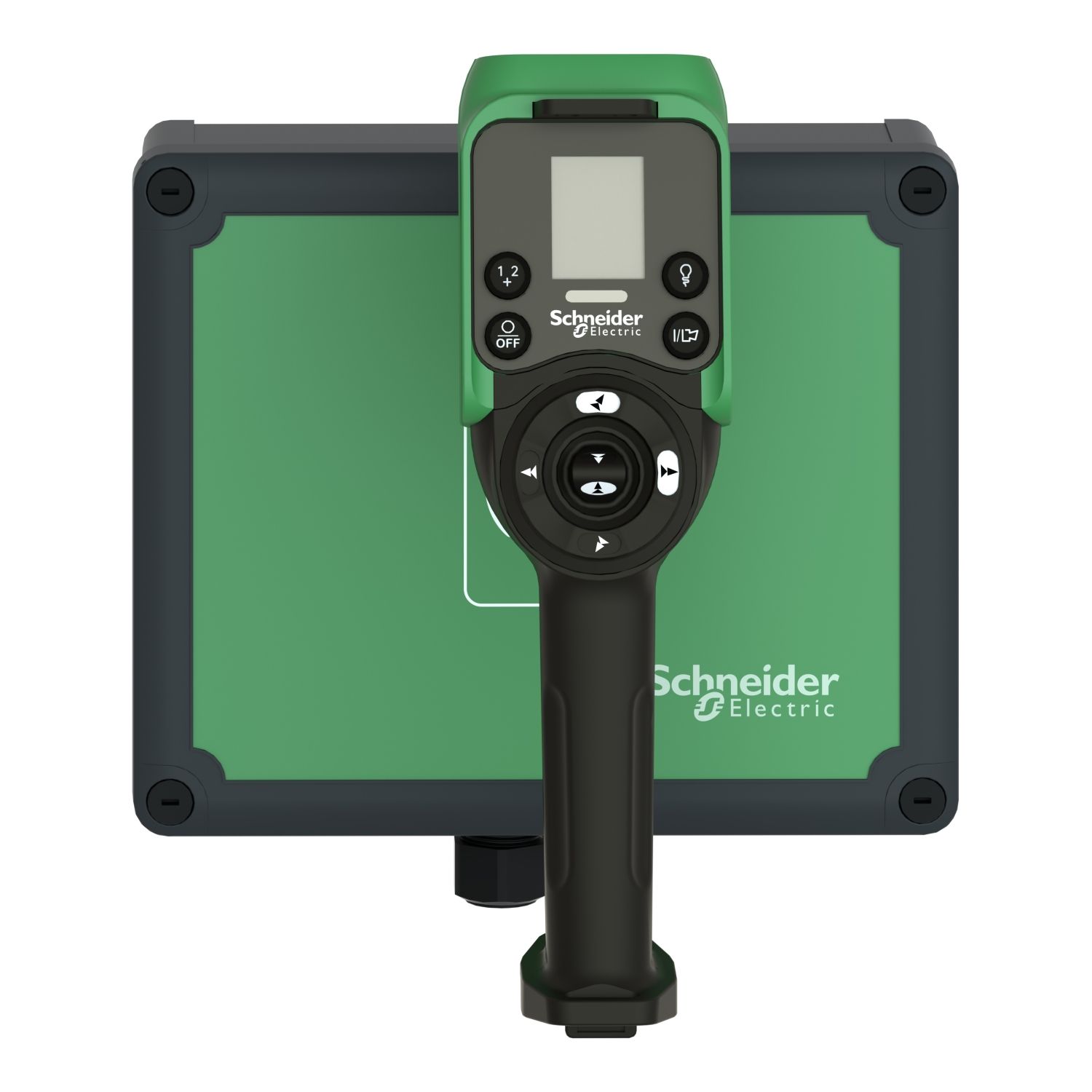

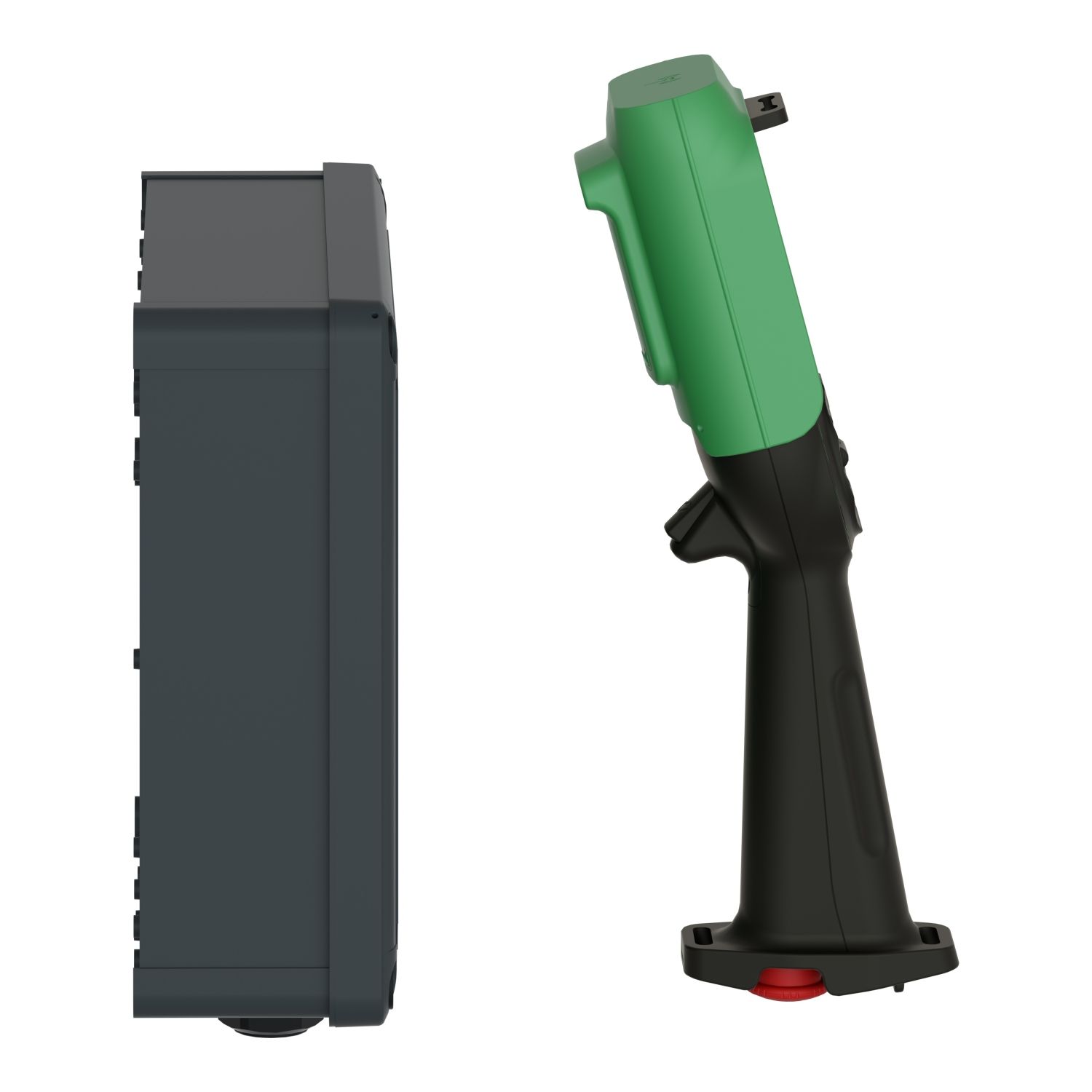

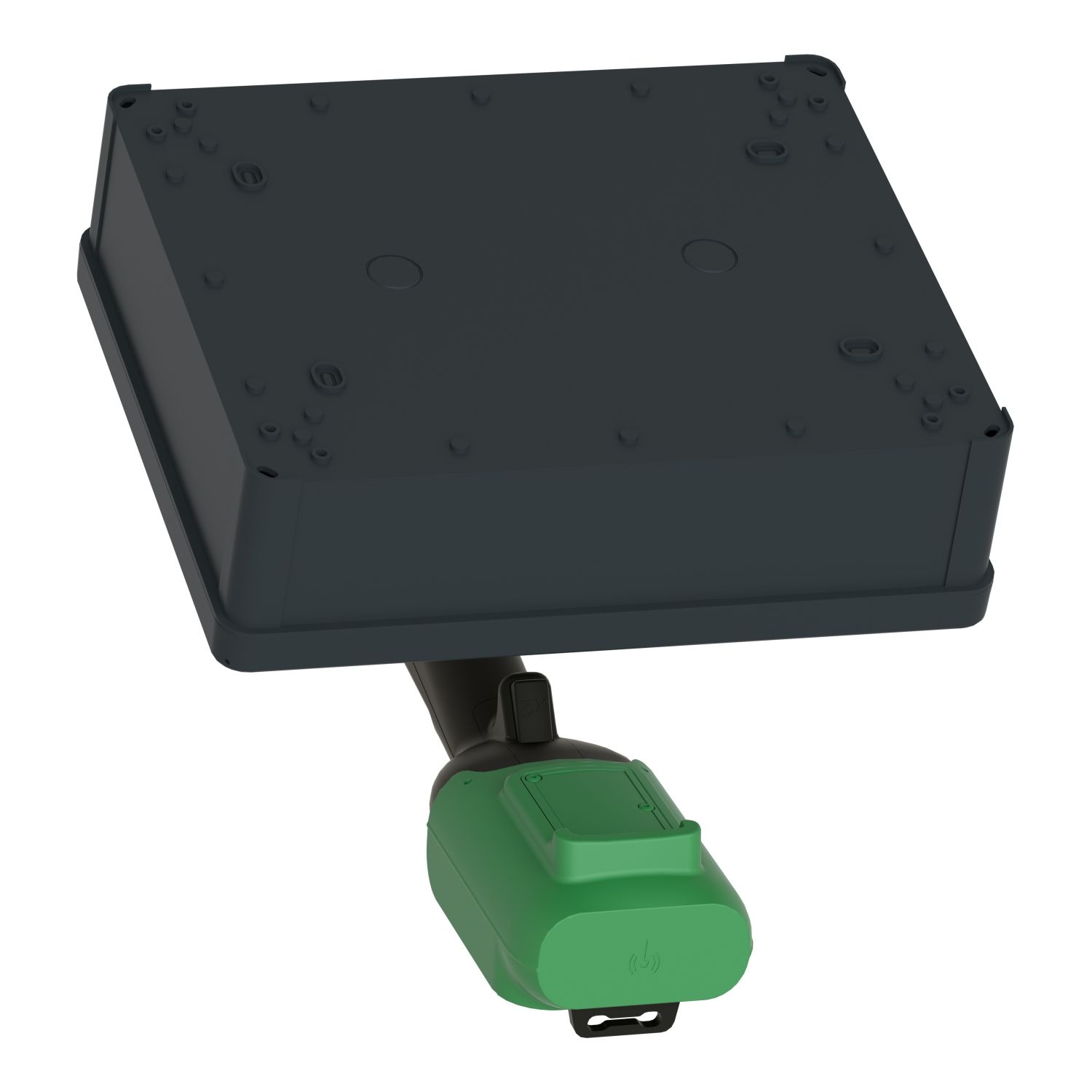

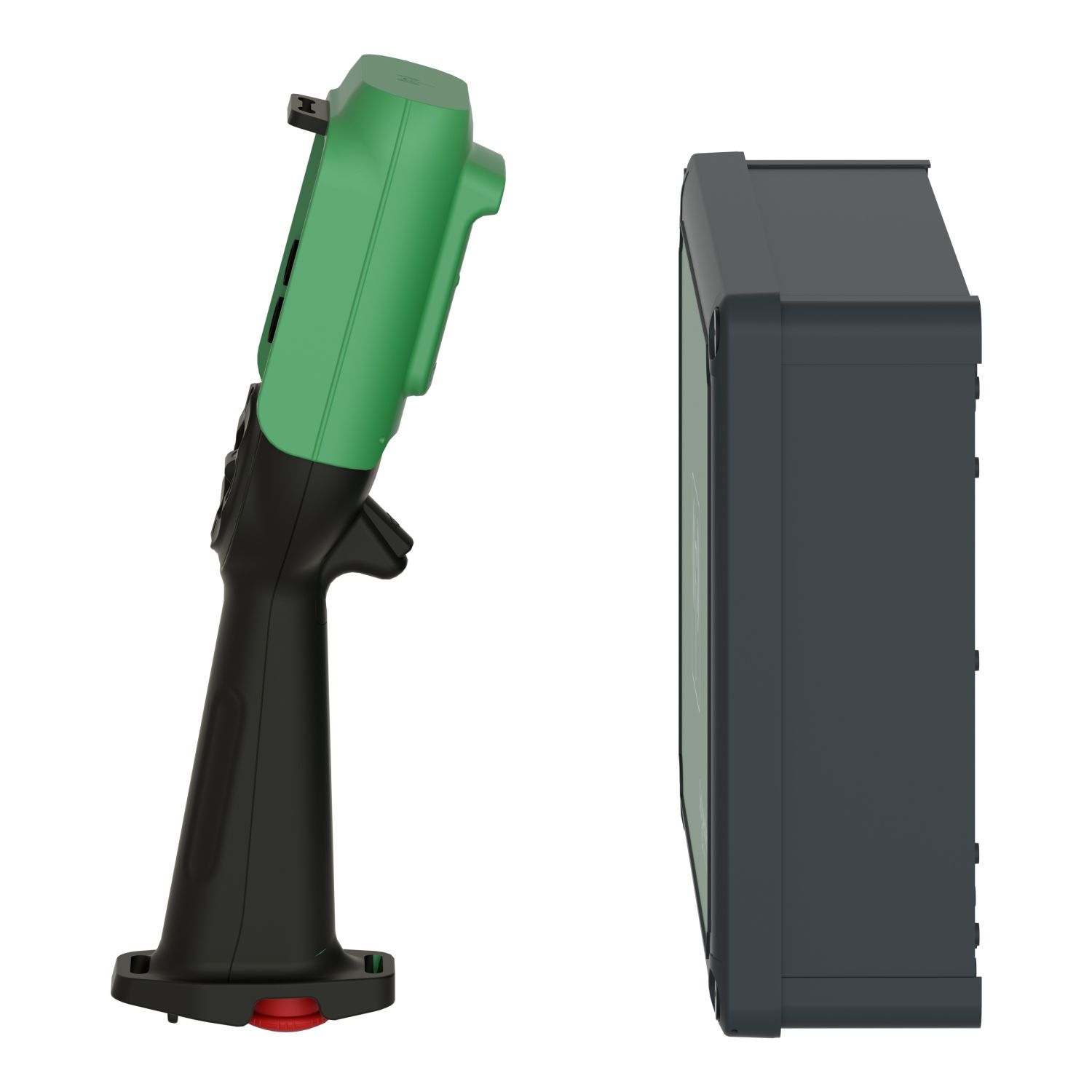

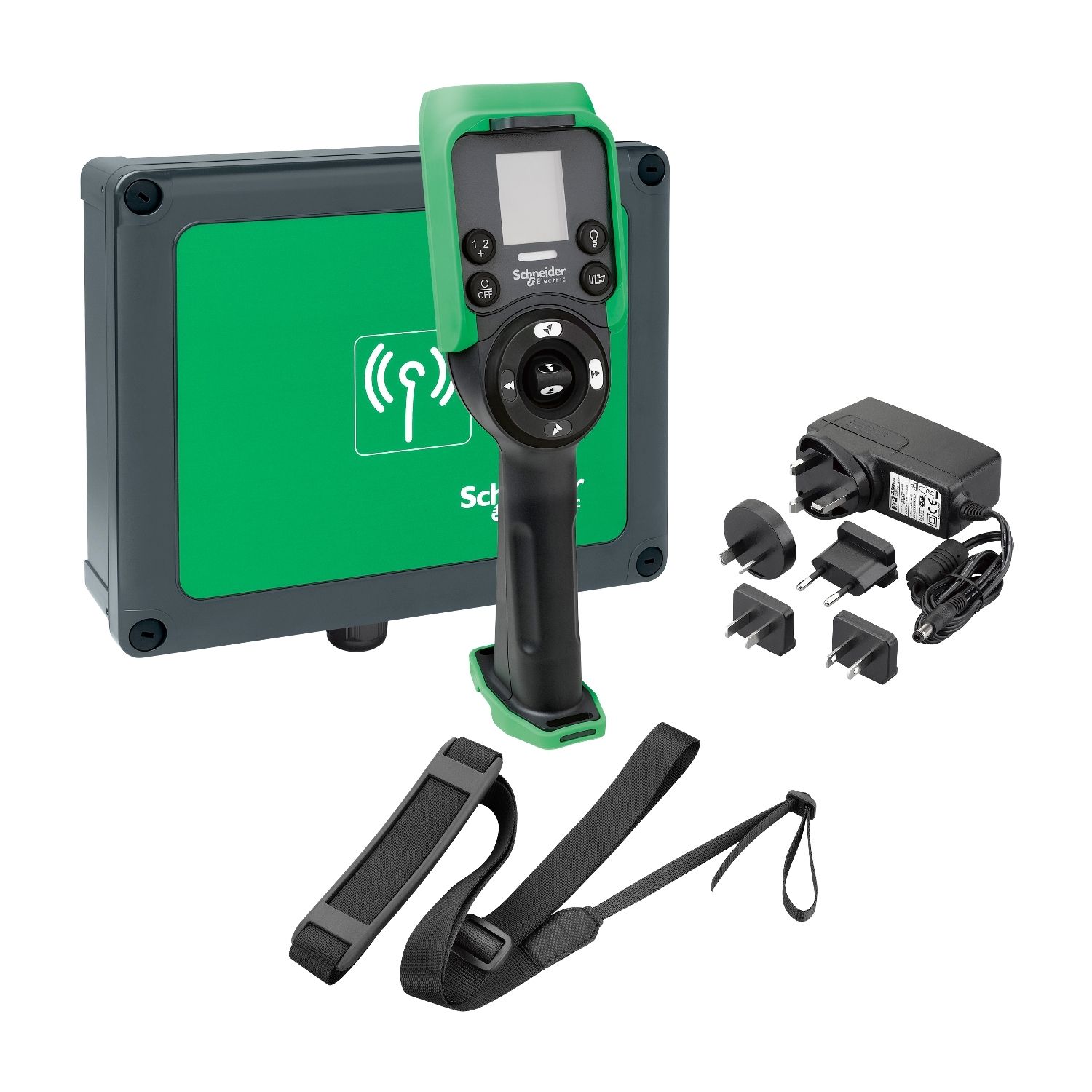

Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Picture of Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
SKU:

XARSK8D18W

Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software

Old price: $4,556.20 INC GST
$3,553.84 INC GST
Available for Shipping : 26-Jan-2026
Harmony eXLhoist, System with charger, standard, shoulder belt, cable USB/RJ45 and config software
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 26-Jan-2026
Instruction sheet

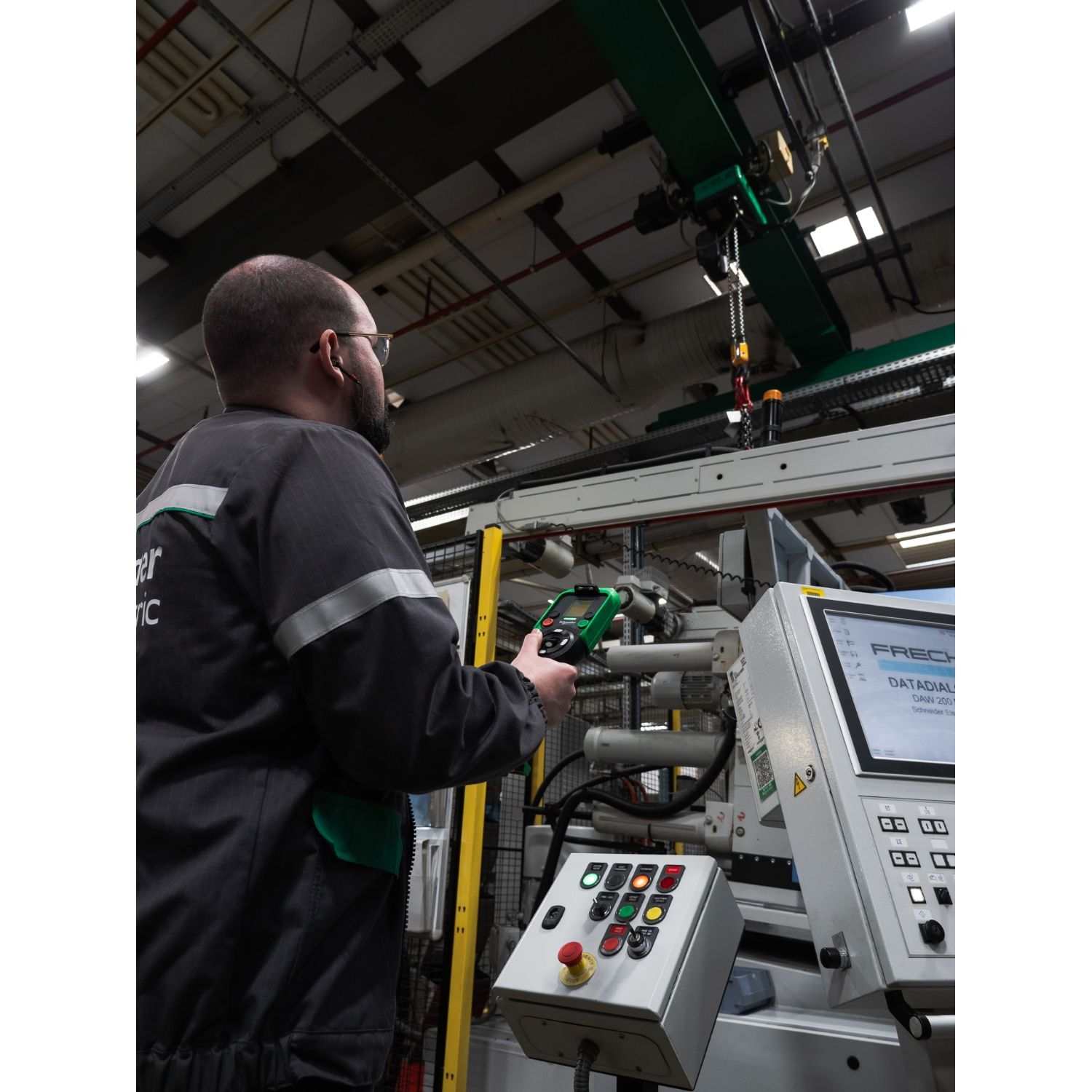

Image of product in real life situation
User guide
Quick start guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

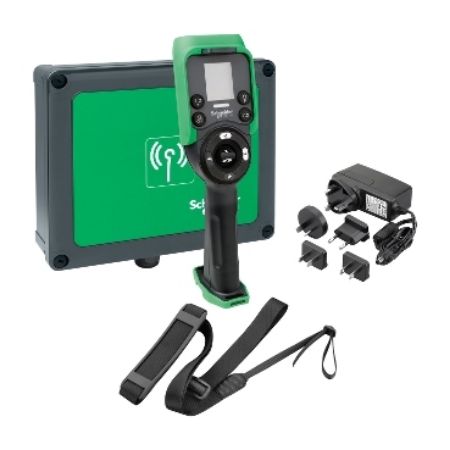

This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D , a base ZARB18W , a charger , a shoulder belt , a CABLE USB/RJ45 and a config software High performance International standards & certifications (IP69K, IK03, Type 4X)

Products specifications

Attribute name Attribute value
Main
Device short name XARS
Control station application limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061
Product specific application material handling, hoisting applications
Number of channels 50
Control station type wireless
Product or component type control station
Range of product Harmony eXLhoist
Complementary
Kit composition configuration software, cable, shoulder belt, base station, remote control
Cable entry cable gland
Operating distance 100 m in free air
Communication network type wireless: bluetooth low energy
Transmission frequency 2.4 GHz
Environment
Relative humidity 0-95 % at -20-45 °C storage
Standards ARIB STD-T81 radio, RSS 210 issue 8 radio, RSS GEN issue 3 radio, FCC part 15 radio, ETSI EN 300 328 radio, ETSI EN 300 440-2 radio, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, IEC 60204-32 hoisting applications, ISO 13850 safety, IEC 61508 safety, IEC 62061 safety, ISO 13849-1 safety, IEC 60204-1 safety
Radio agreement ICASA, FCC, ANATEL, ARIB, RSS, SRRC
Electromagnetic compatibility resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
Product certifications EAC, KC, JIS, C-Tick, CSA, UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.500 cm
Package 1 Width 29.000 cm
Package 1 Length 30.800 cm
Package 1 Weight 3.050 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 6.884 kg
