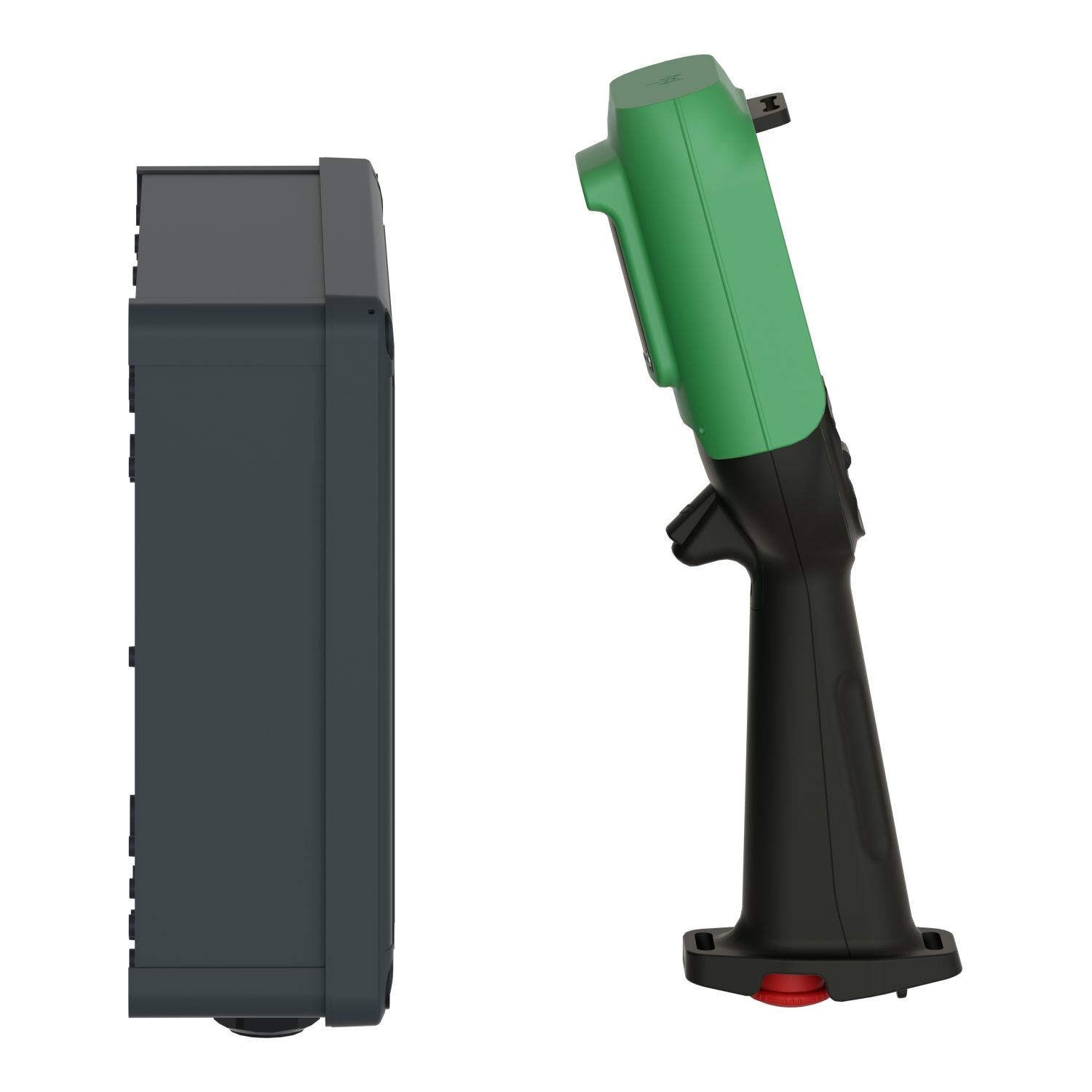

Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Picture of Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
SKU:

XARS12D18W

Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W

Old price: $3,995.20 INC GST
$3,116.26 INC GST
Available for Shipping : 21-Jan-2026
Control station, Harmony eXLhoist, standard, Remote ZART12D with base ZARB18W
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 21-Jan-2026
Instruction sheet

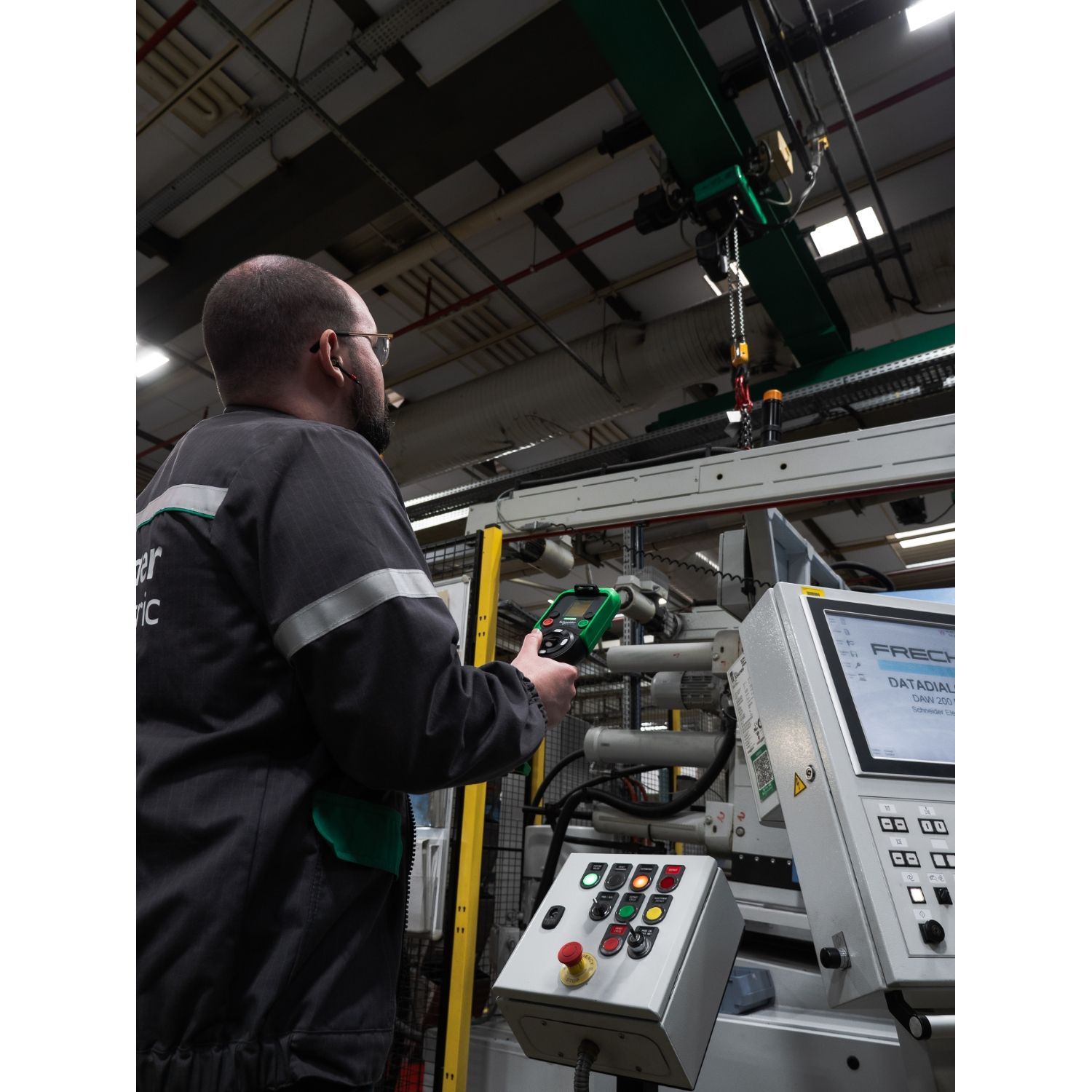

Image of product in real life situation
User guide
Declaration of conformity
Quick start guide
Catalog
Product Page Link
Product Data Sheet

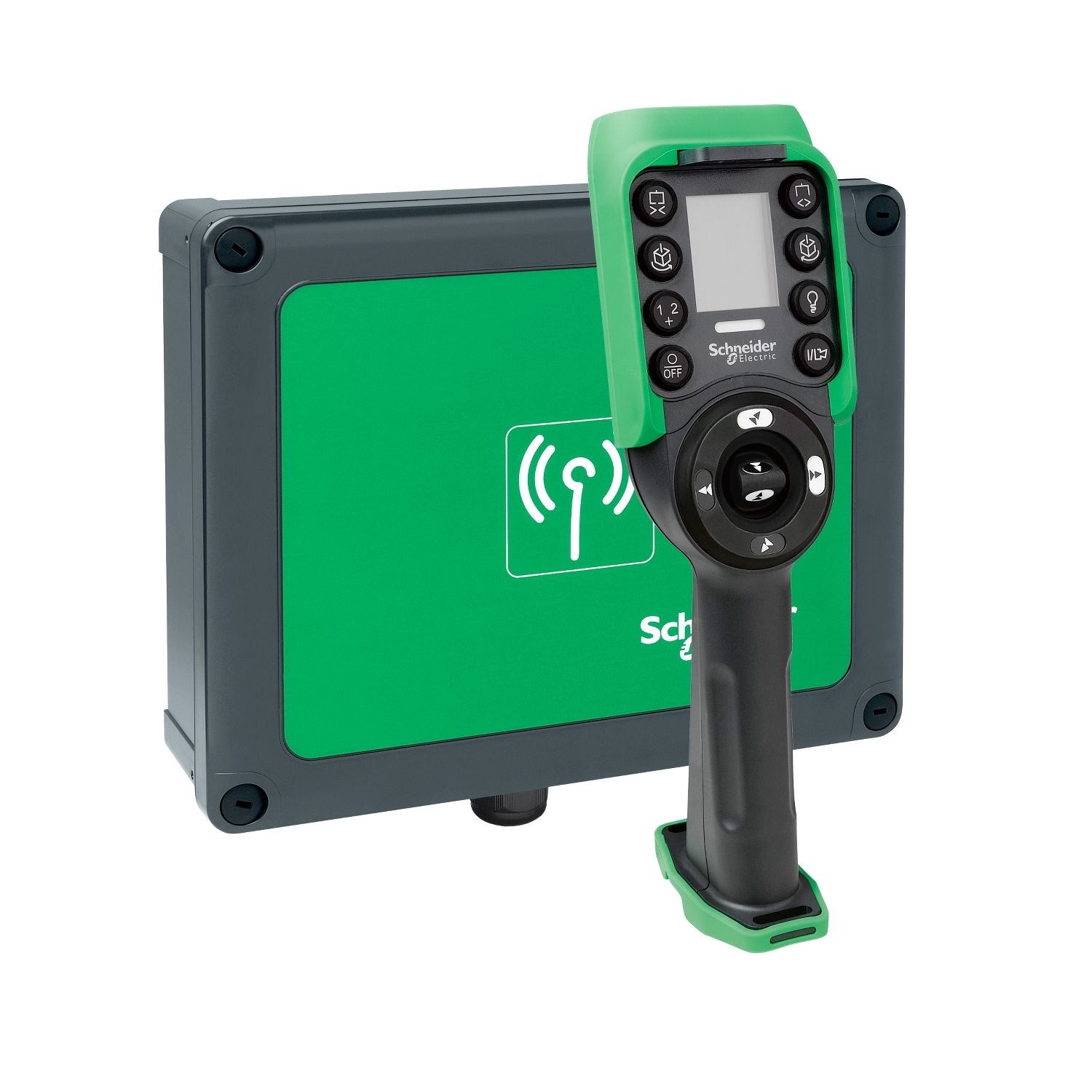

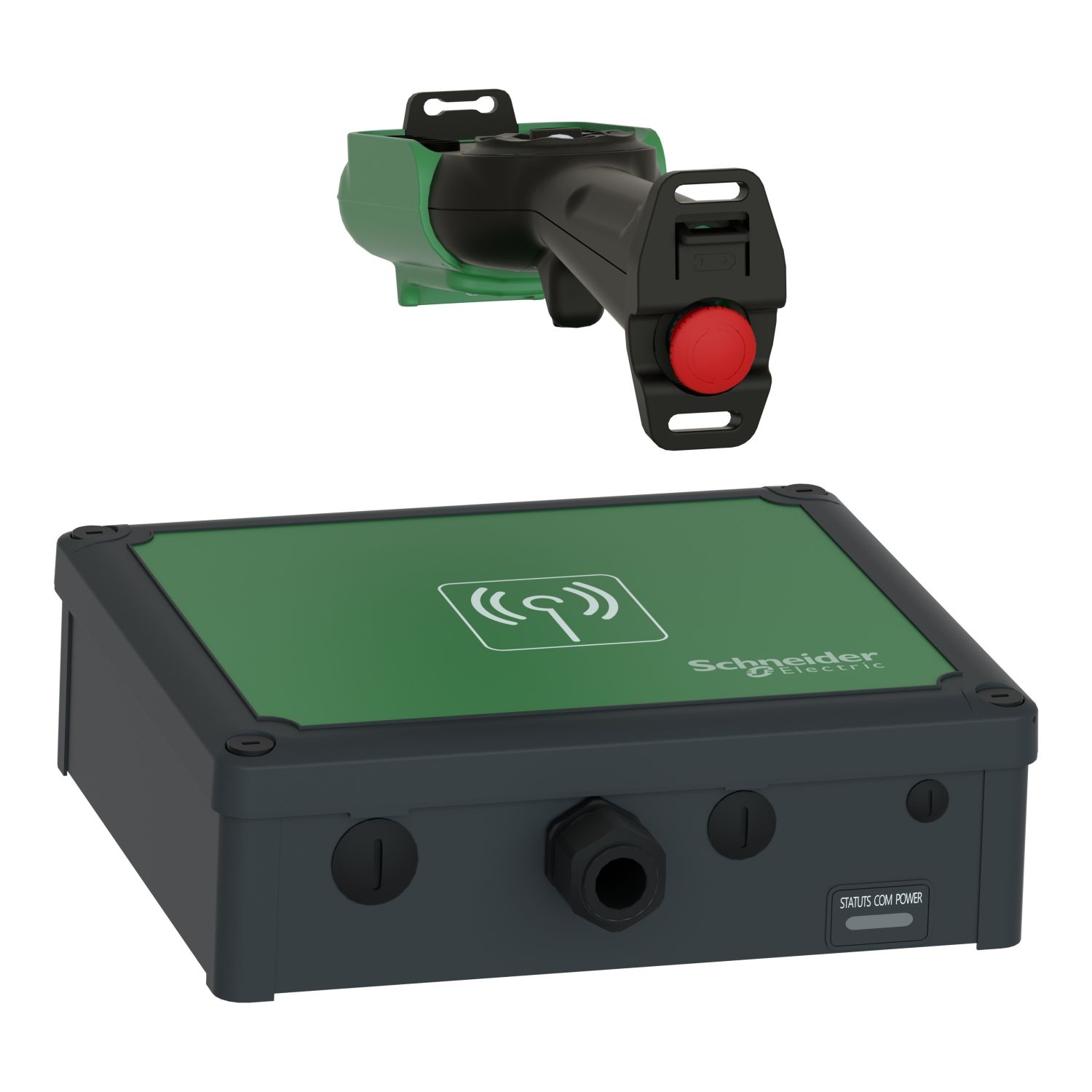

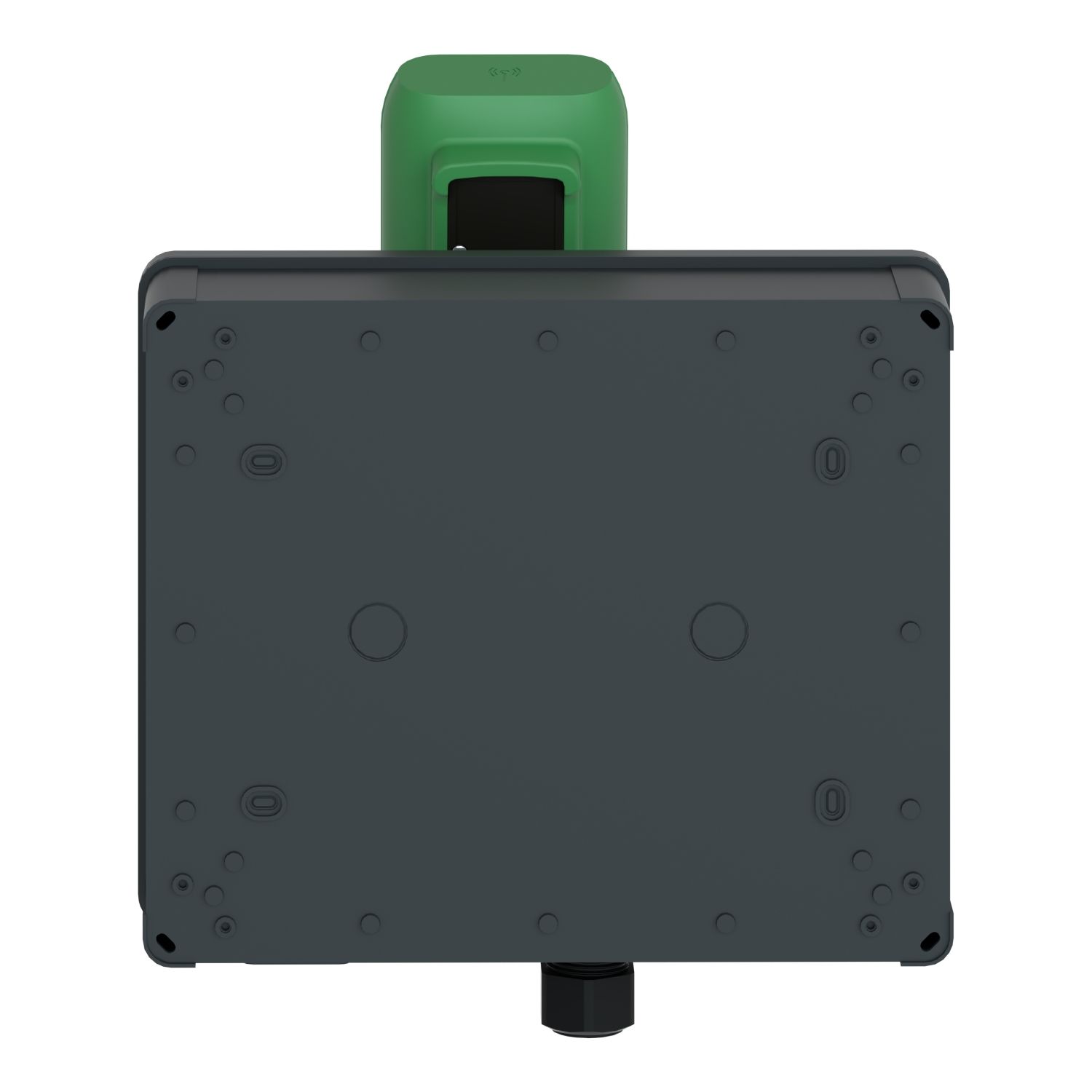

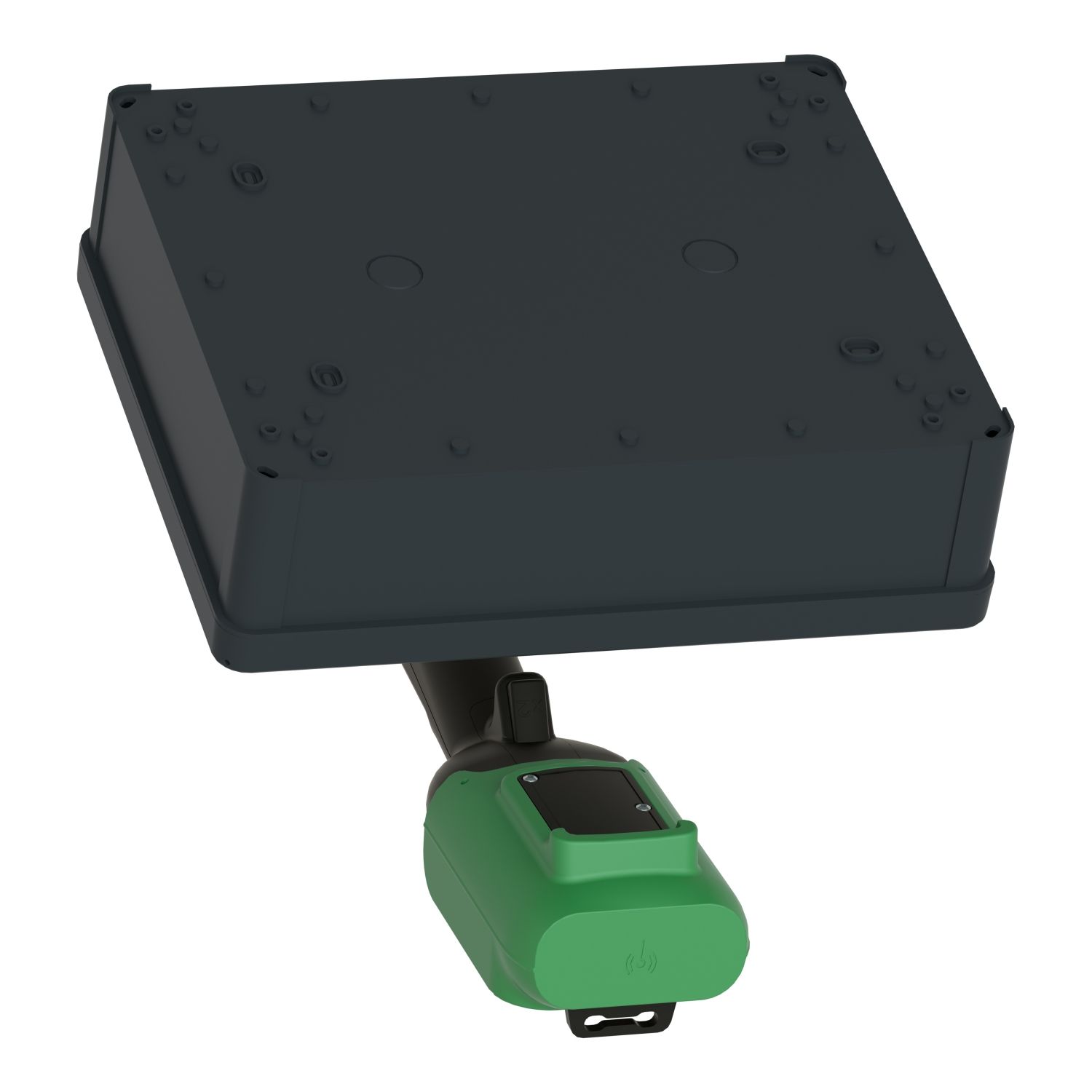

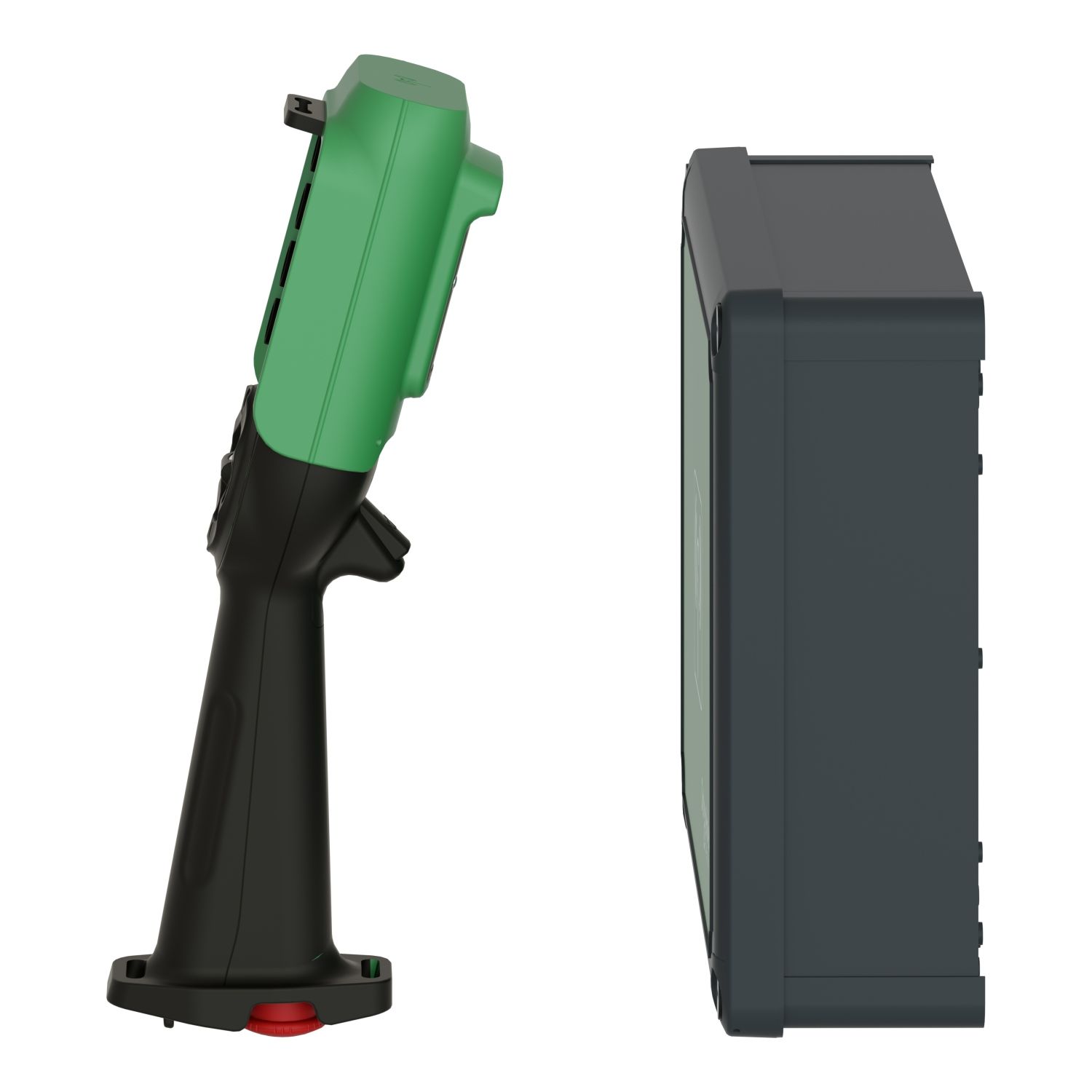

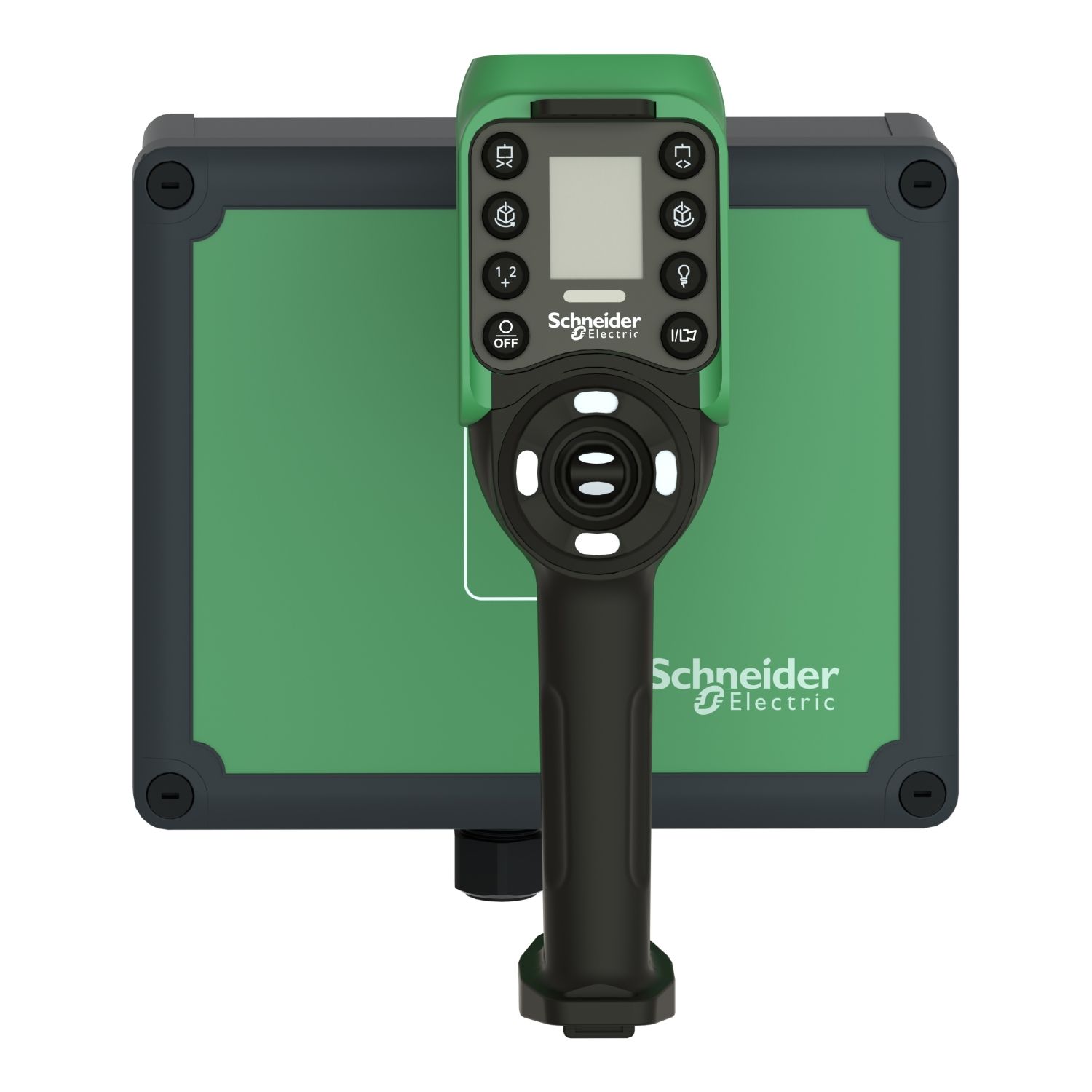

This wireless remote control system is part of the range wireless remote control system Harmony eXLhoist. It is a combination of remote control device (or transmitter ZART12D) and base station (or receiver ZARB18W) which transmits commands and information from the operator to the machine and vice versa by wireless transmission. The XARS system offers movement in 3 directions (for example hoist, bridge, and trolley) at 2 speeds (low and high) for each movement. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. Its degree of protection is IP 65 for the base station and IP 65 and NEMA 4 for the wireless control device. It weighs 2.1kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.

Products specifications

Attribute name Attribute value
Main
Device short name XARS
Control station application limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061
Product specific application hoisting applications, material handling
Number of channels 50
Control station type wireless
Product or component type control station
Range of product Harmony eXLhoist
Complementary
Kit composition base station, remote control
Cable entry cable gland
Operating distance 100 m in free air
Communication network type wireless: bluetooth low energy
Transmission frequency 2.4 GHz
Environment
Relative humidity 0-95 % at -20-45 °C storage
Standards ARIB STD-T81 radio, RSS 210 issue 8 radio, RSS GEN issue 3 radio, FCC part 15 radio, ETSI EN 300 328 radio, ETSI EN 300 440-2 radio, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, IEC 60204-32 hoisting applications, ISO 13850 safety, IEC 61508 safety, IEC 62061 safety, ISO 13849-1 safety, IEC 60204-1 safety
Radio agreement RSS, ICASA, SRRC, ARIB, ANATEL, FCC
Electromagnetic compatibility resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
Product certifications EAC, KC, JIS, C-Tick, CSA, UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 20.0 cm
Package 1 Width 28.5 cm
Package 1 Length 31.0 cm
Package 1 Weight 2.522 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 5.905 kg
Unit Type of Package 3 3
Number of Units in Package 3 8
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 32.12 kg

Related products

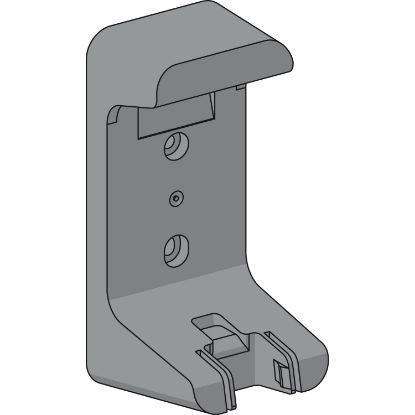

Picture of Harmony eXLhoist, Holder for remote device, standard
