SKU:

XARS8D18W

Control station, Harmony eXLhoist, standard, remote ZART8D with base ZARB18W

Old price: $3,817.00 INC GST
$2,977.26 INC GST
Availability: Please contact our sales team on 1300 724 622.
Control station, Harmony eXLhoist, standard, remote ZART8D with base ZARB18W
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet

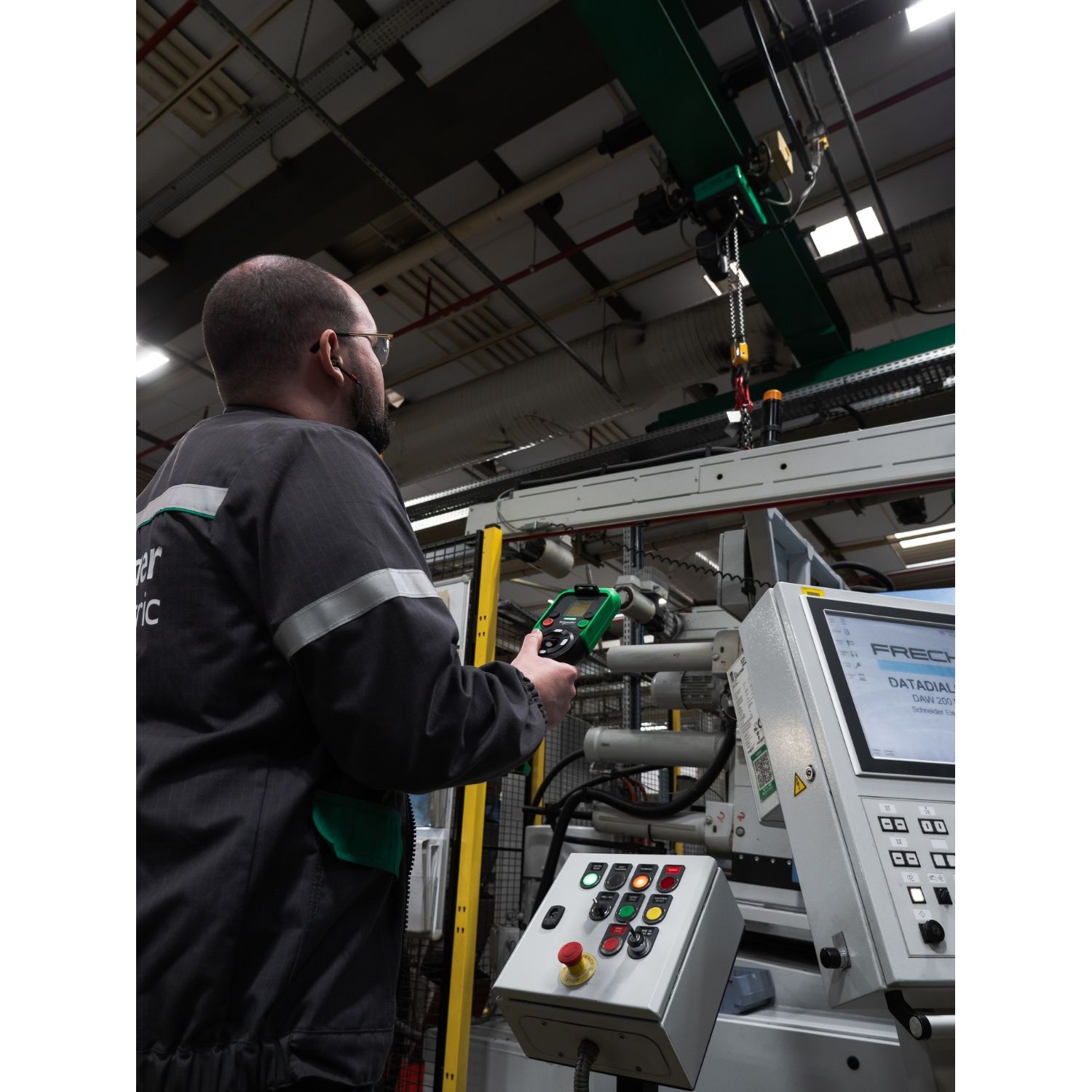

Image of product in real life situation
User guide
Quick start guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D and a base ZARB18W High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)

Products specifications

Attribute name Attribute value
Main
Device short name XARS
Control station application limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061
Product specific application material handling, hoisting applications
Number of channels 50
Control station type wireless
Product or component type control station
Range of product Harmony eXLhoist
Complementary
Kit composition remote control, base station
Cable entry cable gland
Operating distance 100 m in free air
Communication network type wireless: bluetooth low energy
Transmission frequency 2.4 GHz
Environment
Relative humidity 0-95 % at -20-45 °C storage
Standards ARIB STD-T81 radio, RSS 210 issue 8 radio, RSS GEN issue 3 radio, FCC part 15 radio, ETSI EN 300 328 radio, ETSI EN 300 440-2 radio, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, IEC 60204-32 hoisting applications, ISO 13850 safety, IEC 61508 safety, IEC 62061 safety, ISO 13849-1 safety, IEC 60204-1 safety
Radio agreement ICASA, FCC, ARIB, ANATEL, SRRC, RSS
Electromagnetic compatibility resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2
Product certifications EAC, KC, JIS, C-Tick, CSA, UL, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.5 cm
Package 1 Width 28.7 cm
Package 1 Length 31.0 cm
Package 1 Weight 2.541 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 5.897 kg
Unit Type of Package 3 3
Number of Units in Package 3 8
Package 3 Height 75.0 cm
Package 3 Width 80.0 cm
Package 3 Length 60.0 cm
Package 3 Weight 33.828 kg
