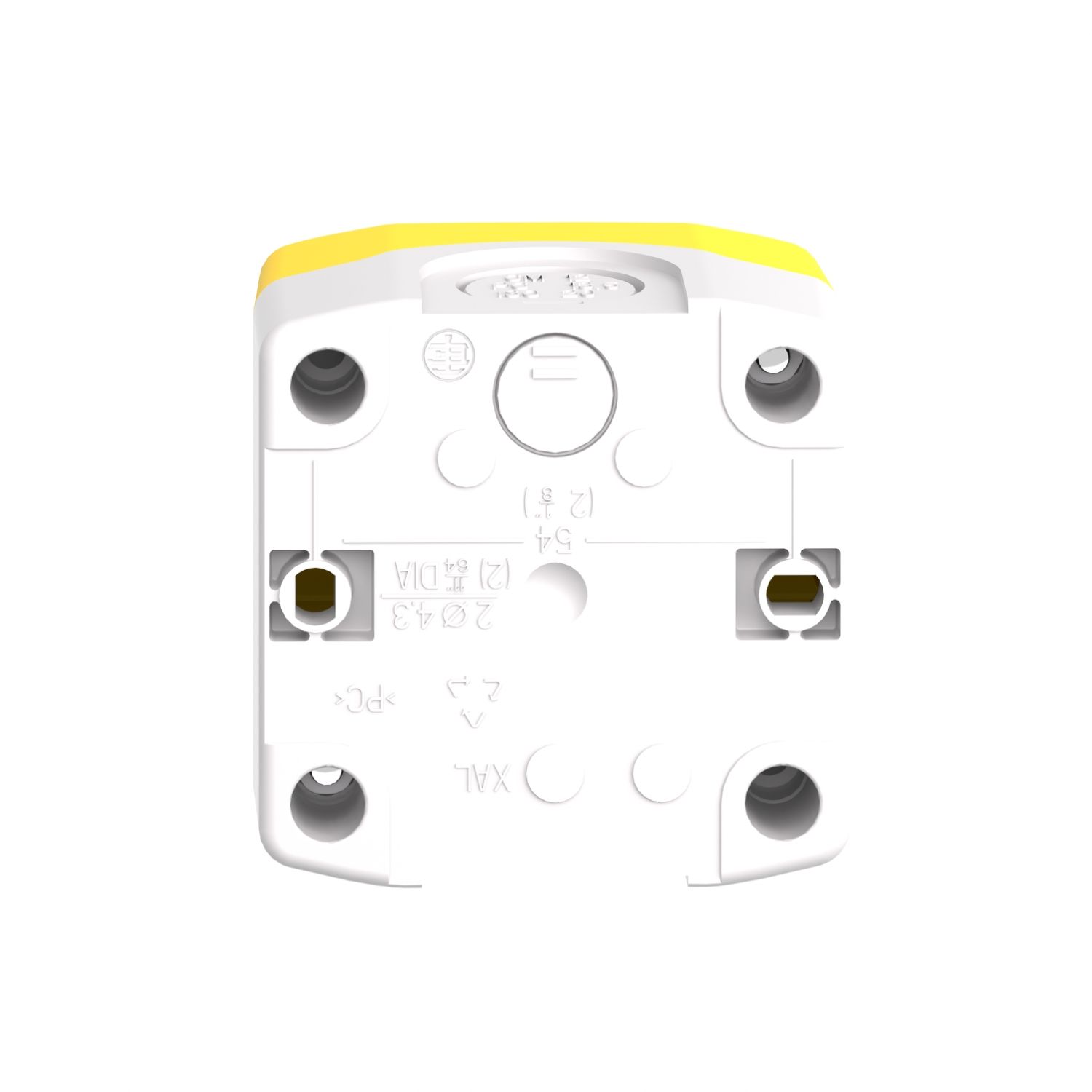

Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

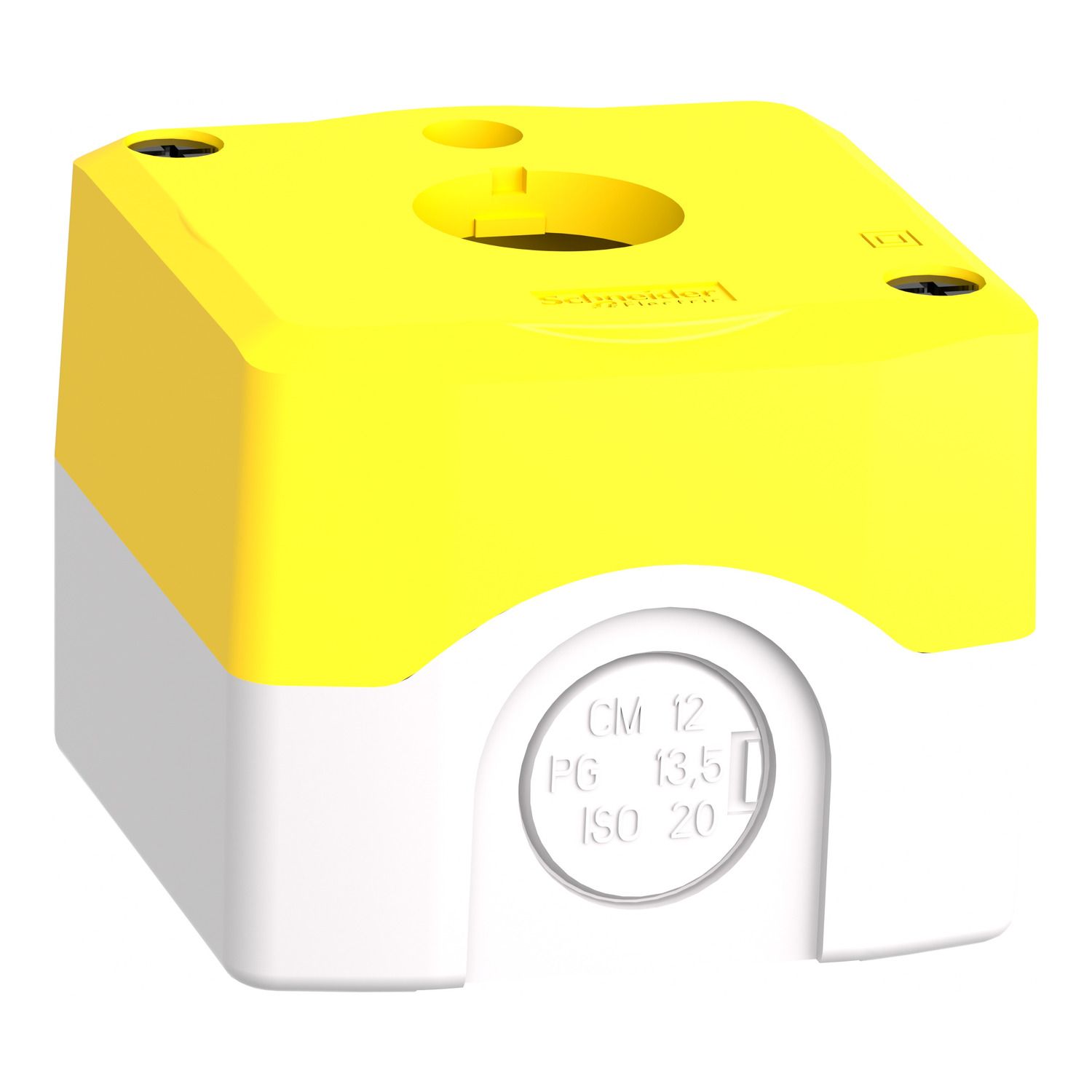

Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out
Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

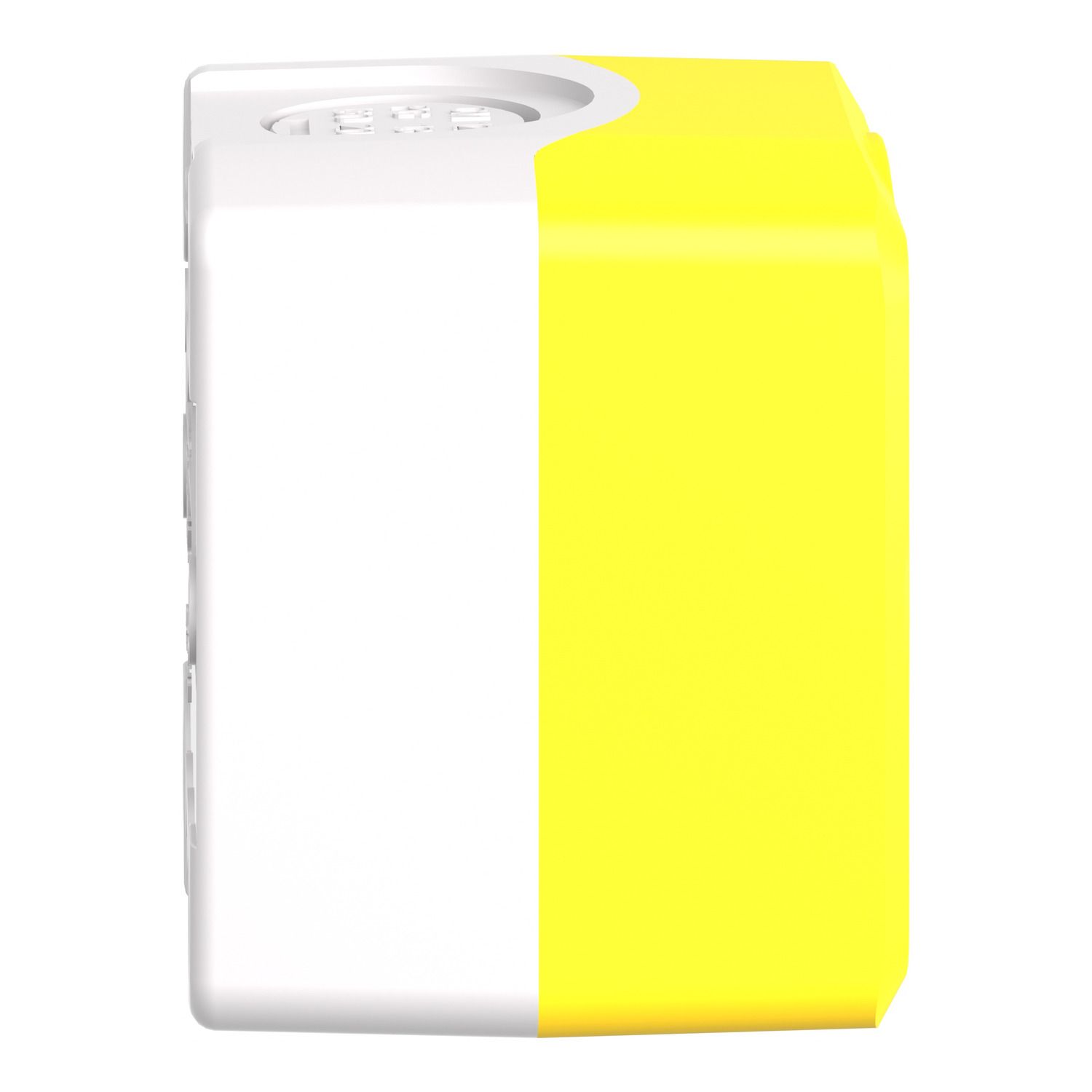

Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

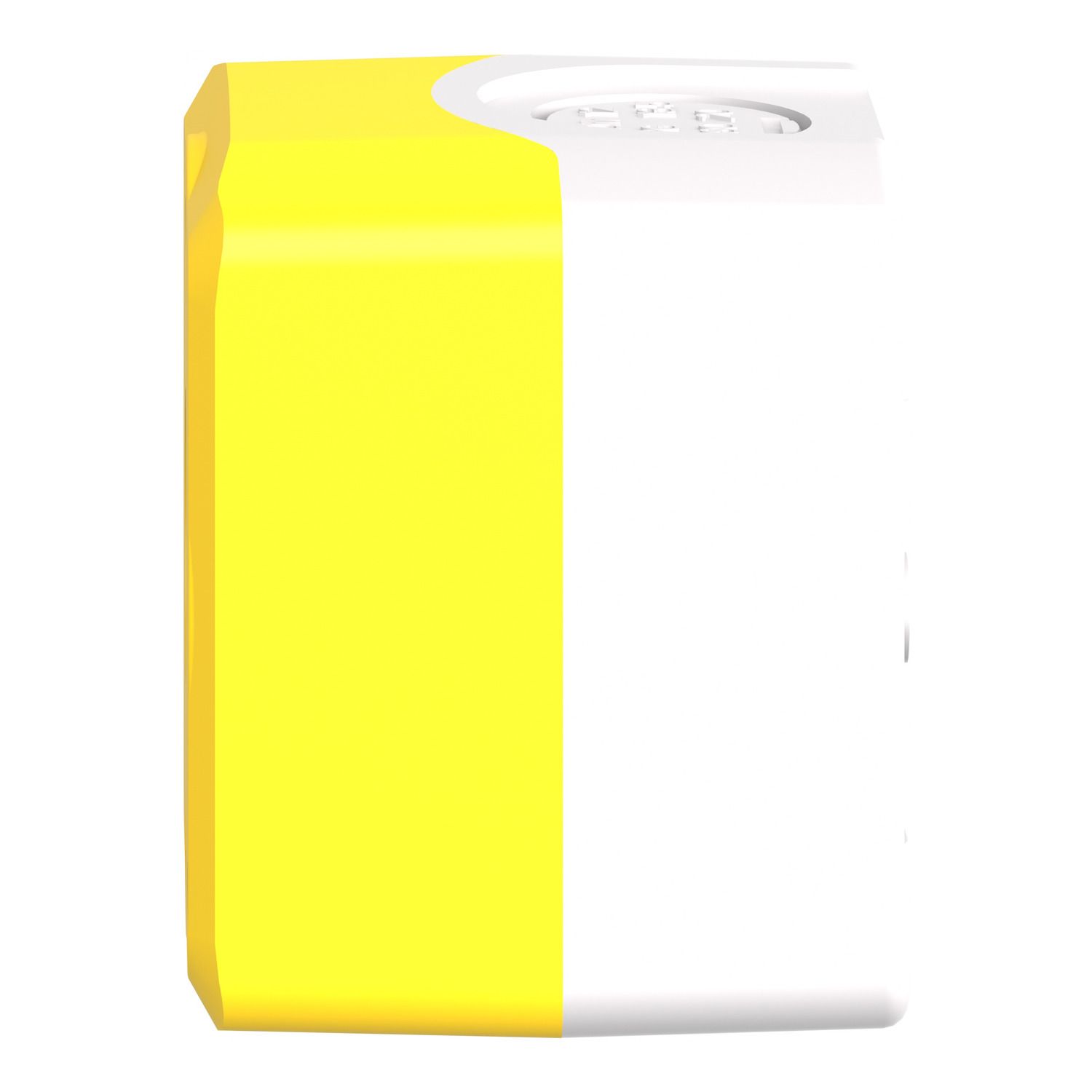

Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

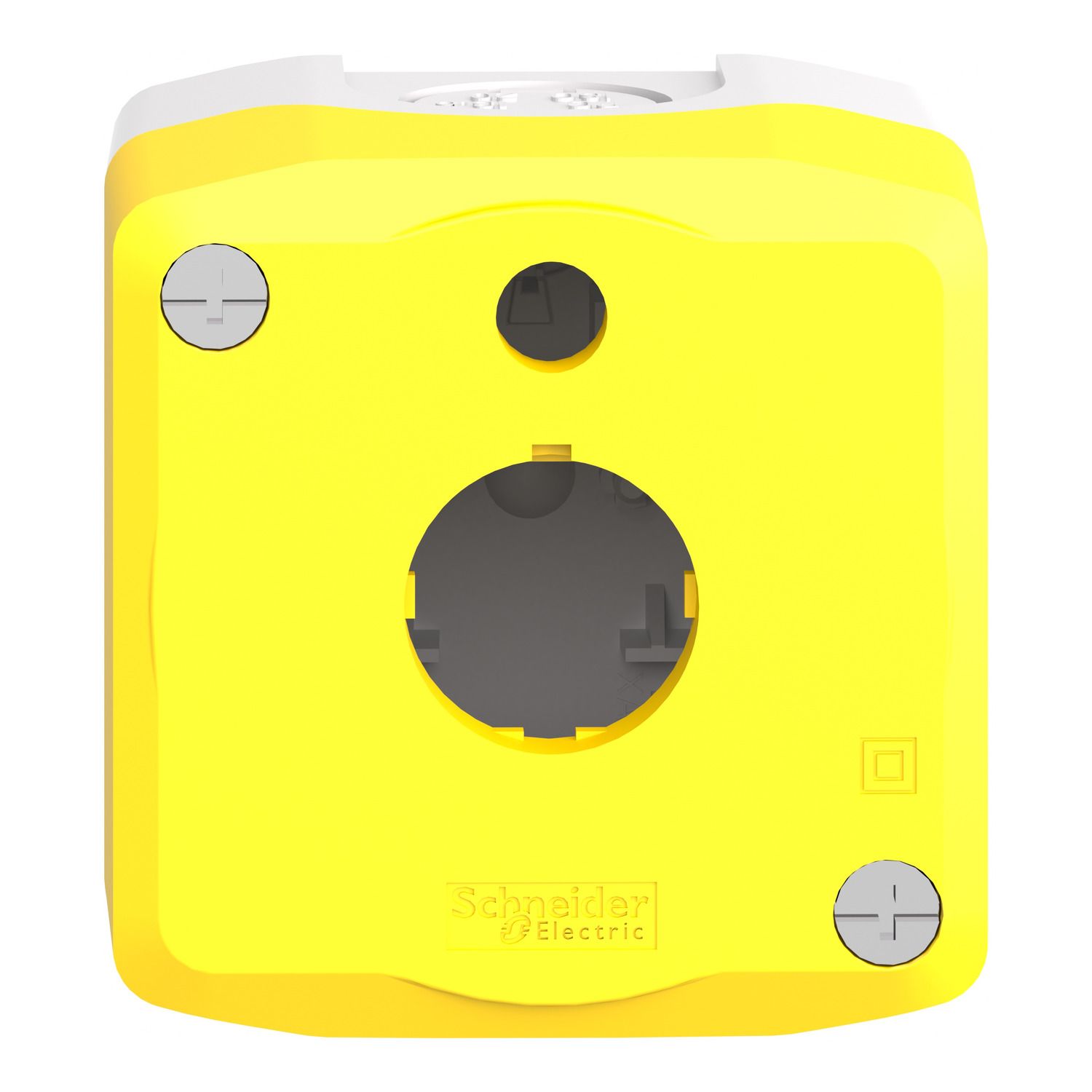

Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

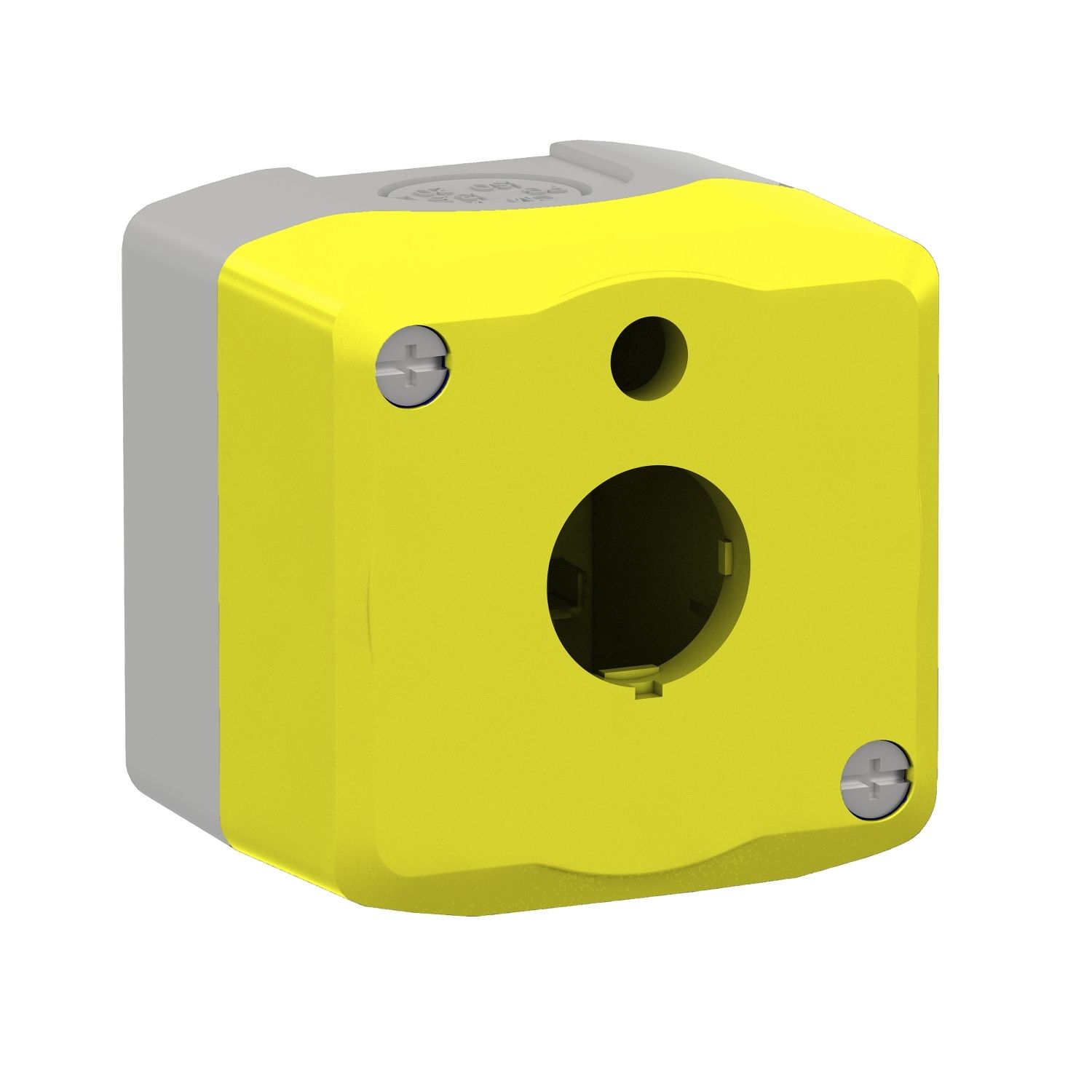

Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

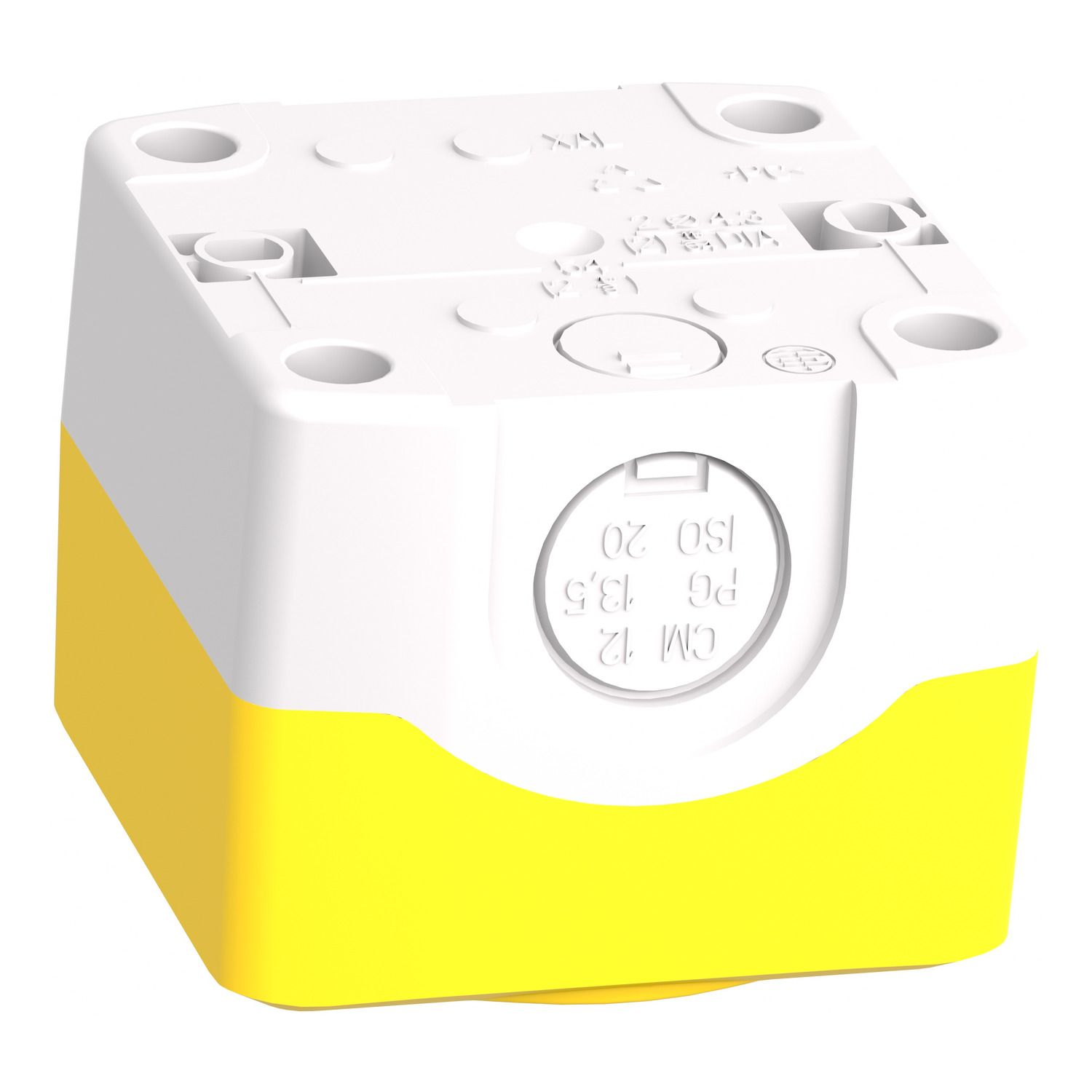

Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out
Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out
Picture of Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out
SKU:

XALKW01

Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out

Old price: $74.69 INC GST
$58.26 INC GST
Available for Shipping : 07-Apr-2026
Product Selector
Empty enclosure, Harmony XALK, XALD, plastic, yellow lid, for illuminated emergency stop push button 22mm, 1 cut out
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 07-Apr-2026

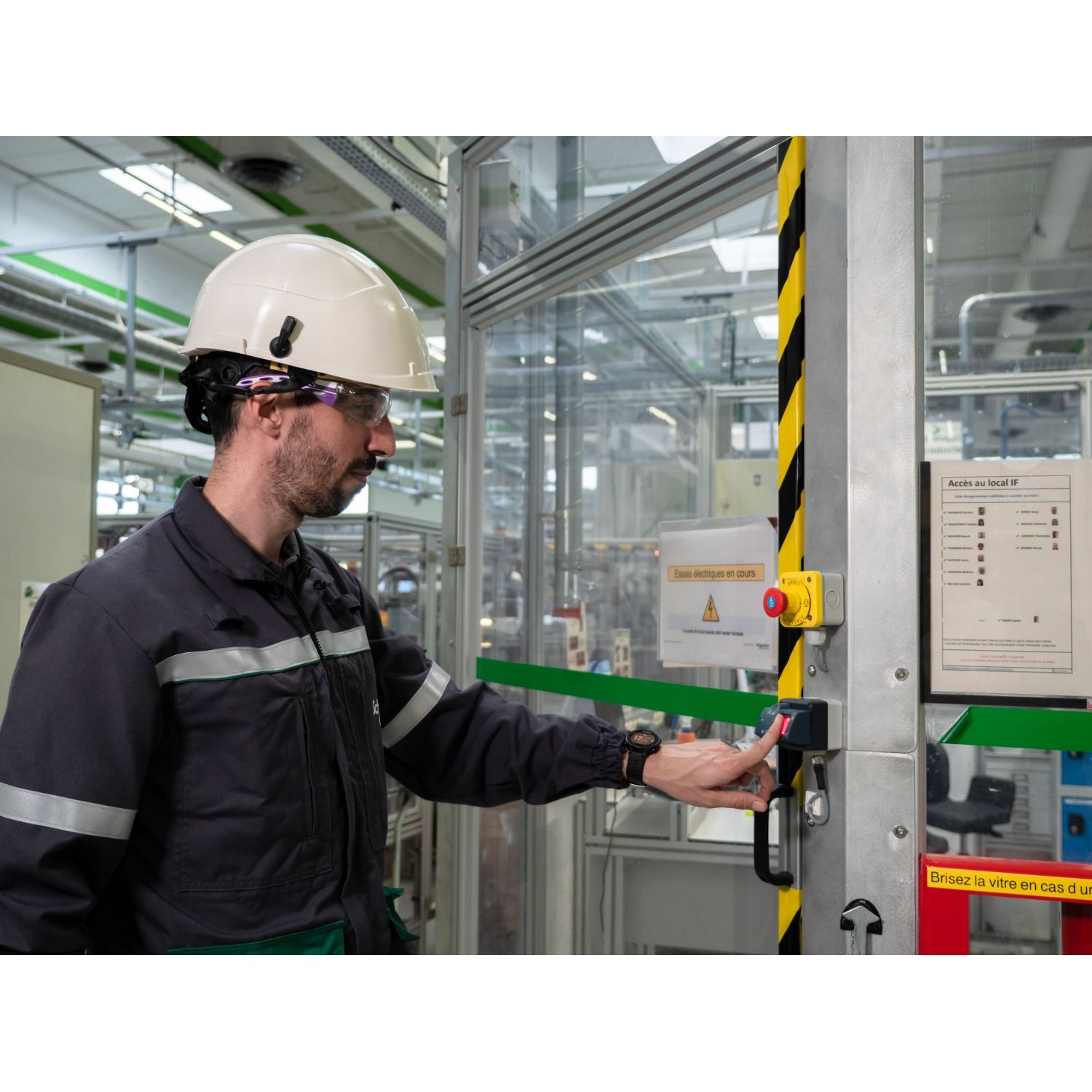

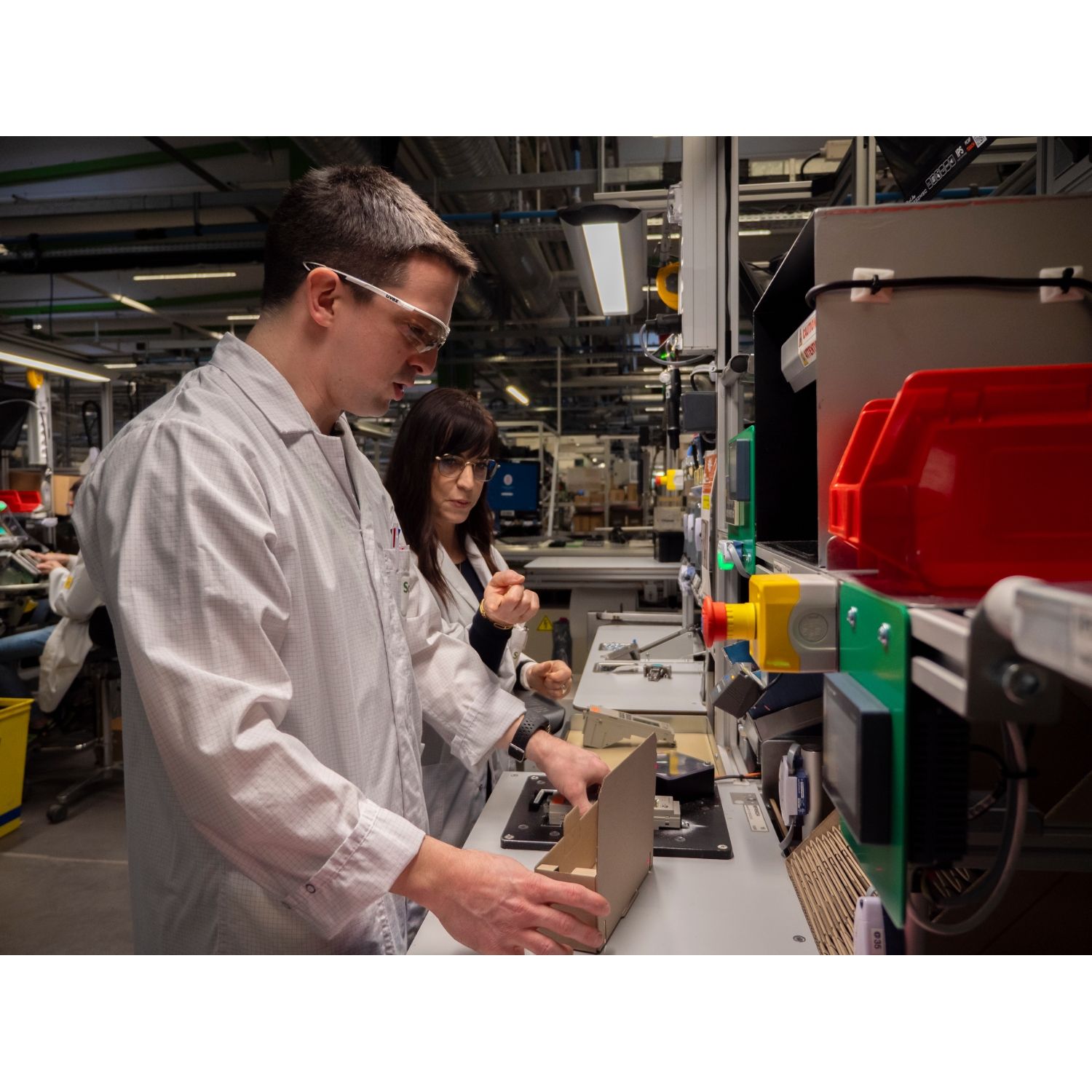

Image of product in real life situation
Declaration of conformity
Catalog
Image of product in real life situation
Product Page Link
Product Data Sheet
This 1 cut-out yellow empty pendant control station is ideal for general purposes use as it enables machine builder to add any required control units for custom factory-assembled stations. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is impact, dust, water and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XALK
Sale per indivisible quantity 1
Number of cut-out 1 cut-out
Colour of cover yellow (RAL 1021)
IP degree of protection Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALK
Control station application emergency switching off function, emergency stop function
Material polycarbonate
Product or component type empty control station
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 1 knock-out for cable entry, clamping capacity: 14-14 mm
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Group of product standard yellow
Compatibility code XALK
Assembly style for customer assembly
CAD overall height 68 mm
Customizable 0, no
Number of vertical rows 1
Main group 1 cut-out
CAD overall depth 53 mm
Electrical composition code MF1, MR1, SF1, SR1
CAD overall width 68 mm
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.116 kg
Number of horizontal rows 1
Mounting of block rear mounting, front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 62262
Overvoltage category class II conforming to IEC 60536
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-5
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 7.0 cm
Package 1 Length 7.5 cm
Package 1 Weight 115.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 7.362 kg
