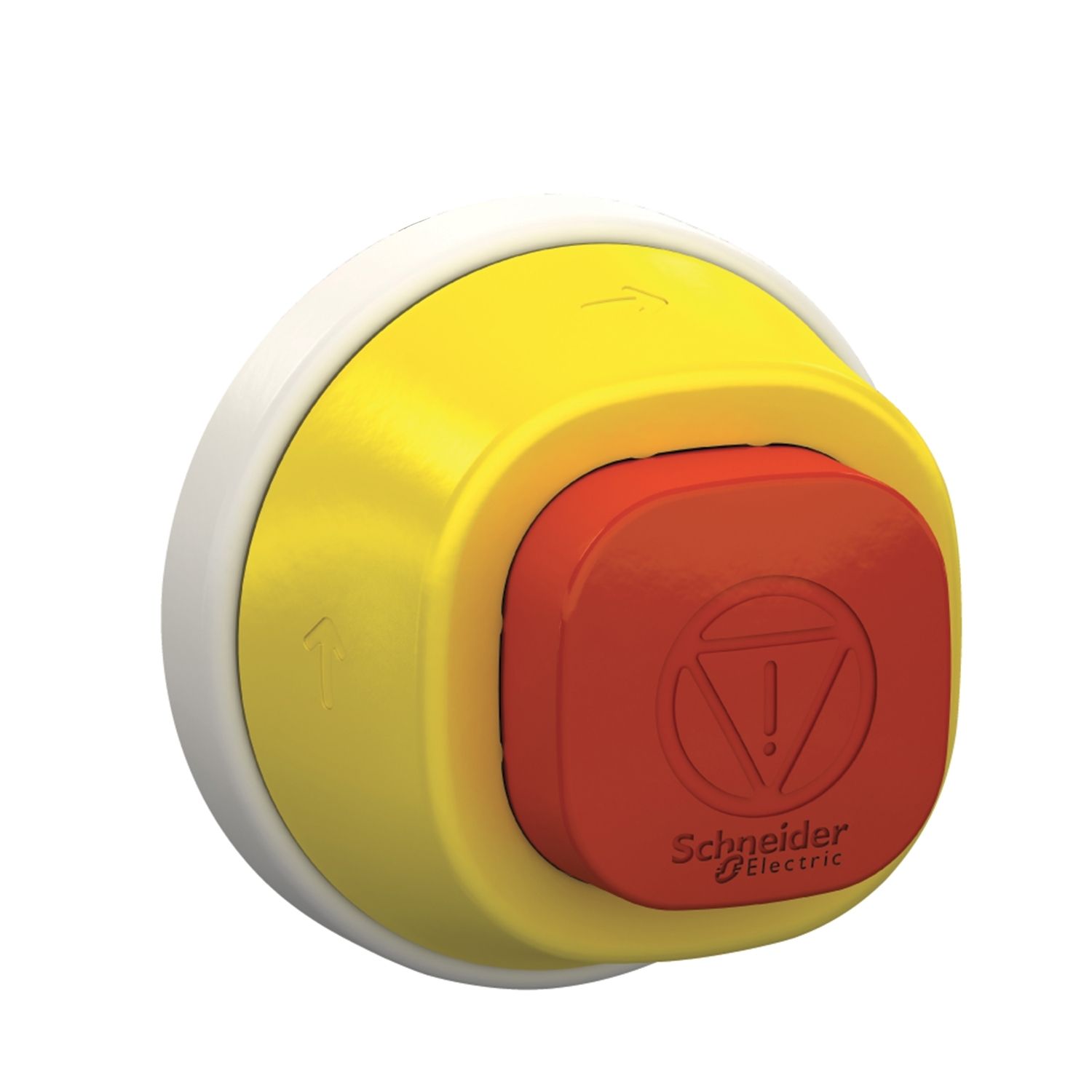

Picture of Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC

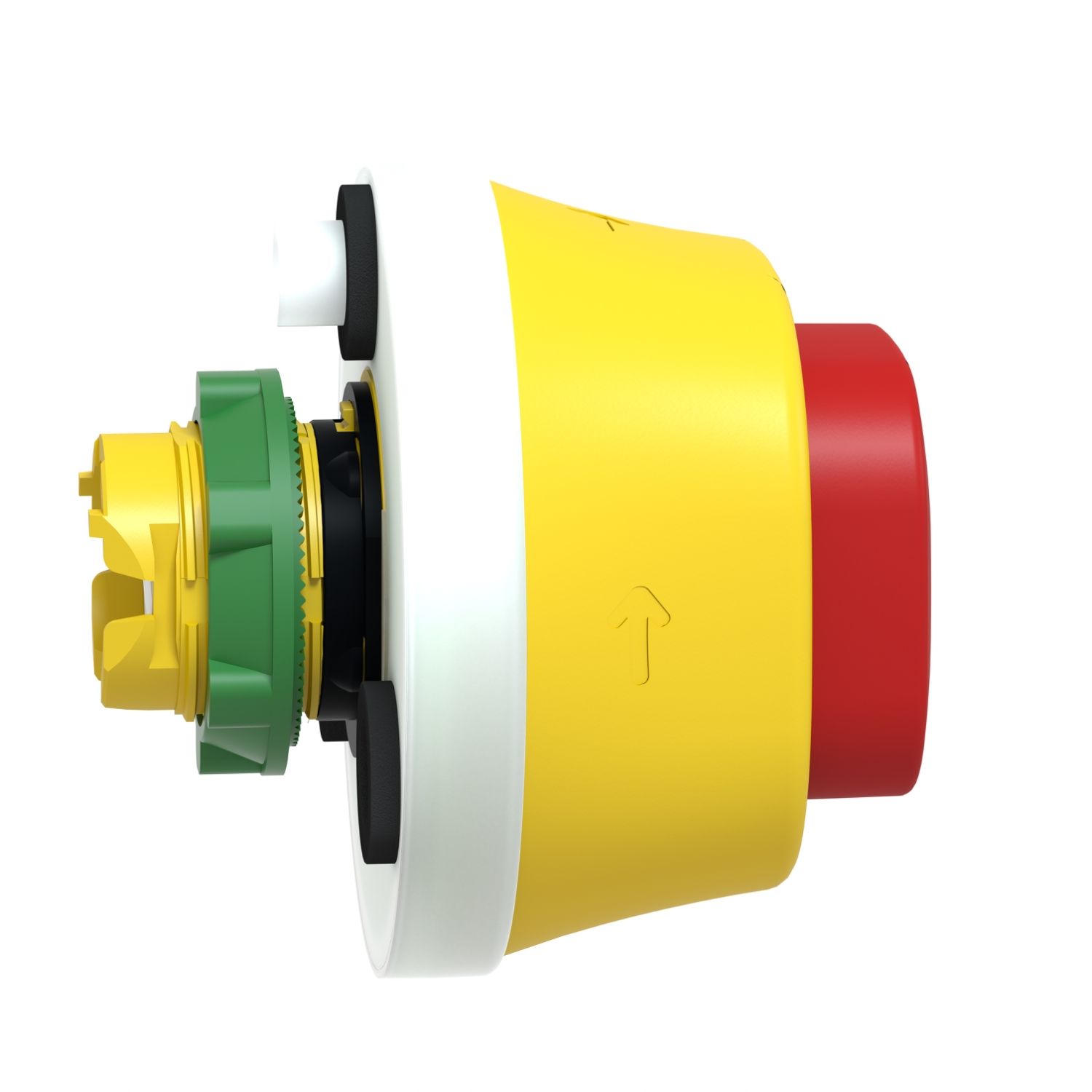

Picture of Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC

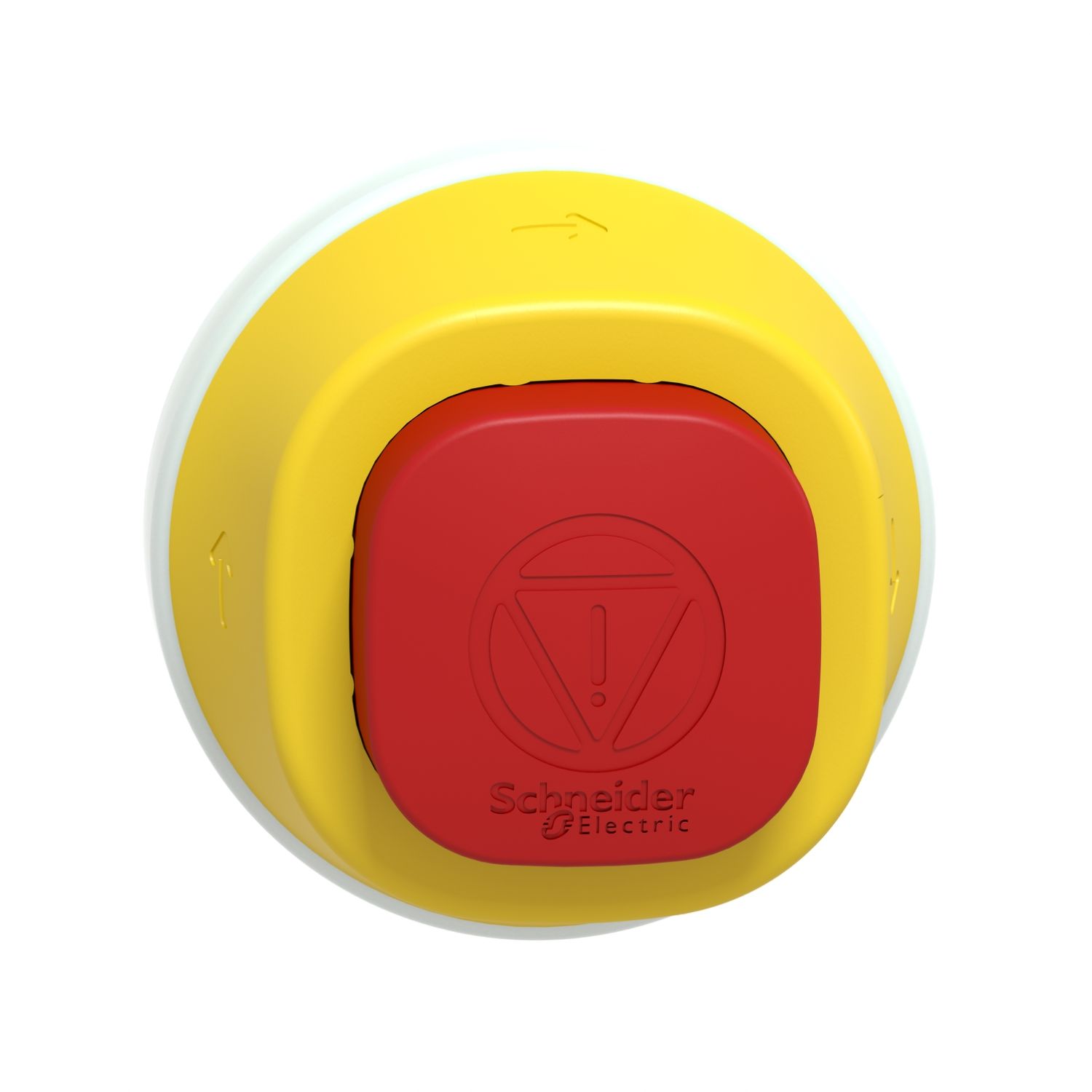

Picture of Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC

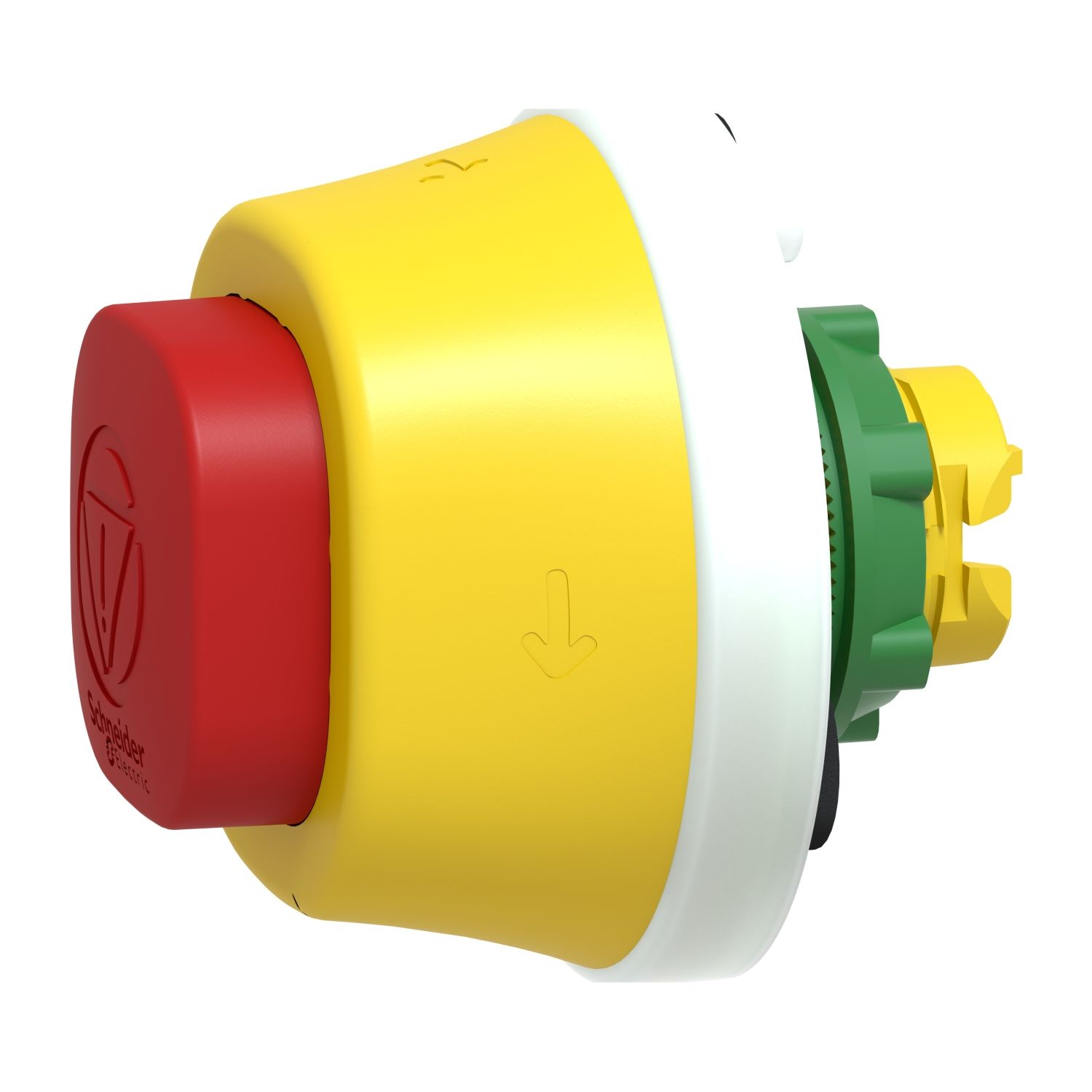

Picture of Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
Picture of Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
Picture of Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
Picture of Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
SKU:

ZB5AS84W3B

Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC

Old price: $204.16 INC GST
$159.24 INC GST
Available for Shipping : 08-Dec-2025
Product Selector
Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, white red LED, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025

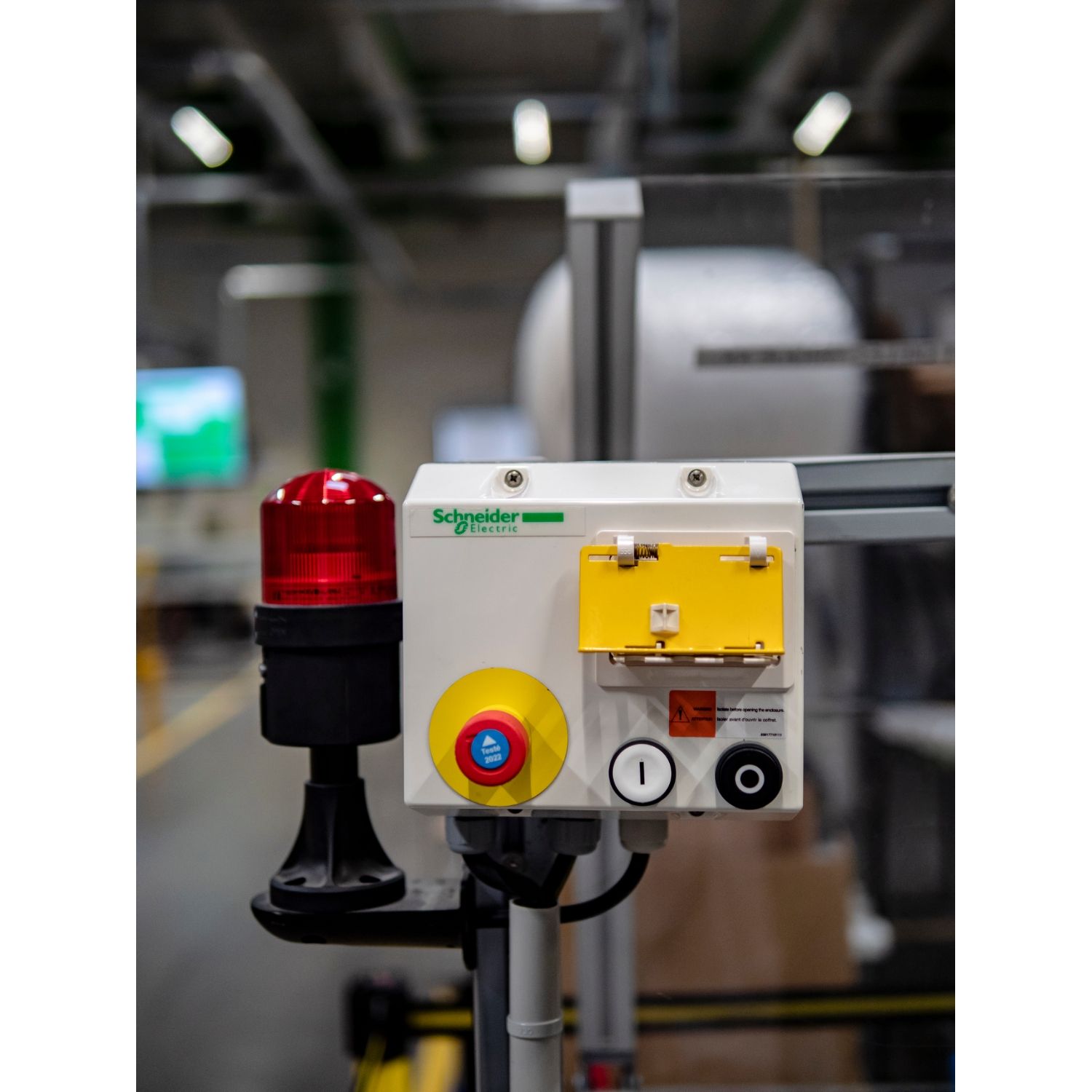

Image of product in real life situation
Environmental Disclosure
Declaration of conformity
Circularity Profile
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Operator profile red square 32 mm
Bezel material plastic
Sale per indivisible quantity 1
Device presentation basic element
Head type standard
Shape of signaling unit head round
Product or component type head for illuminated emergency stop push-button
Type of operator trigger action and mechanical latching
Mounting diameter 22 mm
Range of product Harmony XB5
Reset turn to release
Complementary
Group of product emergency stop turn to release
[Us] rated supply voltage 24 V AC/DC at 50...60 Hz, 24 V
CAD overall depth 40 mm
CAD overall width 60 mm
Product compatibility ZB5
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 4 kV on contact (on metal parts) conforming to IEC 61000-4-2
Mechanical durability 300000 cycles
Light source colour white or red
Supply voltage limits 21.6-26.4 V AC, 19.2-30 V DC
[Ui] rated insulation voltage 24 V (pollution degree 3) conforming to EN/IEC 60947-1
Cap/operator or lens colour red
Electrical insulation class class II conforming to IEC 61140
CAD overall height 60 mm
Net weight 0.063 kg
Electrical composition code C10 for <4 contacts using single and double blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting
Main group E-stop
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards ISO 22196:2011, ISO 21702, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 50102
Product certifications EAC, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 7.0 cm
Package 1 Length 7.5 cm
Package 1 Weight 85.0 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.47 kg
