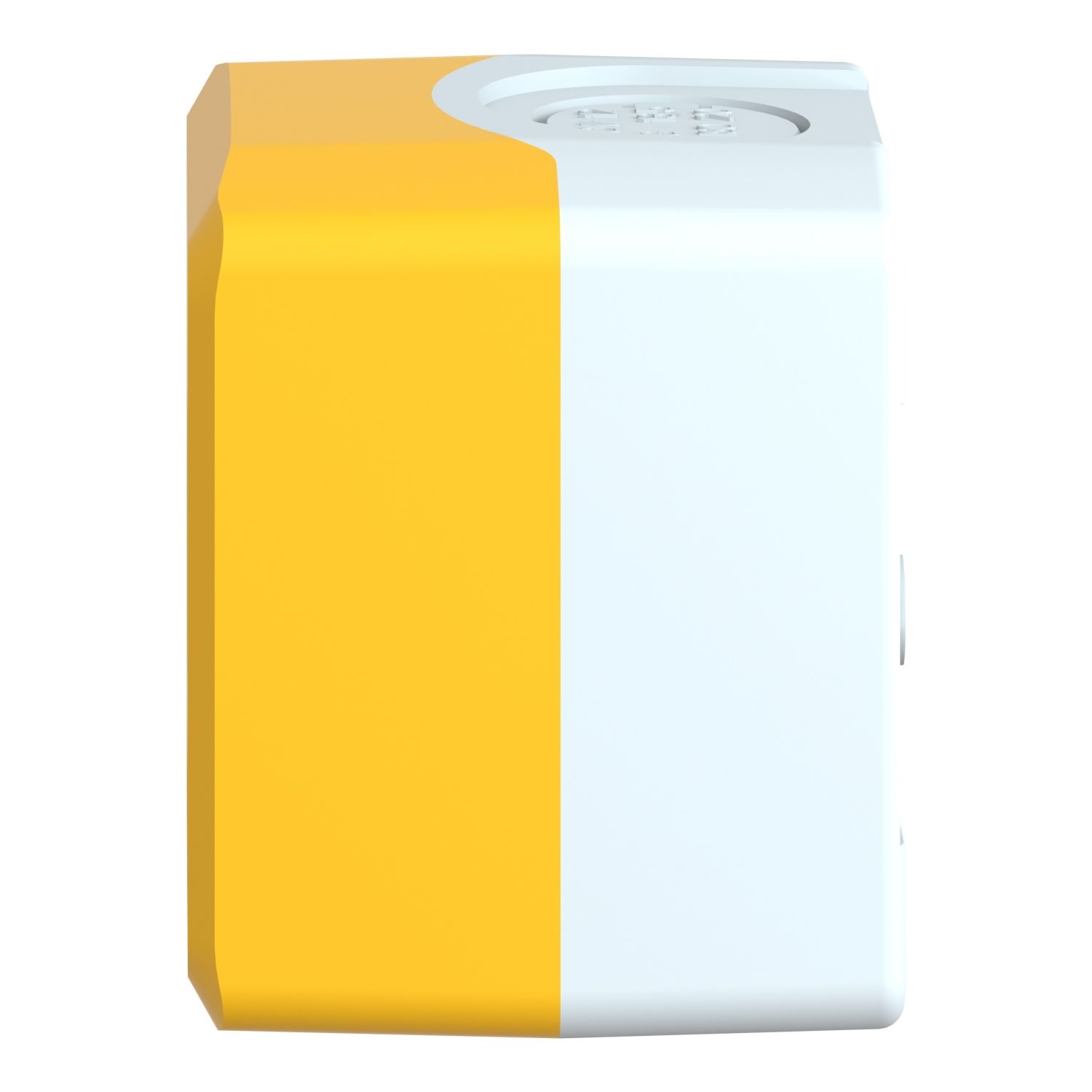

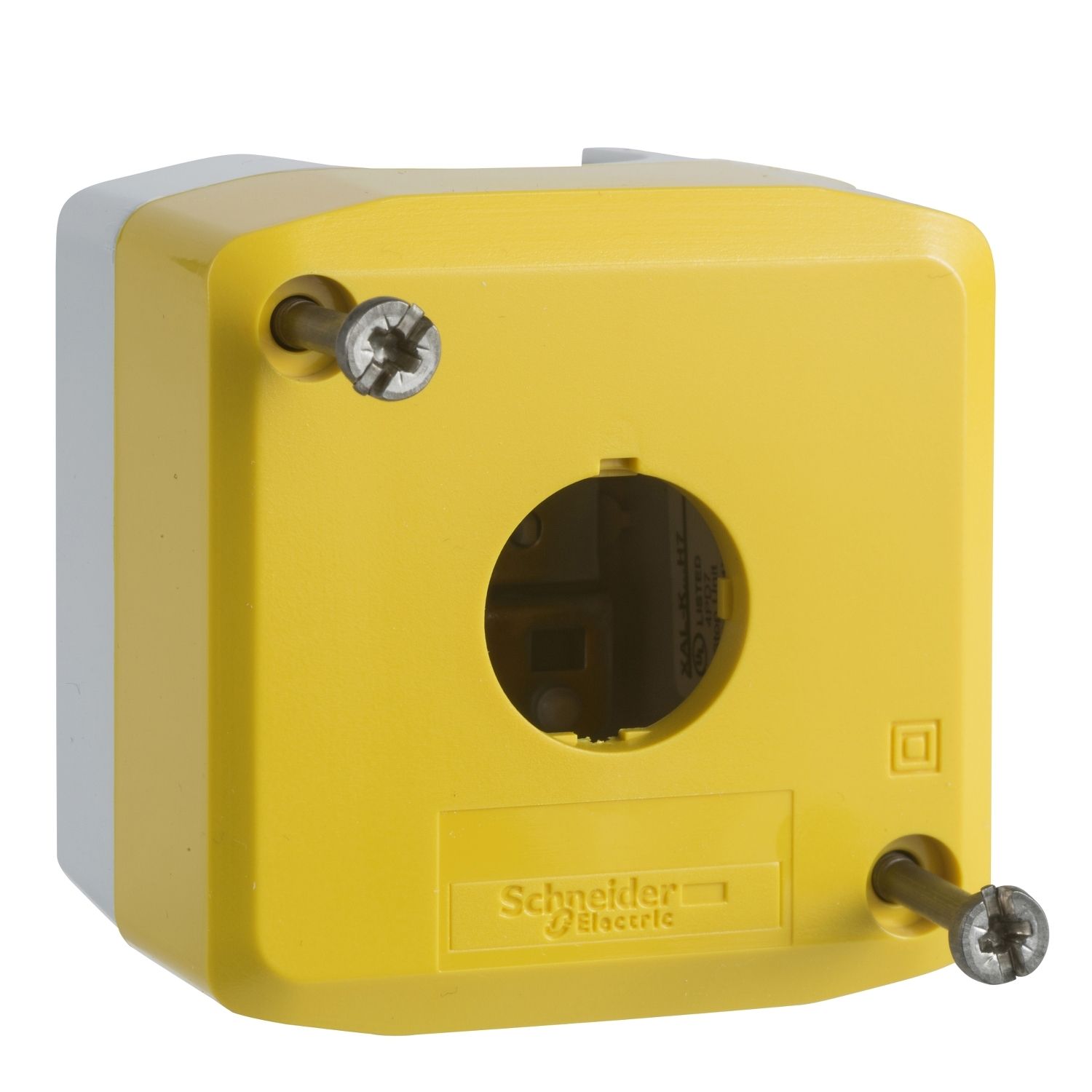

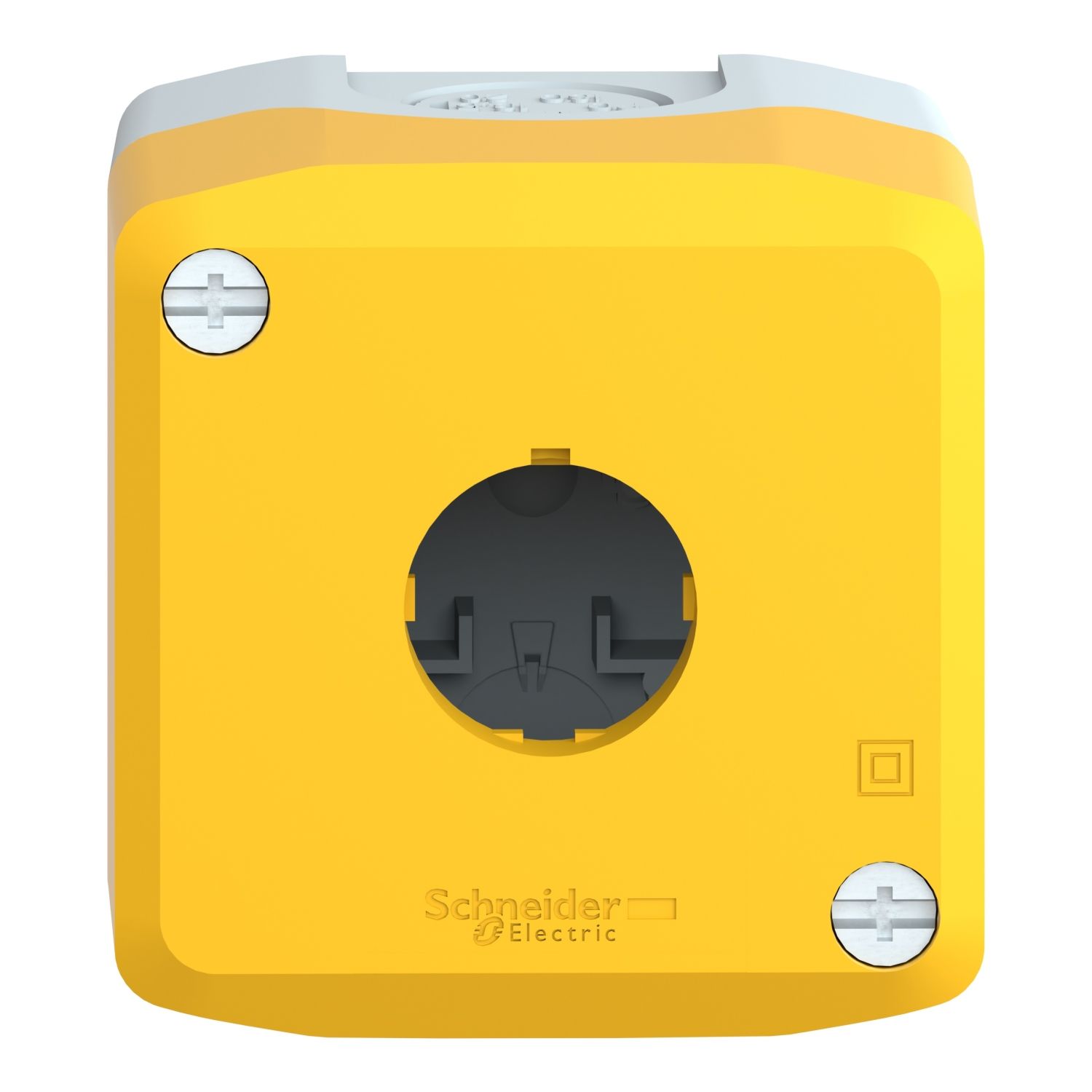

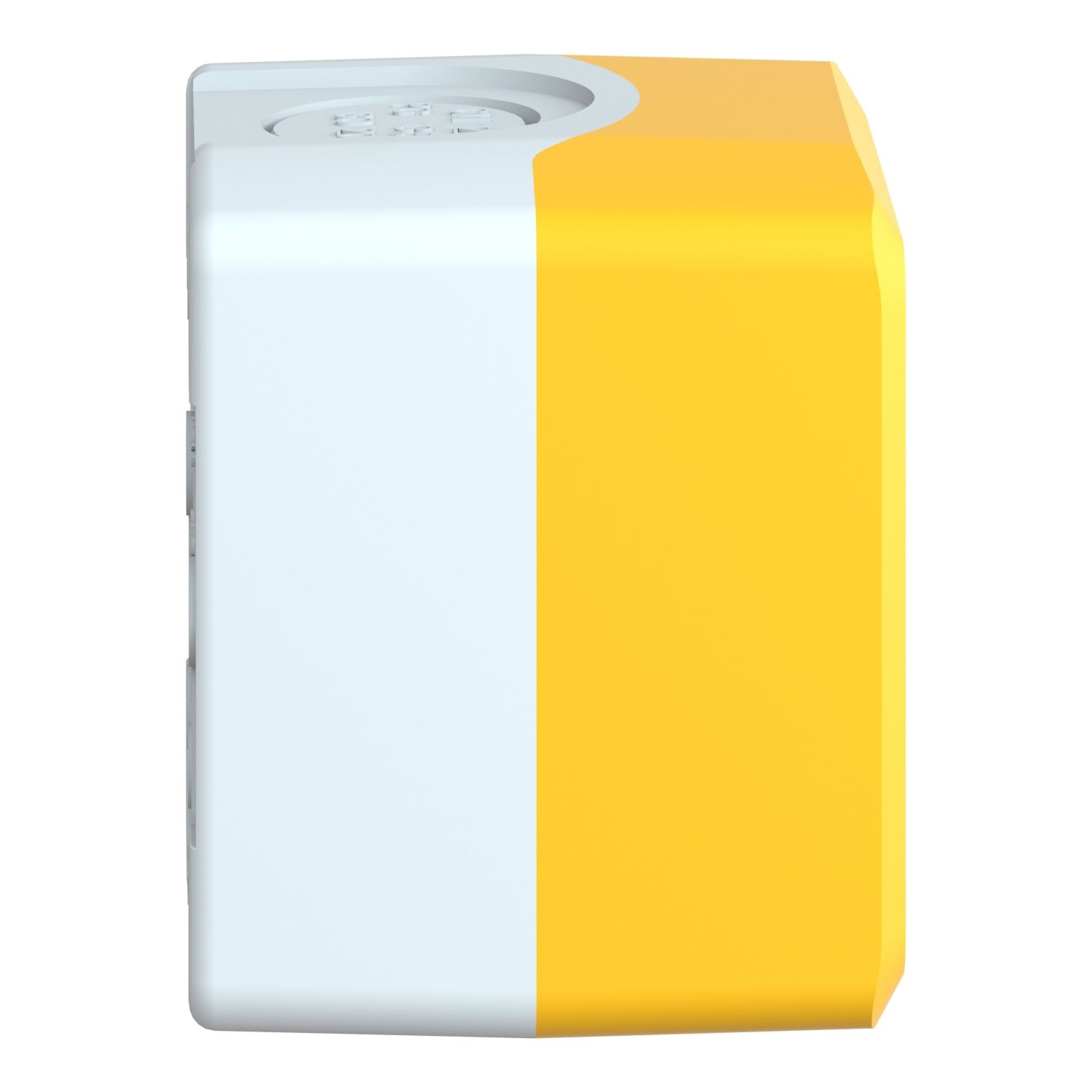

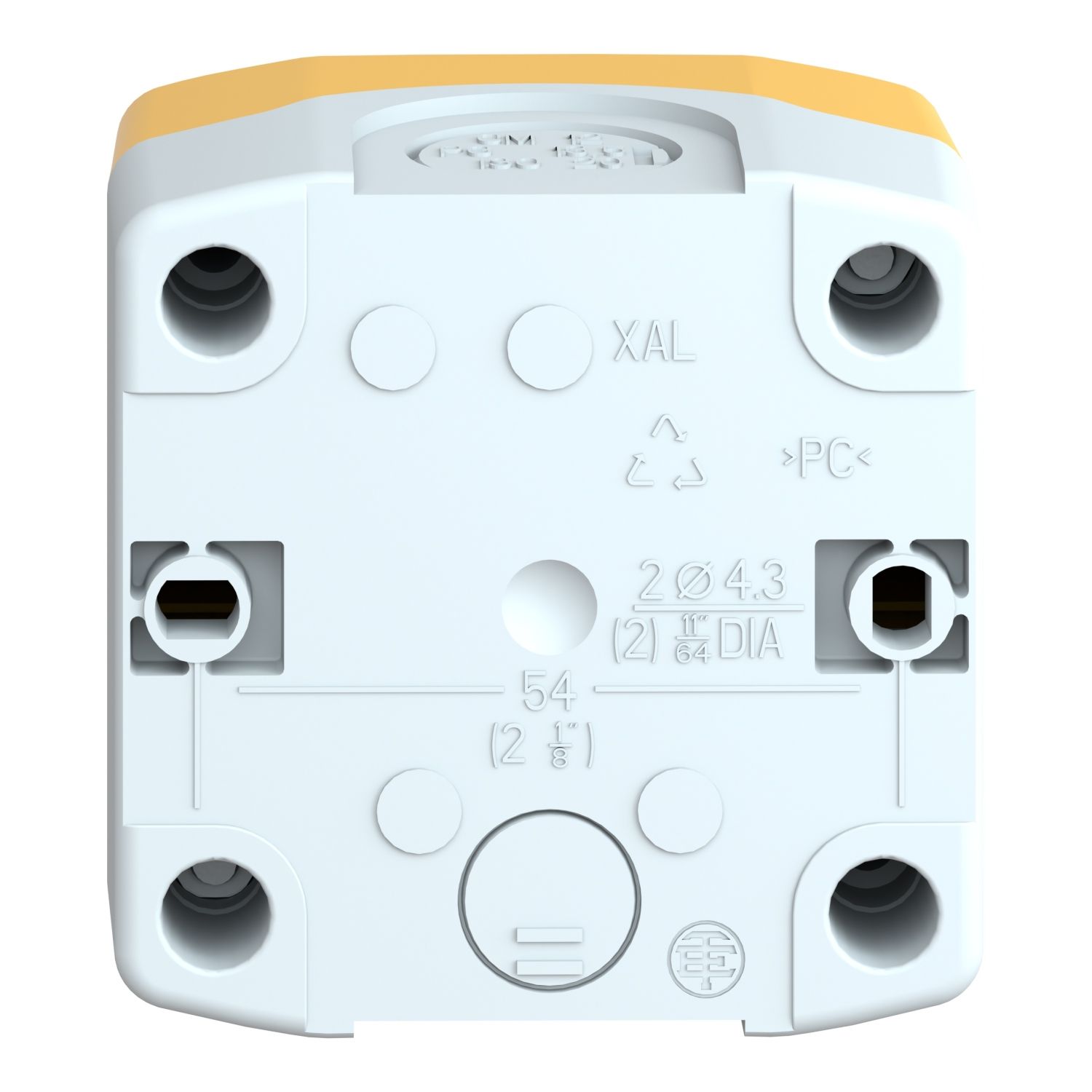

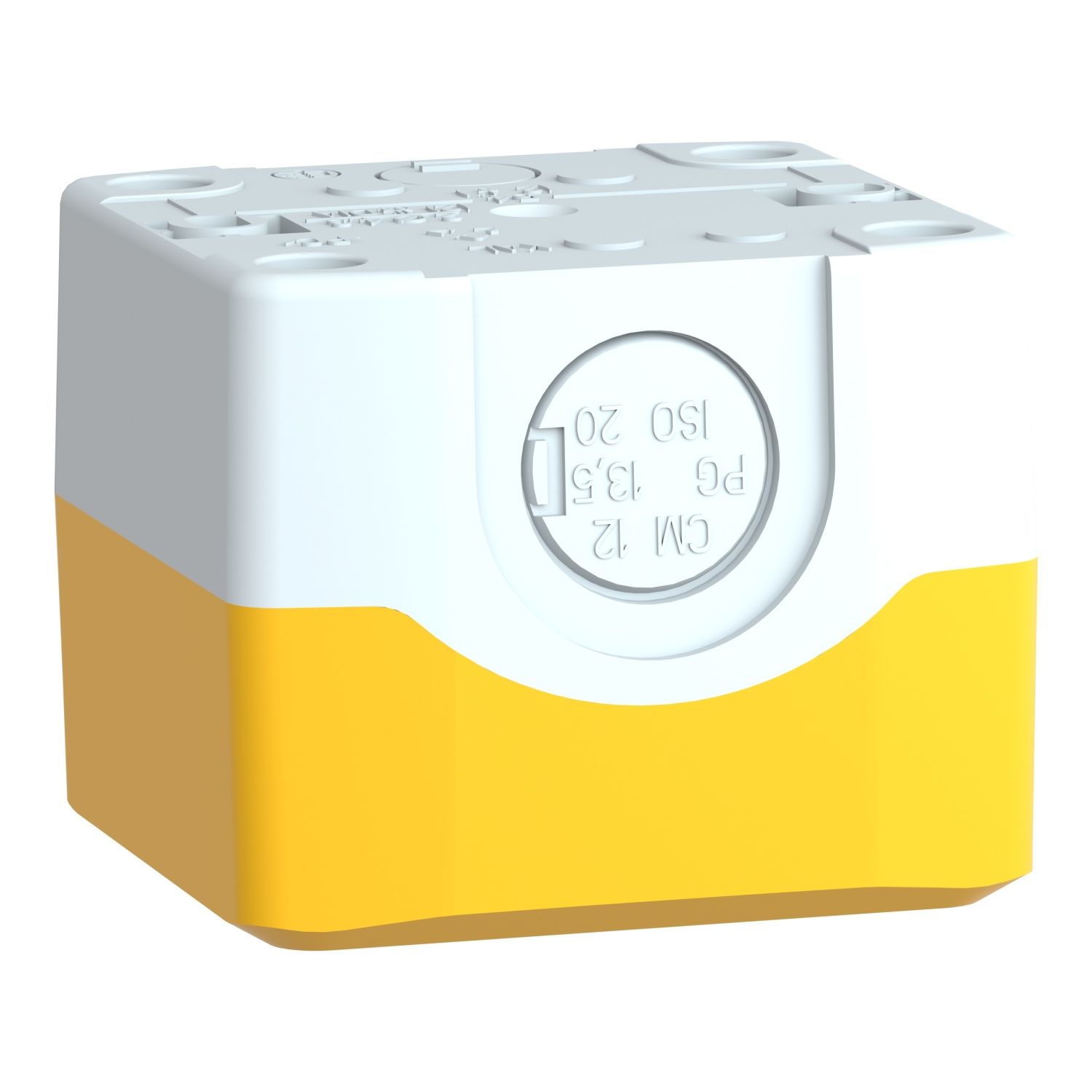

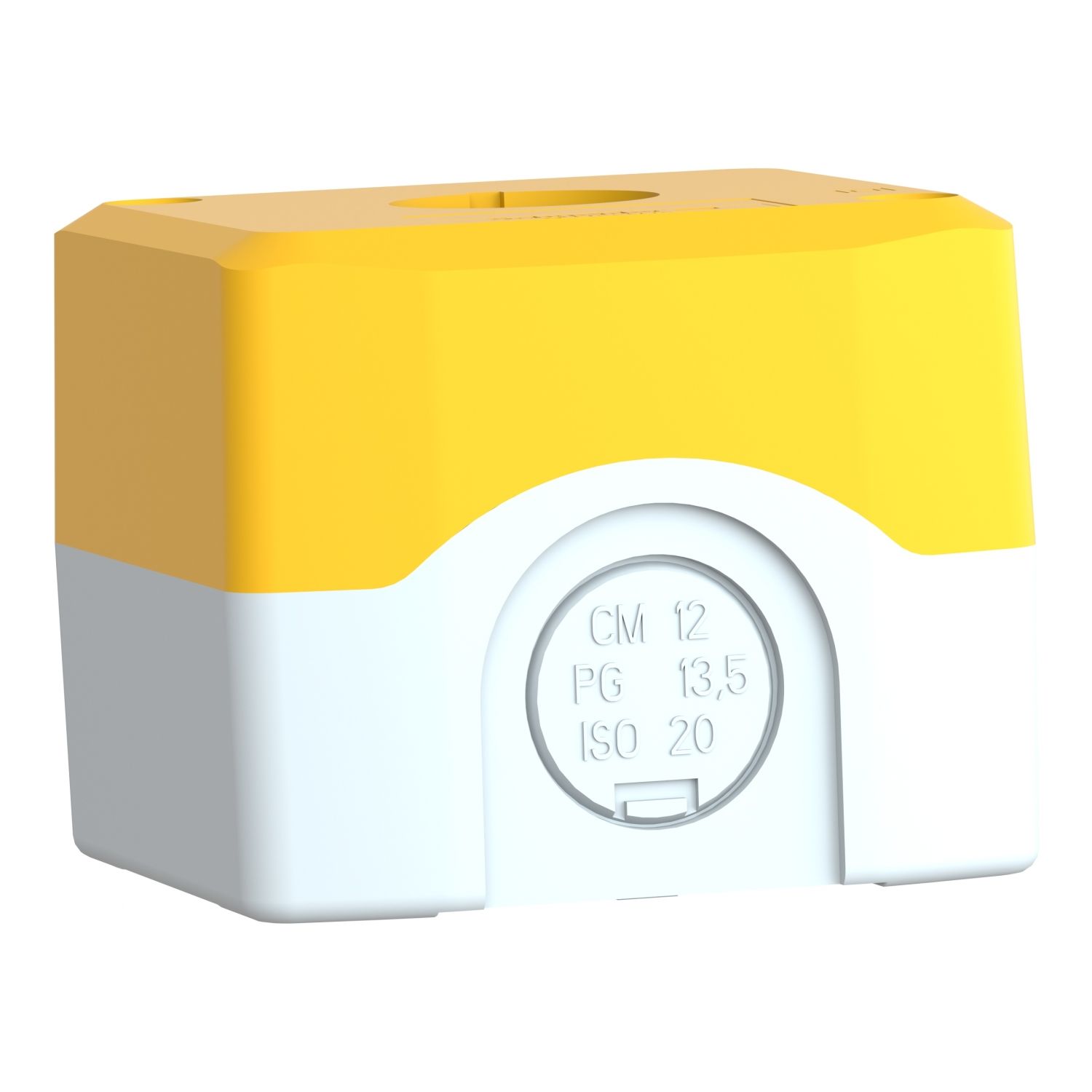

Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Picture of Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
SKU:

XALK01

Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out

Old price: $58.19 INC GST
$45.39 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Harmony XALD XALK, Empty enclosure, plastic, yellow lid for push button 22mm, 1 cut out
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Declaration of conformity

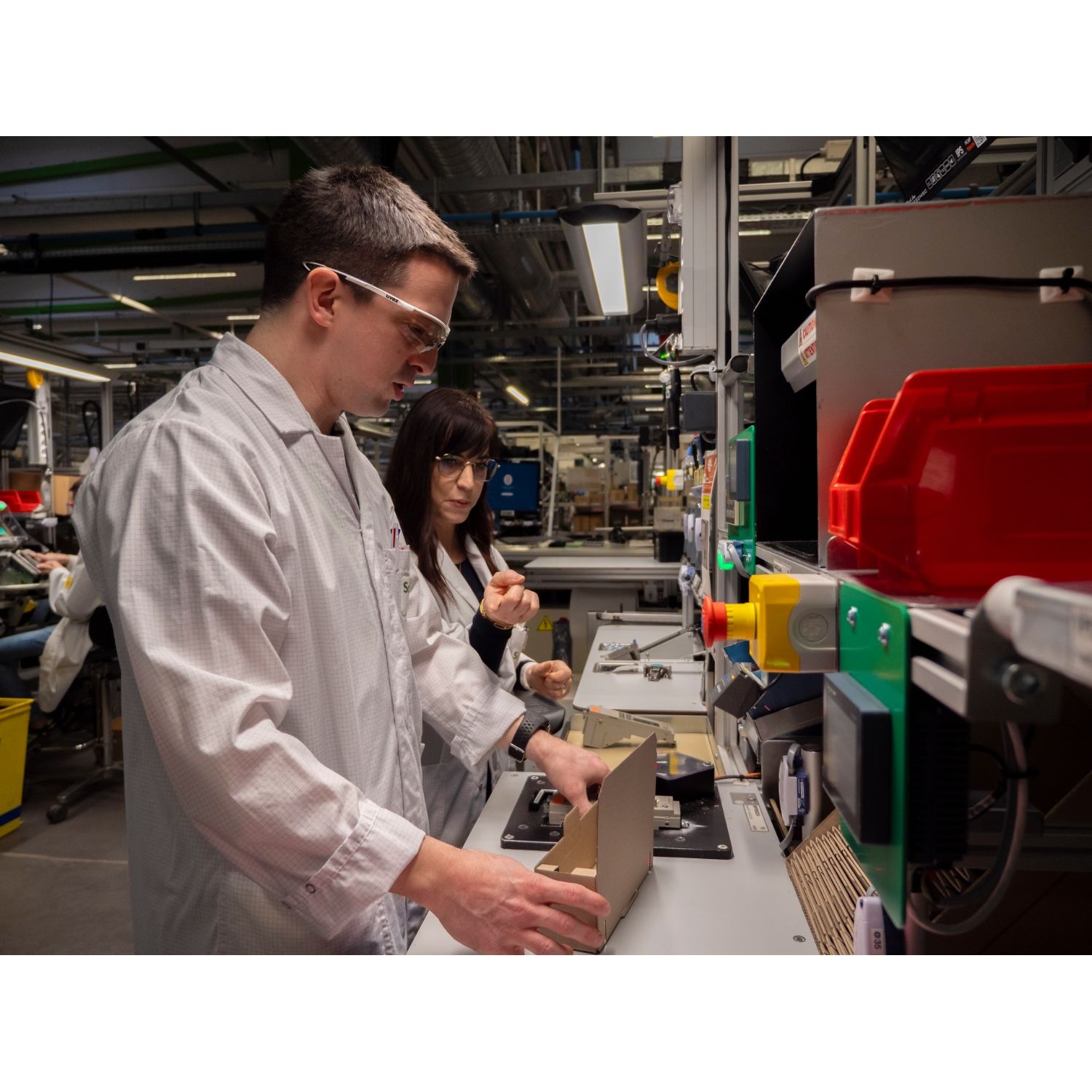

Image of product in real life situation
Catalog

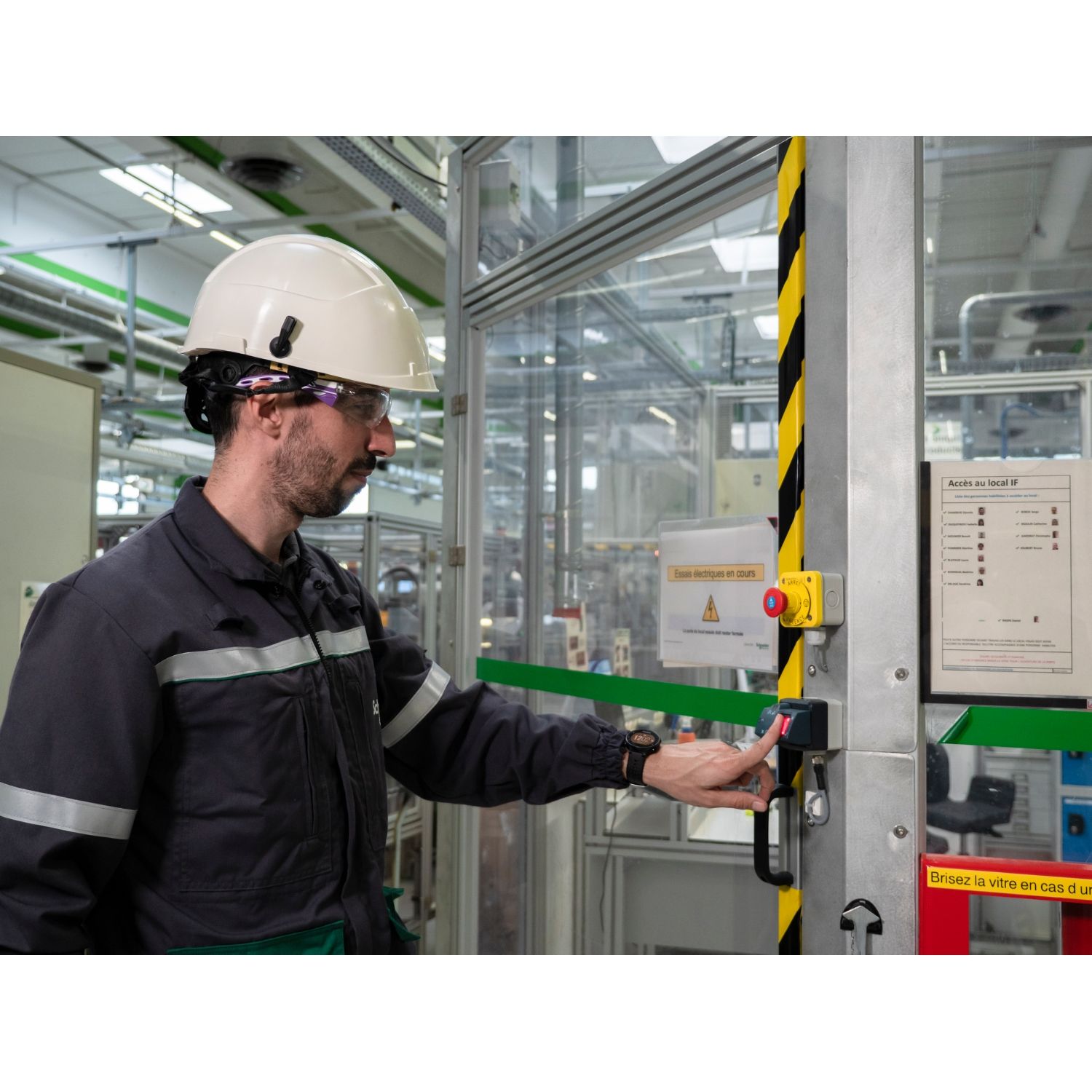

Image of product in real life situation
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XALK empty control station has 1 cut-out for 1 push button / 1 function for emergency switching off and emergency stop functions. This 1 cut-out yellow empty control station for emergency stop enables machine builders to add any emergency switching off control and emergency stop control units on the enclosure to enable for safety function as required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XALK
Number of cut-out 1 cut-out
Colour of cover yellow (RAL 1021)
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Colour of base of enclosure light grey (RAL 7035)
Range of product Harmony XALK
Control station application emergency switching off function, emergency stop function
Material polycarbonate
Product or component type empty control station
Cable entry 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 1 knock-out for cable entry, clamping capacity: 14-14 mm
Product destination for XB5 Ø 22 mm control and signalling units
Complementary
Group of product standard yellow
Compatibility code XALK
Assembly style for customer assembly
Customizable 1, no
Number of vertical rows 1
Main group 1 cut-out
Electrical composition code MF1, MR1, SF1, SR1
GCR BRIDGE XALK01CUST01
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.136 kg
Number of horizontal rows 1
Mounting of block rear mounting, front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 62262
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-4, UL 508, IEC 60947-5-5
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.800 cm
Package 1 Width 7.500 cm
Package 1 Length 6.800 cm
Package 1 Weight 114.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.308 kg
Unit Type of Package 3 3
Number of Units in Package 3 480
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 73.724 kg
