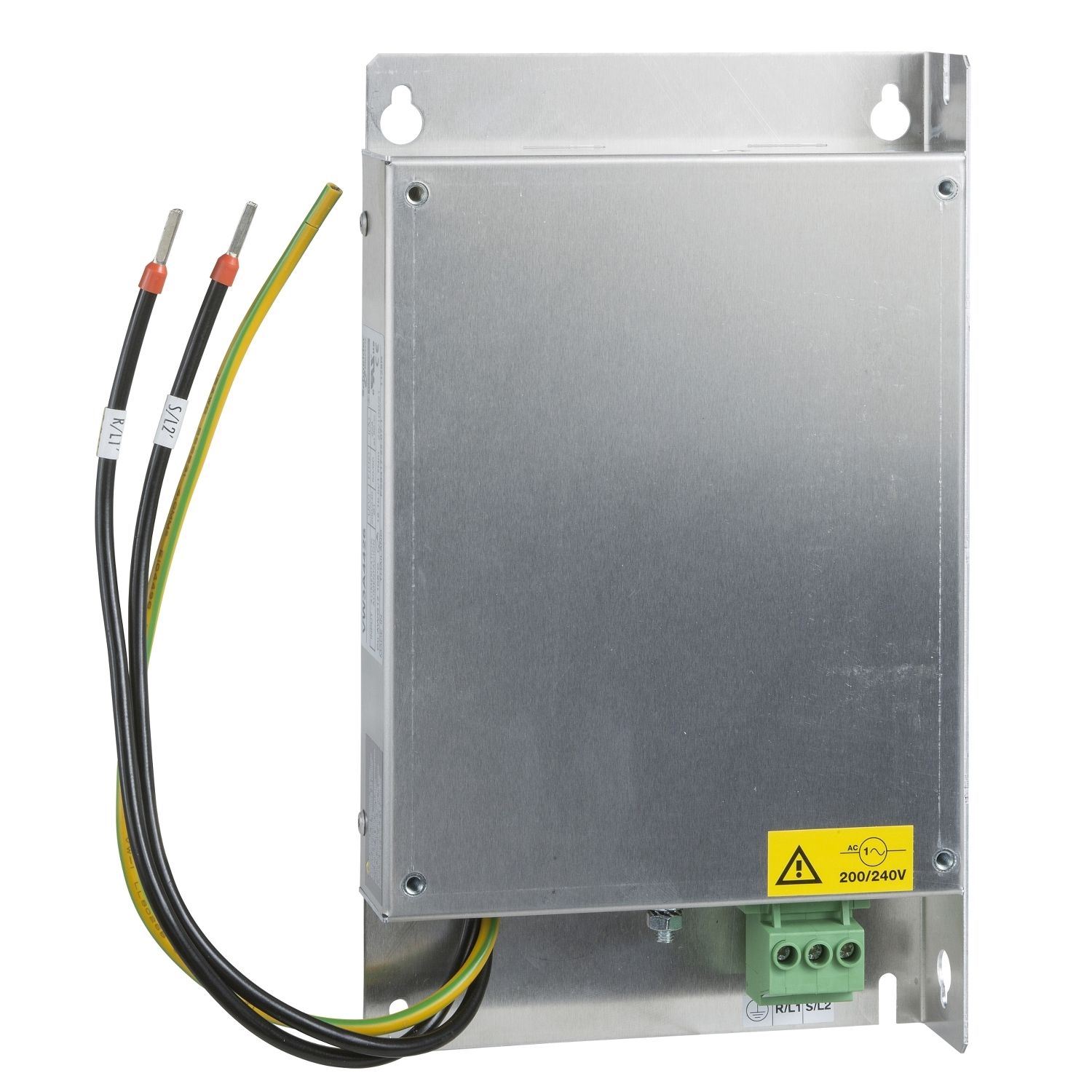

Picture of EMC input filter, Altivar, Lexium, 23.9A, 1 phase, 200..240V
SKU:

VW3A4426

EMC input filter, Altivar, Lexium, 23.9A, 1 phase, 200..240V

$519.98 INC GST
Available for Shipping : 16-Feb-2025
Product Selector
EMC input filter, Altivar, Lexium, 23.9A, 1 phase, 200..240V
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

Products specifications

Attribute name Attribute value
Main
Range compatibility Lexium 28, Altivar Machine ATV320, Altivar 32
Product specific application radio interference input filter
Mounting location at variable speed drive side
Network number of phases single phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...B at 2.2 kW, 200...240 V, single phase, ATV32, 200...240 V, 2.2 kW, LXM28A
Range of product Altivar, Lexium
Complementary
Thermal losses 7.5 W
[In] rated current 23.9 A
Emc filter compatibility type 026
Network rated voltage 200-240 V
Net weight 1.13 kg
Tolerance - 15...10 %
Maximum cable distance between devices 50 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.7 cm
Package 1 Width 22.7 cm
Package 1 Length 27.5 cm
Package 1 Weight 880.0 g
Unit Type of Package 2 2
Number of Units in Package 2 11
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 10.678 kg

Related products

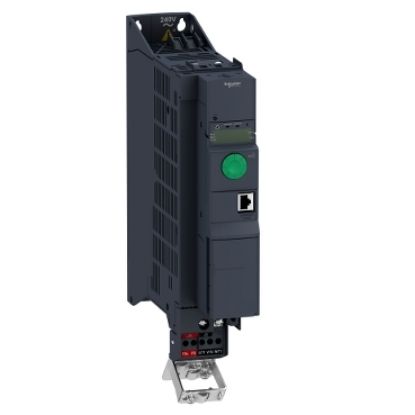

Picture of variable speed drive, Altivar Machine ATV320, 2.2kW, 200 to 240V, 1 phase, book
