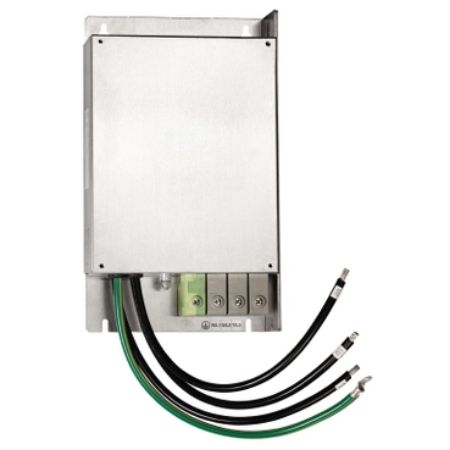

Picture of EMC input filter, Altivar, Lexium, 49A, 3 phases, 380…500V
SKU:

VW3A4425

EMC input filter, Altivar, Lexium, 49A, 3 phases, 380…500V

$1,140.17 INC GST
Available for Shipping : 10-Apr-2025
Product Selector
EMC input filter, Altivar, Lexium, 49A, 3 phases, 380…500V
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32 and Altivar machine ATV320. It is mounted underneath the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

Products specifications

Attribute name Attribute value
Main
Range compatibility Altivar Machine ATV320, Altivar 32
Product specific application radio interference input filter
Mounting location below variable speed drive
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320 at 15 kW, 380...500 V, three phase, variable speed drive ATV320 at 11 kW, 380...500 V, three phase, ATV32, 380...500 V, 11...15 kW
Range of product Altivar, Lexium
Complementary
Thermal losses 27.4 W
[In] rated current 49 A
Emc filter compatibility type 025
Network rated voltage 380-500 V
Net weight 4.75 kg
Tolerance - 15...10 %
Maximum cable distance between devices 150 m conforming to IEC 61800-3 category C3, 100 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 38.000 cm
Package 1 Length 47.400 cm
Package 1 Weight 4.286 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 47.096 kg

Related products

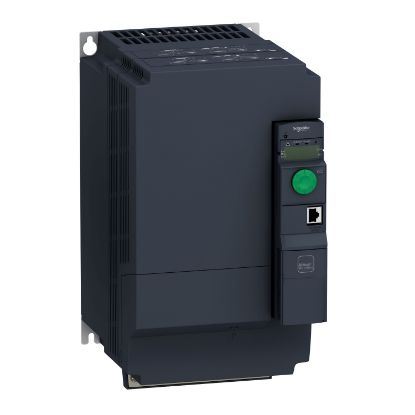

Picture of variable speed drive, Altivar Machine ATV320, 11kW, 380 to 500V, 3 phases, book
