Picture of EMC input filter, Altivar, Lexium, 47A, 3 phases, 380 to 500V
SKU:

VW3A4424

EMC input filter, Altivar, Lexium, 47A, 3 phases, 380 to 500V

$808.06
Available for Shipping : 05-Nov-2024
Product Selector
EMC input filter, Altivar, Lexium, 47A, 3 phases, 380 to 500V
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Declaration of conformity
Product Page Link
Product Data Sheet

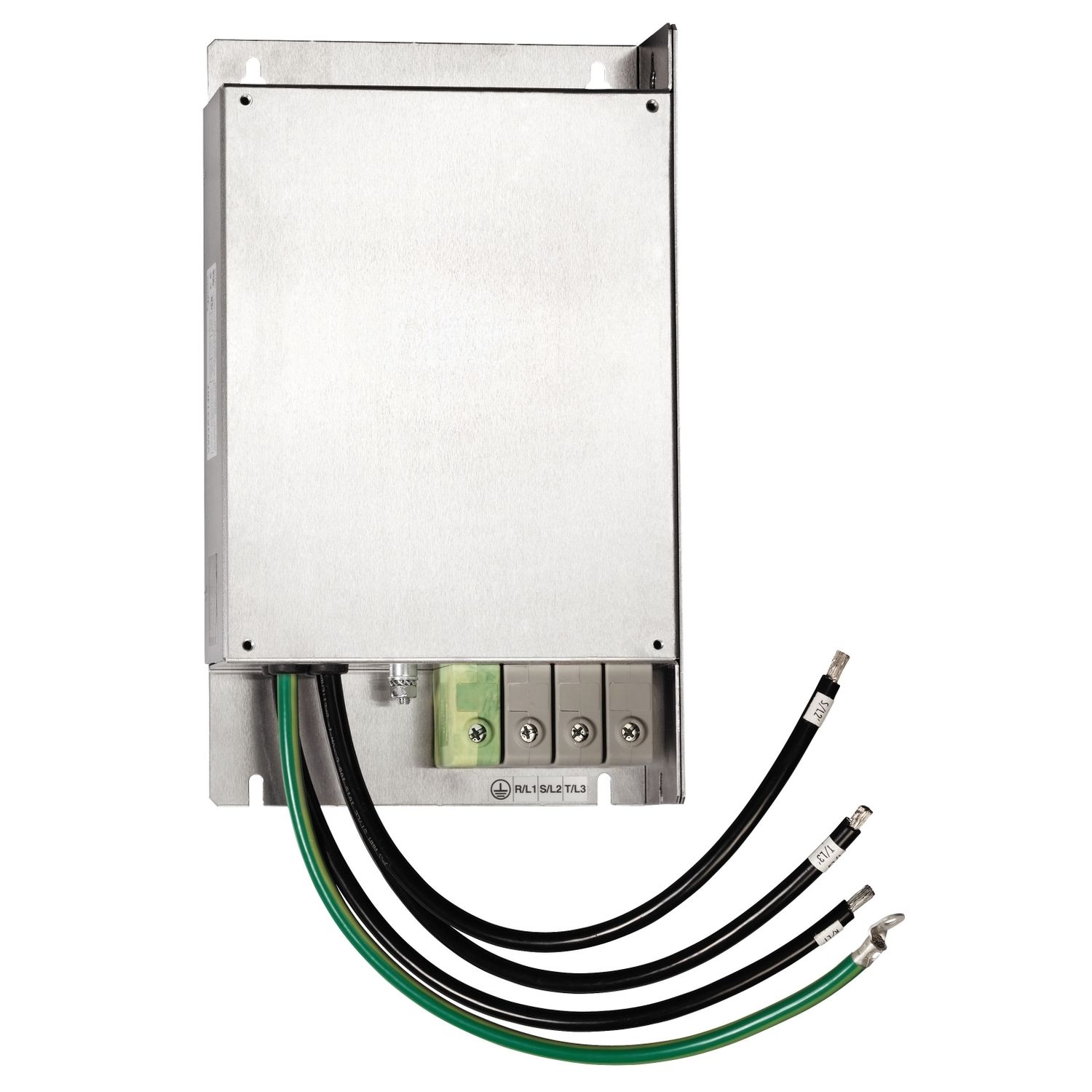

This EMC input filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. The additional EMC input filters enable the drives to meet more stringent requirements. Its rated current is equal to 47A. It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3. It is designed for 380V…500V three-phase supply voltage. It weighs 3.15kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.

Products specifications

Attribute name Attribute value
Main
Range compatibility Lexium 32, Altivar 32, Lexium 28, Altivar Machine ATV320
Product specific application radio interference input filter
Mounting location below variable speed drive
Network number of phases three phase
Product or component type EMC input filter
Product compatibility variable speed drive ATV320...W/ATV320...WS at 7.5 kW, 380...500 V, three phase, variable speed drive ATV320...W/ATV320...WS at 5.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 7.5 kW, 380...500 V, three phase, variable speed drive ATV320 at 5.5 kW, 380...500 V, three phase, ATV32, 380...500 V, 5...7.5 kW, LXM28A
Range of product Lexium, Altivar
Complementary
Thermal losses 19.3 W
[In] rated current 47 A
Emc filter compatibility type 024
Network rated voltage 380-500 V
Net weight 3.15 kg
Tolerance - 15...10 %
Maximum cable distance between devices 150 m conforming to IEC 61800-3 category C3, 100 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 24.000 cm
Package 1 Length 46.800 cm
Package 1 Weight 3.010 kg
Unit Type of Package 2 2
Number of Units in Package 2 22
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 80.760 kg
