SKU:

LXM32AU60N4

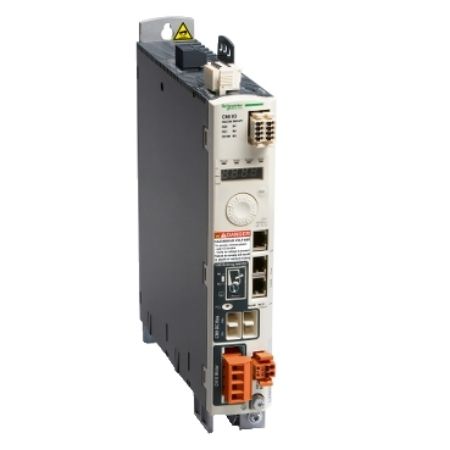

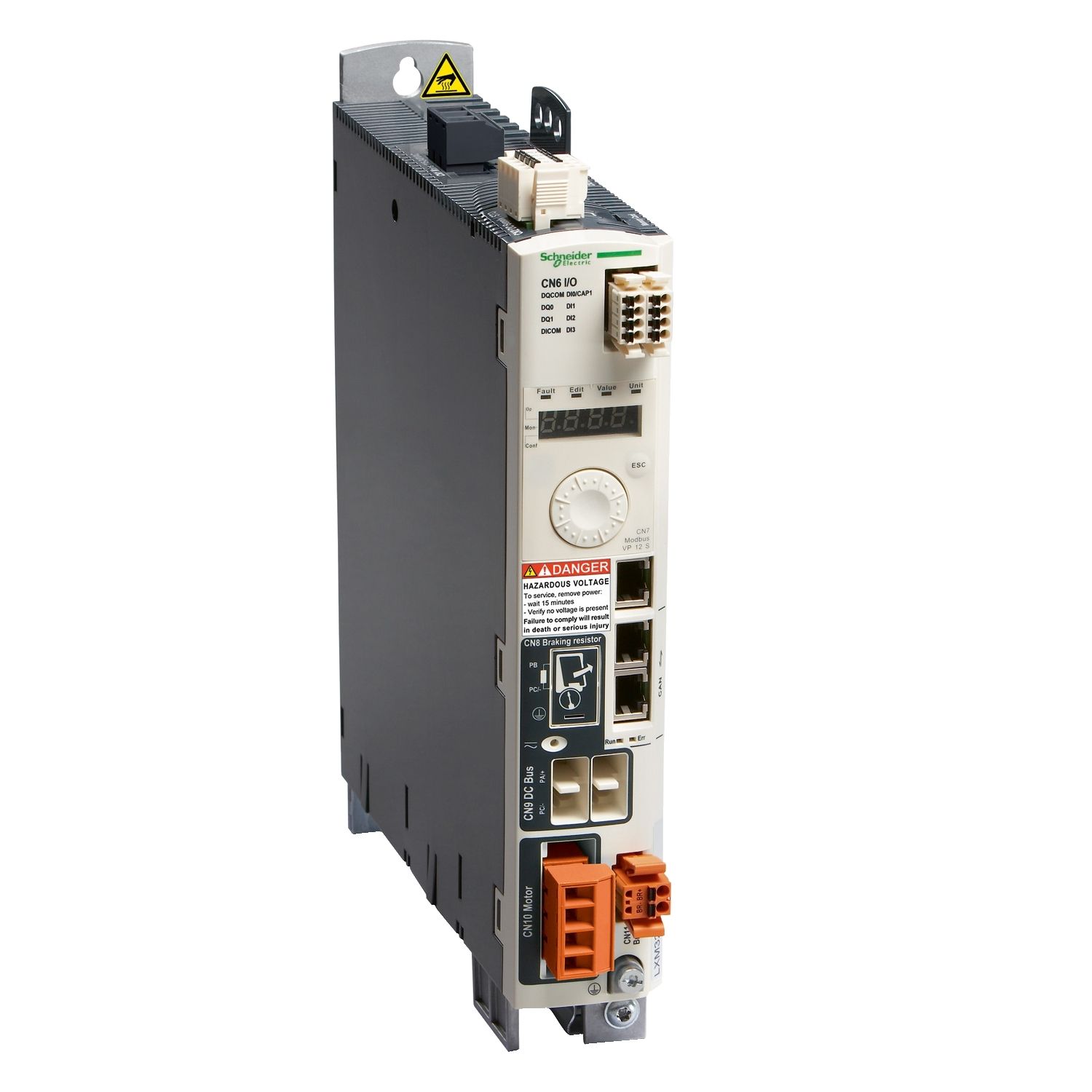

motion servo drive, Lexium 32, 6A, three phase, supply voltage 208 to 480V, 7kW, IP20

$2,736.00
Available for Shipping : 16-Oct-2024
motion servo drive, Lexium 32, 6A, three phase, supply voltage 208 to 480V, 7kW, IP20
Manufacturer: Schneider Electric
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 1 capture, 2 safety, 4 logic discrete inputs and 2 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 1.5A at 8kHz and a continuous power of 800W at 400V. It is furnished with terminal for electrical connection and three RJ45 connectors for CANmotion, CANopen, and Modbus, integrated communication interfaces. It is an IP20 rated product. Its dimensions are 48mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.7kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.

Products specifications

Attribute name Attribute value
Main
Device short name LXM32A
Continuous power 800 W at 480 V, 800 W at 400 V, 400 W at 208 V
Continuous output current 1.5 A at 8 kHz
EMC filter integrated
Supply voltage limits 323-528 V, 170-264 V
Line current 1.2 A 201 % at 480 V, without line choke, 1.4 A 191 % at 400 V, without line choke, 1.8 A 132 % at 208 V, without line choke, 1.6 A 116 % at 480 V, with external line choke of 2 mH, 1.8 A 108 % at 400 V, with external line choke of 2 mH, 1.7 A 97 % at 208 V, with external line choke of 2 mH
Range of product Lexium 32
[Us] rated supply voltage 380...480 V - 15...10 %, 200...240 V - 15...10 %
Supply frequency 50/60 Hz - 5...5 %
Nominal power 0.4 kW at 480 V 8 kHz, 0.4 kW at 400 V 8 kHz, 0.35 kW at 208 V 8 kHz
Network number of phases three phase
Product or component type motion servo drive
Format of the drive book
Output current 3s peak 6 A at 480 V for 5 s, 6 A at 208 V for 5 s
Network frequency 47.5...63 Hz
Complementary
Response time on output 250 µs (DO) for discrete output(s)
Drive voltage drop coefficient 0.95
Discrete input number 4 logic discrete input(s), 2 safety discrete input(s), 1 capture discrete input(s)
Protection type against short-circuits: outputs signal, against reverse polarity: inputs signal
Switching frequency 3 8 kHz
Switching frequency 2 8 kHz
Tightening torque CN10: 0.7-0.7 N.m, CN1: 0.7-0.7 N.m, CN8: 0.5-0.5 N.m
Operating position vertical +/- 10 degree
Output voltage <= power supply voltage
Compatibility code LXM32A
Control signal type servo motor encoder feedback
Method of access slave
Discrete input type safety (compliment of STO_A, compliment of STO_B terminals), logic (DI terminals), capture (CAP terminals)
Supply voltage description three phase 400 V, three phase 230 V
Electrical connection terminal, clamping capacity: 5 mm², AWG 10 (CN10), terminal, clamping capacity: 5 mm², AWG 10 (CN1), terminal, clamping capacity: 3 mm², AWG 12 (CN8)
Communication interface Modbus, integrated, CANopen, integrated, CANmotion, integrated
Connector type RJ45 (labelled CN7) for Modbus, RJ45 (labelled CN4 or CN5) for CANopen, RJ45 (labelled CN4 or CN5) for CANmotion
Output current 3s peak 3 6 A
Contact bounce time 0.25 µs...1.5 ms for DI, 2 µs for CAP, <= 1 ms for compliment of STO_A, compliment of STO_B
Number of inputs/outputs 4 DI + 1 CI + 2 DO
Output current 3s peak 2 6 A
Marking CE
Transmission rate 9600, 19200, 38400 bps for bus length of 40-40 m for Modbus, 500 kbps for bus length of 100-100 m for CANopen, CANmotion, 50 kbps for bus length of 1000-1000 m for CANopen, CANmotion, 250 kbps for bus length of 250-250 m for CANopen, CANmotion, 125 kbps for bus length of 500-500 m for CANopen, CANmotion, 1 Mbps for bus length of 4-4 m for CANopen, CANmotion
Discrete input voltage 24 V DC for safety, 24 V DC for logic, 24 V DC for capture
Status LED 1 LED RUN, 1 LED error, 1 LED (red) servo drive voltage
Height 270 mm
Product compatibility servo motor BSH (55 mm, 2 motor stacks), servo motor BSH (55 mm, 1 motor stacks), servo motor BSH (55 mm, 3 motor stacks), servo motor BMH (70 mm, 1 motor stacks)
Sampling duration DI: 0.25 ms discrete
Safety level PL = e conforming to ISO 13849-1, SIL 3 conforming to EN/IEC 61508
Discrete output type logic output(s) (DO)24 V DC
Network number of phases 3
Depth 237 mm
Overvoltage category III
Width 48 mm
Maximum leakage current 30 mA
Number of addresses 1-247 for Modbus, 1-127 for CANopen, CANmotion
Safety function STO (safe torque off), integrated
Field weakening False
Emc filter compatibility type 022
Communication iinterface CANopen, CANmotion
Discrete output logic positive or negative (DO) conforming to EN/IEC 61131-2
Discrete output number 2
Discrete output voltage <= 30 V DC
Switching frequency 8 kHz
Braking current 50 mA
Communication service sync for CANmotion, position control, speed profile, torque profile and homing mode for CANopen, position control mode for CANmotion, node guarding, heartbeat for CANopen, event-triggered, time-triggered, remotely requested,sync (cyclic), sync(acyclic) for CANopen, emergency for CANopen, CANmotion, display of faults on integrated display terminal for Modbus, CANopen device profile drives and motion control for CANopen, CANmotion, 4 configurable mapping PDOs for CANopen, 2 SDOs send for CANopen, 2 SDOs receive for CANopen, 2 PDOs conforming to DSP 402 for CANmotion, 1 transmit SDO for CANmotion, 1 receive SDO for CANmotion
Net weight 1.7 kg
Signalling function display of faults 7 segments
Response time <= 5 ms compliment of STO_A, compliment of STO_B
Physical interface 2-wire RS485 multidrop for Modbus
Electrical isolation between power and control
Continuous output current 3 1.5 A
Continuous output current 2 1.5 A
Discrete input logic positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1, positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to EN/IEC 61131-2 type 1, positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Type of cable single-strand IEC cable (temperature: 50-50 °C) copper 90 °C XLPE/EPR
Environment
Relative humidity Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
IP degree of protection IP20 conforming to EN/IEC 61800-5-1, IP20 conforming to EN/IEC 60529
Type of cooling natural convection
Ambient air temperature for storage -25-70 °C
Pollution degree 2 conforming to EN/IEC 61800-5-1
Electromagnetic compatibility radiated EMC, category C3 conforming to EN/IEC 61800-3, radiated EMC, class A group 2 conforming to EN 55011, electrical fast transient/burst immunity test, level 4 conforming to EN/IEC 61000-4-4, 1.2/50 µs shock waves immunity test, level 3 conforming to EN/IEC 61000-4-5, susceptibility to electromagnetic fields, level 3 conforming to EN/IEC 61000-4-3, electrostatic discharge immunity test, level 3 conforming to EN/IEC 61000-4-2, conducted EMC, environments 1 and 2 conforming to EN/IEC 61800-3, conducted EMC, category C2 conforming to EN/IEC 61800-3, conducted EMC, environment 2 category C3 conforming to EN/IEC 61800-3, conducted EMC, class A group 2 conforming to EN 55011, conducted EMC, class A group 1 conforming to EN 55011
Ambient air temperature for operation 0-50 °C conforming to UL
Operating altitude > 1000...3000 m with conditions, <= 1000 m without derating
Vibration resistance 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
Environmental characteristic classes 3C1 conforming to IEC 60721-3-3
Shock resistance 15 gn for 11 ms conforming to EN/IEC 60028-2-27
Standards EN/IEC 61800-3, EN/IEC 61800-5-1
Product certifications TÜV, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 33 cm
Package 1 Length 27.6 cm
Package 1 Weight 2.207 kg
