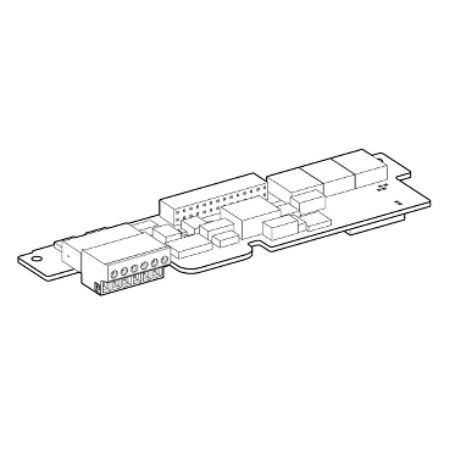

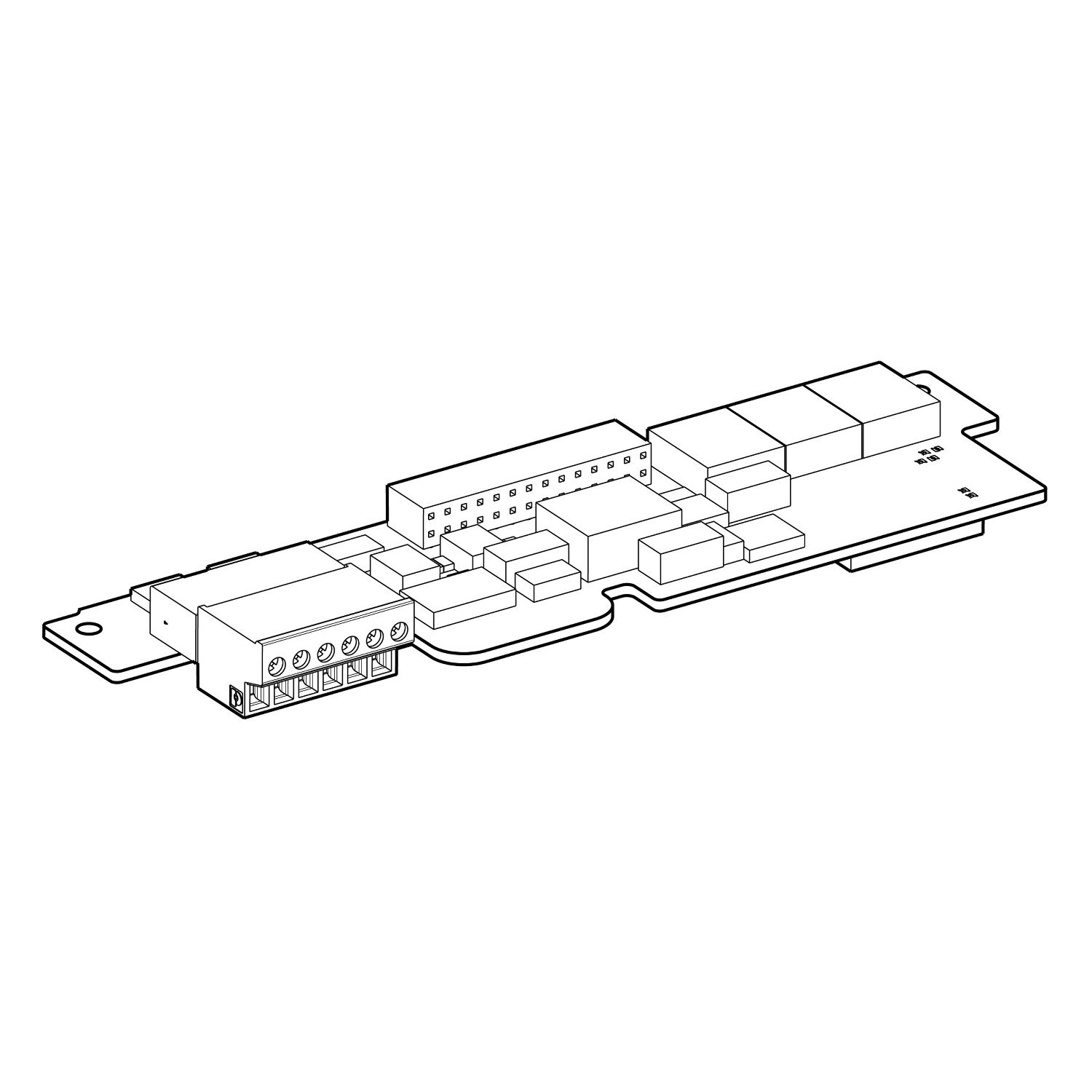

Picture of encoder interface card with push-pull outputs - 15 V DC
SKU:

VW3A3406

encoder interface card with push-pull outputs - 15 V DC

$695.40 INC GST
Available for Shipping : 04-Mar-2025
encoder interface card with push-pull outputs - 15 V DC
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 15 V DC (voltage limits: 15-16 V)
Range compatibility Altivar Lift, Altivar 61Q, Altivar 71, Altivar 71Q, Altivar 61
Product or component type encoder interface card
Number of pulses per revolution 5000 for ATV71H...N4, 5000 for ATV71H...M3X, 5000 for ATV71H...M3, 5000 for all ATV61 drives, 10000 for ATV71H......383
Range of product Altivar
Discrete output type push-pull
Complementary
Voltage state 1 guaranteed > 7.7...< 16 V
Maximum operating frequency 300 kHz
Input signal compliment of B/AB/A, compliment of A, B, A
Protection type overload protection, short-circuit protection
Input impedance 1 kOhm
Maximum supply current 0.175 A
Voltage state 0 guaranteed <= 1.5 V
Net weight 0.2 kg
Electrical connection terminal, connection capacity: 0.5 mm² (AWG 20) <500 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.5 mm² (AWG 20) <500 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.2 mm² (AWG 24) <200 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.2 mm² (AWG 24) <200 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.2 mm² (AWG 24) <100 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.2 mm² (AWG 24) <100 m cable length, encoder, 100 mA at 10 V
Maximum cable distance between devices 500 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 17.0 cm
Package 1 Length 23.0 cm
Package 1 Weight 149.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.55 kg
