SKU:

VW3A3401

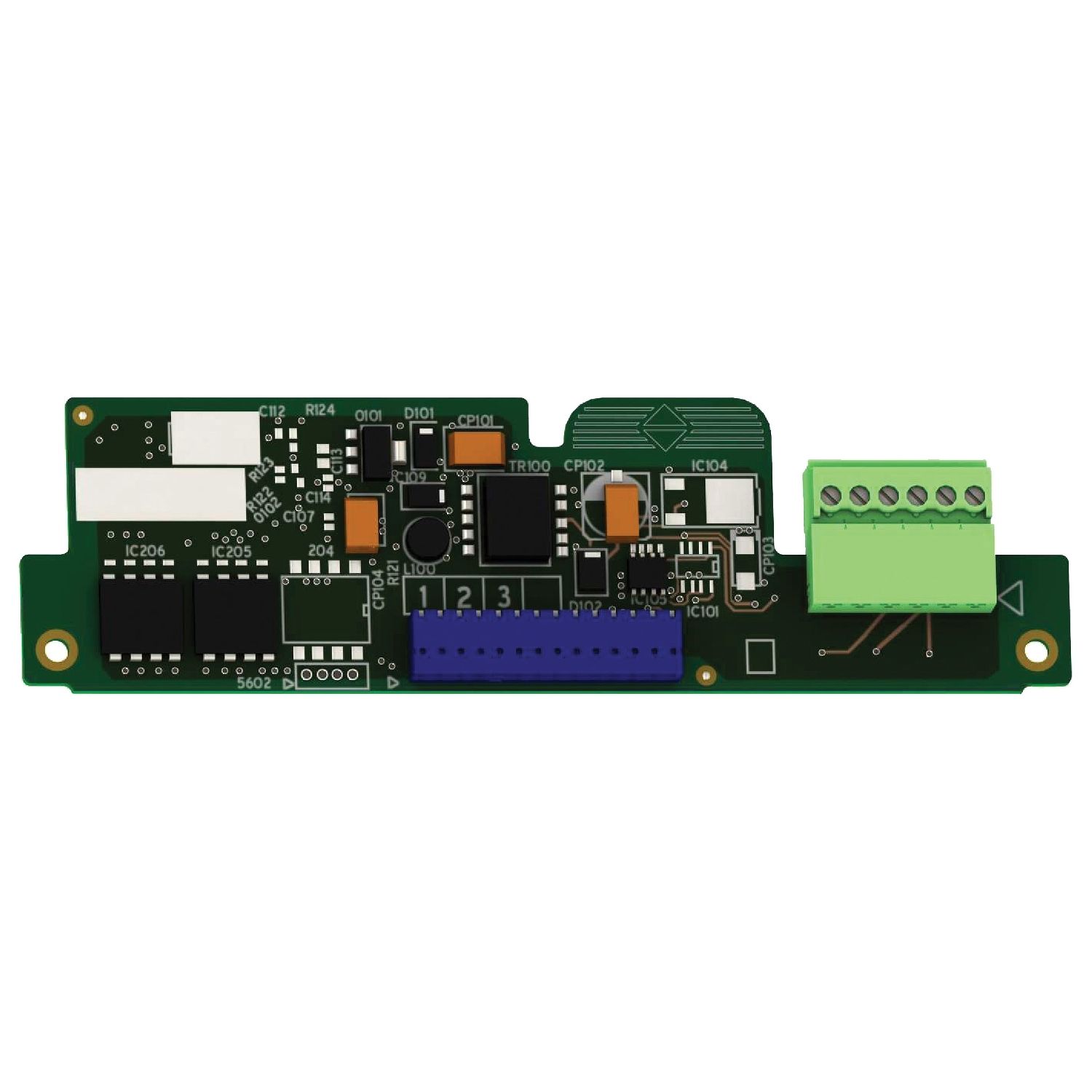

encoder interface card, Altivar, differential outpt, with RS422 compatible, 5V DC

$583.95 INC GST
Available for Shipping : 11-Mar-2025
encoder interface card, Altivar, differential outpt, with RS422 compatible, 5V DC
Manufacturer: Schneider Electric
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with RS 422 differential outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 5 V DC (voltage limits: 5-5.5 V)
Number of pulses per revolution 5000 for ATV71H...N4, 5000 for ATV71H...M3X, 5000 for ATV71H...M3, 5000 for all ATV61 drives, 10000 for ATV71H......383
Range of product Altivar
Discrete output type differential
Range compatibility Altivar 61Q, Altivar 71, Altivar 71Q, Altivar 61, Altivar Lift
Communication port protocol RS422
Product or component type encoder interface card
Complementary
Protection type overload protection, short-circuit protection
Electrical connection terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 200 mA at 4.5 V, terminal, connection capacity: 0.5 mm² (AWG 20) <50 m cable length, encoder, 100 mA at 4.5 V, terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 200 mA at 4.5 V, terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 100 mA at 4.5 V
Maximum cable distance between devices 50 m
Maximum operating frequency 300 kHz
Input signal compliment of B, compliment of A, B, A
Input impedance 440 Ohm
Maximum supply current 0.2 A
Net weight 0.2 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 17.000 cm
Package 1 Length 23.000 cm
Package 1 Weight 142.000 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.479 kg
