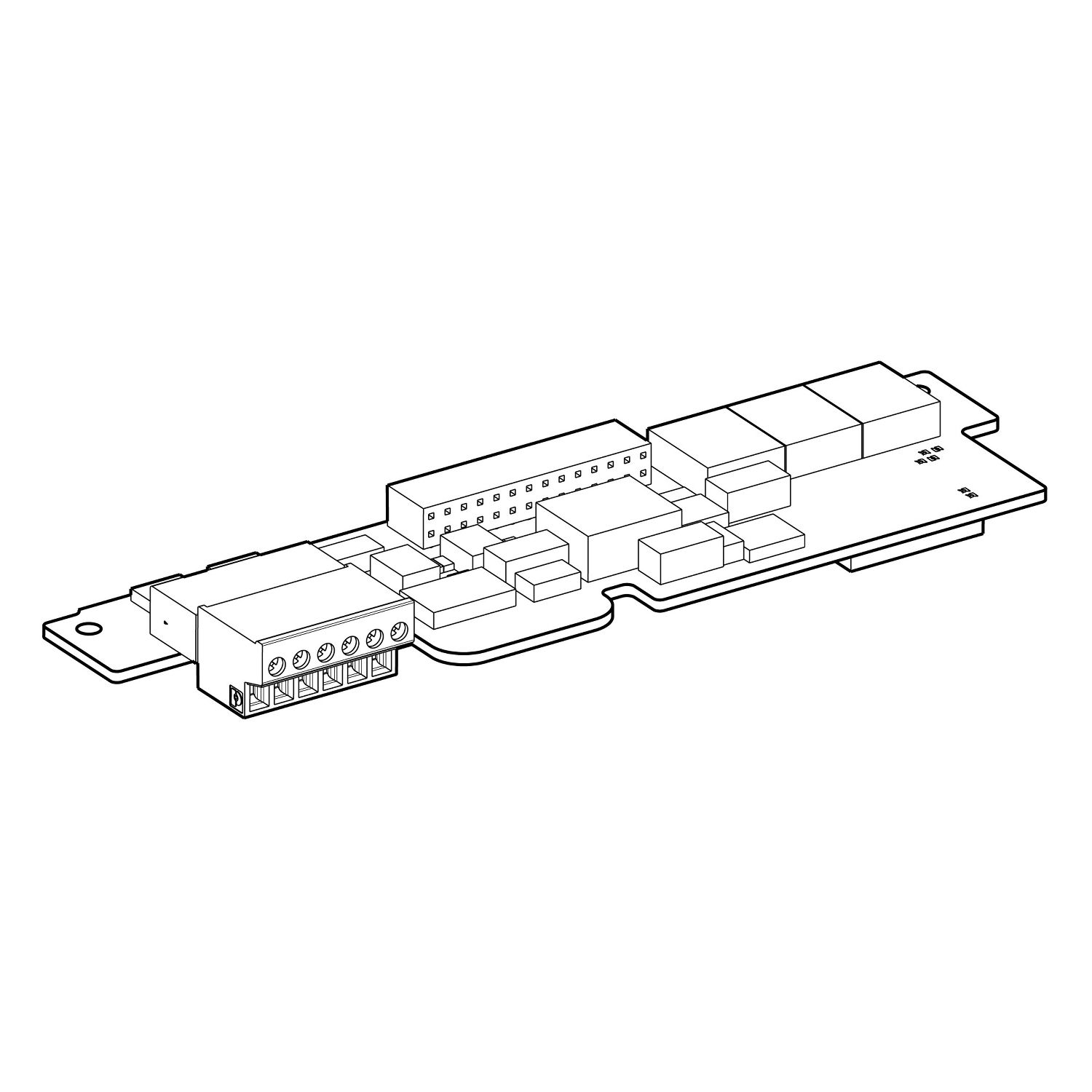

Picture of encoder interface card with open collector outputs - 12 V DC
SKU:

VW3A3403

encoder interface card with open collector outputs - 12 V DC

$695.40
Available for Shipping : 26-Nov-2024
encoder interface card with open collector outputs - 12 V DC
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
Instruction sheet
Product environmental
Product Page Link
Product Data Sheet
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with open collector outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage 12 V DC (voltage limits: 12-13 V)
Range compatibility Altivar 71, Altivar 71Q, Altivar 61Q, Altivar Process Modular, Altivar Lift, Altivar 61
Product or component type encoder interface card
Number of pulses per revolution 5000 for ATV71H...N4, 5000 for ATV71H...M3X, 5000 for ATV71H...M3, 5000 for all ATV61 drives, 10000 for ATV71H......383
Range of product Altivar
Discrete output type open collector
Complementary
Maximum operating frequency 300 kHz
Input signal compliment of B/AB/A, compliment of A, B, A
Protection type overload protection, short-circuit protection
Input impedance 1 kOhm
Maximum supply current 0.175 A
Net weight 0.2 kg
Electrical connection terminal, connection capacity: 1.5 mm² (AWG 15) <500 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 1 mm² (AWG 17) <500 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.75 mm² (AWG 18) <200 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.5 mm² (AWG 20) <200 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.5 mm² (AWG 20) <100 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.2 mm² (AWG 24) <100 m cable length, encoder, 100 mA at 10 V
Maximum cable distance between devices 500 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.4 cm
Package 1 Width 23.0 cm
Package 1 Length 16.6 cm
Package 1 Weight 142.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.581 kg
