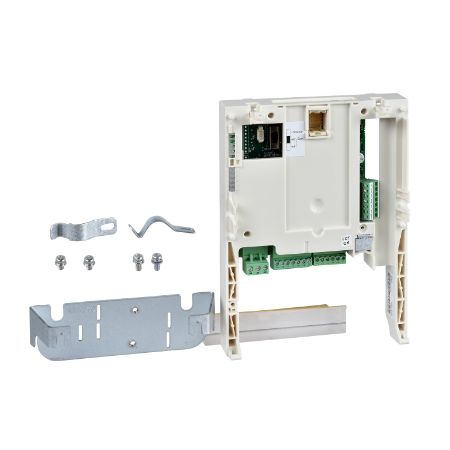

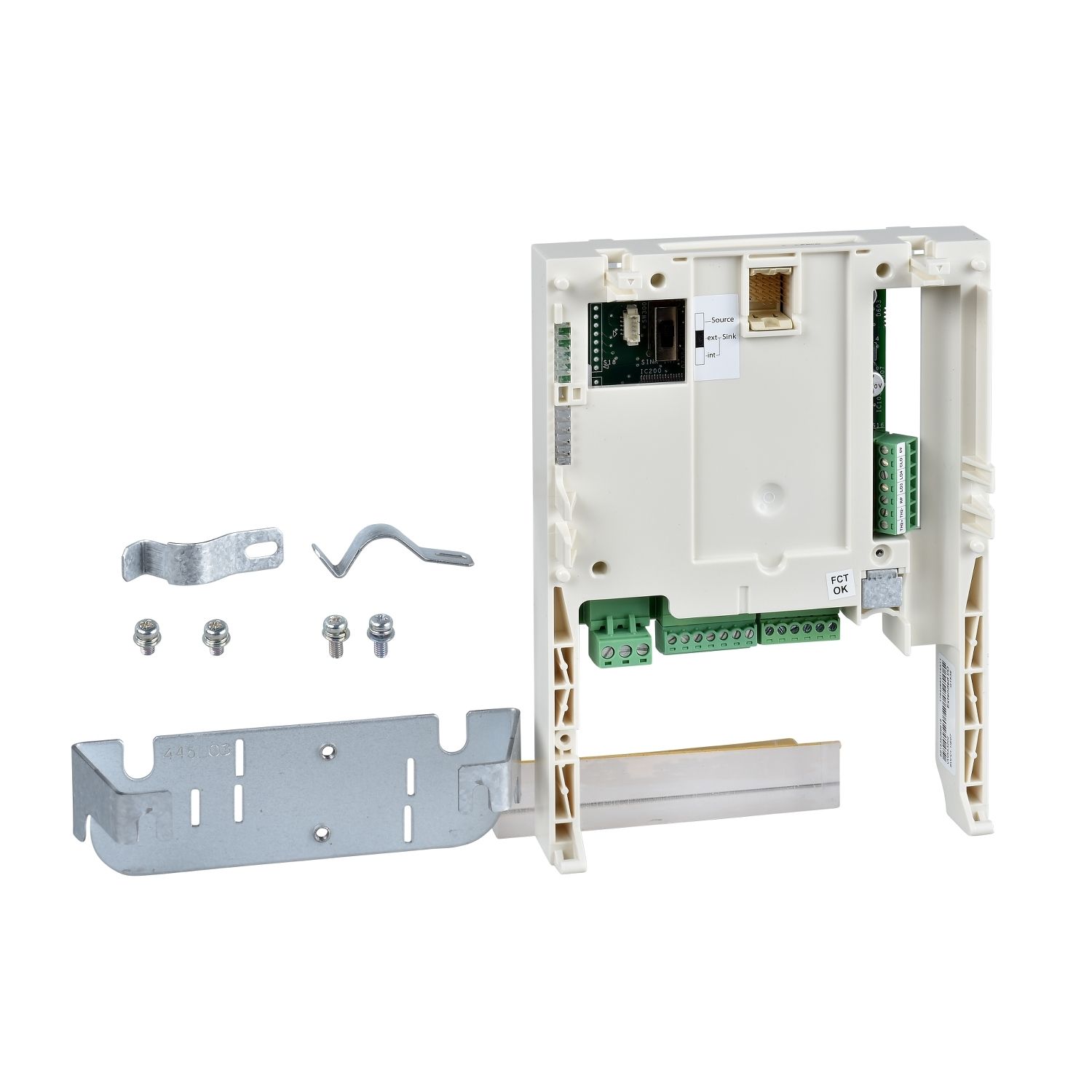

Picture of Controller inside programmable card, Altivar, 24VDC, CANopen, lithium battery, 10 inputs, 6 outputs
SKU:

VW3A3501

Controller inside programmable card, Altivar, 24VDC, CANopen, lithium battery, 10 inputs, 6 outputs

$2,215.20
Available for Shipping : 21-Nov-2024
Controller inside programmable card, Altivar, 24VDC, CANopen, lithium battery, 10 inputs, 6 outputs
  • It is compatible with Altivar 312 drives.
  • It enables integration of your variable speed drive in your process control network
  • The speed control and reference may come from different control sources
  • Communication is monitored according to criteria specific to each protocol
  • Regardless of protocol type, the reaction of the drive to a communication fault can be configured
Be the first to review this product
Manufacturer: Telemecanique
Catalogue
User guide
Product environmental
Product Page Link
Product Data Sheet
This controller Inside programmable card enables your drive to be integrated easily into complex architectures. Regardless of which bus, network or serial link is used, a PLC can communicate with Controller Inside card and the drive. It is compatible with Altivar 61 and Altivar 71. It is equipped with one 9-way male SUB-D connector.

Products specifications

Attribute name Attribute value
Main
Application program desc data saved size : 4 kwords, compiled program size : 320 kB maximum, data size : 64 kwords maximum, data size accessible by Modbus : 2 kwords
Discrete output type (LO51...LO56) logic output, compatible with level 1 PLC
Analogue input type AI51, AI52 current analog input: 0...20 mA, impedance: 250 Ohm, resolution: 10 bits
Transmission rate 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps
Supply circuit type DC
Range compatibility Altivar Lift, Altivar 61, Altivar 71Q, Altivar 71, Altivar 61Q
Discrete input number 10
Discrete input type (LI51...LI60) logic inputs, 24 V DC, compatible with level 1 PLC (voltage limits: <= 30 V), impedance: 4.4 kOhm
Discrete output logic (LO51...LO56) positive
Analogue output number 2
Discrete output number 6
Analogue input number 2
Battery type lithium
Product or component type controller inside programmable card
Analogue output type AO51, AO52 current analog output: 0...20 mA, impedance: 500 Ohm, resolution: 10 bits
Discrete input logic positive (LI51...LI60), <= 5 V (state 0), >= 11 V (state 1)
[Us] rated supply voltage 24 V
Complementary
Display type 1 LED for RUN (status), 1 LED for ERROR (fault)
Method of access master
Electrical connection terminal, 1.5 mm² / AWG 16, 0.25 N.m
Number of addresses 1-32
Battery life 8 year(s)
Supply voltage limits 19-30 V
Communication port protocol CANopen
Maximum output current 0.2 A, logic output
Connector type 9-way male SUB-D connector
Net weight 0.32 kg
Discrete output voltage 24 V DC, maximum switching voltage: 30 V logic output
Communication service 2 client SDOs per slave, 10 receive and transmit PDOs in total for each slave, emergency, boot-up, sync, DS 301 V4.02, DSP 405
Current consumption 80 mA no load, 200 mA maximum per logic output, 2 A maximum
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.5 cm
Package 1 Width 17.2 cm
Package 1 Length 23.5 cm
Package 1 Weight 398.0 g
Unit Type of Package 2 2
Number of Units in Package 2 7
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.305 kg
