Picture of Globe Valve, 80mm, 3-Way, Flanged, stem Up Closed, Stainless Steel, 110kvs, Glycol 25-50% Steam and Water
SKU:

VGS211F-80CS

Globe Valve, 80mm, 3-Way, Flanged, stem Up Closed, Stainless Steel, 110kvs, Glycol 25-50% Steam and Water

$3,428.35 INC GST
Available for Shipping : 04-Mar-2025
Globe Valve, 80mm, 3-Way, Flanged, stem Up Closed, Stainless Steel, 110kvs, Glycol 25-50% Steam and Water
  • Flanged Steam Valve with Full Stainless Trim and PTFE seals for 200 °C service duty.
  • Also suitable for hot and chilled liquid media

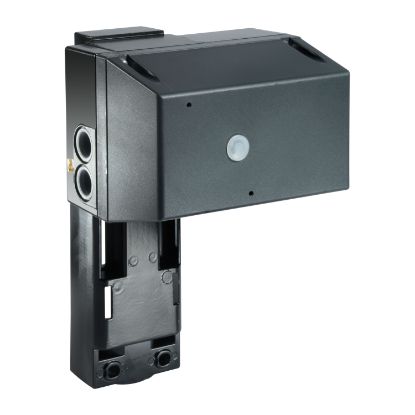

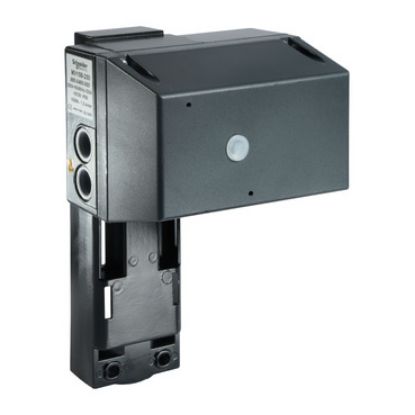

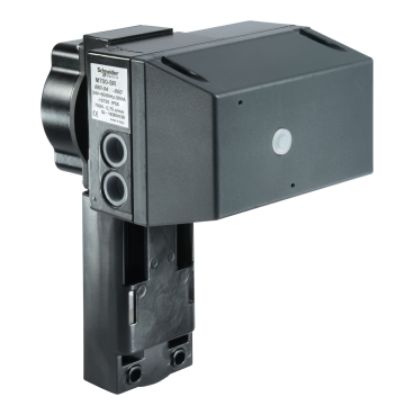

  • U bolt mounting accepts M800, M1500, M3000 and M700 SR actuators for quick installation
  • Spring loaded PTFE stem seals provides a long leak-free service life
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Catalogue
Product Page Link
Product Data Sheet
The globe valve VGS211F-CS is a 2-way globe valve designed for steam applications such as heating, cooling and air handling applications. The valve uses a stainless steel plug for steam up, hot water, chill water, and water with antifreeze additives Stainless Steel plug and seat provides a high pressure differential capability and a low leakage.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-200 °C
Body material grey cast iron GG-25
Saturated steam temperature -10-200 °C
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.02 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN80 (ISO 7005-2)
Seat material Port A: stainless steel AISI 303
Medium compatibility Glycol 50 %, Glycol 30 %, Glycol 25 %, Water, Steam
Control valve rangeability greater than 35:1
Plug material stainless steel AISI 303
Valve product series VGS211F
Flow coefficient 110 kvs, 127.18 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 58 psi
Valve type globe
Valve model VGS211F-80CS 110M SD00
Packing material PTFE (polytetrafluoroethylene)
Valve connection type flanged
Stem seal material PTFE (polytetrafluoroethylene)
Flow characteristic equal percentage
Trim material stainless steel
Stroke length 45 mm
Stem material stainless steel AISI 303
Pipe size 80 mm
Pressure class PN16
Body size 80 mm (3 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 40.0 cm
Package 1 Width 22.0 cm
Package 1 Length 31.0 cm
Package 1 Weight 30.95 kg
