SKU:

8800500000

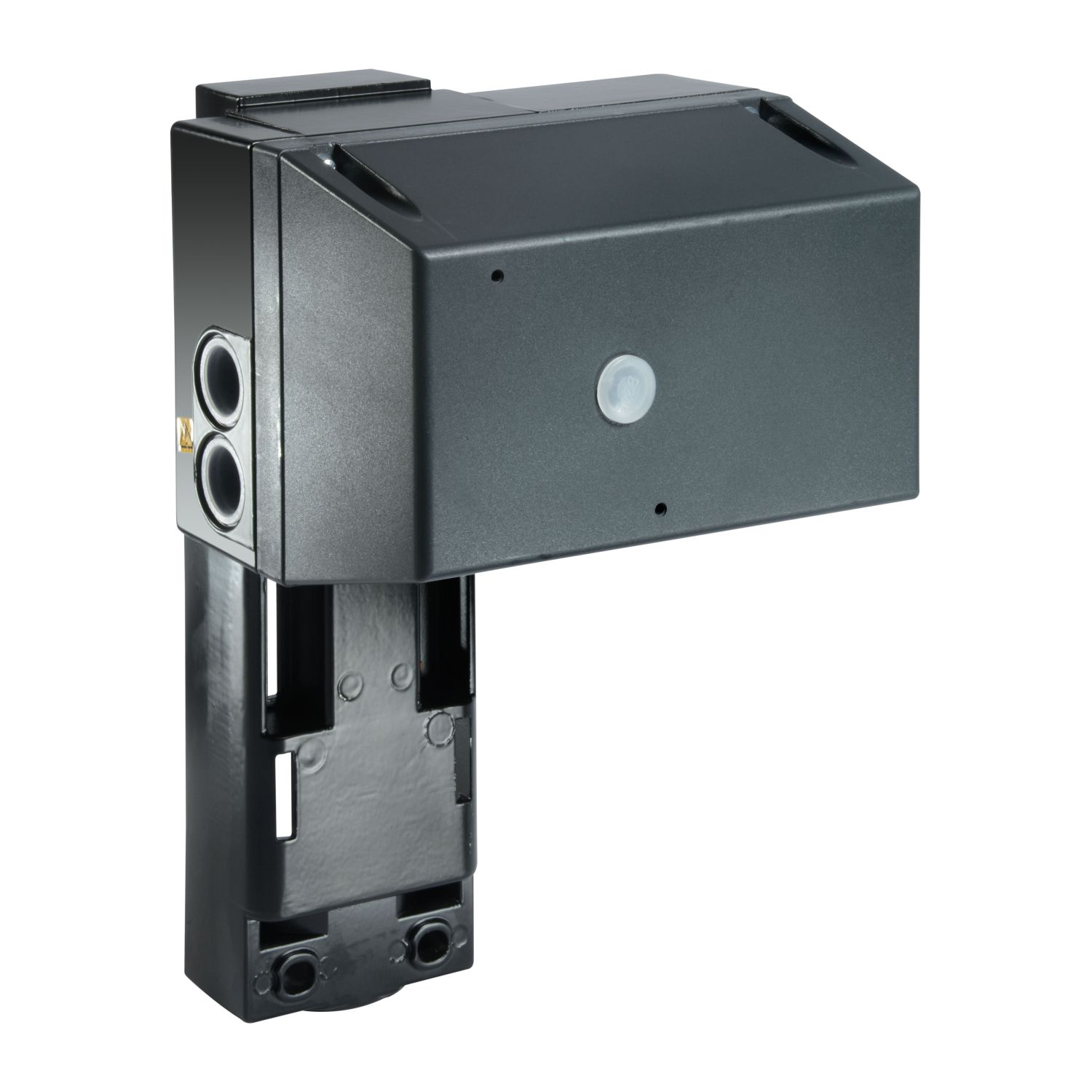

SpaceLogic M3000 Electric Globe Valve Actuator, 24Vac/dc, 3000N, IP54

$2,623.61 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

SpaceLogic M3000 Electric Globe Valve Actuator, 24Vac/dc, 3000N, IP54

Field selectable configuration

2-10V position feedback as standard

Aux end switch relays (2 x SPDT) available as an optional accessory

Manual override operation automatically cuts power to the PCBA

Zero point check upon power interruption

Replaceable circuit board

High resolution / positional accuracy

one touch stroke calibration

Selectable input signals: ..1 Vdc, 2..1 Vdc, ..5 Vdc, 2-6 Vdc, 5-1 Vdc, 6-1 Vdc

Flow curve adaptation from EQ to Linear

Be the first to review this product

Manufacturer: Schneider Electric

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

The M3000 SpaceLogic is a strong precice multi-signal actuators for the control of large 2-way and 3-way globe valves. It has a very fine resolution PCBA board which provides good rangeability of the valve. The manual override allows the actuator to be overriden and valve position adjusted without disconnecting the power supply. It may be configured for different flow characteristics, inverse signal or sequence control. Supply voltage: 24 Vac +25% /-35%. Analog Control Input selectable Voltages: …1 V, 2…1 v, …5 V, 5…1 V, 2…6 V, 6…1 V. Force: 15 N, IP 54 Protection class.

Products specifications

Attribute name	Attribute value
Main
Force N	3000 N
Switch function	2 SPDT (optional)
IP degree of protection	IP54
Relative humidity	0-90 %
Ambient air temperature for storage	-25-65 °C
[Us] rated supply voltage	24 V AC/DC
Electrical insulation class	class II
Product destination	globe valve
Control type	automatic reset
Transformer rated power in VA	50 VA
Stroke length	9-52 mm
Analogue input range	0...10 V DC
Ambient air temperature for operation	-10-50 °C
Hold-in power consumption in VA	25-25 VA AC
Stroke running time	102 s
Motor type	brushless DC motor
Duty cycle	20 %
Product or component type	actuator
Power consumption in VA	25 VA AC
Targeted region	Australia., Asia Pacific., Europe
Force lbf	675 lbf
Actuator	linear

Actuator model	M3000
Control signal	proportional/modulating, floating
Conduit connection	2 x 20 mm conduit hole
Leads and connections	terminal block
Actuator type	electric
Actuator product range	SpaceLogic
Actuator product series	M3000
Power loss return	non-spring return
Feedback signal	2...10 V DC
Stroke auto calibration	True
Position indicator	Stroke indicator on yoke
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	22.6 cm
Package 1 Width	22.6 cm
Package 1 Length	31.4 cm
Package 1 Weight	3.7 kg
