SKU:

VG221F-125C

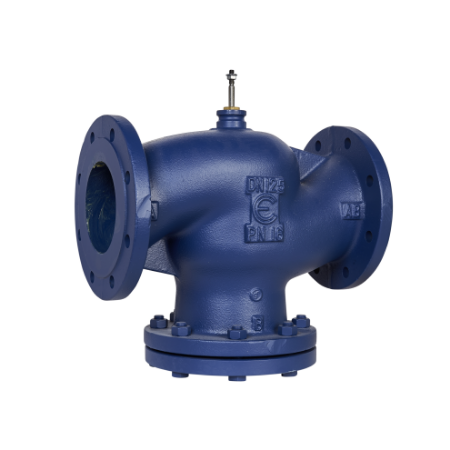

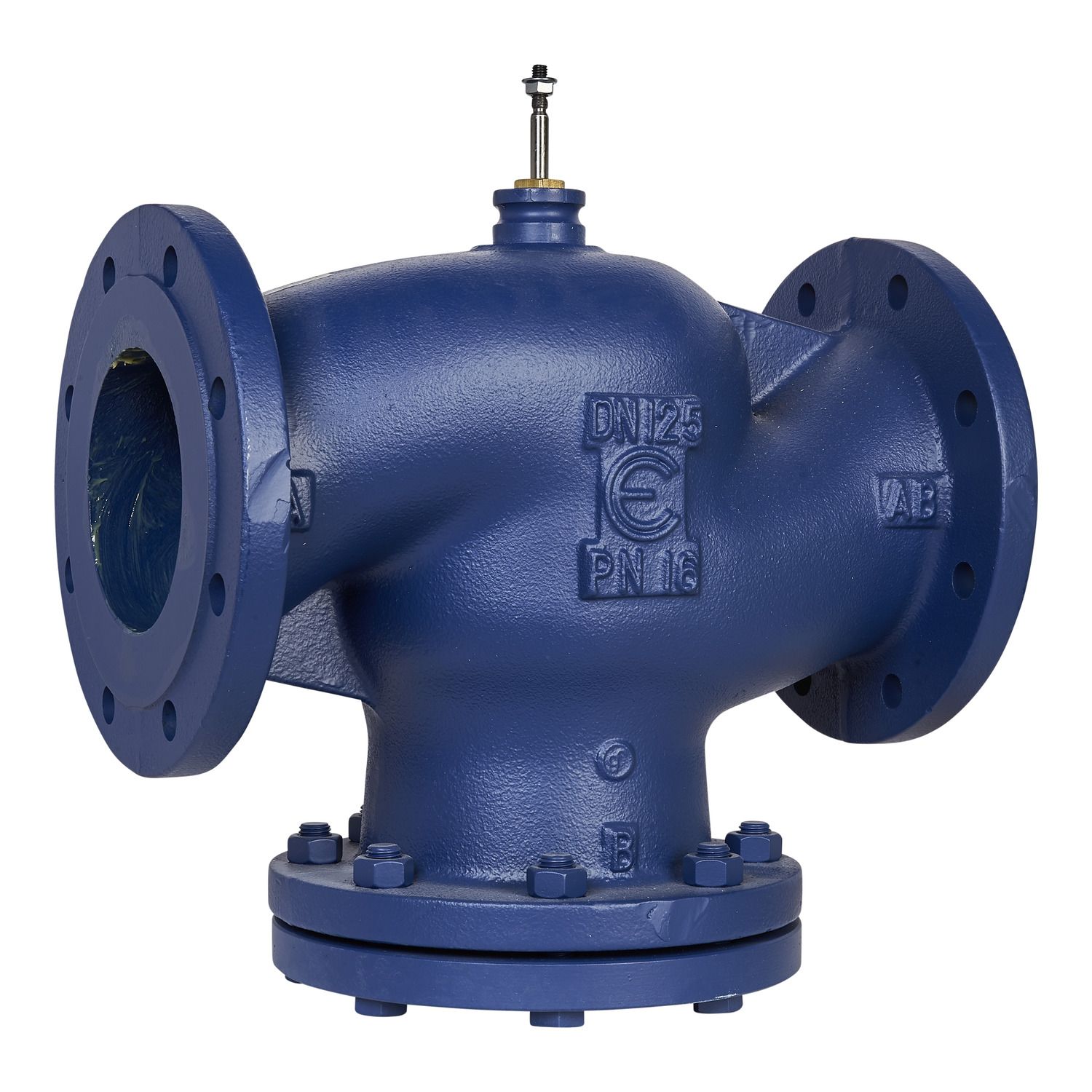

VG221F Globe Valve, 2-Way, DN125, Kvs 200 m³/h, ISO Flanged, Brass Plug, EPDM Seals, Stem Up Closed.

$3,776.54
Available for Shipping : 24-Oct-2024
VG221F Globe Valve, 2-Way, DN125, Kvs 200 m³/h, ISO Flanged, Brass Plug, EPDM Seals, Stem Up Closed.
  • Large 2-Way Balanced Valve designed for a wide range of HVAC hydronic applications
  • Suitable for a wide range of media solutions and glycol concentrations up to 50%
  • The Balanced plug enables a low actuating force to control the valve
  • U bolt mounting accepts the M800/ M1500 / M3000 style of actuator for quick installation
Manufacturer: Schneider Electric
The globe valve VG221F is a large 2-way pressure balanced globe valve designed for demanding heating and cooling applications. The balanced plug lowers the actuator force needed for operation, the valve uses a crown plug for precise fluid control. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage.

Products specifications

Attribute name Attribute value
Main
Operating fluid temperature -10-150 °C
Body material grey cast iron GG-25
Seating seal material Port A:metal to metal
Seat leakage Port A: Less than 0.03 % of kvs
Product or component type valve
Targeted region Australia., Asia Pacific., Europe
Valve connection size DN125 (ISO 7005-2)
Seat material Port A: grey cast iron GG-25
Medium compatibility Glycol 50 %, Glycol 30 %, Glycol 25 %, Water
Control valve rangeability greater than 50:1
Plug material CW614N brass
Valve product series VG221F
Flow coefficient 200.01 kvs, 231.25 cv
Stem flow action Stem up closed
Valve configuration 2-Way
Stem movement linear
Pressure fluid max delta P normal life 29 psi
Valve type globe
Valve model VG221F-125C 200M SU00
Packing material EPDM (ethylene propylene diene monomer)
Valve connection type flanged
Stem seal material EPDM (ethylene propylene diene monomer)
Flow characteristic equal percentage
Trim material brass
Stroke length 45 mm
Stem material stainless steel AISI 303
Pipe size 125 mm
Pressure class PN16
Body size 125 mm (5 in)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 46.0 cm
Package 1 Width 25.0 cm
Package 1 Length 40.0 cm
Package 1 Weight 45.0 kg
