TM171PDM27R

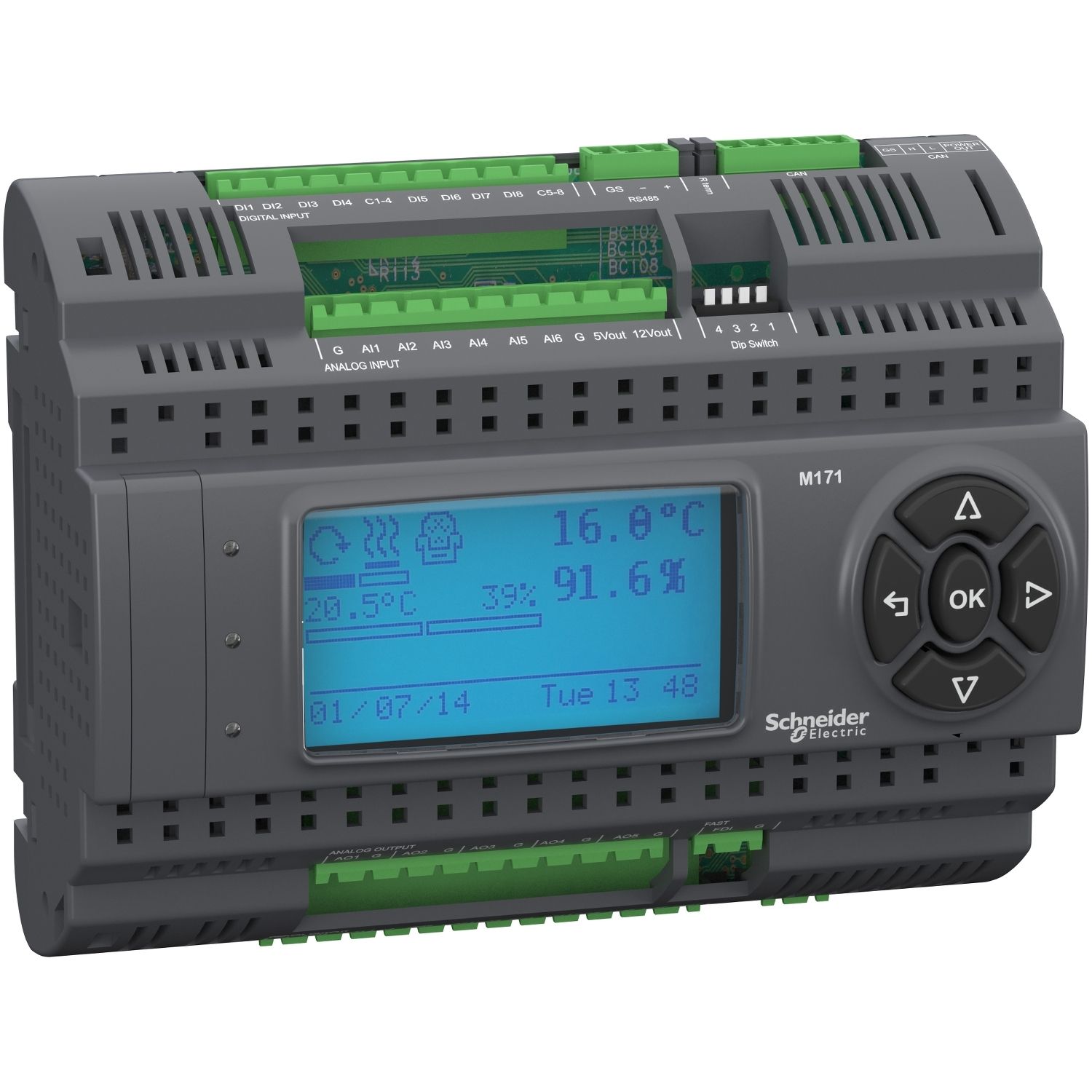

Controller, Modicon M171/M172/M173, performance display 27 IO, Modbus

$1,013.98 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

Controller, Modicon M171/M172/M173, performance display 27 IO, Modbus

Be the first to review this product

Manufacturer: Schneider Electric

Brochure

Circularity Profile

Environmental Disclosure

Instruction sheet

Catalog

User guide

Product Page Link

Product Data Sheet

This product is part of the Modicon M171/M172 range, an offer of controllers for HVAC solutions. This controller offers 2 discrete inputs with sink or source (positive/negative) discrete input logic. The rated supply voltage ranges from 100V to 240V, ±10% AC. It is an IP20 rated product. Its dimensions are 160mm (width) x 10mm (depth) x 96mm (height). It weighs 0.32kg. The main application of this module is HVAC and pumping solution. This product is certified by CE, CURus, CSA and EAC. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Products specifications

Attribute name	Attribute value
Main
Discrete output current	5 A for relay SPST, 8 A for relay SPDT
Number of inputs/outputs	27
Range of product	Modicon M171/M172
Product specific application	HVAC and pumping solution
Discrete input number	8
Analogue input number	4 configurable, 2 analog input NTC
Product or component type	programmable controllers
Variant	programmable
Discrete output number	2 for relay outputs SPDT with independent common, 2 for relay outputs SPST with same common, 3 for relay outputs SPST with same common
Analogue output number	2 open collector, range: 1 kHz, 12 V, 35 mA, 3 voltage/current, range: 4...20 mA or 0...10 V
Complementary
Input/output number	1 high-speed counter(s), 7 digital output(s), 8 digital input(s), 5 analog output(s), 6 analog input(s)
[Us] rated supply voltage	48 V +/- 20 % DC, 24 V +/- 20 % AC/DC
Display type	LCD display - 128 x 64 pixels
Discrete input voltage	48 V DC, 24 V AC/DC
Height	96 mm
Discrete input logic	sink or source (positive/negative)
Depth	10 mm
Overvoltage category	II
Analogue input type	NTC temperature probe - 40...150 °C - resolution: 0.1 °C, Pt 1000 temperature probe - 200...800 °C - resolution: 0.1 °C, voltage 0...10 V, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), impedance 0...300 daOhm, impedance 0...1500 hOhm, current 4...20 mA, voltage 0...5 V (ratiometric)
Realtime clock	built-in clock at -10-55 °C
Width	160 mm
Discrete input current	2.5 mA
Input impedance	20 kOhm
Local signalling	1 LED (green) for programmable, 1 LED (yellow) for programmable, 1 LED (red) for programmable
Sensor power supply	12-12 V DC at 150 mA, 5-5 V DC at 50 mA
Number of port	1 RS485 - screw terminal block (Modbus serial link), 1 USB type mini B - USB device port Mini-B, 1 USB type A - USB type A female, 1 CAN port - screw terminal block
Net weight	0.32 kg
Mounting support	flush mounting
Power consumption in W	5 W at 24...48 V AC/DC
Environment
IP degree of protection	IP20
Relative humidity	10-90 % non-condensing
Ambient air temperature for storage	-20-85 °C
Directives	2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive
Ambient air temperature for operation	-10-55 °C conforming to UL 60730-1
Pollution degree	2
Standards	EN/IEC 60730
Product certifications	EAC, cURus, CSA, CE
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	13.0 cm
Package 1 Width	9.1 cm
Package 1 Length	18.5 cm
Package 1 Weight	505.0 g
Unit Type of Package 2	2
Number of Units in Package 2	6
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.409 kg
