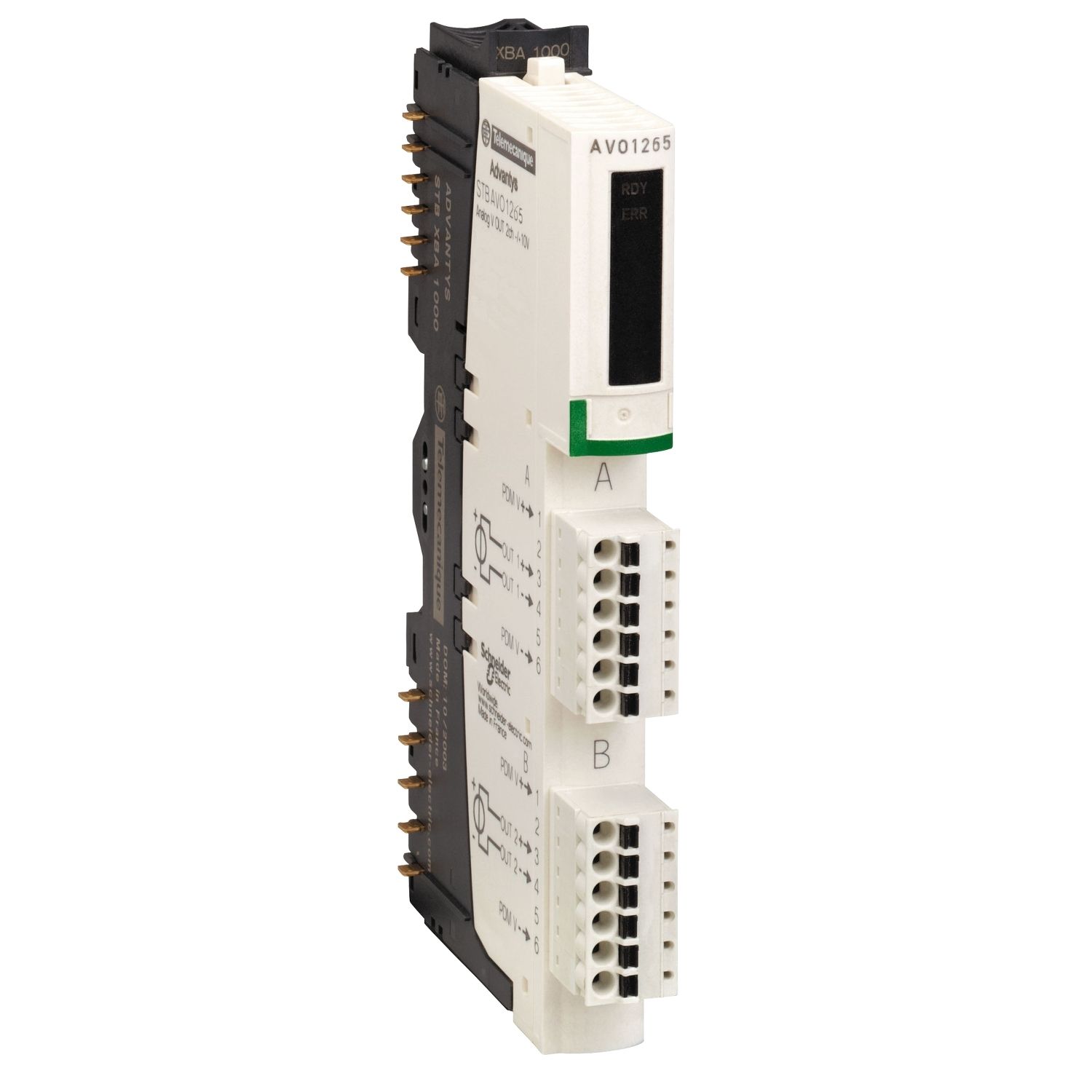

basic analog output kit STB - +/- 10 V - 2 O - 9 bits + sign

$919.66 INC GST
Available for Shipping : 12-Jan-2026
basic analog output kit STB - +/- 10 V - 2 O - 9 bits + sign
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Analogue output number 2
Range of product Modicon STB distributed I/O solution
Kit composition STBXBA1000 base, STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBAVO1265 module
Analogue output resolution 9 bits + sign
Product or component type basic analog output kit
Analogue output type voltage: +/- 10 V
Complementary
Product compatibility power distribution module STBPDT3100/3105, mounting base STBXBA1000
Update time 25 ms
Protection type short-circuit protection
Addressing requirement 2 output words
Insulation between channels and actuator bus 30 V
Temperature drift +/-0.01 %/°C
Fallback status state 0
Marking CE
Data format EN 61131-2, IEC 61131-2
Analogue output current 0.005-0.005 A
Hot swapping fallback no for basic NIMs
Status LED 1 LED (green) module status (RDY)
Height 13.9 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Response time 3 ms
Absolute accuracy error +/- 0.5 % of full scale at 25 °C
Net weight 0.115 kg
Current consumption 45 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.1 %FS
Differential linearity monotonic
Environment
Ambient air temperature for operation 32...140 °F without, 0-60 °C (without)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without, -40...185 °F without
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications UL, FM Class 1 Division 2, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 8.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 136.000 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.110 kg
