Picture of basic analog output kit, Modicon STB, 0 to 10V, 2O, 10 bits
SKU:

STBAVO1255K

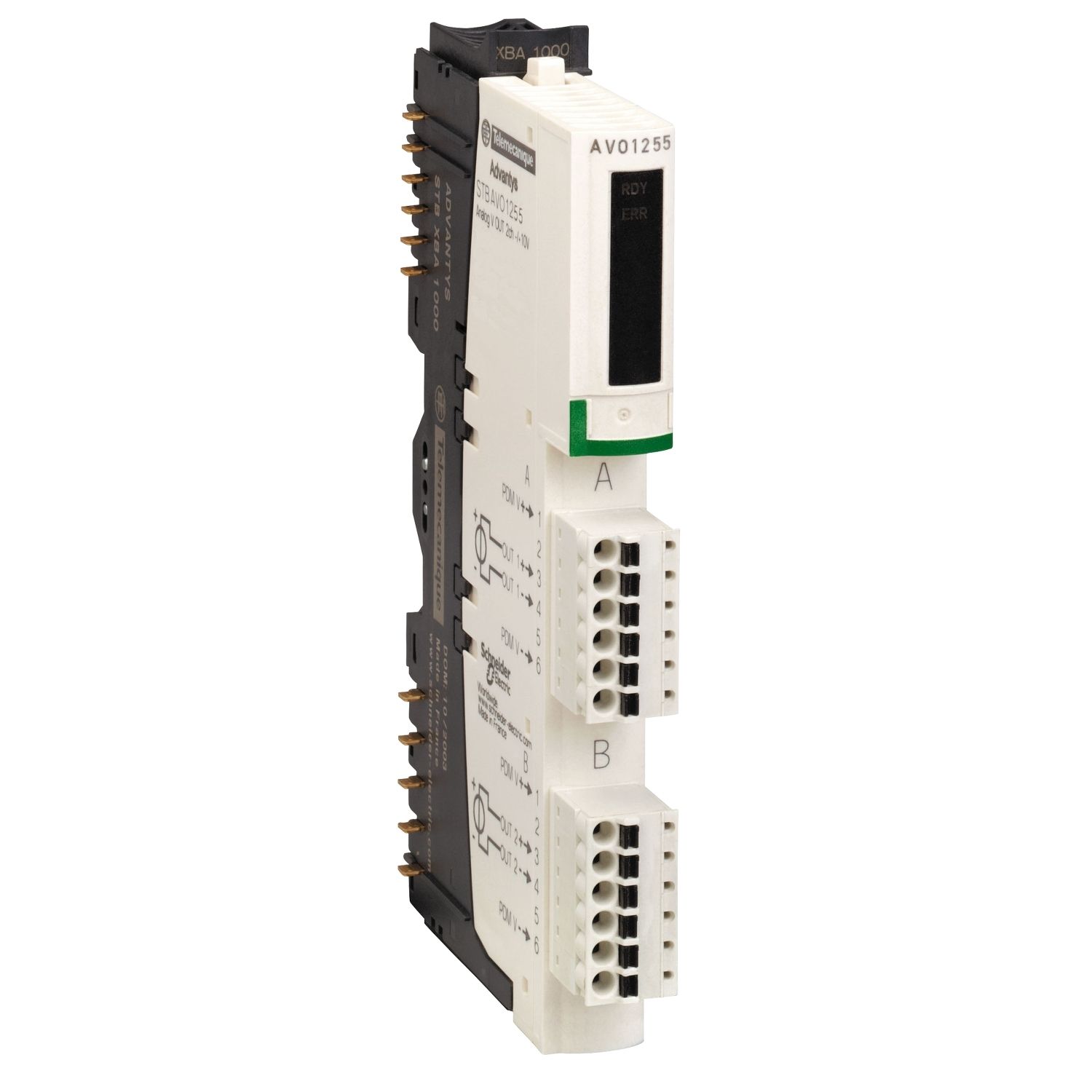

basic analog output kit, Modicon STB, 0 to 10V, 2O, 10 bits

$973.42 INC GST
Available for Shipping : 12-Jan-2026
basic analog output kit, Modicon STB, 0 to 10V, 2O, 10 bits
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This output kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This standard analog output kit is an accessory kit for programmable logic controllers (PLC) and programmable automation controllers (PAC). It has 2 analog output (voltage 0V to 10V) with 10bit plus sign resolution. This product is compatible with most major Fieldbus networks. It is an analog input kit with a rated supply voltage of 24V DC and a current consumption of 45mA at 5V DC for logic bus. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is compatible with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBAVO1255 module, STBXBA1000 base and STBXTS1100, 6-terminal screw type connector. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Products specifications

Attribute name Attribute value
Main
Analogue output number 2
Range of product Modicon STB distributed I/O solution
Kit composition STBXTS2100, 6-terminal spring clamp connector, STBAVO1255 module, STBXBA1000 base, STBXTS1100, 6-terminal screw type connector
Analogue output resolution 10 bits
Product or component type basic analog output kit
Analogue output type voltage: 0...10 V
Complementary
Product compatibility power distribution module STBPDT3100/3105, mounting base STBXBA1000
Update time 25 ms
Protection type short-circuit protection
Addressing requirement 2 output words
Insulation between channels and actuator bus 30 V
Temperature drift +/-0.01 %/°C
Fallback status state 0
Marking CE
Data format EN 61131-2, IEC 61131-2
Analogue output current 0.005-0.005 A
Hot swapping fallback no for basic NIMs
Status LED 1 LED (green) module status (RDY)
Height 13.9 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Response time 3 ms
Absolute accuracy error +/- 0.5 % of full scale at 25 °C
Net weight 0.116 kg
Current consumption 45 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.1 %FS
Differential linearity monotonic
Environment
Ambient air temperature for operation 32...140 °F without, 0-60 °C (without)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without, -40...185 °F without
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications CSA, UL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.500 cm
Package 1 Width 8.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 136.000 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.100 kg
