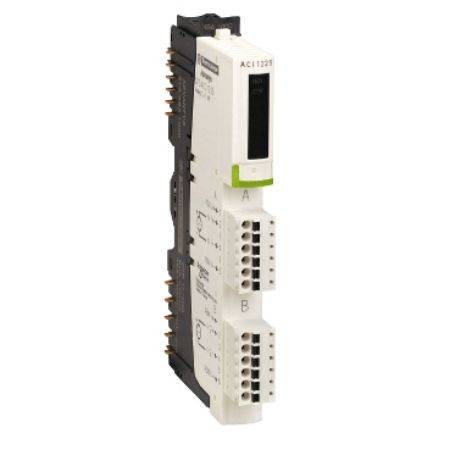

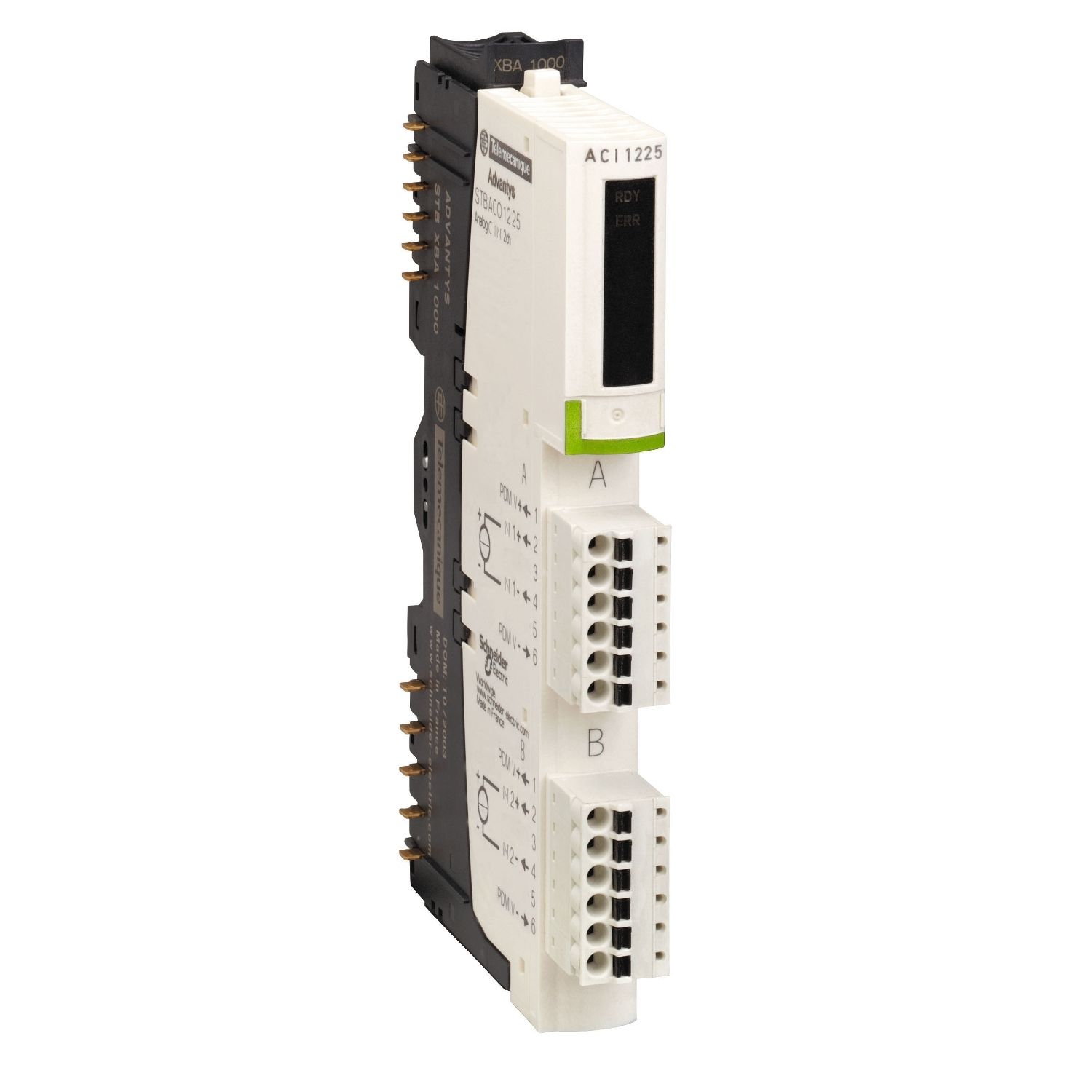

Picture of basic analog input kit, Modicon STB, 4 to 20mA, 2I, 10 bits
SKU:

STBACI1225K

basic analog input kit, Modicon STB, 4 to 20mA, 2I, 10 bits

$942.42 INC GST
Available for Shipping : 08-Dec-2025
basic analog input kit, Modicon STB, 4 to 20mA, 2I, 10 bits
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (current 4mA to 20mA) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. The response time is 5ms. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1100, 6-terminal screw type connector, STBXBA1000 base, STBXTS2100, 6-terminal spring clamp connector and STBACI1225 module. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.

Products specifications

Attribute name Attribute value
Main
Analogue input resolution 10 bits
Type of filter single low pass input filter 25 Hz
Range of product Modicon STB distributed I/O solution
Analogue input type current 4...20 mA
Kit composition STBACI1225 module, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBXTS1100, 6-terminal screw type connector
Analogue input number 2
Product or component type basic analog input kit
Complementary
Product compatibility power distribution module STBPDT3100/3105, mounting base STBXBA1000
Update time 10 ms
Addressing requirement 2 input words
Temperature drift +/-0.01 %/°C
Marking CE
Data format IEC 61131-2, EN 61131-2
Hot swapping fallback no for basic NIMs
Status LED 1 LED (green) module status (RDY)
Insulation between channels and sensor bus 30 V
Height 13.9 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Absolute maximum input 25 mA/50 V DC
Response time 5 ms
Absolute accuracy error +/- 0.5 % of full scale 25 °C
Current consumption 30 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.2 %FS
Differential linearity monotonic
Input impedance <= 300 Ohm
Maximum supply current for sensors 100 mA per input channels
Environment
Ambient air temperature for operation 32...140 °F without derating, 0-60 °C
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications ATEX Cat 3G, FM Class 1 Division 2, CSA, UL, C-Tick
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.79 cm
Package 1 Width 8.13 cm
Package 1 Length 13.21 cm
Package 1 Weight 140 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.262 kg
Unit Type of Package 3 3
Number of Units in Package 3 448
Package 3 Height 75.0 cm
Package 3 Width 40.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 85.928 kg
