Picture of standard analog output HART kit STB - 4..20 mA - 2 O - 15 bits + sign
SKU:

STBACO8220K

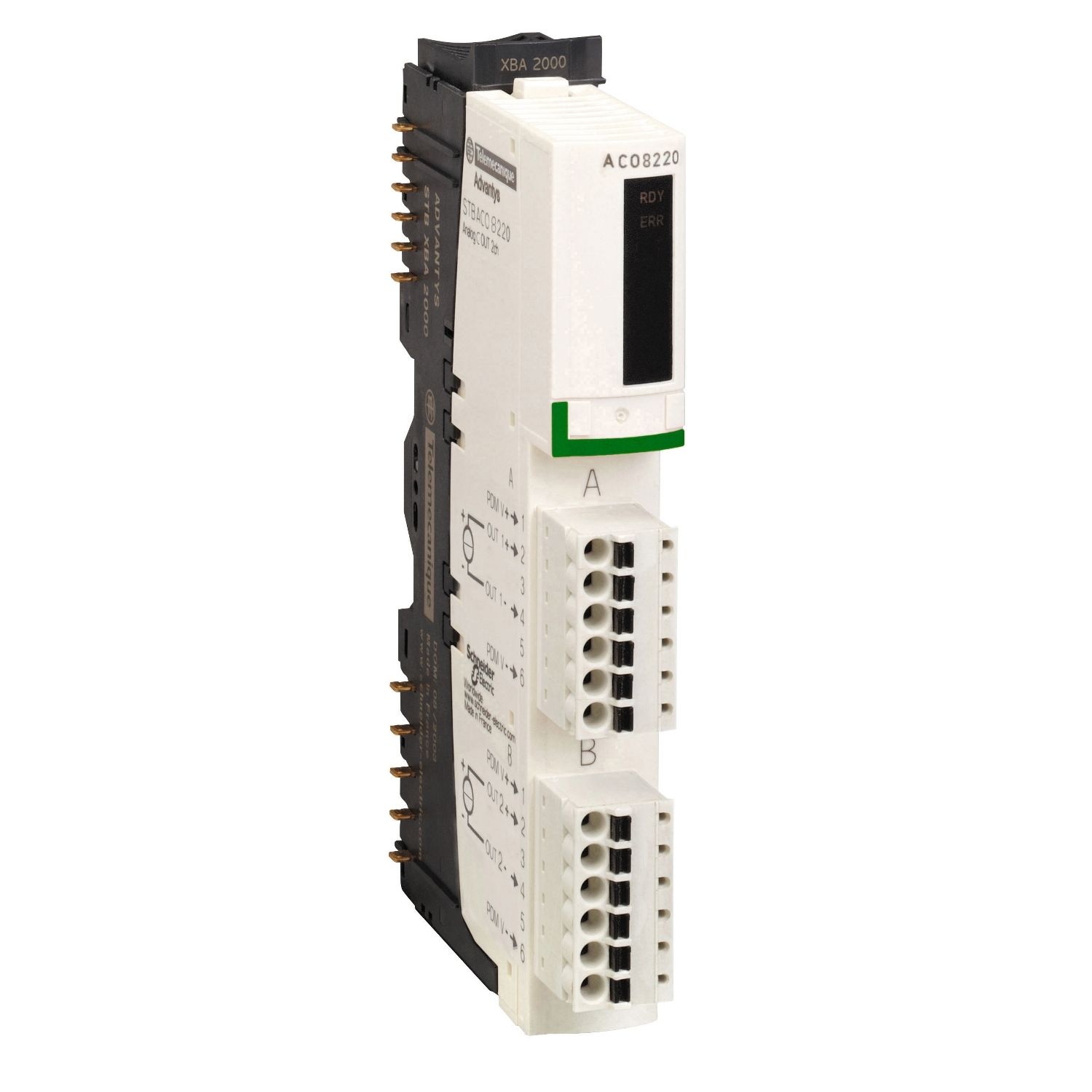

standard analog output HART kit STB - 4..20 mA - 2 O - 15 bits + sign

$1,141.03 INC GST
Available for Shipping : 12-Jan-2026
standard analog output HART kit STB - 4..20 mA - 2 O - 15 bits + sign
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
User guide
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Analogue output number 2
Range of product Modicon STB distributed I/O solution
Kit composition STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBXBA2000 base, STBACO8220 module
Analogue output resolution 15 bits + sign
Product or component type standard analog output kit
Analogue output type current: 4...20 mA
Complementary
Product compatibility mounting base STBXBA1000, power distribution module STBPDT3100/3105
Update time 8 ms
Insulation between channels and actuator bus 200 V
Temperature drift +/-0.005 %/°C
Fallback status user configurable standard NIMs, state 0 basic NIMs
Marking CE
Data format IEC 61131-2, EN 61131-2
Analogue output current 0.02-0.02 A
Hot swapping fallback yes for standard NIMs
Status LED 1 LED (red) module error (ERR), 1 LED (green) module status (RDY)
Height 18.4 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Response time 40 ms plus update time
Absolute accuracy error +/- 0.3 % of full scale at 25 °C
Current consumption 210 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.05 %FS
Differential linearity monotonic
Environment
Ambient air temperature for operation 32...140 °F without, 0-60 °C (without)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without, -40...185 °F without
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications CSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.700 cm
Package 1 Width 8.000 cm
Package 1 Length 13.000 cm
Package 1 Weight 144.000 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.234 kg
