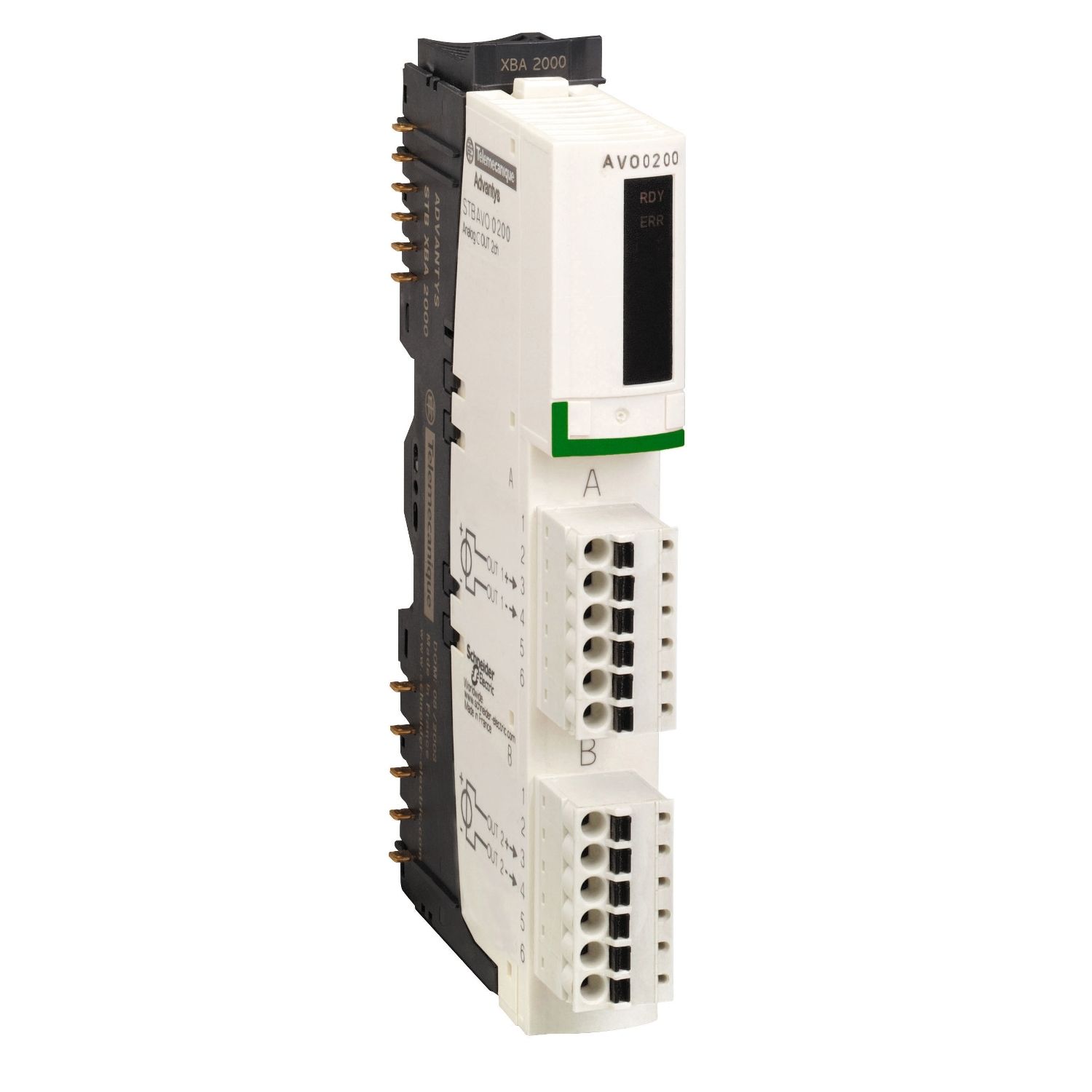

Picture of standard analog output kit, Modicon STB, + or - 10V, 2O, 15 bits with sign
SKU:

STBAVO0200K

standard analog output kit, Modicon STB, + or - 10V, 2O, 15 bits with sign

$1,277.65 INC GST
Available for Shipping : 19-Jan-2026
standard analog output kit, Modicon STB, + or - 10V, 2O, 15 bits with sign
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Declaration of conformity
Circularity Profile
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue output kit has 2 analogue outputs with 15bit + sign resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 265mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height) and weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with mounting base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector, STBXBA2000 base and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Products specifications

Attribute name Attribute value
Main
Analogue output number 2
Range of product Modicon STB distributed I/O solution
Kit composition STBXTS1100, 6-terminal screw type connector, STBXBA2000 base, STBXTS2100, 6-terminal spring clamp connector, STBAVO0200 module
Analogue output resolution 15 bits + sign
Product or component type standard analog output kit
Analogue output type voltage: 1...5 V, voltage: 0...5 V, voltage: 0...10 V, voltage: +/- 5 V, voltage: +/- 10 V
Complementary
Product compatibility power distribution module STBPDT3100/3105, mounting base STBXBA2000
Update time 8 ms
Protection type short-circuit protection
Addressing requirement 4 output words
Insulation between channels and actuator bus 200 V
Temperature drift +/-0.01 %/°C
Fallback status user configurable standard NIMs, state 0 basic NIMs
Marking CE
Data format IEC 61131-2, EN 61131-2
Analogue output current 150-150 mA
Hot swapping fallback yes for standard NIMs
Status LED 1 LED (red) module error (ERR), 1 LED (green) module status (RDY)
Height 18.4 mm
Cold swapping yes
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Response time 3 ms
Absolute accuracy error +/- 0.3 % of full scale at 25 °C
Net weight 0.116 kg
Current consumption 265 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.5 %FS
Differential linearity monotonic
Environment
Ambient air temperature for operation - 13...158 °F without, -25-75 °C (without)
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without, -40...185 °F without
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance +/-0.35 mm at 10-58 Hz, 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications FM Class 1 Division 2, UL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 8.000 cm
Package 1 Length 13.500 cm
Package 1 Weight 146.000 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.619 kg
