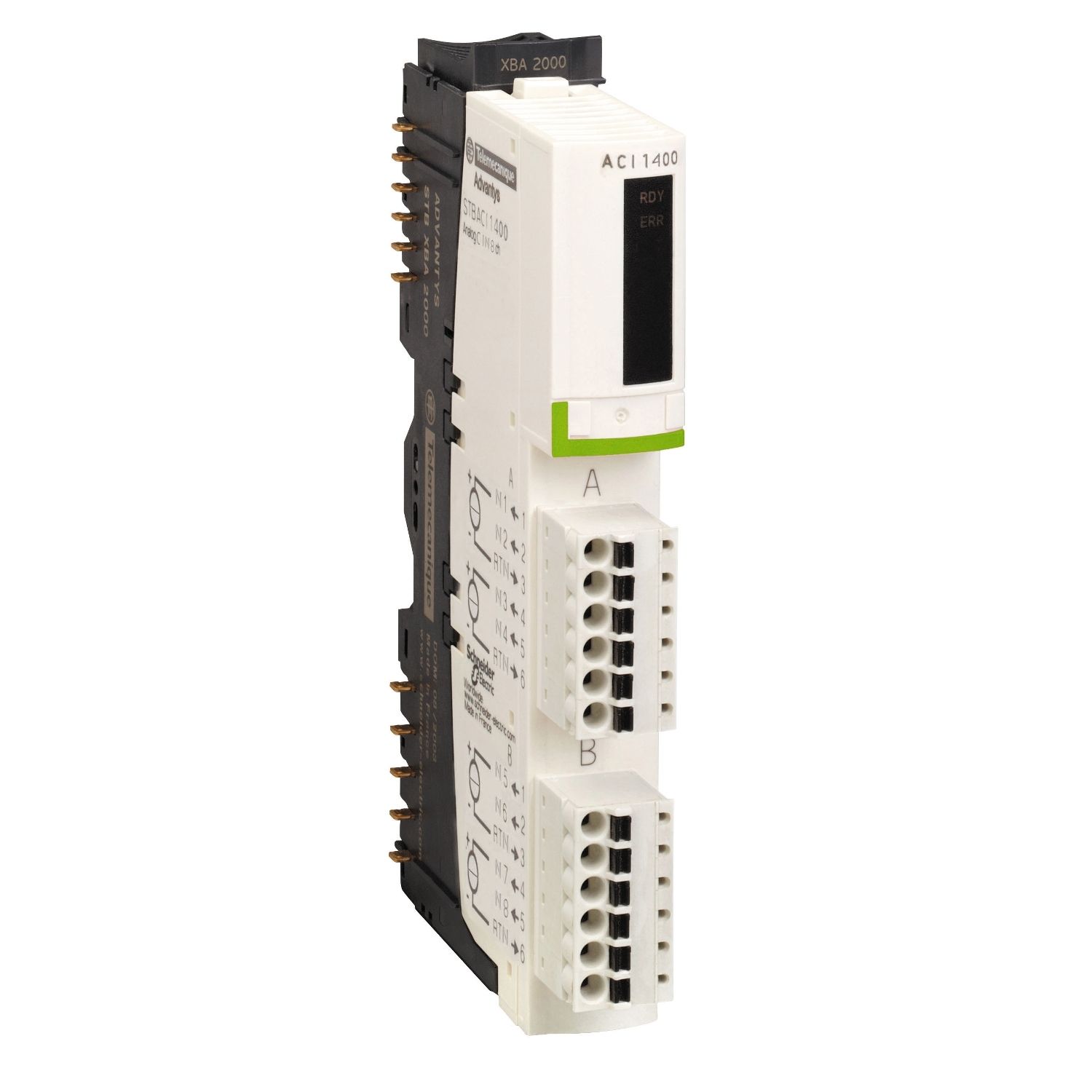

Picture of standard analog input kit, Modicon STB, 4 to 20mA, 8I, 15 bits with sign
SKU:

STBACI1400K

standard analog input kit, Modicon STB, 4 to 20mA, 8I, 15 bits with sign

$2,160.62 INC GST
Available for Shipping : 08-Dec-2025
standard analog input kit, Modicon STB, 4 to 20mA, 8I, 15 bits with sign
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 8 analogue inputs (current 0mA to 20mA, 4mA to 20mA) with 15bit plus sign resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 90mA at 5V DC for logic bus. It supports hot swap fallback, requires standard type network interface module (NIM). It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1100, 6-terminal screw type connector, STBXTS2100, 6-terminal spring clamp connector, STBACI1400 module and STBXBA2000 base. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.

Products specifications

Attribute name Attribute value
Main
Analogue input resolution 15 bits + sign
Type of filter single low pass input filter 985 Hz
Range of product Modicon STB distributed I/O solution
Analogue input type current 4...20 mA, current 0...20 mA
Kit composition STBXBA2000 base, STBACI1400 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector
Analogue input number 8
Product or component type standard analog input kit
Complementary
Product compatibility mounting base STBXBA2000, power distribution module STBPDT3100/3105
Update time 22 ms
Addressing requirement 16 input words
Temperature drift +/-0.005 %/°C
Fallback status user configurable standard NIMs, state 0 basic NIMs
Marking CE
Data format IEC 61131-2, EN 61131-2
Hot swapping fallback yes for standard NIMs
Status LED 1 LED (green) module status (RDY)
Insulation between channels and sensor bus 30 V
Height 18.4 mm
Cold swapping yes
Insulation between channels and logic bus 1500 V for 1 minute
[Us] rated supply voltage 24 V DC
Depth 70 mm
Overvoltage category II
Width 128.3 mm
Absolute maximum input 25 mA/50 V DC
Absolute accuracy error +/- 0.4 % of full scale per °C
Current consumption 90 mA at 5 V DC for logic bus
Supply power distribution module
Integral linearity +/- 0.08 %FS
Differential linearity monotonic
Input impedance <= 250 Ohm
Maximum supply current for sensors 100 mA per input channels
Environment
Ambient air temperature for operation - 13...158 °F, -25-70 °C
Relative humidity 95-95 % at 60-60 °C without condensation
Ambient air temperature for storage -40-85 °C without derating, -40...185 °F without derating
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 conforming to IEC 61131-2 class 1
Operating altitude <= 2000 m
Vibration resistance 5 gn at 58-150 Hz on 35 x 15 mm symmetrical DIN rail, 3 gn at 58-150 Hz on 35 x 7.5 mm symmetrical DIN rail, +/-0.35 mm at 10-58 Hz
Shock resistance 30 gn for 11 ms conforming to IEC 88 reference 2-27
Product certifications C-Tick, ATEX Cat 3G, UL, CSA, FM Class 1 Division 2
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 8.0 cm
Package 1 Length 13.0 cm
Package 1 Weight 147.0 g
Unit Type of Package 2 2
Number of Units in Package 2 28
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.542 kg
Unit Type of Package 3 3
Number of Units in Package 3 448
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 130 kg

Related products

Picture of Modicon STB - mounting base - for I/O module internal bus extension

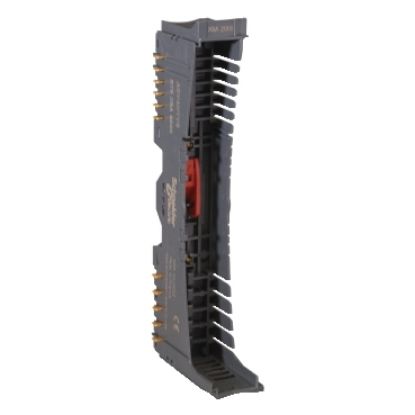

Modicon STB - mounting base - for I/O module internal bus extension
