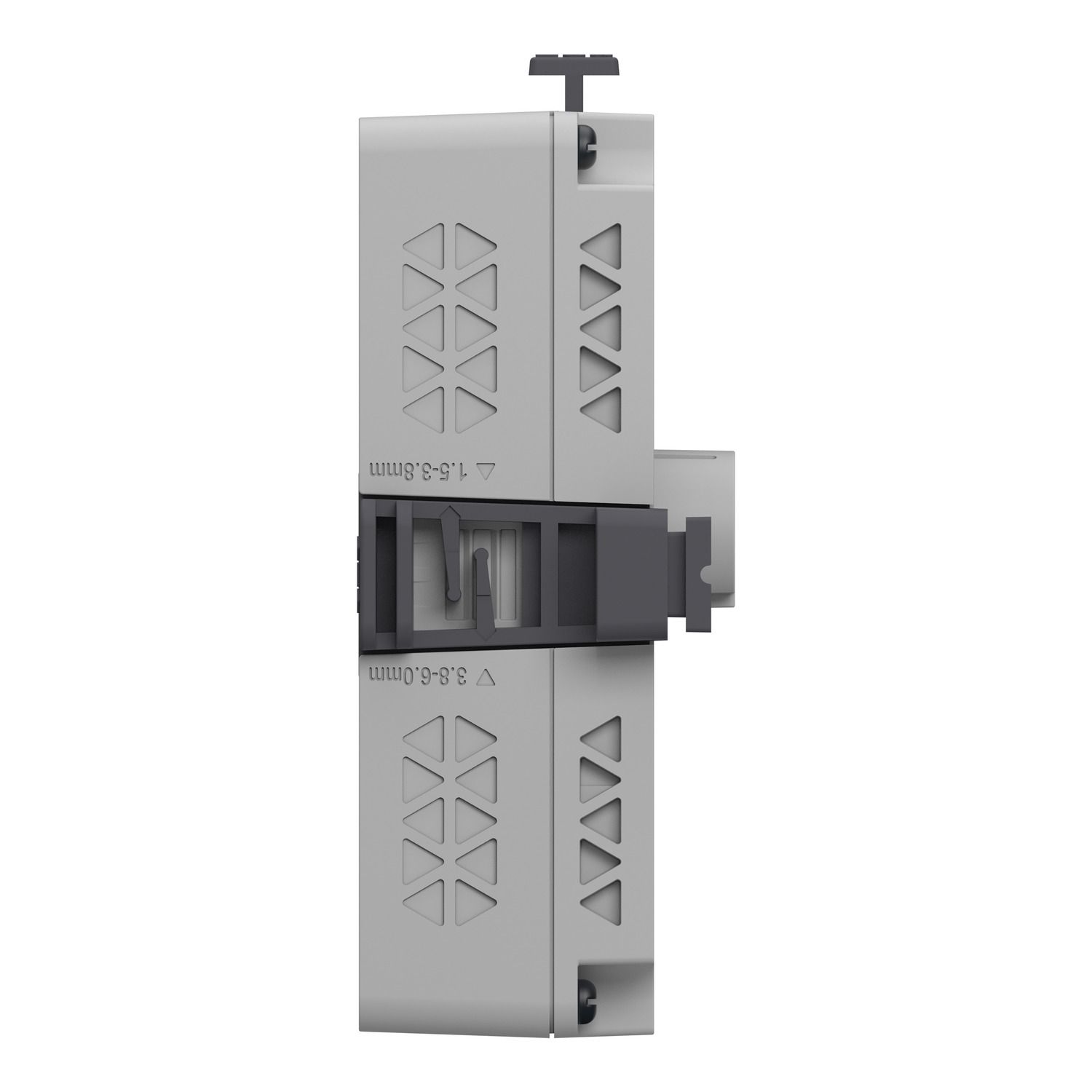

Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC

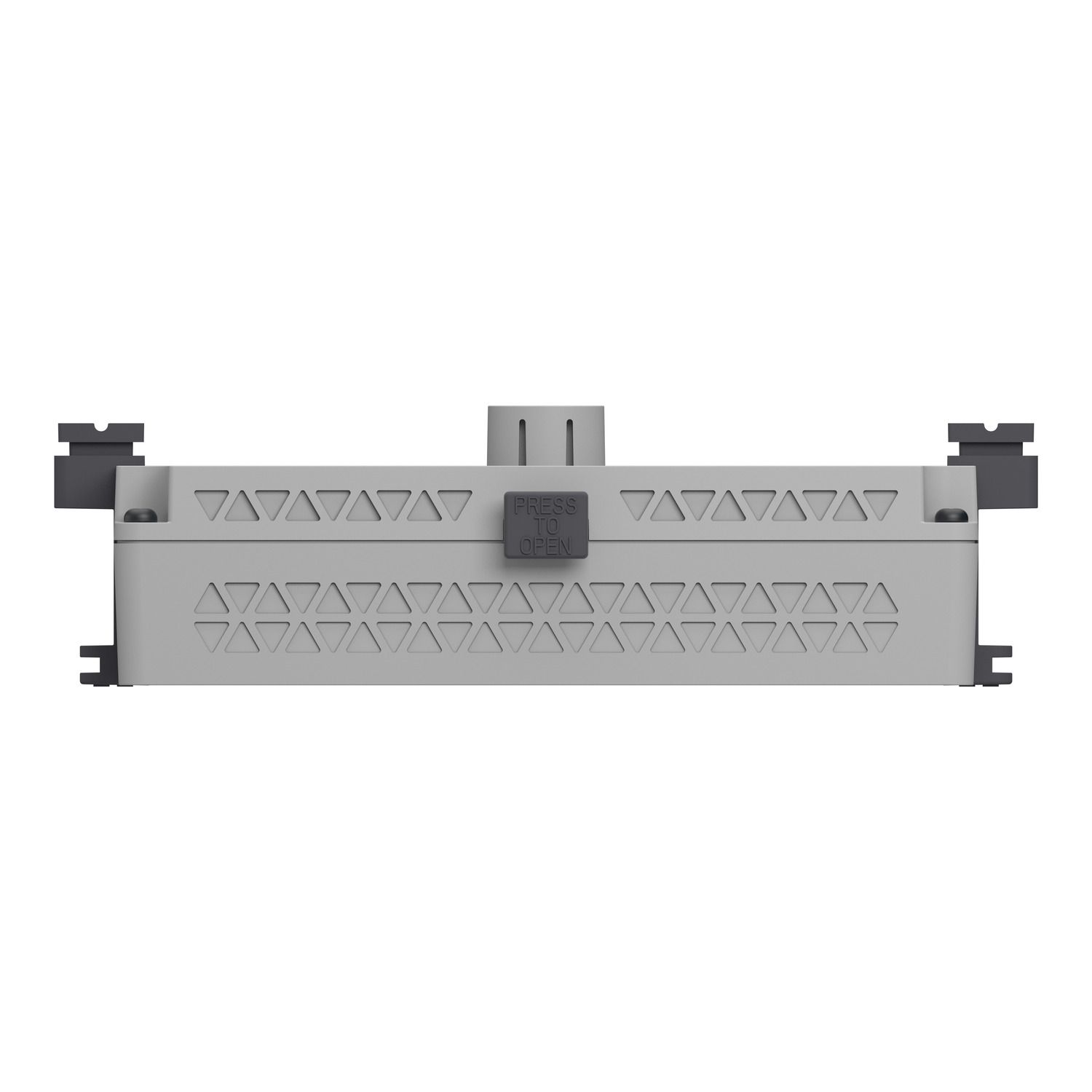

Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC

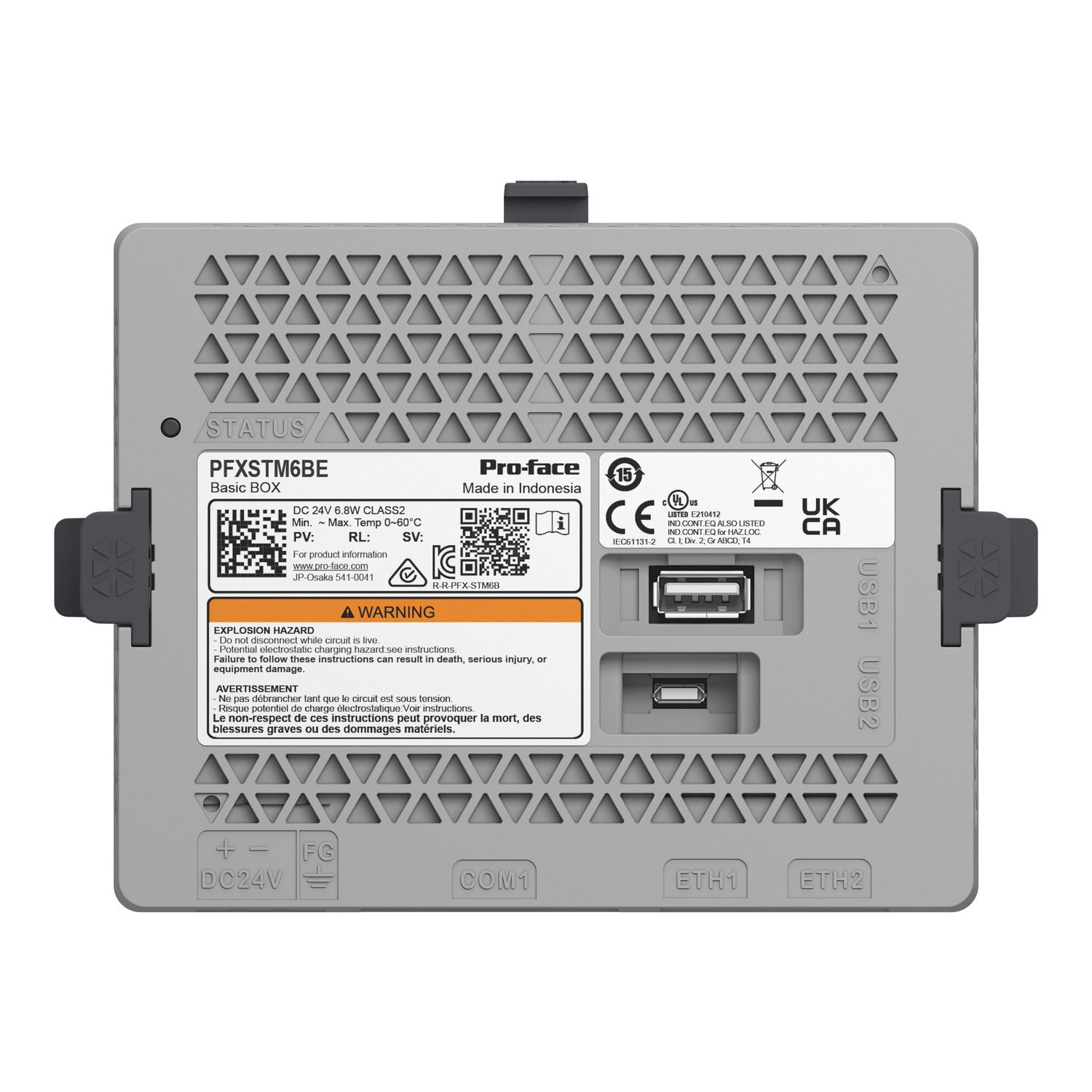

Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC

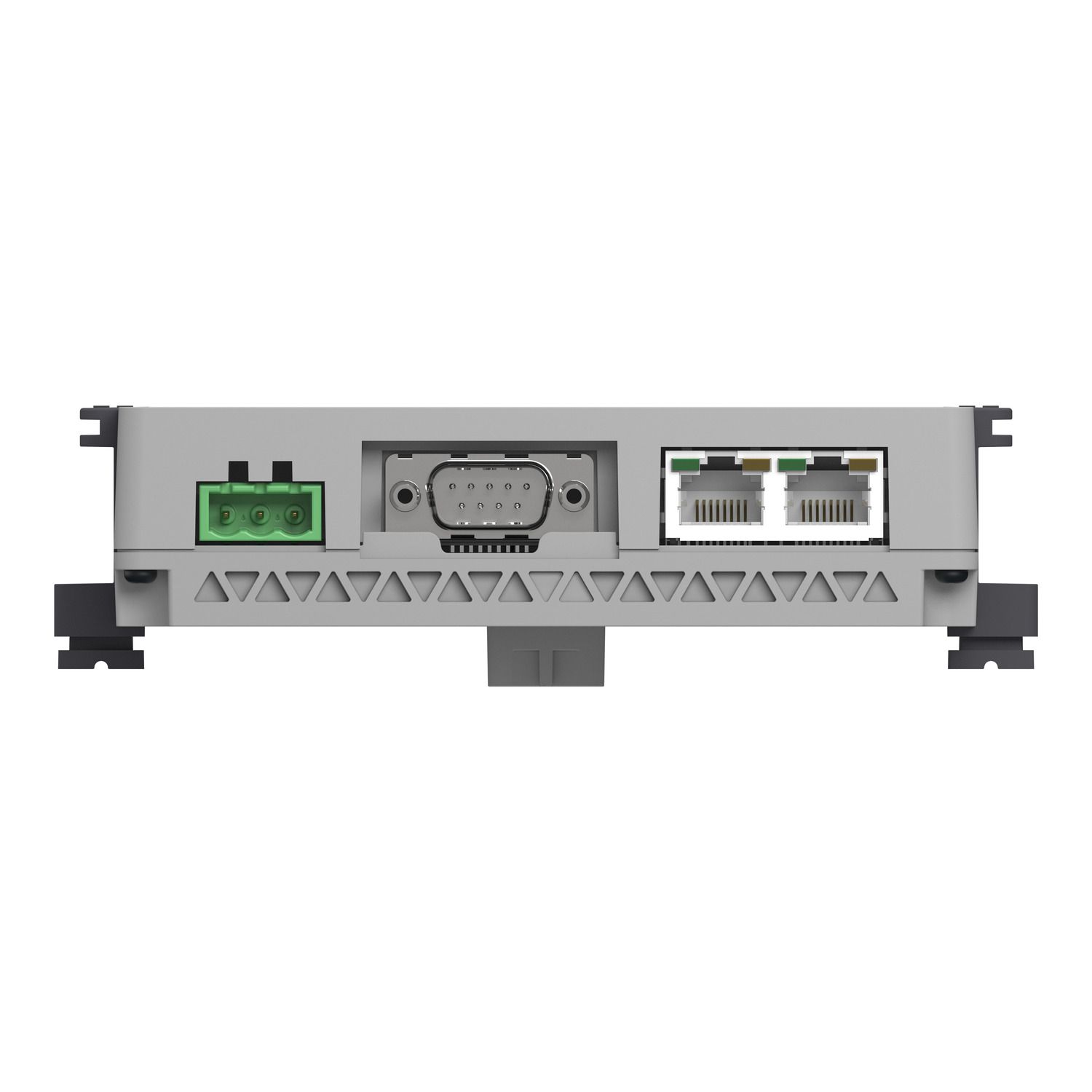

Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC

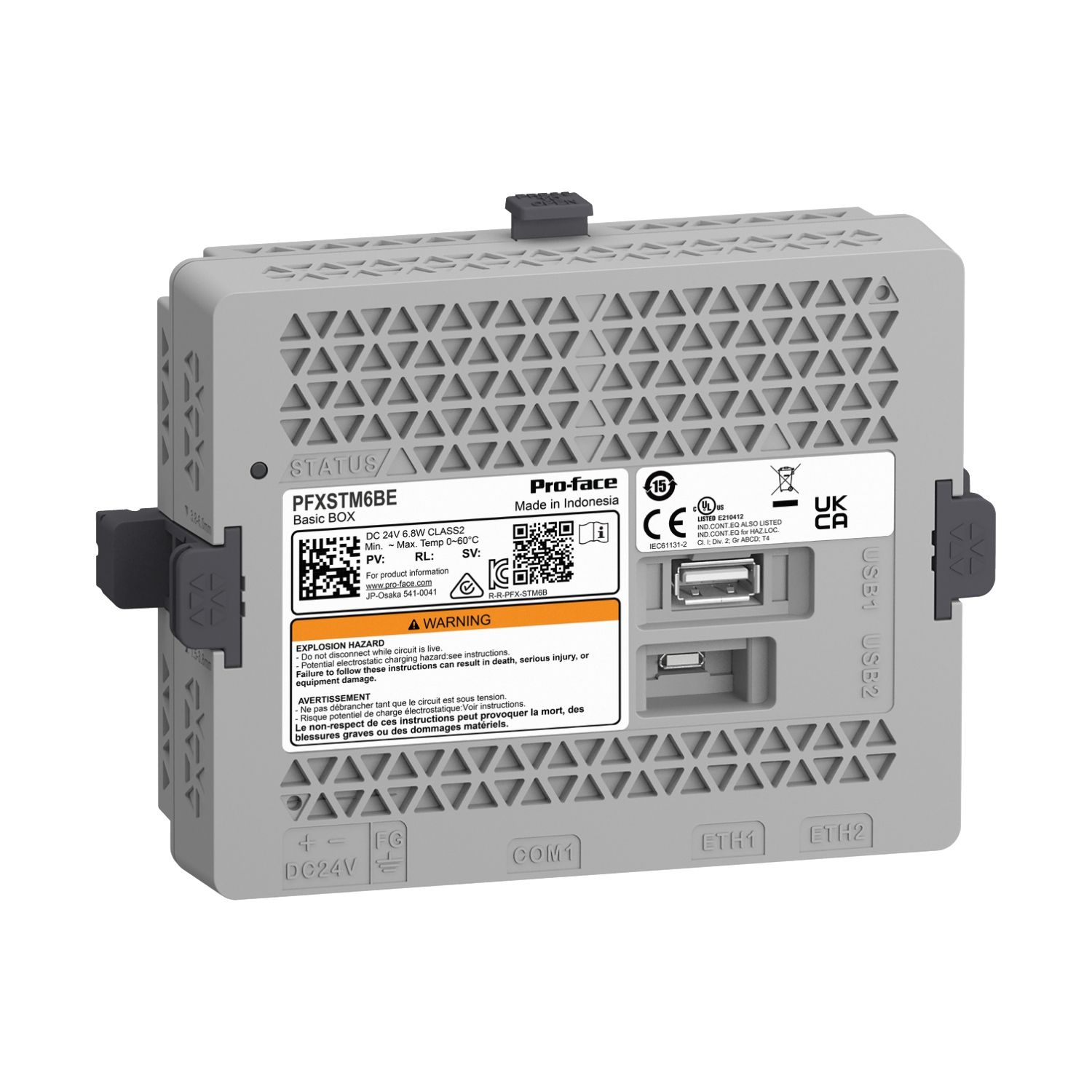

Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC

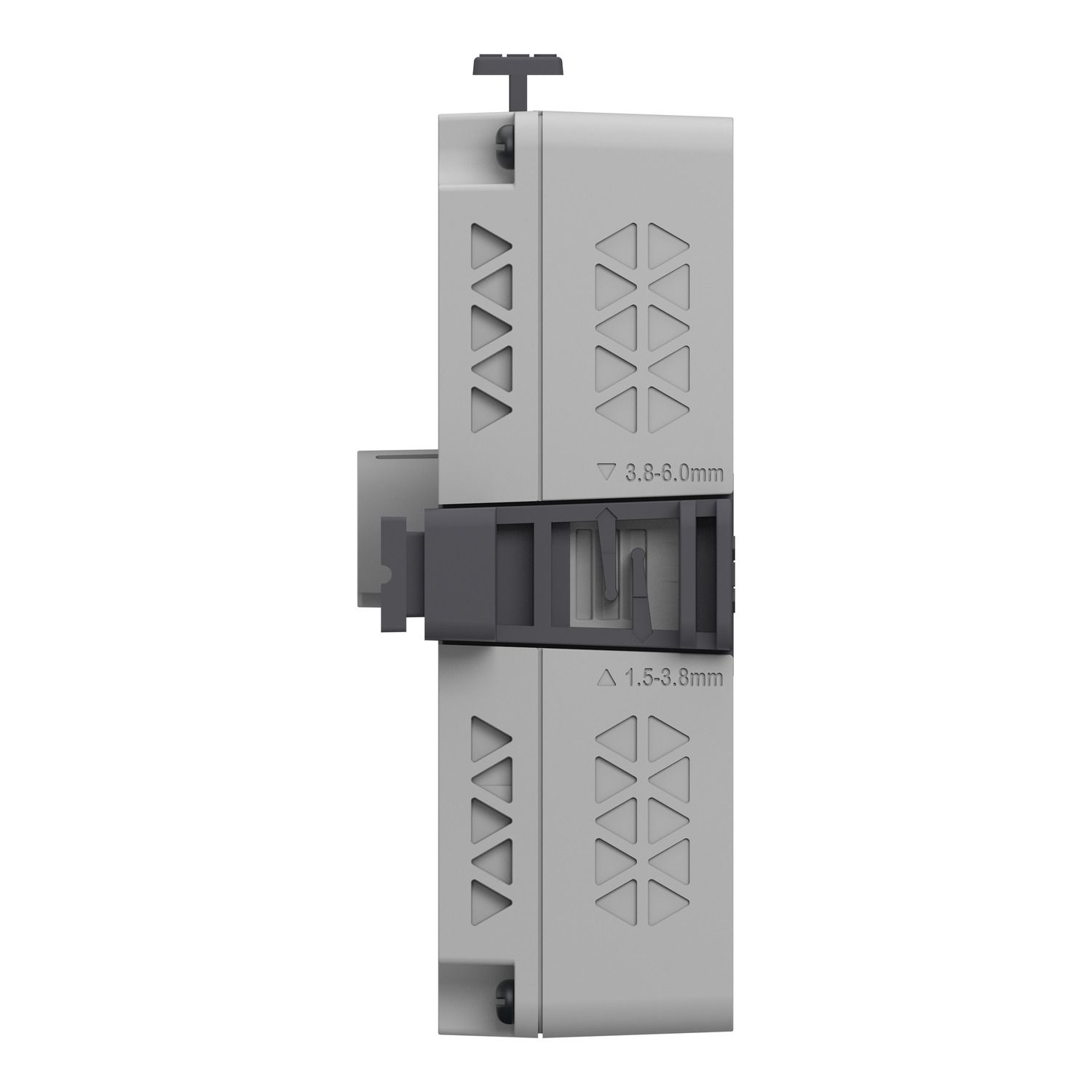

Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC

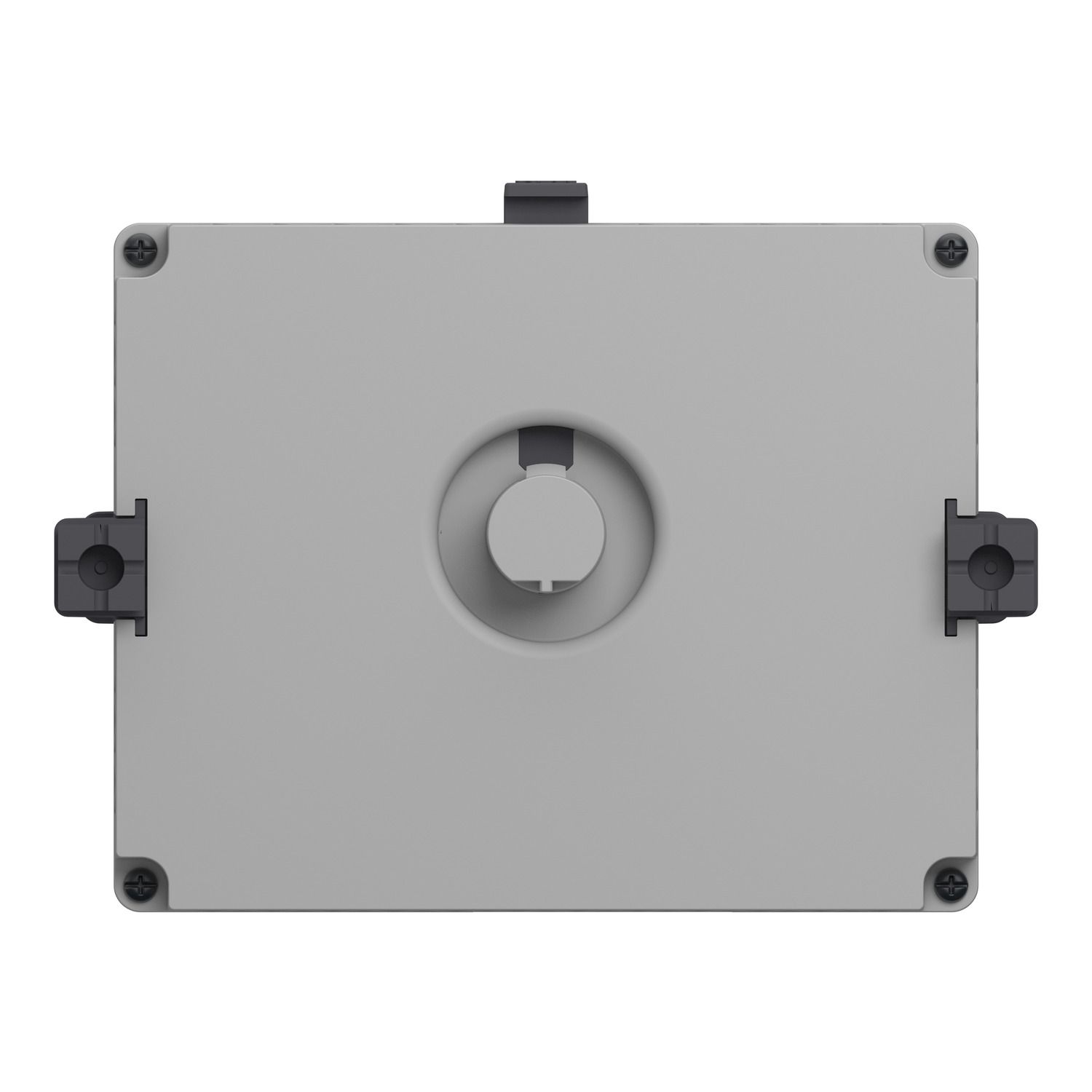

Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC
Picture of Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC
SKU:

PFXSTM6BE

Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC

$593.69 INC GST
Available for Shipping : 14-Dec-2025
Basic HMI gateway, STM6000, GP-ProEX, Box for HMI, 1 COM, 2 Ethernet, 24V DC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 14-Dec-2025
User guide
Declaration of conformity
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8 at 800 MHz
Software package GP-Pro EX
Range of product Pro-face STM6000
Product or component type modular HMI box
[Us] rated supply voltage 24 V DC (+/- 20 %)
Complementary
Memory description 320 kB backup memory, 64 MB application memory
Type of cooling natural convection
Fixing mode Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to IEC 61000-6-2, Ø 22 mm hole conforming to IEC 61000-6-2, Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to EN 61131-2, Ø 22 mm hole conforming to EN 61131-2, Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to UL 61010-2-201
Marking CE
Power consumption in W 6.8 W
Height 101 mm
Depth 41.4 mm
Realtime clock built-in 10...90 % RH, built-in 0...50 °C
Width 145.6 mm
Enclosure material PC
Integrated connection type 2 Ethernet - RJ45 - 10/100BASE-Tbottom, 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps)bottom
Net weight 0.27 kg
Inrush current 30 A
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Pollution degree 2 conforming to EN 61131-2 Ed.3
IP degree of protection IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test (contact discharge) conforming to EN/IEC 61000-4-2 level 3, electrical fast transient/burst immunity test (signal ports), electrostatic discharge immunity test (power ports) conforming to IEC 61000-4-4
Immunity to microbreaks 5 ms
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to EN/IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Standards CSA C22.2 No 213, CSA C22.2 No 61010-2-201, UL 61010-2-201, EN 61131-2, EN 61000-6-2, EN 61000-6-4
Product certifications DNV, BV, RINA, ABS, cULus Class 1 Division 2, EAC, KC, RCM, cULus, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.5 cm
Package 1 Width 13.5 cm
Package 1 Length 22.0 cm
Package 1 Weight 418.0 g
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 1.156 kg
Unit Type of Package 3 3
Number of Units in Package 3 9
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 4.415 kg
