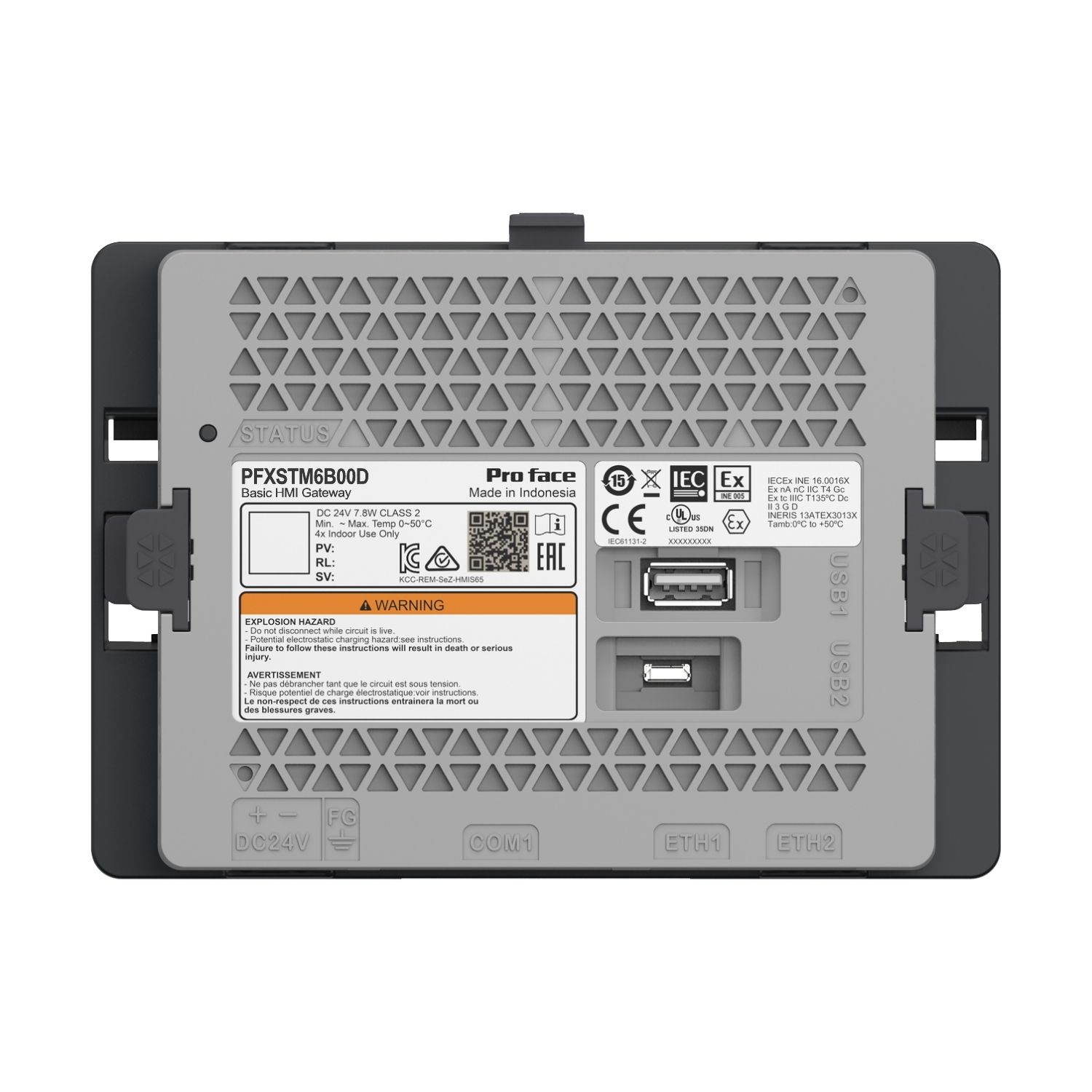

Picture of Basic HMI Gateway Box STM6000 for Multi Converter application

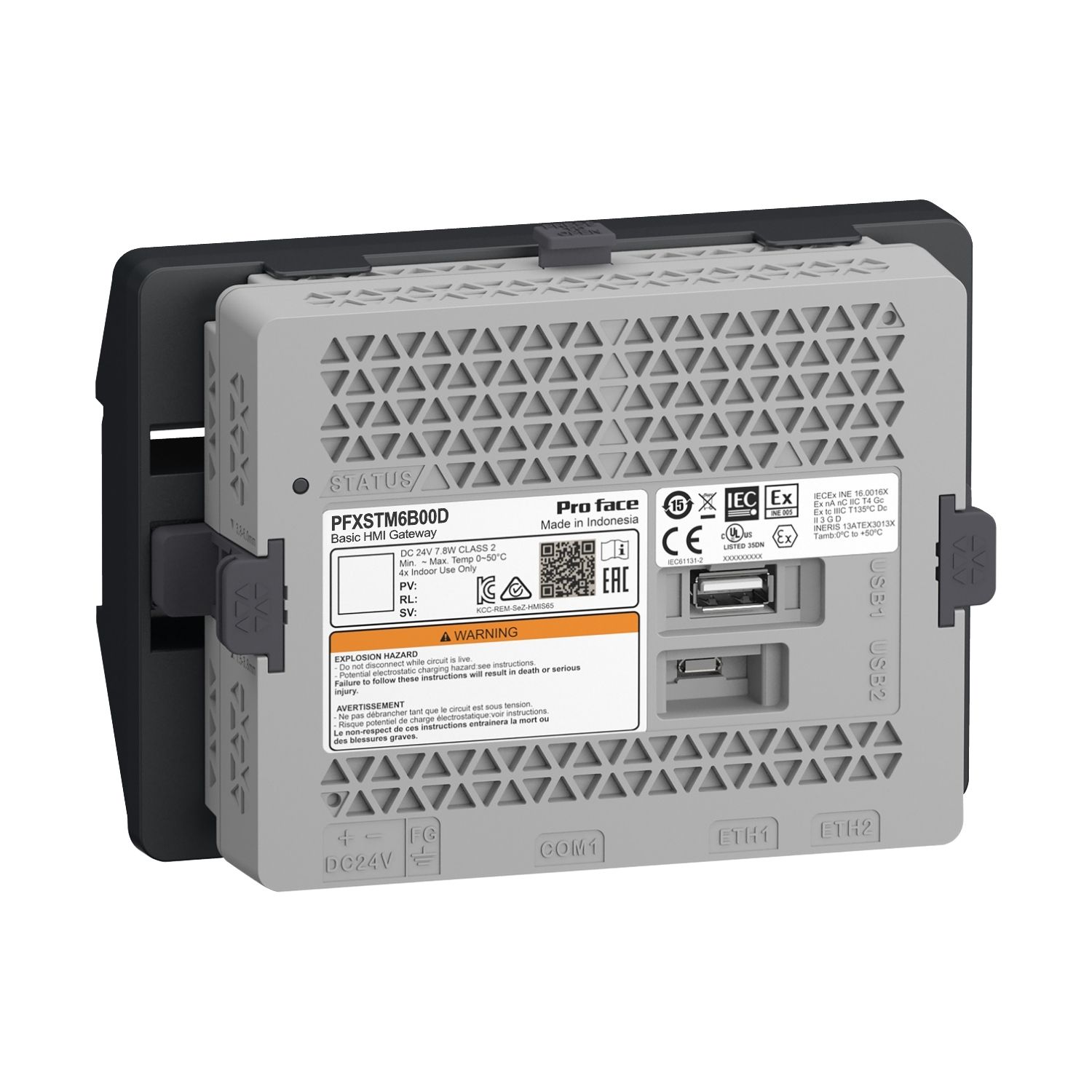

Picture of Basic HMI Gateway Box STM6000 for Multi Converter application
Picture of Basic HMI Gateway Box STM6000 for Multi Converter application
SKU:

PFXSTM6B00D

Basic HMI Gateway Box STM6000 for Multi Converter application

Old price: $633.35 INC GST
$601.68 INC GST
Available for Shipping : 05-Feb-2026
Basic HMI Gateway Box STM6000 for Multi Converter application
Be the first to review this product
Manufacturer: ProFace
Delivery date: 05-Feb-2026
Declaration of conformity
Environmental Disclosure
Instruction sheet
User guide
Circularity Profile
Product Page Link
Product Data Sheet
This Basic Modular HMI Gateway Box belongs to the Pro-face STM6000 range. This PFXSTM6 Modular BOX is a rear module which runs on 800 MHz ARM Cortex-A8 CPU Harmony operating system with an input supply voltage of 24Vdc. It has a 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. With Web viewer feature of Blue RunTime, the Gateway Modular Box becomes a Faceless HMI. This PFXSTM6B00D supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 150.49mm (width) x 109.97mm (height) x 63.3mm (depth) and weighs 0.456Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. The PFXSTM6 rear module when mounted on a DIN Rail adapter provides IP20 protection. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with Proface Connect , and cost effective equipment. The PFXSTM6 Faceless HMI can be used for applications that doesn't need an operator screen full time.

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8 at 800 MHz
Software package web viewer, BLUE run time
Range of product Pro-face STM6000
Product or component type modular HMI box
[Us] rated supply voltage 24 V DCpower supply
Complementary
Memory description 1 GB flash, 512 MB internal, 512 KB backup memory
Type of cooling natural convection
Height 101 mm
Depth 63.3 mm
Realtime clock built-in
Width 150.5 mm
Integrated connection type 1 USB 2.0 port - USB type A,  display port - RJ45,  USB 2.0 port - micro B USB,  COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps), 2 Ethernet TCP/IP - RJ45
Net weight 0.456 kg
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Pollution degree 2 conforming to EN 61131-2 Ed.3
Electromagnetic compatibility electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3
Ambient air temperature for operation 0-60 °C
Operating altitude 2000
Vibration resistance 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) conforming to EN/IEC 61131-2
Shock resistance 147 m/s² conforming to EN/IEC 61131-2
Standards IEC 61132-2, CSA C22.2 No 213, UL 508, ANSI/ISA 12-12-01, CSA C22.2 No 142
Product certifications BV, RINA, ABS, DNV, cULus Class 1 Division 2, EAC, KC, RCM, cULus, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.100 cm
Package 1 Width 17.600 cm
Package 1 Length 27.000 cm
Package 1 Weight 705.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.745 kg
