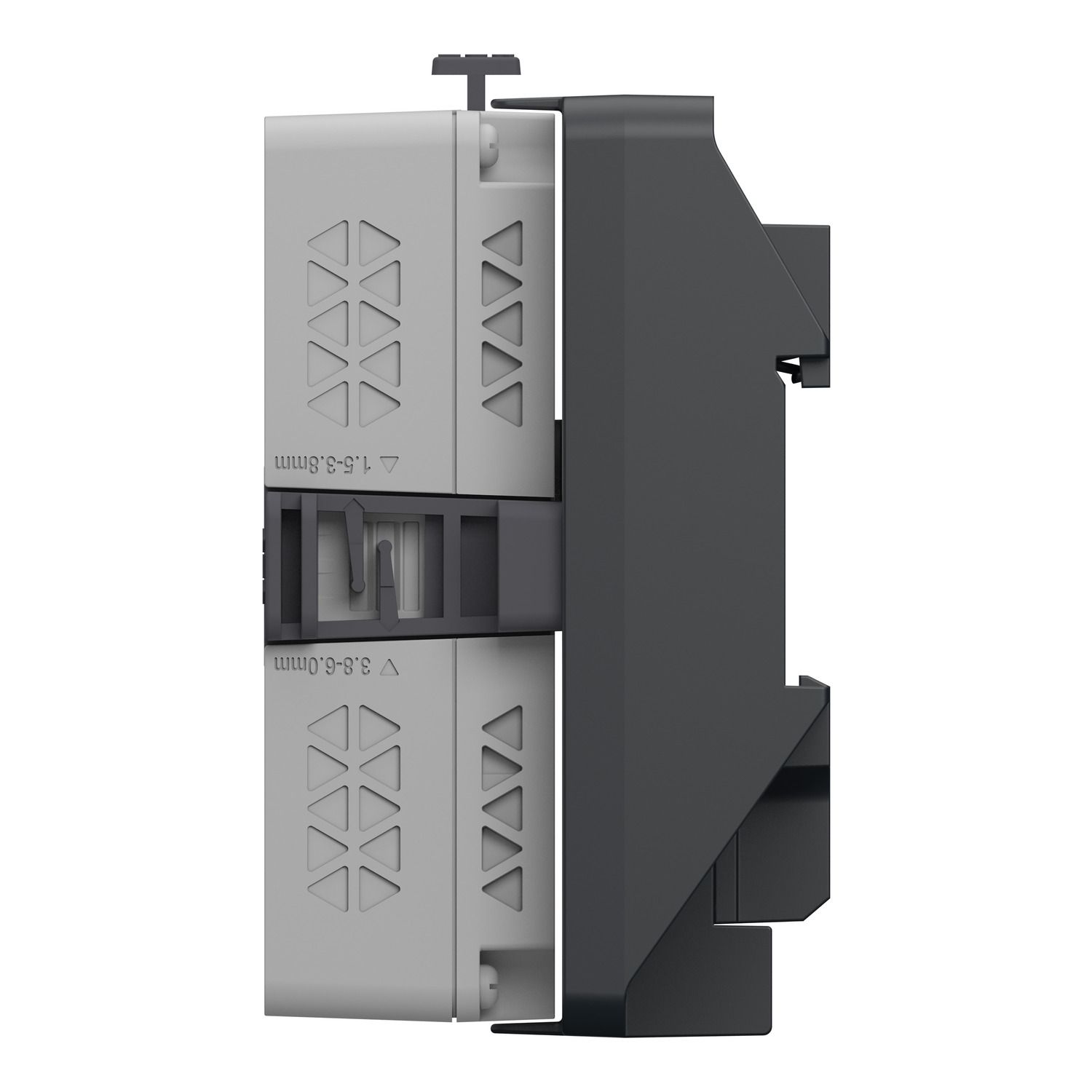

Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

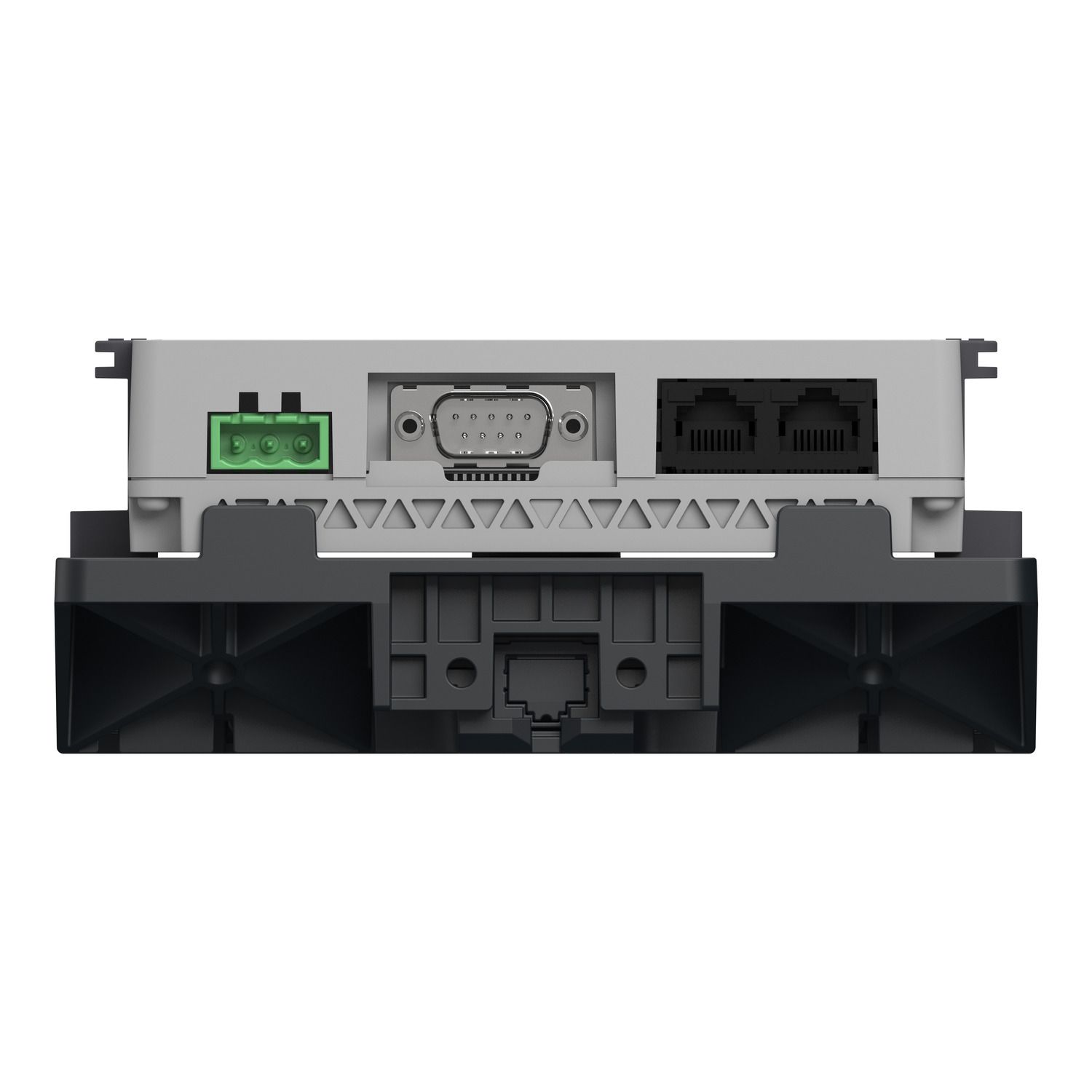

Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

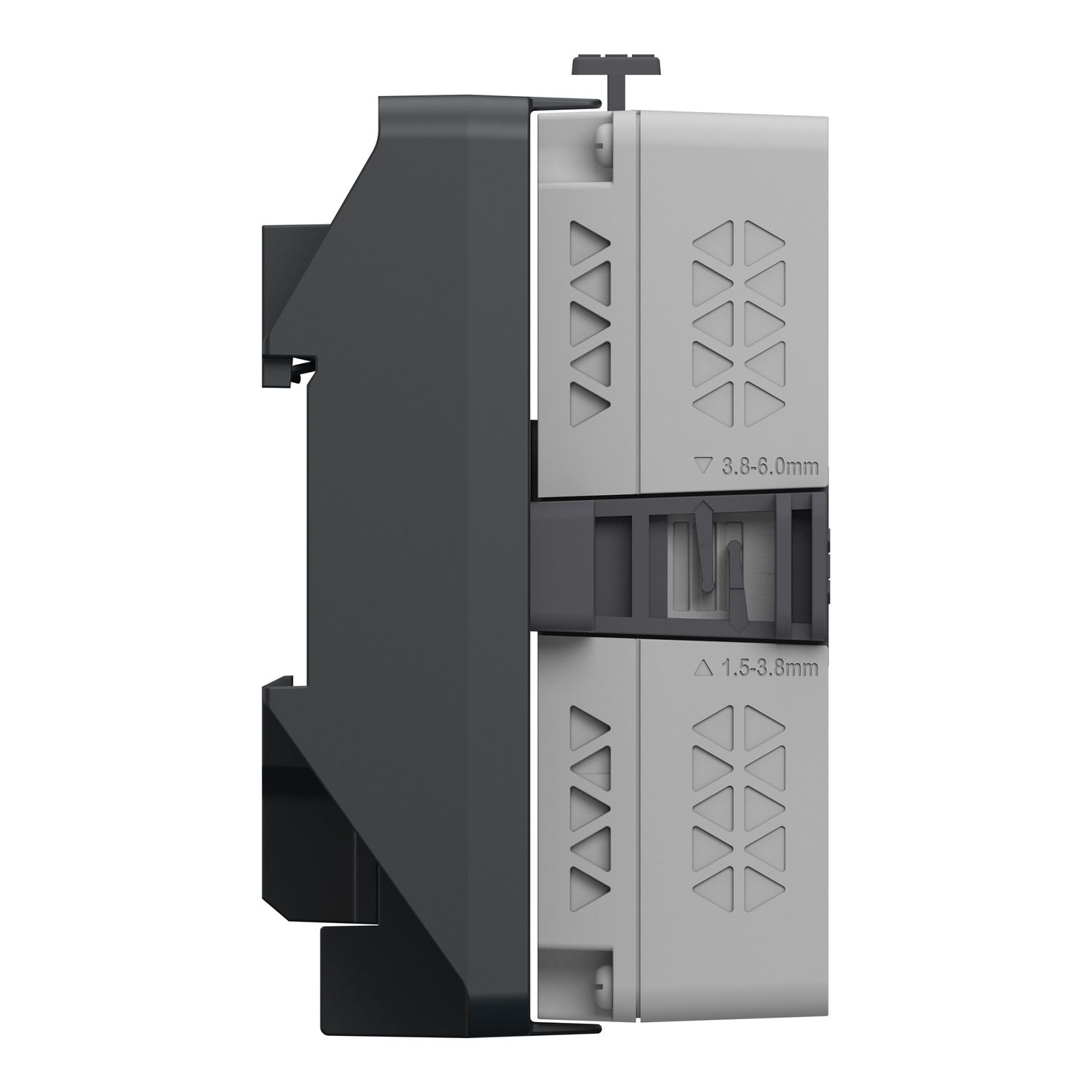

Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

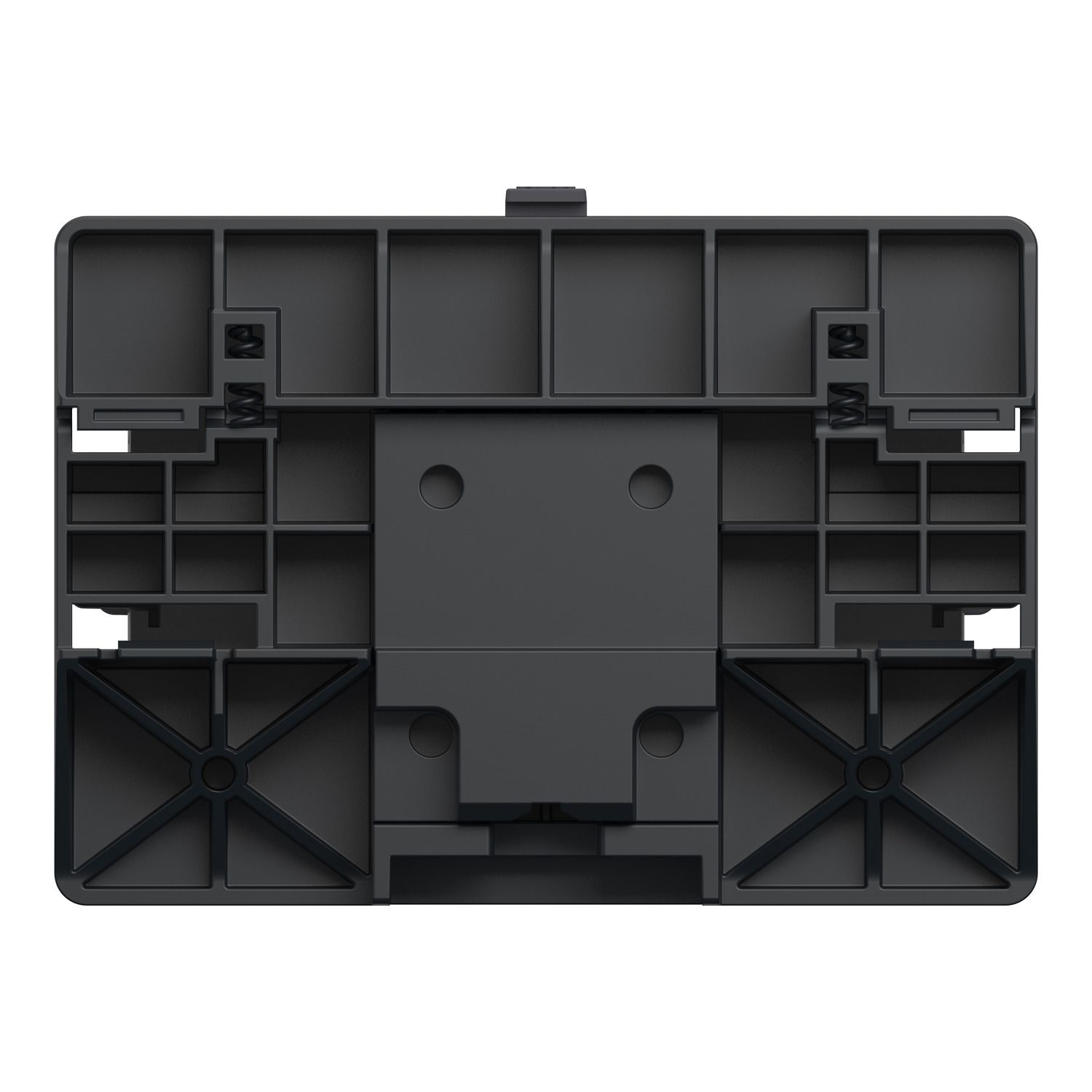

Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

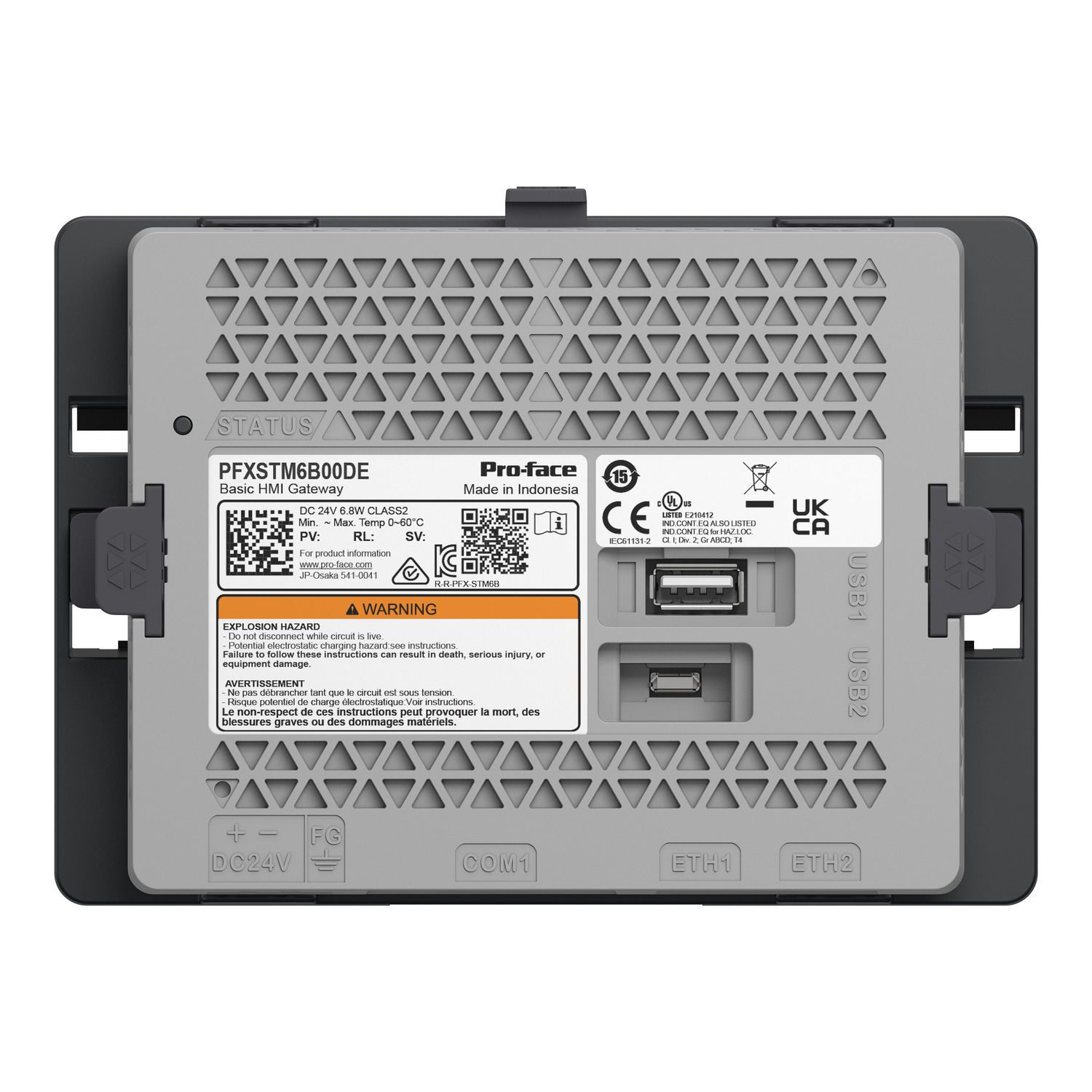

Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

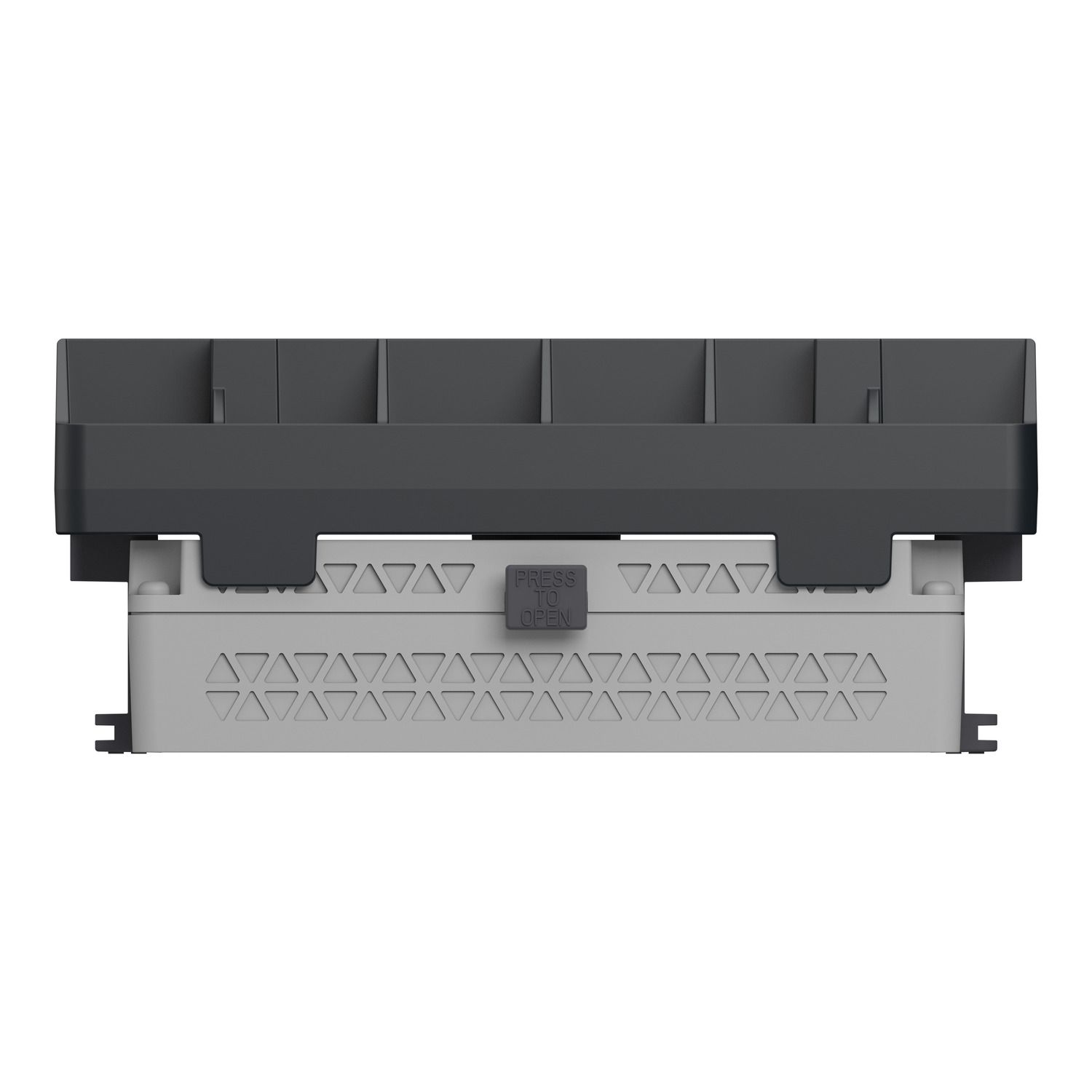

Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

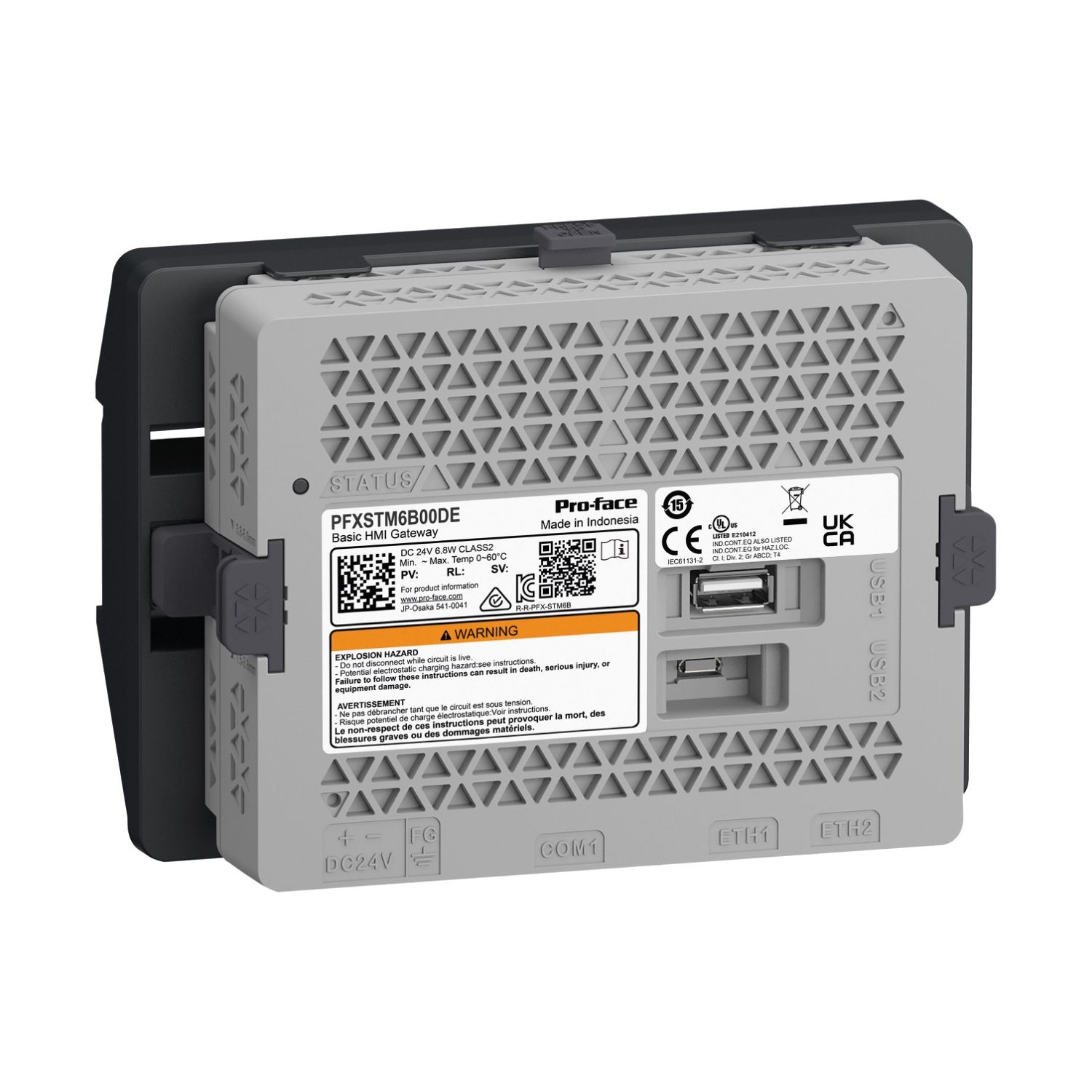

Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC
Picture of Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC
SKU:

PFXSTM6B00DE

Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC

$632.25 INC GST
Available for Shipping : 20-Jan-2026
Basic HMI Gateway, STM6000, GP-ProEX, Box with adaptor for HMI, 1 COM, 2 Ethernet, 24V DC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 20-Jan-2026
Instruction sheet
User guide
Declaration of conformity
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This Basic modular HMI Gateway Box belongs to the Pro-face STM6000 range. This STM6000 Modular BOX is a rear module which runs on 800MHz ARM Cortex-A8 CPU, HMI dediicated operating system with an input supply voltage of 24Vdc. It has 64MB as application memory, 320KB for screen area and 64KB for variable area as backup memory. With Pro-face Remote HMI, the Gateway Modular Box becomes a Faceless HMI. This STM6000 Modular BOX supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 150.49mm (width) x 109.97mm (height) x 63.3mm (depth) and weighs 0.456Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, compressors and Marine, also GP4000M Series user looking for modernization of their machine with the same application. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. This STM6000 Modular BOX when mounted on a DIN Rail adapter provides IP20 protection. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with Pro-face Connect, and cost effective equipment. This STM6000 Faceless HMI can be used for applications that doesn't need an operator screen full time.

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8 at 800 MHz
Software package GP-Pro EX
Range of product Pro-face STM6000
Product or component type modular HMI box
[Us] rated supply voltage 24 V DC (+/- 20 %)
Complementary
Memory description 320 kB backup memory, 64 MB application memory
Type of cooling natural convection
Marking CE
Power consumption in W 6.8 W
Height 101 mm
Depth 63.3 mm
Realtime clock built-in 10...90 % RH, built-in 0...50 °C
Width 150.5 mm
Integrated connection type 2 Ethernet - RJ45 - 10/100BASE-Tbottom, 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 (rate: 2400...115200 bps)bottom
Net weight 0.456 kg
Inrush current 30 A
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
Pollution degree 2 conforming to EN 61131-2 Ed.3
IP degree of protection IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test (air discharge), electrostatic discharge immunity test (contact discharge) conforming to EN/IEC 61000-4-2 level 3, electrical fast transient/burst immunity test (signal ports), electrostatic discharge immunity test (power ports) conforming to EN/IEC 61000-4-2 level 3
Immunity to microbreaks 5 ms
Ambient air temperature for operation 0-60 °C
Operating altitude 2000 m
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to EN/IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz) conforming to EN/IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2
Standards IEC 61132-2, CSA C22.2 No 213, UL 508, ANSI/ISA 12-12-01, CSA C22.2 No 142
Product certifications DNV, BV, RINA, ABS, cULus Class 1 Division 2, EAC, KC, RCM, cULus, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.300 cm
Package 1 Width 18.000 cm
Package 1 Length 27.000 cm
Package 1 Weight 719.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.061 kg
