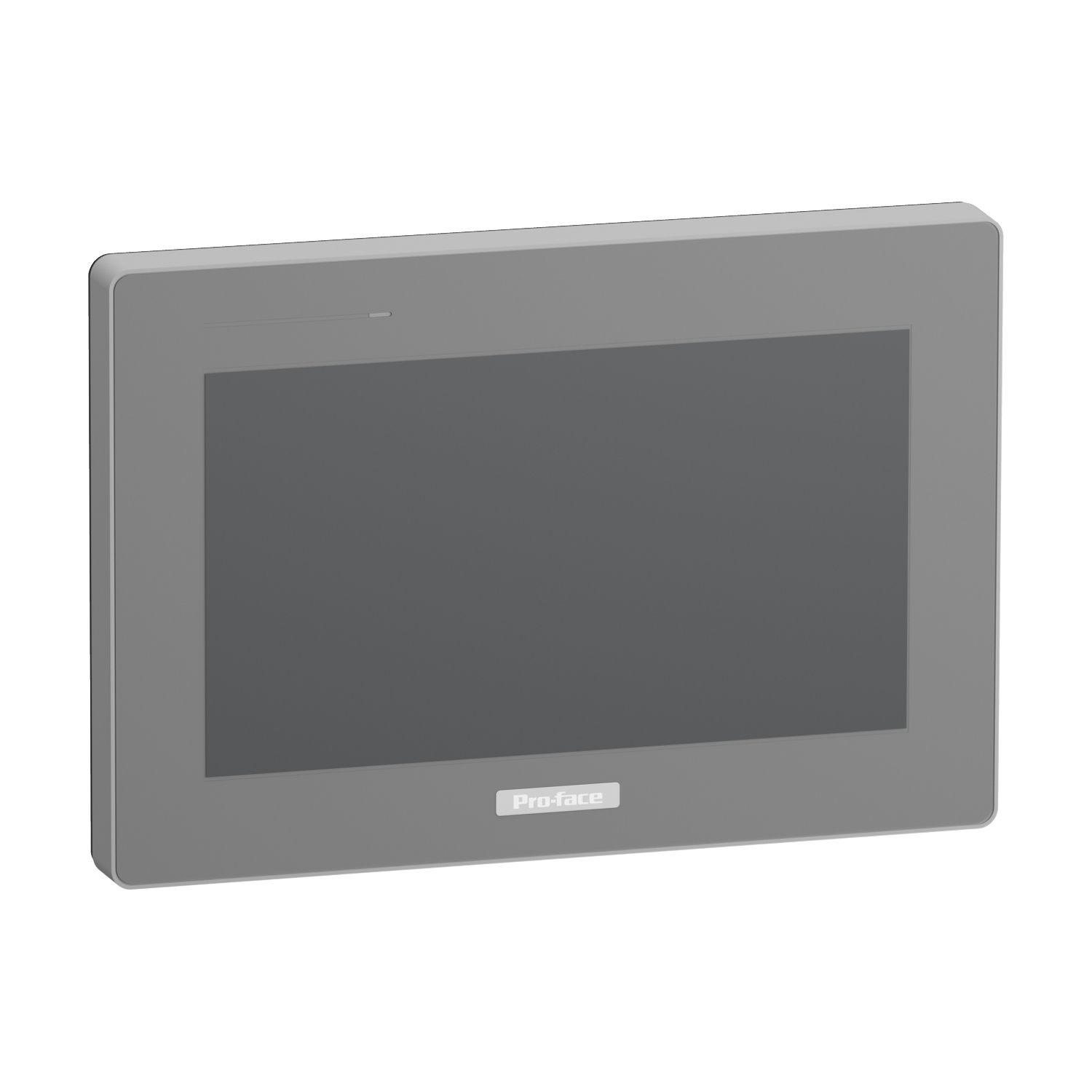

Picture of 15"W touch panel display, 2Ethernet, USB host, 24VDC
SKU:

PFXSTM6400WAD

15"W touch panel display, 2Ethernet, USB host, 24VDC

Old price: $1,259.90 INC GST
$1,196.90 INC GST
Available for Shipping : 06-Jan-2026
15"W touch panel display, 2Ethernet, USB host, 24VDC
Be the first to review this product
Manufacturer: ProFace
Delivery date: 06-Jan-2026
Declaration of conformity
Environmental Disclosure
Instruction sheet
User guide
Circularity Profile
Product Page Link
Product Data Sheet
This Basic Web HMI panel belongs to the Pro-face STM6000 range. This single-touch resistive HMI has a multi-color status indicator showing the various operating modes. This HMI interface is 7 inches wide with 16 million colors and 800 x 480 pixel resolution (WVGA). It is a modular HMI with 22mm pushbutton mounting system and is powered by BLUE software for an intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI STM6000 supports 2x Ethernet port, 1x COM1 (RS-232C/422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 208mm (width) x 153mm (height) x 45mm (depth) and weighs 0.80Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors. It conforms to EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 standards. It is CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine certified. It is designed to install to 22mm circular hole that is standard of industrial switches and lamps. It has IP65F, Type 1, Type 4X (indoor use only),Type 12 and Type 13 (on the front panel when properly installed in an enclosure) degree of protection. It is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost-effective equipment.

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8 at 800 MHz
Software package BLUE
Range of product Pro-face STM6000
Product or component type touch panel screen
[Us] rated supply voltage 24 V DC (+/- 20 %)
Complementary
Memory description 512 KB backup memory, 128 MB user data memory, 1 GB device memory
Character font Taiwanese (traditional Chinese), Korean, Katakana, Japanese (ANK, Kanji), Chinese (simplified Chinese), ASCII (European characters), ASCII
Display type colour TFT LCD
Display colour 16 million colours
Display size 7 inch
Backlight lifespan 20000 hours white
Fixing mode Ø 22 mm hole conforming to IEC 61000-6-2, Ø 22 mm hole conforming to IEC 61131-2, Ø 22 mm hole, mounting on 1.5 to 6 mm thick panel conforming to UL 61010-2-201
Marking CE
Power consumption in W 10.4 W
Height 137.2 mm
Aspect ratio 16:9
Depth 57.7 mm
Realtime clock built-in 10...90 % RH, built-in 0...50 °C
Front material plastic
Width 201.2 mm
Enclosure material PC
Integrated connection type 2 Ethernet - female RJ45bottom, 1 USB 2.0 type micro Bback, 1 USB 2.0 type Aback, 1 COM1 serial link - female RJ45 - RS232C/RS485 (rate: 2400...115200 bps)bottom
Touch panel single touch analogue resistive
Net weight 0.76 kg
Display resolution 800 x 480 pixels WVGA
Cut-out dimensions Ø 22.5 mm
Inrush current 30 A
Brightness 16 levels
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Directives 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
IP degree of protection IP65 (front panel) conforming to IEC 61131-2, IP20 (rear panel) conforming to IEC 61131-2
Electromagnetic compatibility electrostatic discharge immunity test - test level: 8 kV (air discharge), electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3, electrical fast transient/burst immunity test - test level: 1 kV (signal ports), electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Immunity to microbreaks 2 ms
Ambient air temperature for operation 0-50 °C
Operating altitude 2000 m
NEMA degree of protection NEMA 13 front panel (in enclosure), NEMA 4 front panel (indoor use)
Shock resistance 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to IEC 61131-2
Vibration resistance 9.8 m/s² (f = 9-150 Hz), +/- 3.5 mm (f = 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Standards CSA C22.2 No 213, CSA C22.2 No 61010-2-201, UL 61010-2-201, IEC 61131-2, IEC 61000-6-2, IEC 61000-6-4
Product certifications BV, RINA, ABS, DNV, cULus Class 1 Division 2, EAC, KC, RCM, cULus, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 18.000 cm
Package 1 Length 27.000 cm
Package 1 Weight 1.008 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 6.910 kg
