Picture of Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 1500 N, U-bolt mount, NEMA 1 or 2
SKU:

M1500A

Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 1500 N, U-bolt mount, NEMA 1 or 2

$1,261.20 INC GST
Available for Shipping : 18-Dec-2025
Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 1500 N, U-bolt mount, NEMA 1 or 2
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Instruction sheet
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
Forta, Actuator, floating or proportional, non-spring return, 24 Vac/Vdc, 1500 N, U-bolt mount, NEMA 1 or 2

Products specifications

Attribute name Attribute value
Main
Force N 1500 N
Switch function 2 SPDT (optional)
Relative humidity 15-95 % non-condensing
Motor type brushless DC motor
Ambient air temperature for storage -25-65 °C
[Us] rated supply voltage 20...29 V DC, 24 V AC/DC
Product destination globe valve
Control type manual override with 5/32 allen wrench
Product or component type actuator
Targeted region North America.
Analogue input range 4...20 mA with 500 Ohm resistor, 0...10 V DC
Output voltage 16 V DC
Force lbf 337 lbf
Actuator linear
Output current 30 mA
Ambient air temperature for operation -10-50 °C
Power loss return non-spring return
Feedback signal 2...10 V DC
Control signal proportional, floating
Stroke auto calibration False
Actuator type electric
Actuator product range SpaceLogic
Actuator product series M1500
Position indicator green push stem with color markers
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.5 cm
Package 1 Width 17.8 cm
Package 1 Length 25.5 cm
Package 1 Weight 1.9 kg

Related products

Picture of Adapter Kit For JCI VG7xxxCT, VG7xxxET, VG7xxxGT, and VG7xxxLT, 1/2" and 3/4" Two and Three Way Globe Valves

Adapter Kit For JCI VG7xxxCT, VG7xxxET, VG7xxxGT, and VG7xxxLT, 1/2" and 3/4" Two and Three Way Globe Valves

AV-801
$83.62 INC GST
View Detail
Picture of Adapter Kit For JCI VG7xxxCT, VG7xxxET, VG7xxxGT, VG7xxxLT, VG7xxxCS, VG7xxxES, VG7xxxGS, VG7xxxLS, and VTM 1/2" and 3/4" Globe Valves

Adapter Kit For JCI VG7xxxCT, VG7xxxET, VG7xxxGT, VG7xxxLT, VG7xxxCS, VG7xxxES, VG7xxxGS, VG7xxxLS, and VTM 1/2" and 3/4" Globe Valves

AV-802
$159.14 INC GST
View Detail
Picture of Adapter Kit for Johnson Controls' 1/2" - 2" (VG7xxxxx, VB-3754, VB-3974, VB-4322, and VB-4324) Two and Three Way Globe Valves

Adapter Kit for Johnson Controls' 1/2" - 2" (VG7xxxxx, VB-3754, VB-3974, VB-4322, and VB-4324) Two and Three Way Globe Valves

AV-803
$429.47 INC GST
View Detail
Picture of Adapter Kit for Honeywell 1/2" - 2" V5011, V5011F, V5011G, V5011N, V5013, V5013F, V5013G, and V5013N Globe Valves

Adapter Kit for Honeywell 1/2" - 2" V5011, V5011F, V5011G, V5011N, V5013, V5013F, V5013G, and V5013N Globe Valves

AV-810
$203.92 INC GST
View Detail
Picture of Adapter Kit for Siemens 599-03xxx Flowrite Series ½ in – 2 in Two and Three Way Globe Valves

Adapter Kit for Siemens 599-03xxx Flowrite Series ½ in – 2 in Two and Three Way Globe Valves

AV-814
$327.00 INC GST
View Detail
Picture of Adapter Kit for Robertshaw V2566, V2567, V2568, V6600, V6700, and V6800 1/2" - 2" Globe Valves

Adapter Kit for Robertshaw V2566, V2567, V2568, V6600, V6700, and V6800 1/2" - 2" Globe Valves

AV-817
$466.78 INC GST
View Detail
Picture of Forta Adapter for VB-7000 Series 1/2 in to 2 in Globe Valves

Forta Adapter for VB-7000 Series 1/2 in to 2 in Globe Valves

AV-821
$92.85 INC GST
View Detail

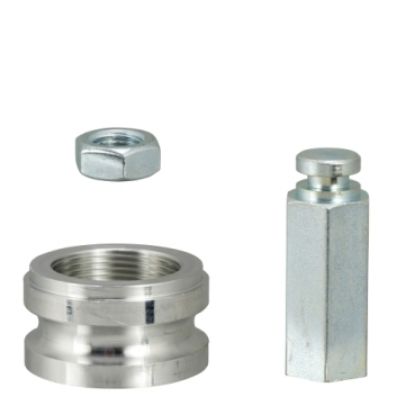

Picture of Forta, Adapter Kit, U-Bolt Style, for mounting Forta actuators on VB-8xxx and VB-9xxx valves
