SKU:

VB-7313-0-4-06

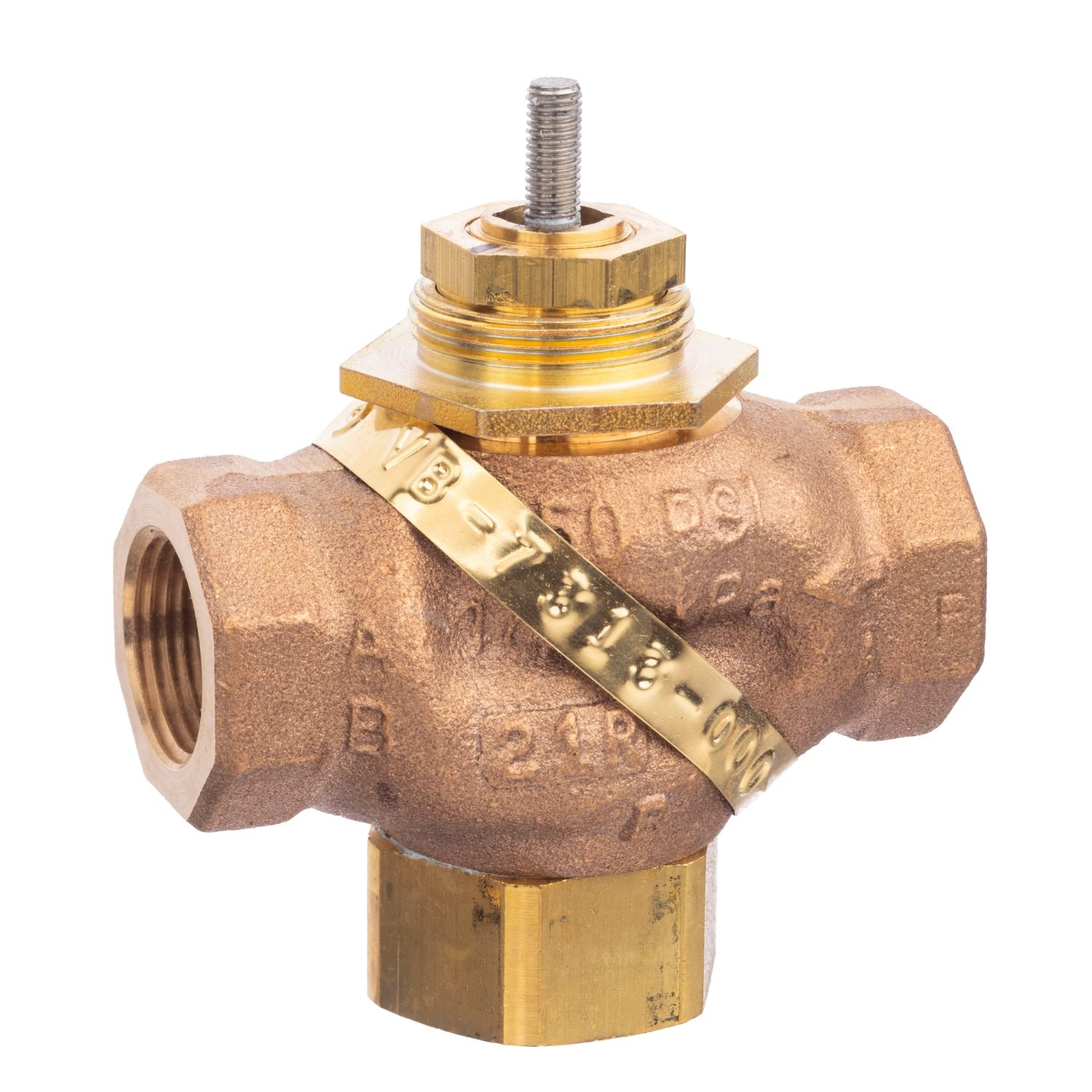

Venta, Globe Valve, 3/4 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 7.5 Cv

$680.09 INC GST

Qty:

Available for Shipping : 09-Apr-2025

Venta, Globe Valve, 3/4 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 7.5 Cv

Manufacturer: Schneider Electric

Product environmental

Product Page Link

Product Data Sheet

Venta, Globe Valve, 3/4 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 7.5 Cv

Attribute name	Attribute value
Main
Seating seal material	Port B:metal to metal, PTFE (polytetrafluoroethylene)
Seat leakage	Port B: Class III (0.1 %), Port A: Class V, Port A: Class IV (0.01 %)
Operating fluid temperature	-7-138 °C
Product or component type	valve
Targeted region	North America.
Body material	bronze
Seat material	Port B: bronze, Port A: bronze

Valve product range	Venta
Pressure allowable static	400 psig up to 150 °F decreasing to 321 psig at 281 °F
Valve type	globe
Packing material	spring-loaded PTFE/EPDM
Valve connection type	NPT
Flow characteristic	linear
Medium compatibility	Water, Glycol 60 %, Glycol 50 %, Glycol 30 %, Glycol 25 %
Trim material	brass
Stroke length	7/16 in
Stem material	stainless steel 316
Control valve rangeability	100:1 port A
Plug material	brass
Valve product series	VB-7300
Pipe size	20 mm
Flow coefficient	6.49 kvs, 7.5 cv
Stem flow action	Stem down flow A to AB
Valve configuration	3-Way Mixing
Stem movement	linear
Pressure fluid max delta P normal life	87 psi
Pressure class	ANSI class 250
Body size	20 mm (3/4 in)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Weight	1.361 kg
