SKU:

VB-7313-0-4-08

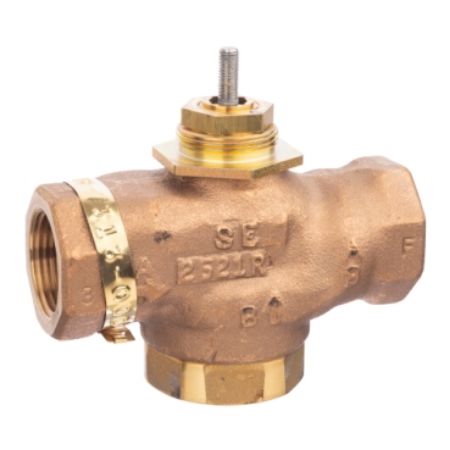

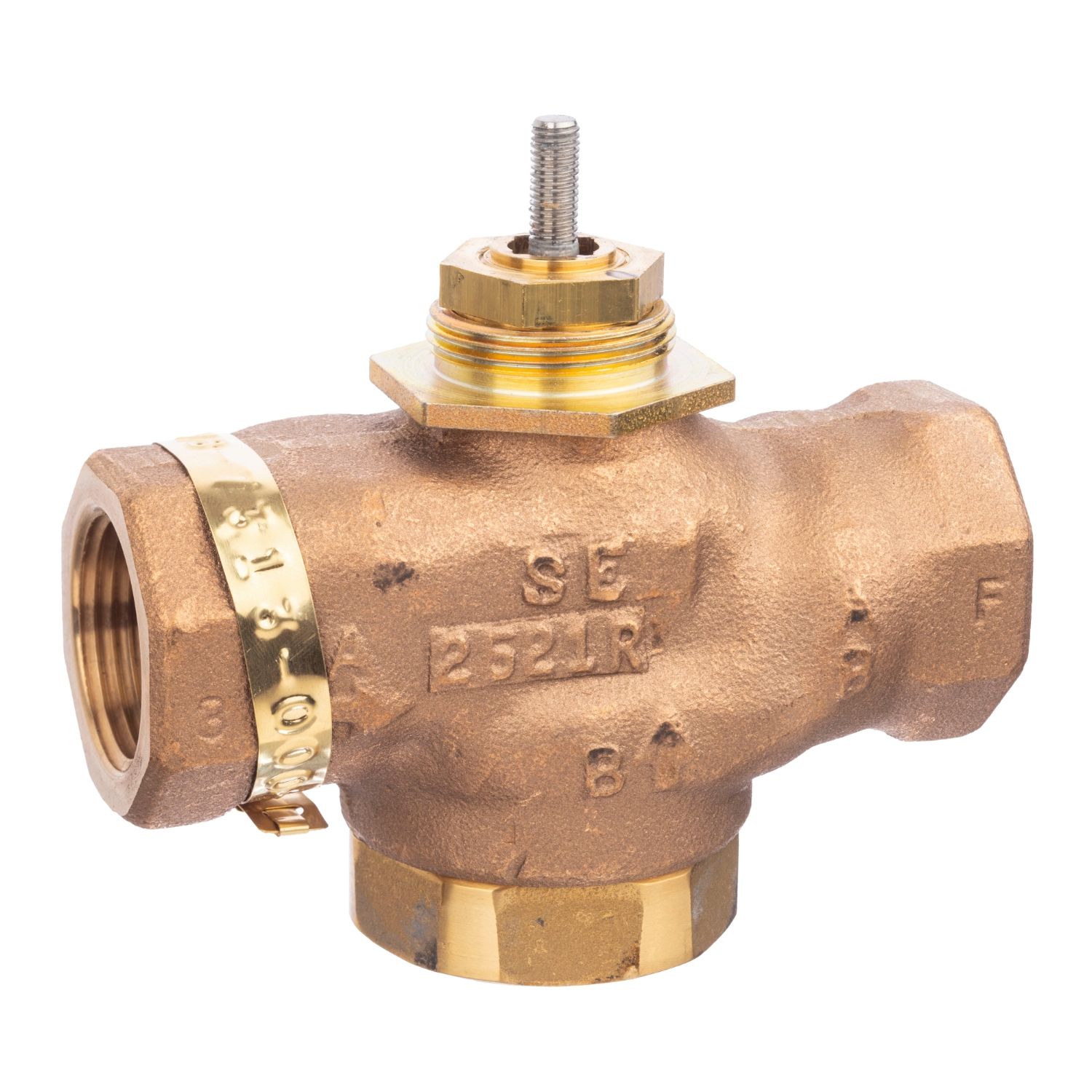

Venta, Globe Valve, 1 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 14 Cv

$551.80 INC GST

Qty:

Available for Shipping : 09-Apr-2025

Venta, Globe Valve, 1 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 14 Cv

Manufacturer: Schneider Electric

Product environmental

Product Page Link

Product Data Sheet

Venta, Globe Valve, 1 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 14 Cv

Attribute name	Attribute value
Main
Operating fluid temperature	-7-138 °C
Body material	bronze
Seating seal material	Port B:metal to metal, Port A:EPDM (ethylene propylene diene monomer)
Seat leakage	Port B: Class III (0.1 %), Port A: Class V, Port A: Class IV (0.01 %)
Product or component type	valve
Targeted region	North America.
Seat material	Port B: bronze, Port A: bronze

Valve product range	Venta
Pressure allowable static	400 psig up to 150 °F decreasing to 321 psig at 281 °F
Medium compatibility	Water, Glycol 60 %, Glycol 50 %, Glycol 30 %, Glycol 25 %
Control valve rangeability	100:1 port A
Plug material	brass
Valve product series	VB-7300
Flow coefficient	12.11 kvs, 14 cv
Stem flow action	Stem down flow A to AB
Valve configuration	3-Way Mixing
Stem movement	linear
Pressure fluid max delta P normal life	87 psi
Valve type	globe
Packing material	spring-loaded PTFE/EPDM
Valve connection type	NPT
Flow characteristic	linear
Trim material	brass
Stroke length	7/16 in
Stem material	stainless steel 316
Pipe size	1 in
Pressure class	ANSI class 250
Body size	25 mm (1 in)
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	15.9 cm
Package 1 Width	13.4 cm
Package 1 Length	6.3 cm
Package 1 Weight	2.495 kg
