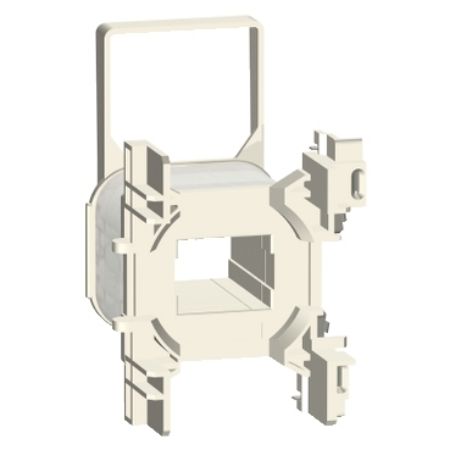

Picture of TeSys; TeSys Deca, contactor coil, LXD3, 415 V AC 50/60 Hz for 40… 65 A contactor
SKU:

LXD3N7

TeSys; TeSys Deca, contactor coil, LXD3, 415 V AC 50/60 Hz for 40… 65 A contactor

Old price: $255.75 INC GST
$161.12 INC GST
Available for Shipping : 20-Jan-2026
TeSys; TeSys Deca, contactor coil, LXD3, 415 V AC 50/60 Hz for 40… 65 A contactor
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LXD3
Product compatibility LC1DT60A, LC1DT80A, LC1D40A...D65A
Mechanical durability 6 Mcycles
Maximum operating rate 3600 cyc/h 60 °C
Inductance of closed circuit 35.6 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 415 V AC 50/60 Hz
Average resistance 635 Ohm at 20 °C
Complementary
Heat dissipation 4-5 W at 50/60 Hz
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight 0.07 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.800 cm
Package 1 Width 5.800 cm
Package 1 Length 9.800 cm
Package 1 Weight 160.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.120 kg
Unit Type of Package 3 3
Number of Units in Package 3 384
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 79.840 kg

Related products

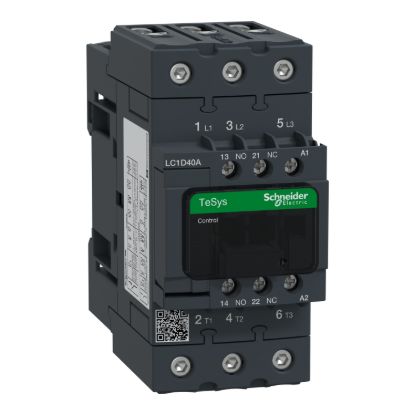

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 415VAC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 40A, 415VAC 50/60Hz coil

LC1D40AN7
$288.98 INC GST $458.70 INC GST
View Detail

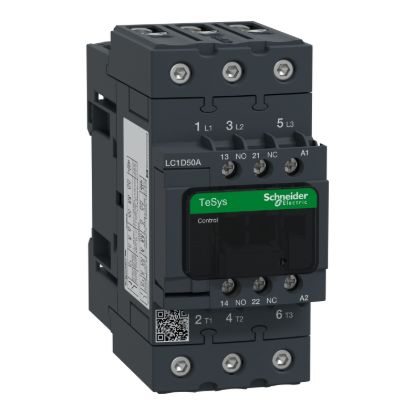

Picture of TeSys; TeSys Deca, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 50A, 415VAC 50/60Hz coil
