SKU:

LXD3V7

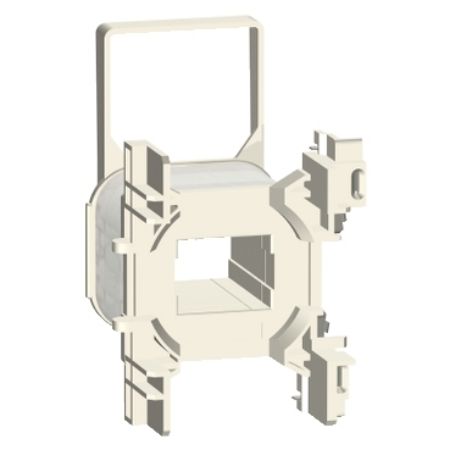

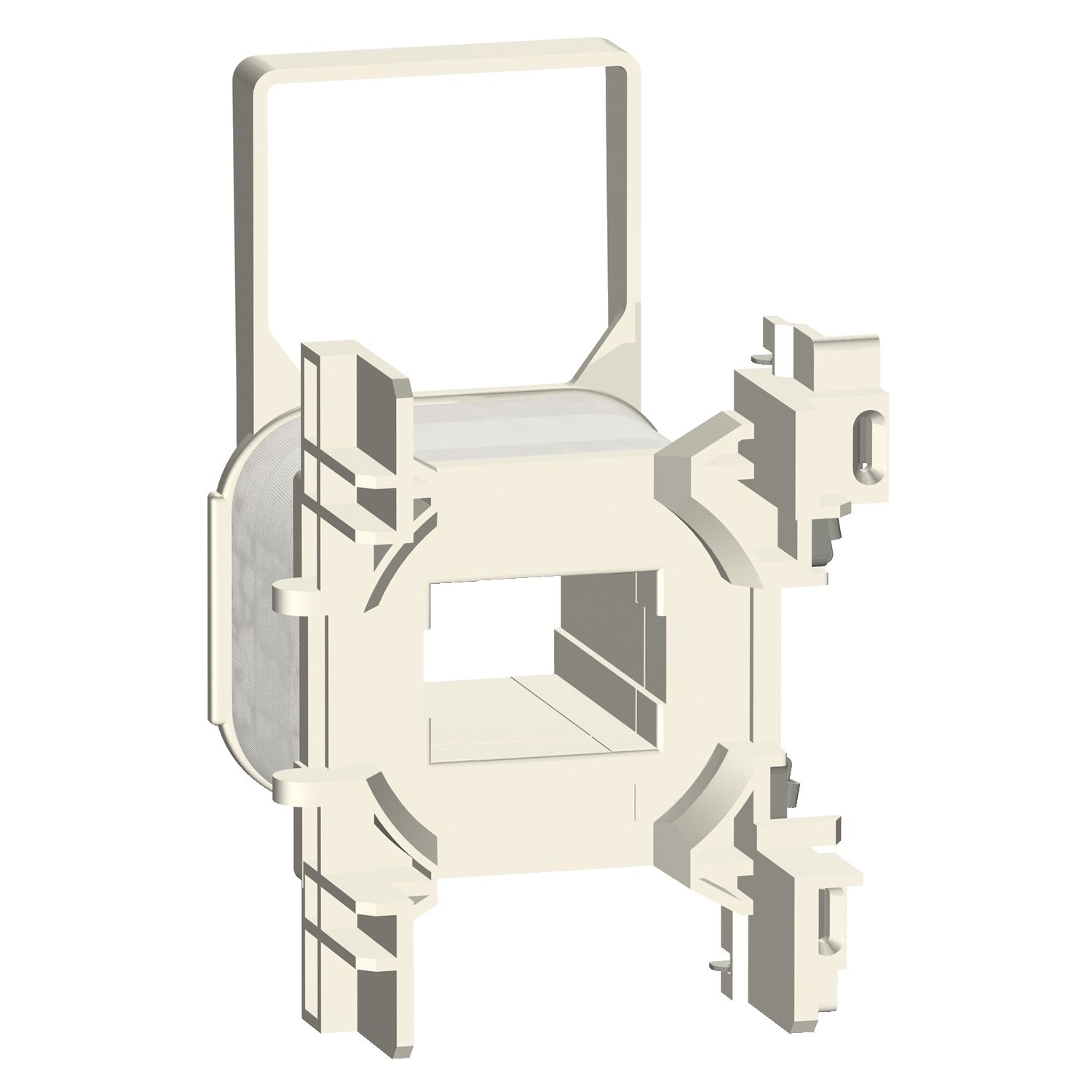

TeSys; TeSys Deca, contactor coil, LXD3, 400 V AC 50/60 Hz for 40… 65 A contactor

$92.42
Available for Shipping : 05-Jan-2025
TeSys; TeSys Deca, contactor coil, LXD3, 400 V AC 50/60 Hz for 40… 65 A contactor
Manufacturer: Schneider Electric

Products specifications

Attribute name Attribute value
Main
Device short name LXD3
Product compatibility LC1D40A...D65A, LC1DT80A, LC1DT60A
Mechanical durability 6 Mcycles
Maximum operating rate 3600 cyc/h 60 °C
Inductance of closed circuit 33.1 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 400 V AC 50/60 Hz
Average resistance 607 Ohm at 20 °C
Complementary
Heat dissipation 4-5 W at 50/60 Hz
Hold-in power consumption in VA 15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight 0.07 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.7 cm
Package 1 Width 5.7 cm
Package 1 Length 9.6 cm
Package 1 Weight 114.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 3.759 kg
