SKU:

LXD3R7

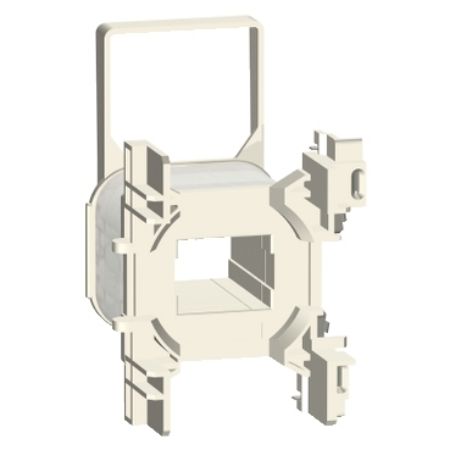

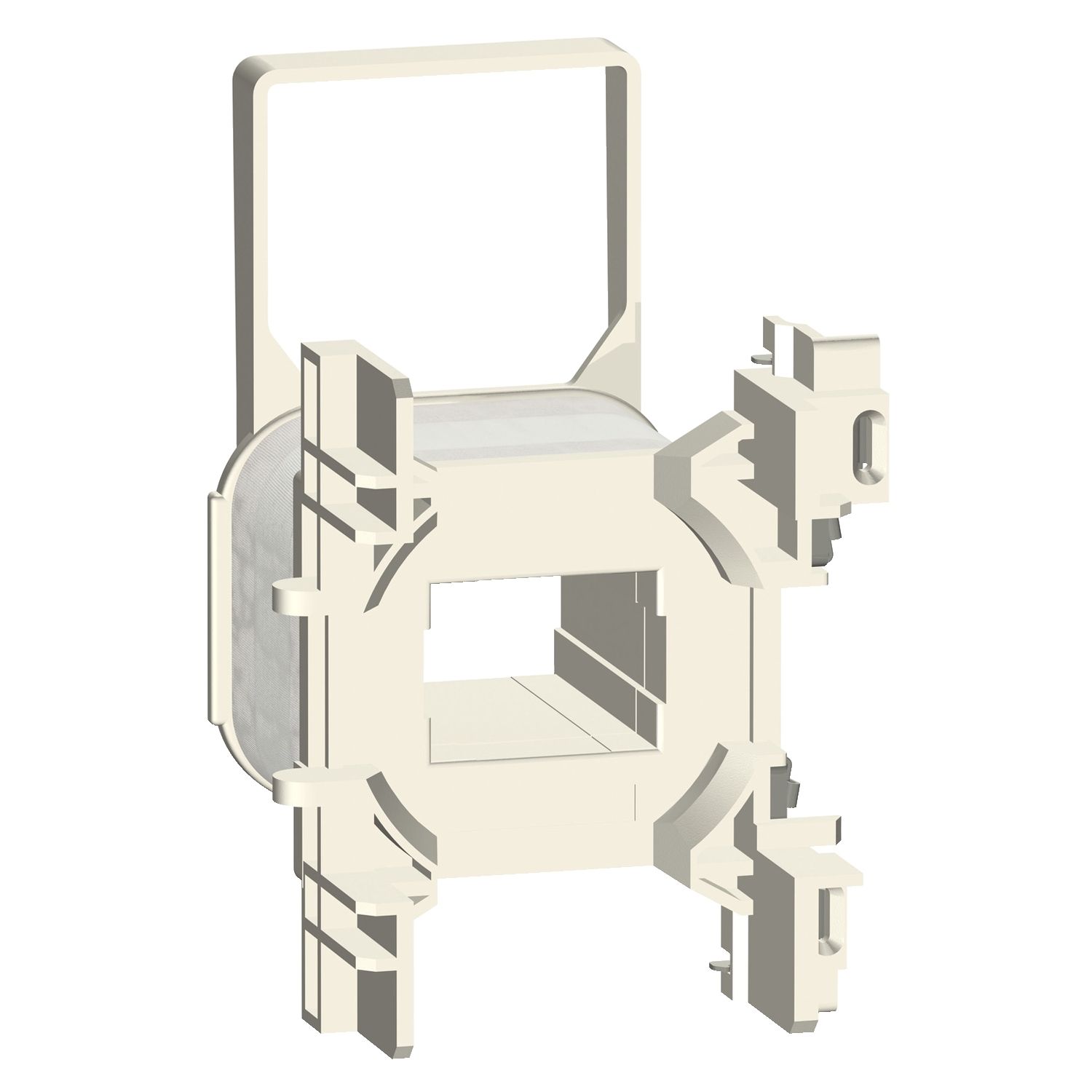

TeSys; TeSys Deca, contactor coil, LXD3, 440 V AC 50/60 Hz for 40… 65 A contactor

$92.42

Qty:

Available for Shipping : 29-Oct-2024

TeSys; TeSys Deca, contactor coil, LXD3, 440 V AC 50/60 Hz for 40… 65 A contactor

Manufacturer: Schneider Electric

Catalogue

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LXD3
Product compatibility	LC1D40A...D65A, LC1DT80A, LC1DT60A
Mechanical durability	6 Mcycles
Maximum operating rate	3600 cyc/h 60 °C
Inductance of closed circuit	40.1 H
Range	TeSys
Product or component type	contactor coil
Control circuit type	AC at 50/60 Hz
Range of product	TeSys Deca
[Uc] control circuit voltage	440 V AC 50/60 Hz
Average resistance	682 Ohm at 20 °C
Complementary
Heat dissipation	4-5 W at 50/60 Hz
Hold-in power consumption in VA	15-15 VA 50 Hz cos phi 0.3 (at 20 °C), 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology	without built-in suppressor module
Inrush power in VA	160-160 VA 50 Hz cos phi 0.75 (at 20 °C), 160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits	operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Environment
Net weight	0.07 kg
Ambient air temperature for operation	-5-60 °C
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	5.5 cm
Package 1 Width	5.5 cm
Package 1 Length	9.5 cm
Package 1 Weight	126.0 g
Unit Type of Package 2	2
Number of Units in Package 2	30
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	4.226 kg
